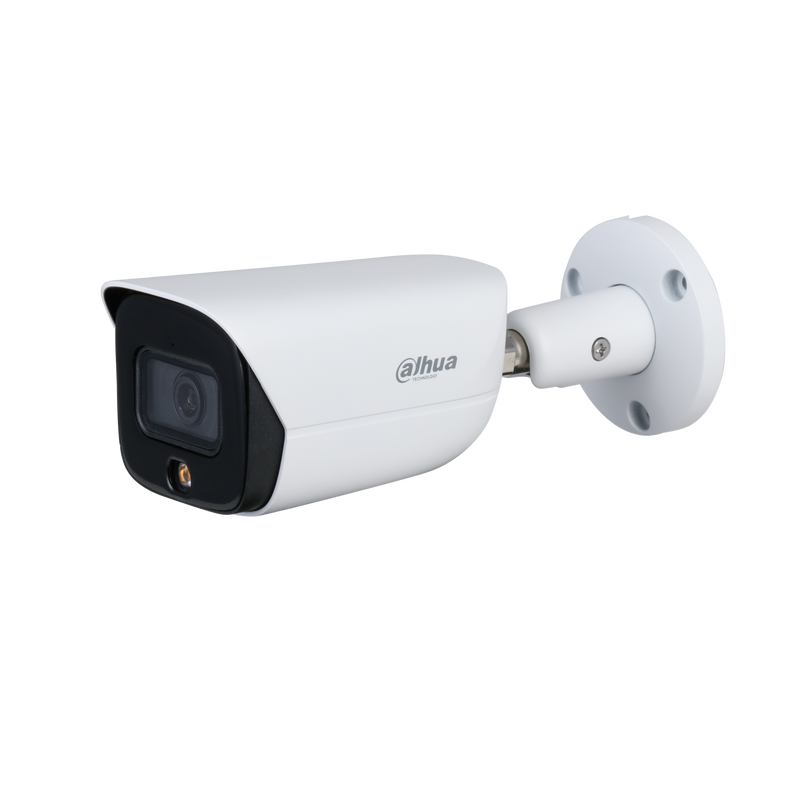

Dahua DH-IPC-HFW3449EP-AS-LED-0360B 4MP Full-color Warm LED Fixed-focal Bullet WizSense Network Camera
Dahua DH-IPC-HFW3449EP-AS-LED-0360B 4MP Full-color Warm LED Fixed-focal Bullet WizSense Network Camera
1 1
Dahua

Dahua DH-IPC-HFW3449EP-AS-LED-0360B 4MP Full-color Warm LED Fixed-focal Bullet WizSense Network Camera

SKU: DH-IPC-HFW3449EP-AS-LED-0360B/028M
Description

4MP full-colour WizSense fixed bullet with a warm-light LED for true colour footage at night, plus SMD Plus human and vehicle detection.

  • 1/2.7" 4MP CMOS, 2688 x 1520 at 25/30 fps
  • Fixed 3.6mm lens, F1.0
  • Warm-light LED full-colour night vision up to 30m
  • 120dB WDR and Starlight low light
  • SMD Plus with human and vehicle classification
  • Built-in microphone and 1-in/1-out alarm
  • IP67 metal housing; PoE or 12V DC; microSD up to 256GB
4MP Ultra HD Full Color Night Vision IP67 Weatherproof False Alarm Reduction Human/Vehicle Detection Built-in Microphone
$160.80 AUD $160.80 AUD $213.00 AUD
Sale 24.51% $52.20 AUD (24.51%)
Member Price$155.98 AUD
to save $4.82 AUD · Free to join
Business or bulk buyer? Apply for trade pricing →

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $760.80

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
0
0
0
0
0
Bundle total: $160.80
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DH-IPC-HFW3449EP-AS-LED-0360B/028M is

The Dahua DH-IPC-HFW3449EP-AS-LED is a 4MP WizSense fixed bullet built for sites where colour detail at night matters.

Instead of switching to monochrome infrared after dark, a built-in warm-light LED keeps the scene in full colour up to 30m, so clothing colour, vehicle colour and other identifying detail stay visible for review.

A 1/2.7-inch 4MP sensor delivers 2688 x 1520 at up to 30fps, with 120dB WDR and Starlight low-light imaging for mixed and backlit lighting.

WizSense deep-learning analytics add SMD Plus and perimeter protection (tripwire and intrusion) that classify humans and vehicles, filtering out animals, foliage and weather to keep alerts meaningful.

A built-in microphone records on-site audio, a 1-in/1-out alarm interface links external devices, and a microSD card up to 256GB allows edge recording.

The fixed 3.6mm lens suits driveways, entries and shopfronts; the IP67 metal housing and PoE or 12V DC power keep installation straightforward outdoors.

See it in action

What the DH-IPC-HFW3449EP-AS-LED-0360B/028M features actually look like

Representative illustrations of how each key feature performs in a real scene.

4MP Ultra HD — 4MP captures roughly twice the detail of standard 1080p.

4MP Ultra HD

4MP captures roughly twice the detail of standard 1080p.
Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d...

Full Color Night Vision

Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
False Alarm Reduction — Filtering helps separate real activity from harmless movement like rain, leaves or ...

False Alarm Reduction

Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HFW3449EP-AS-LED-0360B/028M specifications

- Sensor and resolution: 1/2.7" 4MP CMOS, 2688 x 1520 at up to 25/30 fps

- Full-colour night vision: a warm-light LED keeps footage in colour up to 30m in complete darkness, rather than monochrome infrared

- Lens: fixed 3.6mm, F1.0, giving a wide view for driveways, entries and shopfronts

- Imaging: 120dB WDR and Starlight low light hold detail in backlit and dim scenes

- Classification: SMD Plus and perimeter protection (tripwire, intrusion) with human and vehicle classification

- Audio and alarm: built-in microphone for on-site audio, plus a 1-in/1-out alarm interface for external devices

- Storage: microSD card up to 256GB for edge recording, plus NAS

- Durability and power: IP67 metal housing, -40C to +60C; PoE (802.3af) or 12V DC, under 8.4W

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua DH-IPC-HFW3449EP-AS-LED-0360B 4MP Full-color Warm LED Fixed-focal Bullet WizSense Network Camera
FeatureDetail
Image Sensor 1/2.7"4Megapixel progressive CMOS
Max. Resolution 2688 (H) ×1520 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100, 000 s
Min. Illumination 0.003 Lux @ F1.0
S/N Ratio > 56 dB
Day/Night Color/B/W
BLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Scene self-adaptation Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas

§ 04Why choose this

Built for the way you actually use the DH-IPC-HFW3449EP-AS-LED-0360B/028M

Colour evidence after dark

A warm-light LED keeps footage in full colour up to 30m, capturing clothing and vehicle colour that monochrome infrared cameras lose at night.

Alerts that focus on real threats

SMD Plus and perimeter protection classify humans and vehicles, cutting nuisance alerts from animals, foliage and weather.

Detail in difficult light

A 4MP Starlight sensor with 120dB WDR holds detail in dim corners and balances bright, backlit entries.

Simple, weatherproof install

An IP67 metal bullet with PoE or 12V DC and a fixed 3.6mm lens mounts quickly on walls and eaves outdoors.

§ 05Where it fits

Right at home in these scenarios

Home driveways and entries

Full-colour night footage captures visitors and vehicles in colour at the front of a property, with human and vehicle filtering to cut false alerts.

Retail shopfronts

Warm-light colour keeps the footpath and entry legible overnight, helping identify people and vehicles after trading hours.

Car parks and yards

A wide 3.6mm view with 30m colour coverage suits open bays and approaches, with SMD Plus filtering wind, animals and headlights.

Perimeter and gate lines

Tripwire and intrusion rules raise alerts when a person or vehicle crosses a defined boundary at fences and gates.

§ 06Setup

Installation & setup

01

Confirm the lens coverage

This is the fixed 3.6mm version. Check the angle suits the driveway, entry or area you want before mounting, as the lens cannot be changed later.

02

Power over PoE or 12V DC

Run a single PoE (802.3af) cable from a switch or NVR, or provide a 12V DC supply. The camera draws under 8.4W.

03

Mount on wall or eave

Fix the bullet to a wall or eave, using a Dahua junction box such as the PFA130-E where surface cabling or extra clearance is needed.

04

Set the warm light and AI rules

Configure the warm-light behaviour for the scene, then set SMD Plus and perimeter tripwire and intrusion rules with human and vehicle classification.

§ 07Questions

Frequently asked about the DH-IPC-HFW3449EP-AS-LED-0360B/028M

Q.01

Does this camera show colour footage at night without extra lighting?
Yes. It has a built-in warm-light LED that turns on in low light, keeping the scene in full colour up to 30m. The warm light gives more natural tones than harsh white light, so clothing and vehicle colours stay visible rather than the monochrome image a standard infrared camera produces.
Q.02

Does it have infrared as well as the warm light?
No. This is a full-colour model that uses a warm-light LED rather than infrared, so night footage is in colour up to about 30m. If you need discreet monochrome infrared that is not visible at the camera, choose an IR model such as the HFW3466EP-AS instead.
Q.03

What lens does it come with and what does it cover?
This unit is the 3.6mm fixed-lens version, giving a wide view suited to driveways, entries, car parks and shopfronts. The focal length is fixed and cannot be changed after manufacture, so confirm the 3.6mm coverage suits your scene, or ask about the 2.8mm variant for a wider angle.
Q.04

How does SMD Plus reduce false alarms?
SMD Plus uses deep learning to classify movement as human or vehicle before raising an alert, rather than flagging any pixel change. Animals, wind-blown foliage and insects near the lens are filtered out, so notifications stay focused on people and vehicles that matter.
Q.05

Can it record without an NVR?
Yes. It takes a microSD card up to 256GB for local recording, set to continuous or event-only. That suits a standalone single-camera position or a network failover backup alongside a Dahua NVR.
Q.06

Does the built-in microphone allow two-way talk?
The built-in microphone records on-site audio one way only. It does not have a built-in speaker, so it does not provide two-way talk. If you need to speak through the camera, look at a TiOC model with a built-in speaker, such as the HFW3549T1P-AS-PV.
Q.07

How is it powered?
It runs on PoE (802.3af) over a single Cat5e or Cat6 cable from a PoE switch or NVR, or on 12V DC where PoE is not available. Power draw is under 8.4W, well within a standard PoE budget.
Q.08

Is it suitable for outdoor mounting in Australian conditions?
Yes. The metal housing is IP67-rated against dust and water across a -40C to +60C range, suiting exposed walls, eaves and fascia in rain, heat and humidity. Mount it under an eave where practical to reduce direct weather on the lens.

§ 09Bundles

Recommended packages

02

PoE power and cabling

Distribute power and data with a Dahua PoE switch and quality Cat6 cable for a single-cable run per camera.

03

Mounting

For surface cabling or extra clearance, add a Dahua PFA130-E junction box; confirm it suits this bullet before ordering.
