Dahua 10 x 8MP DH-IPC-HDW3866EMP-S-AUS 4K Turret CCTV Kit + 16CH AI NVR + 4TB HDD, WizSense

SKU: DH-IPC-HDW3866EMP-S-AUS
Description

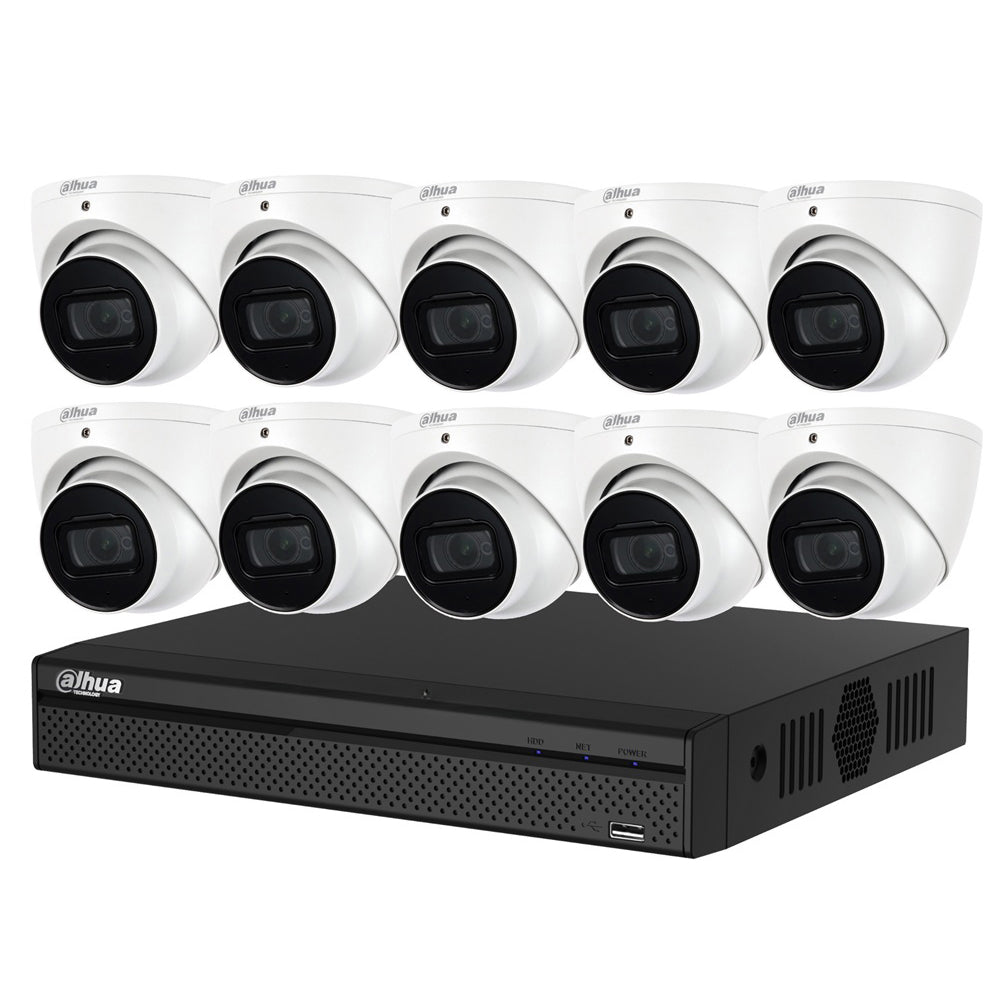

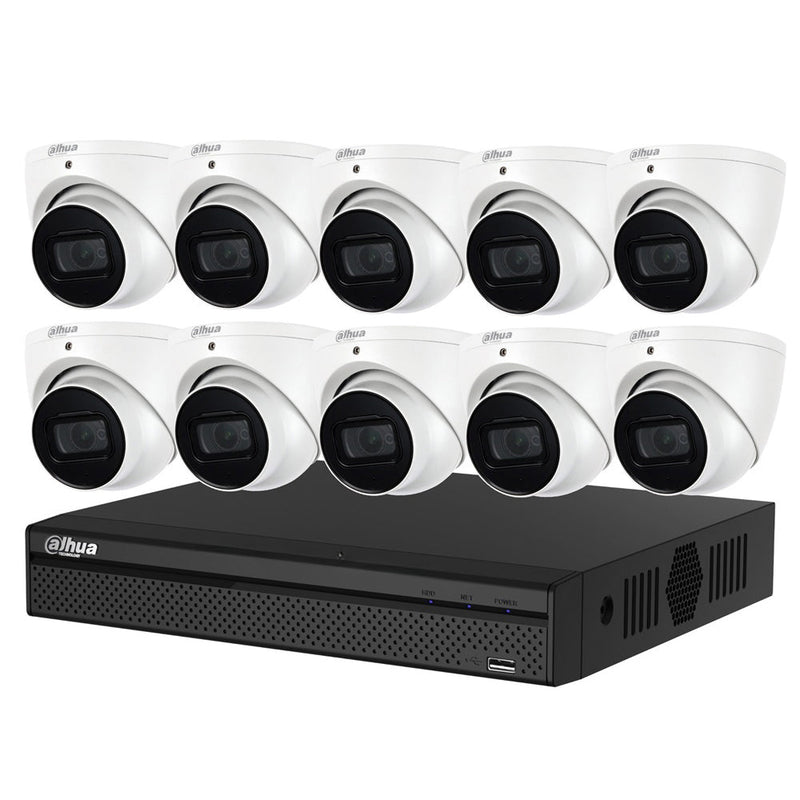

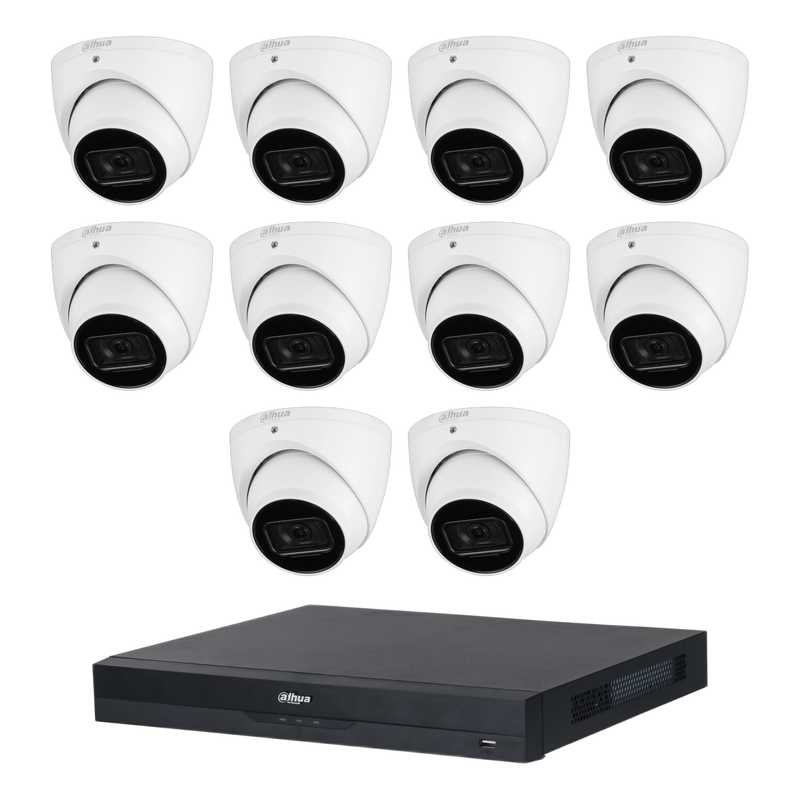

1 x DHI-NVR4216-16P-AI/ANZ 16CH PoE NVR with 4TB HDD installed,
10 x DH-IPC-HDW3866EMP-S-AUS 8MP turret cameras.
10 cameras 8MP Ultra HD 30m IR Night Vision IP67 Weatherproof Human/Vehicle Detection Built-in Microphone 16 x POE PORTS
$2,786.60 AUD $2,786.60 AUD $3,175.00 AUD
Sale 12.23% $388.40 AUD (12.23%)
Member Sign in to save $55.73 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Customize this kit Kit price $2,786.60
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 10 × Dahua DH-IPC-HDW3866EMP-S-AUS 8MP 4K WizSense Turret Camera 2.8mm, SMD 4.0, 30m IR, Built-in Mic
  • 1 × Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder (16ch)
  • 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
Add extra cameras Dahua DH-IPC-HDW3866EMP-S-AUS 8MP 4K WizSense Turret Camera 2.8mm, SMD 4.0, 30m IR, Built-in Mic · Max 16 · Each extra camera uses one NVR channel
+$0.00
Hard Drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7 Base: 4TB · 4TB HDD – WD Purple / Seagate Surveil...
Add accessories
1
1
1
1
1
1
Price breakdown:
  • Dahua 10 x 8MP DH-IPC-HDW3866EMP-S-AU... $2,786.60
Total: $2,786.60
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DH-IPC-HDW3866EMP-S-AUS is

Lens options: 2.8mm focal length.

Color options: White or Black.

Note: Please indicate your choice in your order message.

This 10-camera 4K kit pairs ten DH-IPC-HDW3866EMP-S-AUS 8MP turrets with the 16-channel DHI-NVR4216-16P-AI/ANZ recorder and a pre-installed 4TB surveillance drive — recording starts as soon as the cameras are plugged in.

Ten cameras covers properties a single recorder usually can't: house plus outbuildings, business floor plus yard, or a small complex's shared areas.

At 8MP every view holds enough detail to zoom into recorded footage and still read it — faces identify to about 8.8 metres, and SMD 4.0 classifies humans and vehicles so the recorder only alerts on what matters.

The 16CH NVR keeps six spare PoE channels — gates, sheds and future additions plug straight in.

Ten 4K streams fill the 4TB drive in about a week of continuous recording, so plan on motion-only recording or a larger drive from day one via the kit customiser on this page.

See it in action

What the DH-IPC-HDW3866EMP-S-AUS features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2)
8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2)

8MP Ultra HD

8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2)
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2)

30m IR Night Vision

Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HDW3866EMP-S-AUS specifications

- 10 x 8MP 4K WizSense Turrets: 3840 × 2160 sensors — identify-grade detail to 8.8 metres and footage you can zoom into afterwards.
- 16CH AI NVR: DHI-NVR4216-16P-AI/ANZ with PoE on every channel — six channels spare for future cameras.
- 4TB Surveillance HDD pre-installed: about a week of continuous 4K footage from ten cameras — upgrade the drive for longer retention, or use motion-only recording.
- SMD 4.0 + Quick Pick: the NVR's AI search pulls every human or vehicle event from a day of recordings in one pass.
- Perimeter Protection: tripwire and intrusion zones with human/vehicle classification, configured per camera.
- IP67 Metal Housings: rated from -40°C to +60°C for exposed Australian mounting positions.

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua 10 x 8MP DH-IPC-HDW3866EMP-S-AUS 4K Turret CCTV Kit + 16CH AI NVR + 4TB HDD, WizSense
FeatureDetail
Image Sensor 1/2.8" CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 128 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.007 lux@F1.4 (Color, 30 IRE); 0.0007 lux@F1.4 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio > 56 dB
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
AFSA Yes
Image Rotation 0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas

§ 04Why choose this

Built for the way you actually use the DH-IPC-HDW3866EMP-S-AUS

Everything in one box, recording day one

Cameras, AI recorder and a pre-installed 4TB drive arrive matched and ready — no compatibility guesswork, no separate HDD purchase, no subscriptions.

Alerts that are worth opening

SMD 4.0 classifies humans and vehicles before notifying you, so the 2am alert is a person in your yard — not a possum, headlights or rain.

Six channels of growing room

The 16CH NVR runs all ten cameras with six PoE channels spare — the front gate, the back shed and the granny flat can join the system without touching the recorder.

Find footage in seconds

With ten channels recording, scrubbing timelines is hopeless — Quick Pick on the AI NVR pulls every human and vehicle event from all cameras in one search.

§ 05Where it fits

Right at home in these scenarios

House plus outbuildings

Cover the home's approaches and reach the carport, workshop and shed on the same recorder — with channels spare for the front gate later.

Business floor and yard

Entries, counter, storeroom, loading area and the yard between buildings — one recorder, one timeline, one app for the whole site, all in zoomable 4K.

Small strata or office block

Shared entries, car park, lifts lobby and bin areas — ten cameras covers the common spaces, and six spare channels handle future committee requests.

Farm homestead

House, machinery shed, fuel store and driveway on one system — SMD 4.0 ignores stock and wildlife while flagging people and vehicles day and night.

§ 06Setup

Installation & setup

01

What's in the Box

1. Dahua DH-IPC-HDW3866EMP-S-AUS Camera × 10 2. DHI-NVR4216-16P-AI/ANZ NVR with 4TB HDD installed × 1 3. NVR Power Adapter × 1 4. Quick Start Guide × 1

02

Installation Requirements

1. Each camera needs one Ethernet run back to the NVR — the PoE ports carry power and video together, up to 100m per run. 2. Mount on a solid wall or eave; under-eave positions keep lenses clear of direct rain and afternoon sun. 3. Connect the NVR to your router with a short Ethernet patch lead for remote viewing — works on all NBN connection types.

03

App Setup

1. Download the DMSS app, then scan the QR code shown on the NVR screen (Main Menu → Network → P2P). 2. Enable push notifications in DMSS so SMD alerts reach your phone. 3. Fine-tune detection zones per camera through the NVR or camera web interface.

§ 07Questions

Frequently asked about the DH-IPC-HDW3866EMP-S-AUS

Q.01

Is this kit ready to use out of the box?
Yes — the 4TB drive comes installed and formatted, and the PoE ports power all ten cameras. Mount the cameras, run one Ethernet line from each to the NVR, and recording starts automatically at default settings.
Q.02

How long will the 4TB drive keep footage?
About a week of continuous recording from ten 4K cameras (roughly 60GB per camera per day) — or several weeks on motion-only recording. The NVR overwrites the oldest footage automatically. On a ten-camera 4K system, configure a larger drive with the kit customiser before checkout.
Q.03

Can I add more cameras later?
Yes — the 16CH NVR has six spare PoE channels, and any current Dahua PoE camera plugs straight in. To keep AI features consistent, the same HDW3866 turret is the natural choice — you can also add cameras before checkout with the kit customiser.
Q.04

How far can the cameras see at night?
Each turret records colour down to 0.007 lux, then switches to infrared with a 30-metre range in full darkness. A note unique to 4K: eight million pixels share the available light, so night images run slightly dimmer than 6MP models — a sensor light at key spots keeps colour and detail up.
Q.05

Can the cameras identify faces and number plates?
With the 2.8mm lens, faces are reliably identifiable to about 8.8 metres — two metres further than the 6MP equivalent. Number plates still need daylight or good lighting: glare and headlights work against any camera at night.
Q.06

Should I choose a WizSense camera or a TiOC camera?
Both run the same Dahua AI — human and vehicle classification, SMD 4.0 and perimeter protection. The difference is how they respond. This kit's WizSense IR turrets record quietly: colour in low light, infrared in darkness. A TiOC camera such as the HDW3849 actively intervenes — when someone enters a detection zone it switches on a white light to record the event in full colour, can flash red and blue strobes, sound a siren, and lets you talk through its speaker from the DMSS app. Pick TiOC where you want intruders confronted; pick this kit's quieter turrets where you just want solid evidence and alerts.
Q.07

What's the difference between the 3866, the 3666 and the 3849?
All three are 3-series WizSense turrets with 30m night range. The 3866 (the cameras in this kit) is the 8MP detail pick — identify to 8.8 metres, zoomable 4K footage. The 3666 is the 6MP value pick, slightly stronger in very low light. The 3849 is the 8MP TiOC: an F1.0 lens (0.004 lux), a white light that captures detected events in full colour, plus strobes, siren and two-way talk — the deterrence pick at a higher price.
Q.08

What does the AI NVR actually do beyond recording?
Three things: it classifies SMD alerts so only humans and vehicles notify you, Quick Pick search pulls every person or vehicle event from hours of footage in one pass, and it brings the cameras' tripwire and intrusion alerts into one timeline. It also powers all ten cameras over its PoE ports.
Q.09

Does SMD 4.0 really reduce false alarms from animals and weather?
Yes. SMD 4.0 uses AI to distinguish humans and vehicles from small animals, tree movement and rain, and AI SSA re-tunes the image in rain, fog and backlight, so far fewer junk notifications get through than basic motion detection.
Q.10

Do I need to pay any subscription?
No. Recording, AI detection and remote viewing through the DMSS app all run on your own hardware — no monthly fees and no cloud account requirement.
Q.11

Can I view the cameras on my phone away from home?
Yes — enable P2P on the NVR, scan the QR code in the DMSS app, and live view plus playback work over the internet. The system also works fully offline if you prefer no outside access.
Q.12

Will it work without internet?
Yes. Cameras record to the NVR on a closed local network. Internet is only needed for remote viewing and push notifications.
Q.13

Is a Dahua system safe to use in Australia?
Dahua equipment was removed from federal government sites in 2023 as a precaution, and there is no restriction on private or business use. This kit records locally to its own NVR, needs no cloud account, and supports HTTPS and encrypted firmware. On an isolated network it still records normally.
Q.14

What does the 3-year warranty cover?
Defects in the cameras and NVR for 3 years. The hard drive carries its own manufacturer warranty terms, and installation labour is not covered.

§ 08In motion

Dahua 3866 Camera Review Video

Dahua 3866 Camera Review Video

§ 09Bundles

Recommended packages

01

Recording continuously?

Ten 4K streams fill 4TB in about a week. Upgrade to a larger surveillance drive with the kit customiser before checkout — on this kit it's the first thing to configure.

02

Spreading cameras wide?

PoE runs max out at 100m per camera — for sheds and gates beyond that, plan a midpoint switch or ask about long-reach options before ordering.

03

Add mounts where walls don't suit

The PFB204W wall mount and PFA130-E junction box handle pole, post and fascia installs where a straight wall mount doesn't fit.
