Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR + 4TB HDD

Dahua

Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR + 4TB HDD

Name: Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR + 4TB HDD
Brand: Dahua
Price: 2071.45 AUD
Availability: InStock

SKU: DH-IPC-HDW3666EMP-S-AUS

Description

1 x DHI-NVR4216-16P-AI/ANZ with 4TB HDD,
10 x DH-IPC-HDW3666EMP-S-AUS.

$2,071.45 AUD ~~$2,705.00 AUD~~

Sale 23.42% $633.55 AUD (23.42%)

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock

Make it yours Customize this kit Add cameras, upgrade NVR or HDD 10 × Dahua DH-IPC-HDW3666EMP-S-AUS 6MP Turret Network Camera 30m IR 2.8mm with SMD 4.0, Wizsense · 16ch NVR · 4TB HDD Kit price $2,071.45

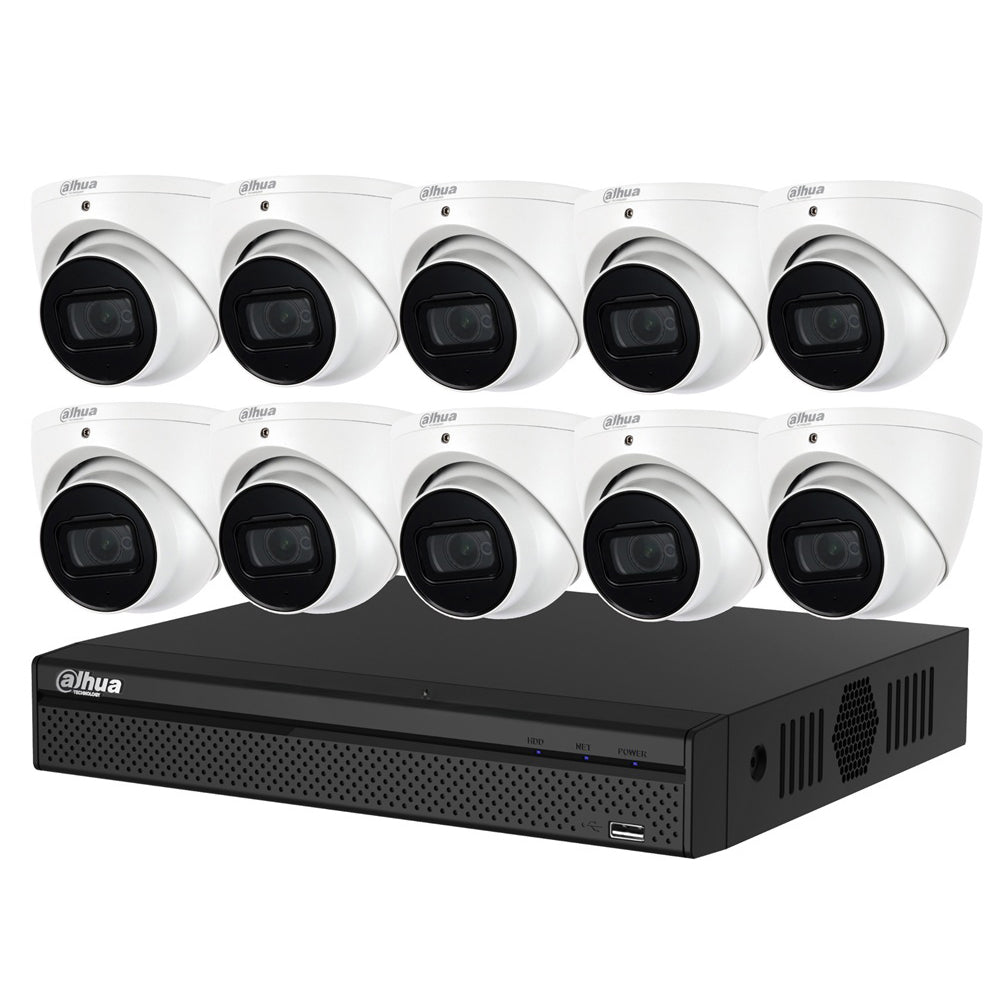

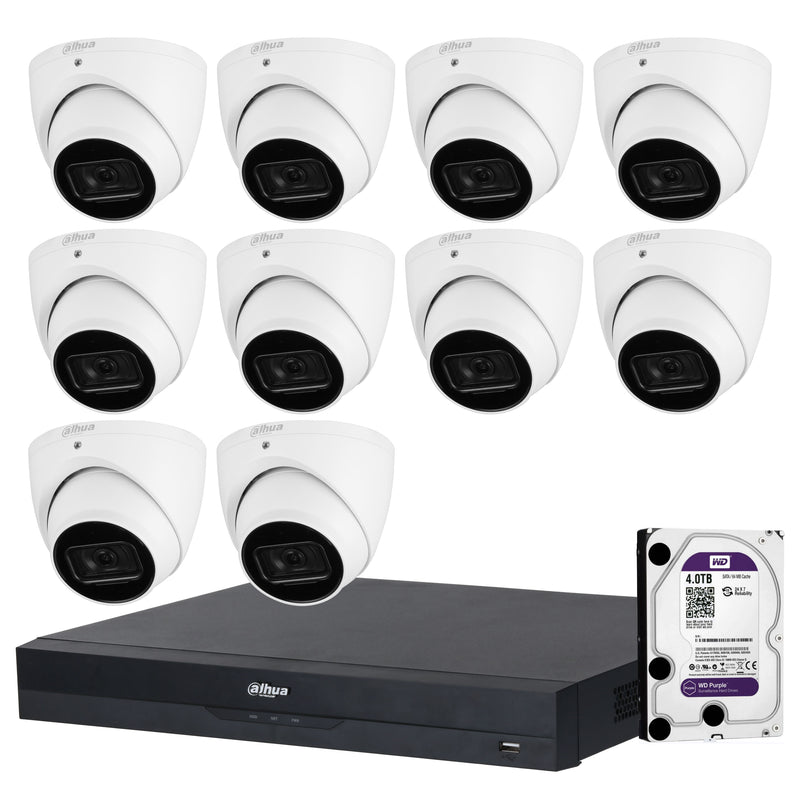

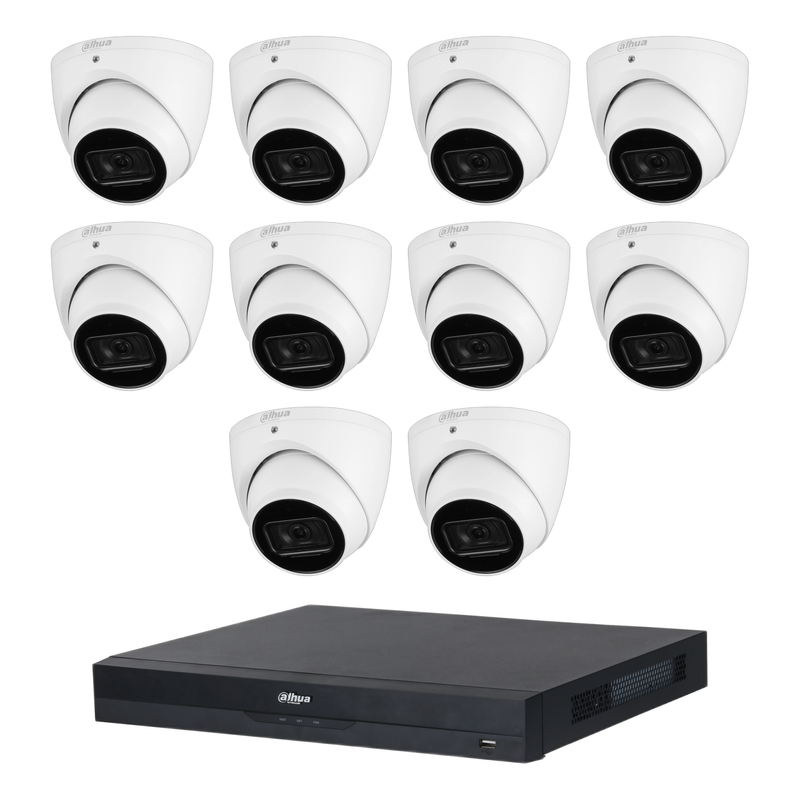

This kit includes:

10 × Dahua DH-IPC-HDW3666EMP-S-AUS 6MP Turret Network Camera 30m IR 2.8mm with SMD 4.0, Wizsense
1 × Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder (16ch)
1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)

Add extra cameras Dahua DH-IPC-HDW3666EMP-S-AUS 6MP Turret Network Camera 30m IR 2.8mm with SMD 4.0, Wizsense · max 16

+$0.00

Hard Drive Base: 4TB · 4TB HDD – WD Purple / Seagate Surveil...

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB 4TB HDD – WD Purple / Seagate Surveillance HDD ... Base (included)

6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB 6TB HDD – WD Purple / Seagate Surveillance HDD ... +$176.00

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB 8TB HDD – Purple / Skyhawk Surveillance Hard Dr... +$275.70

10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB 10TB HDD – Purple Surveillance Hard Drive for D... +$454.85

Notes for warehouse (optional)

3-Year Warranty

Warranty on all cameras

Free Shipping

On orders over $300

30-Day Returns

Easy returns for unopened items

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What this product is

Lens options: 2.8mm focal length.
Color options: White or Black.
Note: Please indicate your choice in your order message.

The Dahua DHI-NVR4216-16P-AI/ANZ surveillance package delivers WizSense AI solutions with deep learning for high-accuracy detection of humans and vehicles. This CCTV kit integrates Starlight technology for clear night vision up to 50m and SMD Plus to reduce false alarms, providing comprehensive security monitoring.

§ 02Engineering

Technical specifications

- 6MP High-Definition Cameras: Feature 6MP resolution output up to 20fps and Starlight Technology for enhanced low-light clarity, with H.265 efficient compression.
- SMD 4.0 Smart Detection: Accurately identifies humans and vehicles while filtering animals to reduce false alarms and provide data like clothing/vehicle color.
- Built-In Infrared Vision: IR LEDs illuminate distances up to 50 meters for consistent night monitoring.
- Advanced Imaging Technologies: Include WDR, 3D DNR, and BLC to handle challenging lighting and weather conditions.
- IP67 Weather Resistance: Rated for durability in all outdoor environments.
- Perimeter Protection Tools: Enable digital boundary drawing on the NVR to trigger alerts for intrusion or tripwire events.
- Built-In Audio: Microphone supports audio capture to enhance situational awareness.
- MicroSD Local Storage: Accommodates up to 256GB for on-camera recording.
- PoE Power Supply: Simplifies installation with Power over Ethernet support.
- 16CH AI NVR: Manages multiple cameras with features like intelligent detection, no HDD pre-installed.

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR + 4TB HDD
Feature	Detail
Image Sensor	1/2.7" CMOS
Max. Resolution	3072 (H) × 2048 (V)
ROM	128 MB
RAM	1 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.005 lux@F1.4 (Color, 30 IRE) \| 0.0005 lux@F1.4 (B/W, 30 IRE) \| 0 lux (Illuminator on)
S/N Ratio	>56 dB
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation (SSA)	Yes
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Defog	Yes
AFSA	Yes
Image Rotation	0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)
Mirror	Yes
Privacy Masking	4 areas

Lens & Distance

Lens & Distance — Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR + 4TB HDD
Feature	Detail
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm; 6 mm
Max. Aperture	F1.4
Field of View	2.8 mm:Horizontal: 97°; Vertical: 71°; Diagonal:129° \| 3.6 mm:Horizontal: 80°; Vertical: 57°; Diagonal:107° \| 6 mm:Horizontal: 50°; Vertical: 37°; Diagonal: 64°
Iris Control	Fixed
Close Focus Distance	2.8 mm: 1.1 m (3.61 ft) \| 3.6 mm: 1.7 m (18.37 ft) \| 6 mm: 3.3 m (10.83 ft)
DORI Distance	2.8 mm: Detect 63.6 m (208.66 ft); Observe 25.4 m (83.33 ft); Recognize 12.7 m (41.67 ft); Identify 6.4 m (21.00 ft) \| 3.6 mm: Detect 85.4 m (280.18 ft); Observe 34.2 m (112.20 ft); Recognize 17.1 m (56.10 ft); Identify 8.5 m (27.89 ft) \| 6 mm: Detect 124.0 m (406.82 ft); Observe 49.6 m (162.73 ft); Recognize 24.8 m (81.36 ft); Identify 12.4 m (40.68 ft)
Pan/Tilt/Rotation Range	Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

Night Vision

Night Vision — Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR + 4TB HDD
Feature	Detail
Illumination Distance	50 m (164.04 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	2 (IR LED)

Video

Video — Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR + 4TB HDD
Feature	Detail
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+ \| Smart H.264+
AI Coding	AI H.265 \| AI H.264
Video Frame Rate	Main stream: 3072 × 2048 @ (1–25/30) fps \| Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) \| Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
Stream Capability	3 streams
Resolution	6M (3072 × 2048); 5M (2592 x 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 3 kbps–8192 kbps \| H.265: 3 kbps–8192 kbps

Audio

Audio — Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR + 4TB HDD
Feature	Detail
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723

AI & Deep Learning

AI & Deep Learning — Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR + 4TB HDD
Feature	Detail
IVS (Perimeter Protection)	Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
AI-SSA	Yes
Quick Pick	With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Network & Storage

Network & Storage — Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR + 4TB HDD
Feature	Detail
SDK and API	Yes
Network Protocol	IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security	Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host	20 (Total bandwidth: 64 M)
Storage	FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser	IE:IE11; Chrome; Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Client	iOS; Android

Event & Alarm

Event & Alarm — Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR + 4TB HDD
Feature	Detail
Alarm Event	No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception

Interface

Interface — Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR + 4TB HDD
Feature	Detail
Network Port	RJ-45 (10/100 Base-T)

General & Environment

General & Environment — Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR + 4TB HDD
Feature	Detail
Power Supply	12 VDC/PoE (802.3af)
Power Consumption	Basic: 4.3 W (12 VDC); 4.9 W (PoE) \| Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE)
Operating Temperature	–40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% (RH)
Storage Temperature	–40 °C to +60 °C (–40 °F to 140 °F)
Protection	IP67
Casing	Metal
Product Dimensions	93.6 mm × Φ106.0 mm (3.69" × Φ4.17")
Net Weight	500 g (1.10 lb)
Gross Weight	770 g (1.70 lb)
Certifications	CE-LVD: EN62368-1 \| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU \| FCC: 47 CFR FCC Part 15, Subpart B \| UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

§ 08In motion

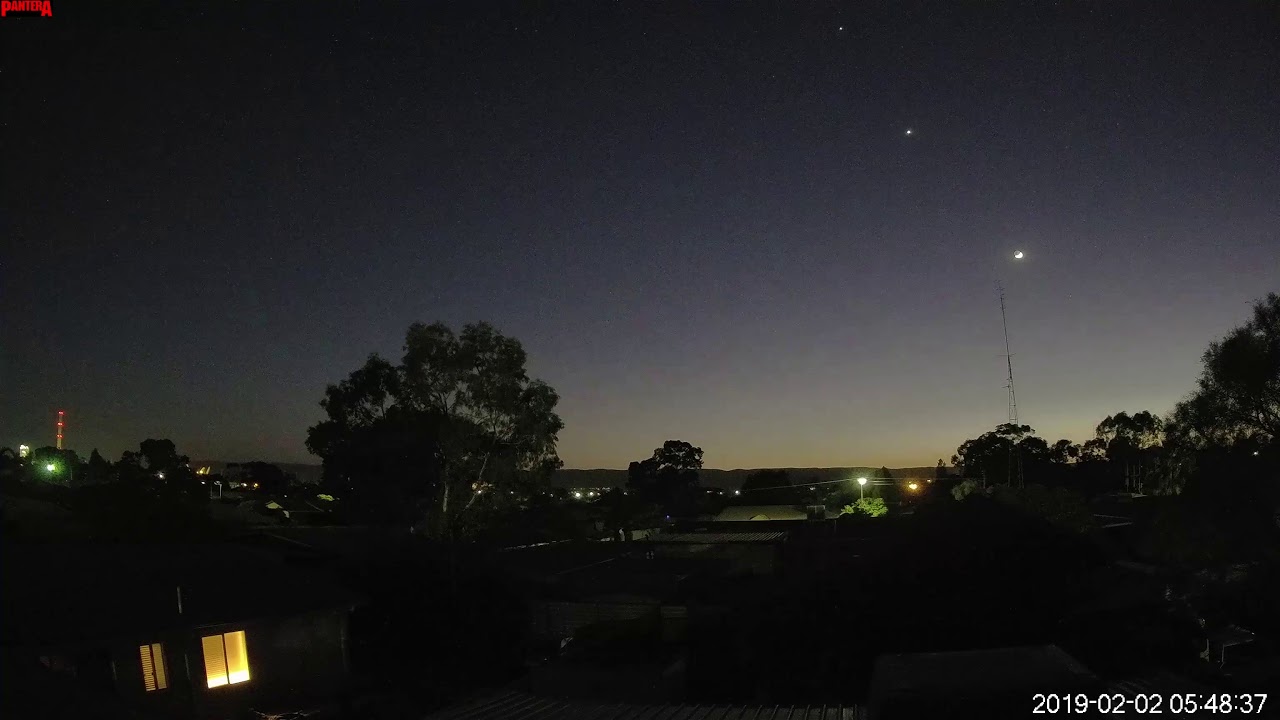

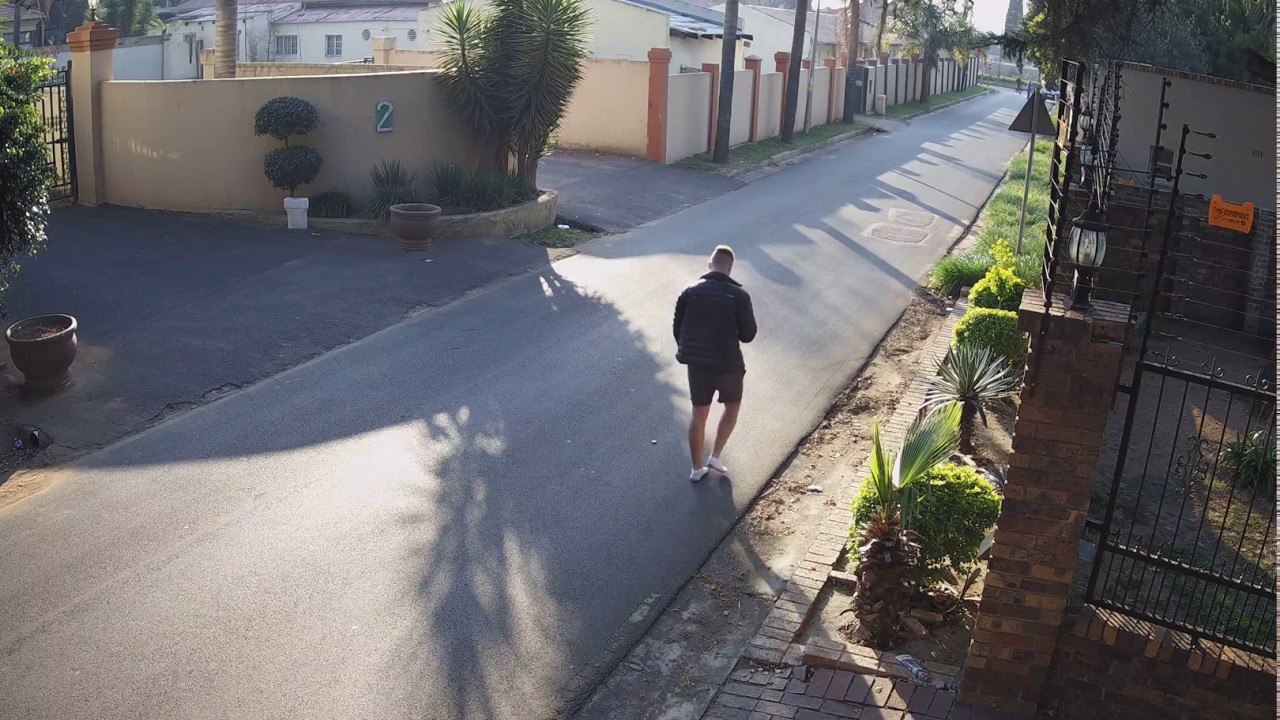

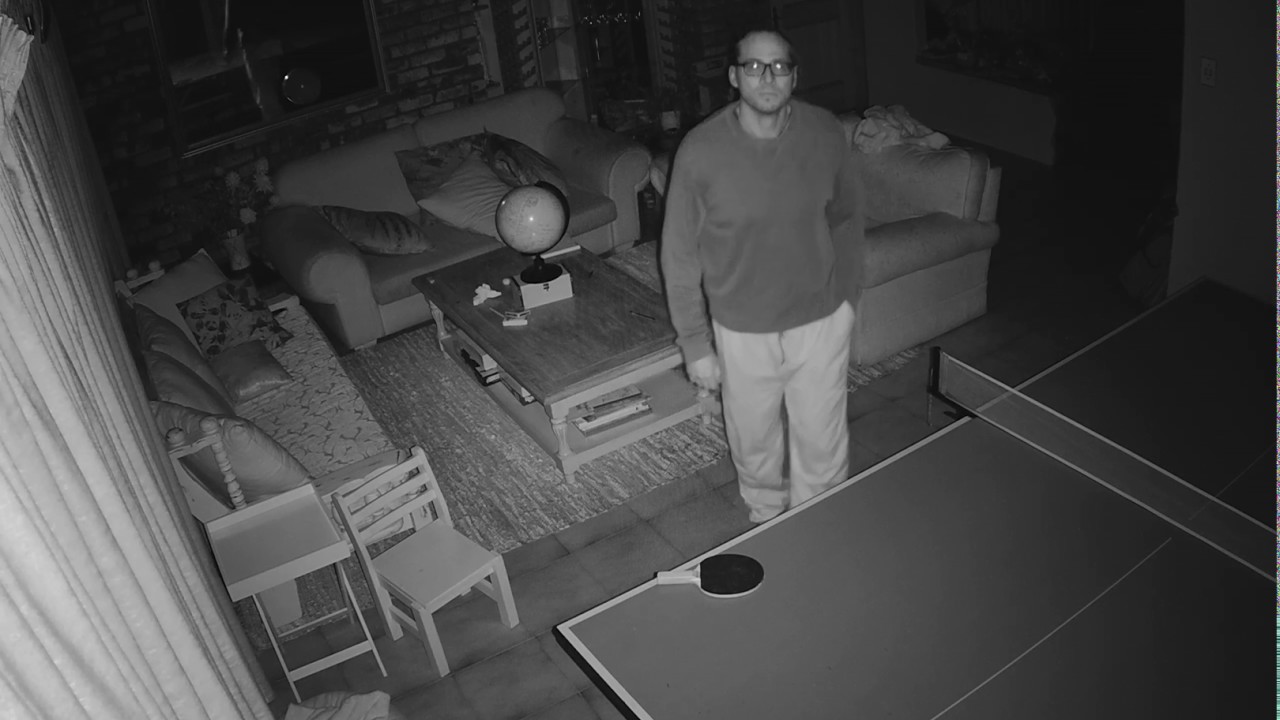

Dahua 10 x 6MP DH-IPC-HDW3666EMP-S-AUS SMD 4.0 AI Turret Security Kit 50m IR 2.8mm with SMD + 16CH NVR + 4TB HDD - 产品视频 1
