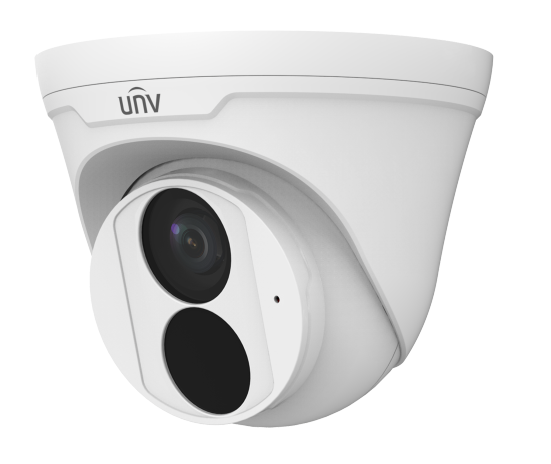

Uniview IPC3618LE-ADF28K-H 8MP EasyStar IR Turret Camera
SKU: IPC3618LE-ADF28K-H
Description
The Uniview IPC3618LE-ADF28K-H is an 8 MP outdoor turret camera for a home or small shop: 4K detail on a plain infrared camera, with EasyStar low-light processing to keep colour longer into the evening.
What you get
- 1 × IPC3618LE-ADF28K-H turret camera with a fixed 2.8 mm lens
You'll also need
- A PoE recorder or PoE switch, or a 12 V DC supply to the Ø5.5 mm coaxial plug
- One Cat5e or Cat6 network run per camera
- Somewhere to record: a microSD card of up to 512 GB in the camera, or a network video recorder
- A mount from the compatible accessories where an eave or ceiling is not available
Regular price
$152.60 AUD
Sale price
$152.60 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Uniview IPC3618LE-ADF28K-H 8MP EasyStar IR Turret Camera
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Build your setup
Build a complete CCTV system
—
Complete setup from
$735.40
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
Add accessories
Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
§ 01Overview
What the IPC3618LE-ADF28K-H is
The Uniview IPC3618LE-ADF28K-H belongs to the Easy series, the range Uniview positions for homes and small retail, and it is an infrared turret rather than a colour-night one. Its 1/2.8" backside-illuminated sensor sits behind an F1.6 lens with U-ISP processing, which is what EasyStar means in practice: colour holds down to 0.005 Lux with AGC on, and with the infrared on it works at 0 Lux, the IR-cut filter switching between the two automatically.
The 4K frame is the point of the camera. At 8 MP (3840 × 2160) it runs at up to 20 fps, and where smoother movement matters more than pixels it steps down to 5 MP, 4 MP or 1080P at up to 30 fps. 120 dB WDR keeps a figure readable against a bright sky, HLC pulls back headlights and BLC lifts a subject standing against the light.
The 2.8 mm lens sees 98.7° across and 53.9° vertically, a wide frame for a door, a porch or a carport rather than a long driveway. It is rated to detect at 86.9 m, observe at 34.8 m, recognise at 17.4 m and identify at 8.7 m, and the identify figure is the one to mount a doorway camera around.
What it does not do is as useful to know. There is a built-in microphone but no speaker, no two-way audio and no alarm or audio input or output, so it records sound and cannot talk back or sound a siren. Its only supplemental light is infrared, so footage of a dark yard is black and white. Detection is cross line and intrusion based on human body detection, with motion, ultra motion, tampering and audio detection alongside; it works with ONVIF Profile S, G and T recorders as well as Uniview's own.
See it in action
What the IPC3618LE-ADF28K-H features actually look like
Representative illustrations of how each key feature performs in a real scene.
8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
IPC3618LE-ADF28K-H specifications
Uniview IPC3618LE-ADF28K-H imaging — 1/2.8" CMOS, 8 MP (3840 × 2160) at max. 20 fps, 5 MP, 4 MP or 1080P at max. 30 fps — 4K detail when it counts, smoother movement when it does not
Low light — EasyStar, colour to 0.005 Lux at F1.6 with AGC on, 0 Lux with IR on — colour holds after dusk, infrared takes over in the dark
Infrared — Smart IR to 30 m at 850 nm, automatic or manual — a close face is not blown out while the far end is still lit
Dynamic range — 120 dB WDR, HLC, BLC, digital defog, 2D and 3D noise reduction — a face in a bright doorway and headlights at night both stay readable
Lens and view — 2.8 mm F1.6 fixed, 98.7° horizontal and 53.9° vertical — a wide view for a door, a porch or a carport
DORI — detect 86.9 m, observe 34.8 m, recognise 17.4 m, identify 8.7 m — plan the mounting distance against the identify figure
Detection — cross line and intrusion based on human body detection, plus motion, ultra motion, tampering and audio — alerts are raised for a person crossing a line or entering an area
Audio and storage — built-in microphone, no speaker, microSD to 512 GB, ANR and NAS over NFS, dual streams — records sound, and keeps recording through a network dropout
Power and housing — PoE 802.3af or 12 V DC at max. 5.0 W, 4 KV surge protection, Ø118 mm × 95 mm, 0.32 kg, IP67, -30 °C to 60 °C — one cable, outdoors, through an Australian summer
Low light — EasyStar, colour to 0.005 Lux at F1.6 with AGC on, 0 Lux with IR on — colour holds after dusk, infrared takes over in the dark
Infrared — Smart IR to 30 m at 850 nm, automatic or manual — a close face is not blown out while the far end is still lit
Dynamic range — 120 dB WDR, HLC, BLC, digital defog, 2D and 3D noise reduction — a face in a bright doorway and headlights at night both stay readable
Lens and view — 2.8 mm F1.6 fixed, 98.7° horizontal and 53.9° vertical — a wide view for a door, a porch or a carport
DORI — detect 86.9 m, observe 34.8 m, recognise 17.4 m, identify 8.7 m — plan the mounting distance against the identify figure
Detection — cross line and intrusion based on human body detection, plus motion, ultra motion, tampering and audio — alerts are raised for a person crossing a line or entering an area
Audio and storage — built-in microphone, no speaker, microSD to 512 GB, ANR and NAS over NFS, dual streams — records sound, and keeps recording through a network dropout
Power and housing — PoE 802.3af or 12 V DC at max. 5.0 W, 4 KV surge protection, Ø118 mm × 95 mm, 0.32 kg, IP67, -30 °C to 60 °C — one cable, outdoors, through an Australian summer
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Max Resolution | 8 MP |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Support Easystar: color: 0.005 Lux ( F1.6, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N | >52 dB |
| WDR | 120 dB |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Corridor Mode | Supports 9:16 corridor mode |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 98.7° |
| Field of View (V) | 53.9° |
| Field of View (D) | 103.6° |
| DORI Distance (Lens) | 2.8 mm |
| DORI Distance (Detect) | 86.9 m (285.1 ft.) |
| DORI Distance (Observe) | 34.8 m (114.2 ft.) |
| DORI Distance (Recognize) | 17.4 m (57.1 ft.) |
| DORI Distance (Identify) | 8.7 m (28.5 ft.) |
Night Vision
| Feature | Detail |
|---|---|
| Supplemental Light | IR |
| Illumination Distance (IR) | 30 m (98.4 ft.) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Smart IR | Support |
Video
| Feature | Detail |
|---|---|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Main Stream Frame Rate | 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps |
| Sub Stream Frame Rate | 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Dual streams |
| Frame Rate | Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
| Video Output | N/A |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | AAC-LC, G.711U, G.711A |
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| Audio I/O | N/A |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection) |
Network & Storage
| Feature | Detail |
|---|---|
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, APP |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
Event & Alarm
| Feature | Detail |
|---|---|
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Video Output | N/A |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection) |
Power & Electrical
| Feature | Detail |
|---|---|
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 5.0 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Surge Protection | 4 KV |
| Reset Button | Support |
General & Environment
| Feature | Detail |
|---|---|
| Dimensions | Ø118 mm × 95 mm (Ø4.6" × 3.8") (Ø × H) |
| Weight | 0.32 kg (0.71 lb.) |
| Material | Metal + Plastic |
| Protection | IP67 (IEC 60529) |
| Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Certification | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B); CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1); CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
| Accessories | TR-JB03-I-IN, TR-A01-IN, TR-SE24-IN, TR-SE24-A-IN, TR-CM24-IN, TR-JB07/WM03-G-IN-V2, TR-WM03-D-IN-V2, TR-UC08-C-V2, TR-WM07P-B, TR-UP06-C-IN-V2 |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Reset Button | Support |
| Serial Port | N/A |
| Camera & Image — Max Resolution | 8 MP |
|---|---|
| Camera & Image — Sensor | 1/2.8" CMOS |
| Camera & Image — Min. Illumination | Support Easystar: color: 0.005 Lux ( F1.6, AGC ON), 0 Lux with IR on |
| Camera & Image — Day/Night | IR-cut filter with auto switch (ICR) |
| Camera & Image — Shutter | Auto/Manual, 1 ~ 1/100000s |
| Camera & Image — Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Camera & Image — S/N | >52 dB |
| Camera & Image — WDR | 120 dB |
| Camera & Image — White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Camera & Image — Digital Noise Reduction | 2D/3D DNR |
| Camera & Image — Smart IR | Support |
| Camera & Image — Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| Camera & Image — Dewarping | N/A |
| Camera & Image — HLC | Support |
| Camera & Image — BLC | Support |
| Camera & Image — Defog | Digital defog |
| Camera & Image — Corridor Mode | Supports 9:16 corridor mode |
| Lens & Distance — Focal Length | 2.8 mm |
| Lens & Distance — Iris Type | Fixed |
| Lens & Distance — Iris | F1.6 |
| Lens & Distance — Field of View (H) | 98.7° |
| Lens & Distance — Field of View (V) | 53.9° |
| Lens & Distance — Field of View (D) | 103.6° |
| Lens & Distance — DORI Distance (Lens) | 2.8 mm |
| Lens & Distance — DORI Distance (Detect) | 86.9 m (285.1 ft.) |
| Lens & Distance — DORI Distance (Observe) | 34.8 m (114.2 ft.) |
| Lens & Distance — DORI Distance (Recognize) | 17.4 m (57.1 ft.) |
| Lens & Distance — DORI Distance (Identify) | 8.7 m (28.5 ft.) |
| Night Vision — Supplemental Light | IR |
| Night Vision — Illumination Distance (IR) | 30 m (98.4 ft.) |
| Night Vision — Wavelength | 850 nm |
| Night Vision — IR On/Off Control | Auto/Manual |
| Night Vision — Smart IR | Support |
| Video — Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video — H.264 Code Profile | Baseline profile, Main profile, High profile |
| Video — Main Stream Frame Rate | 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps |
| Video — Sub Stream Frame Rate | 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video — Video Bit Rate | 128 Kbps to 16 Mbps |
| Video — U-code | Support |
| Video — OSD | Up to 4 OSDs |
| Video — Privacy Mask | Up to 4 areas |
| Video — ROI | Support |
| Video — Video Stream | Dual streams |
| Video — Frame Rate | Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
| Video — Video Output | N/A |
| Audio — Audio Compression | AAC-LC, G.711U, G.711A |
| Audio — Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| Audio — Two-way Audio | N/A |
| Audio — Suppression | Support |
| Audio — Sampling Rate | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz |
| Audio — Built-in Mic | Support |
| Audio — Built-in Speaker | N/A |
| Audio — Audio I/O | N/A |
| AI & Deep Learning — Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection) |
| Network & Storage — Edge Storage | MicroSD, up to 512 GB |
| Network & Storage — Network Storage | ANR, NAS (NFS) |
| Network & Storage — Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP |
| Network & Storage — Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Network & Storage — User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Network & Storage — Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Network & Storage — Client | EZStation, APP |
| Network & Storage — Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Network & Storage — Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Network & Storage — WIFI | N/A |
| Network & Storage — Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Network & Storage — General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Network & Storage — Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
| Event & Alarm — General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Event & Alarm — Audio I/O | N/A |
| Event & Alarm — Alarm I/O | N/A |
| Event & Alarm — Serial Port | N/A |
| Event & Alarm — Video Output | N/A |
| Event & Alarm — Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection) |
| Power & Electrical — Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power & Electrical — Power Consumption | Max. 5.0 W |
| Power & Electrical — Power Interface | Ø5.5 mm coaxial power plug |
| Power & Electrical — Surge Protection | 4 KV |
| Power & Electrical — Reset Button | Support |
| General & Environment — Dimensions | Ø118 mm × 95 mm (Ø4.6" × 3.8") (Ø × H) |
| General & Environment — Weight | 0.32 kg (0.71 lb.) |
| General & Environment — Material | Metal + Plastic |
| General & Environment — Protection | IP67 (IEC 60529) |
| General & Environment — Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| General & Environment — Storage Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| General & Environment — Certification | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B); CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1); CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| General & Environment — Web Client Language | 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian |
| General & Environment — Accessories | TR-JB03-I-IN, TR-A01-IN, TR-SE24-IN, TR-SE24-A-IN, TR-CM24-IN, TR-JB07/WM03-G-IN-V2, TR-WM03-D-IN-V2, TR-UC08-C-V2, TR-WM07P-B, TR-UP06-C-IN-V2 |
| General & Environment — EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| General & Environment — Safety | CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| General & Environment — Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| General & Environment — Reset Button | Support |
| General & Environment — Serial Port | N/A |
§ 04Why choose this
Built for the way you actually use the IPC3618LE-ADF28K-H
Colour lasts longer into the evening
EasyStar pairs a backside-illuminated 1/2.8" sensor with an F1.6 iris and U-ISP processing, and holds colour to 0.005 Lux with AGC on. A porch or street light is often enough to keep dusk footage in colour before the infrared is needed.
Infrared that does not blind up close
Smart IR reaches 30 m and adjusts its output for a subject close to the lens, so a face at the door is not washed out while the fence line stays lit. Control is automatic or manual.
Faces survive a bright background
120 dB WDR holds the gap between a dark porch and the sky behind it, HLC pulls back headlights and BLC lifts a subject standing against the light. These are the three situations that ruin a doorway shot.
Detection that looks for people
Cross line and intrusion are both based on human body detection, so a line across a path or an area over a doorway responds to a person rather than to any movement. Motion, ultra motion, tampering and audio detection run alongside for the rest.
Recording survives a dropout
A microSD card of up to 512 GB sits in the camera, and ANR caches to it when the link to the recorder fails, transferring the footage back afterwards. On its own the camera can record to that card alone.
§ 05Where it fits
Right at home in these scenarios
Front door or porch
The Uniview IPC3618LE-ADF28K-H under an eave puts a caller inside its 8.7 m identify distance before they reach the door, and the 98.7° view holds the path either side. After dark the picture is black and white under infrared, so a porch light is worth leaving on if colour at the door matters.
Driveway or carport
Looking along a driveway, the camera's 30 m infrared reach and 86.9 m detect distance set how far out a figure or a car shows up, with identification inside 8.7 m. Mount it high enough that headlights do not sit on the lens, and let HLC handle the rest.
Shopfront or small business entry
Above the entry it records who comes and goes with sound from the built-in microphone, and a cross line drawn across the doorway raises an alert when a person crosses it after hours. There is no speaker, so it watches and records rather than warning anyone off.
§ 06Setup
Installation & setup
Mounting
The Uniview IPC3618LE-ADF28K-H mounts straight to an eave or ceiling. For a wall, pole or pendant run, the compatible accessories are TR-JB03-I-IN, TR-A01-IN, TR-SE24-IN, TR-SE24-A-IN, TR-CM24-IN, TR-JB07/WM03-G-IN-V2, TR-WM03-D-IN-V2, TR-UC08-C-V2, TR-WM07P-B and TR-UP06-C-IN-V2; pick the one made for the surface you have.
Cabling and power
Run one Cat5e or Cat6 cable per camera and keep each run under 100 m to the switch or recorder. Power is PoE 802.3af on the same cable at no more than 5.0 W, or 12 V DC to the Ø5.5 mm coaxial plug where there is no PoE.
Keeping water out of the joint
The cable joint on the tail must not be left exposed: it belongs in an integral waterproof space such as a rod chamber, a waterproof junction box, or corrugated or PVC pipe, and a junction box is never mounted horizontally because water pools in it. A taped joint uses self-adhesive rubber tape stretched to about twice its length and half-overlapped.
Aiming and recording
The camera pans through 360°, tilts to 75° and rotates through 360° in its base, so the picture can be squared up after the bracket is fixed. Fit a microSD card of up to 512 GB for edge storage, or add it to a network video recorder that has its own surveillance drive and a monitor on its video output, placed in a ventilated indoor spot near the router rather than a sealed roof space.
App setup
Turn on EZCloud under Setup on the camera's web interface and connect the camera to the router with an address on the router's network segment. Then scan the QR code from the EZCloud page in the app under Devices, Add, Scan, and allow a couple of minutes for it to connect before live view starts.
When you need an electrician
Only for a new power point or for cabling inside a wall cavity, and that work is for a licensed electrician. The camera itself runs on PoE or low-voltage DC and needs no mains work.
§ 08Questions
Frequently asked about the IPC3618LE-ADF28K-H
Q.01
Does the Uniview IPC3618LE-ADF28K-H work at night, and is the picture in colour?
The Uniview IPC3618LE-ADF28K-H works at night in black and white: its supplemental light is infrared only, Smart IR to 30 m at 850 nm, and the IR-cut filter switches automatically. A porch or street light keeps colour going longer into the evening.
Q.02
Does it record sound, and can I talk through it?
It records sound and cannot talk back. The built-in microphone is captured with the video once Audio Input is on and the Mic channel is enabled under Setup, Video and Audio. There is no speaker, no two-way audio and no audio or alarm input or output.
Q.03
Will it alert on people rather than on every movement?
Yes, for the two perimeter rules: cross line and intrusion are both based on human body detection. Cross line is a virtual line on the live picture with a direction and a sensitivity, and intrusion is a box dragged over an area with a time threshold for how long someone stays inside it, both set under Setup, Intelligent, Smart Settings.
Q.04
Can it record to a memory card without an NVR?
Yes. A microSD card of up to 512 GB gives edge storage, the recommended arrangement when the camera runs on its own. With a recorder the card also covers a network dropout.
Q.05
Is it suitable for outdoor installation?
Yes. The metal and plastic housing is rated IP67, works from -30 °C to 60 °C at up to 95% non-condensing humidity, and has 4 KV surge protection. Keep the cable joint in a waterproof space, a junction box or conduit, rather than exposed on the wall.
Q.06
Will it work with a non-Uniview NVR or with Blue Iris?
It supports ONVIF Profile S, G and T and RTSP, so a recorder or software that uses the same protocol can take it, added with the camera's IP address, its port and its web login. If it shows online with no picture, the three things to try are turning off RTSP authentication on the camera, changing the compression to H.264, and turning off U-code.
Q.07
How do I view it on my phone?
Through EZCloud: turn it on under Setup on the camera's web interface, then add the camera in the Uniview app by scanning the QR code on its EZCloud page. Allow a couple of minutes for it to connect before live view starts.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
§ 10Bundles
Recommended packages
Add a PoE recorder or switch
The Uniview IPC3618LE-ADF28K-H takes power and video over one cable using PoE 802.3af at no more than 5.0 W. Check that the recorder or switch supports 802.3af and has a spare port before ordering.
Add a microSD card
A card of up to 512 GB gives the camera edge storage and lets ANR fill a gap if the network to the recorder drops. Order one per camera, because the slot takes a single card.
Add the right bracket
Where the camera cannot go straight onto an eave or ceiling, pick a mount from its compatible accessories, and give an exposed cable joint a waterproof junction box or conduit. Choose it with the camera so the install is not held up.
