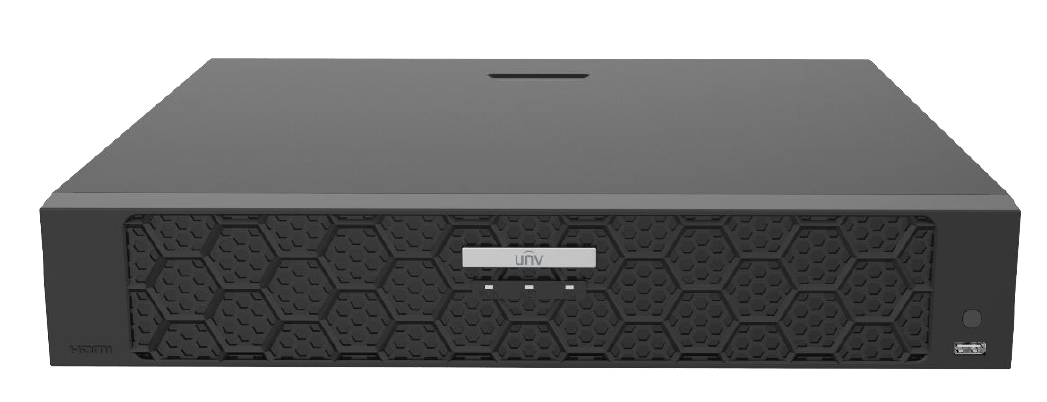

Uniview NVR504-32B-P16 32-ch PoE NVR, 4 SATA
1 1
Uniview

Uniview NVR504-32B-P16 32-ch PoE NVR, 4 SATA

SKU: NVR504-32B-P16
Description

The Uniview NVR504-32B-P16 is a 32-ch network video recorder for larger IP camera systems, with 16 RJ45 PoE interfaces, recording resolutions up to 16MP and 4 SATA interfaces for storage.

What you get

  • Ultra 265/H.265/H.264 decoding, 1-ch HDMI and 1-ch VGA independent output, 16-ch alarm input, 4-ch alarm output and 100~240V AC power

You'll also need

  • Hard drives for the SATA interfaces, with capacity up to 10TB for each disk; no hard drive is included
  • Compatible IP cameras; cameras beyond the 16 RJ45 PoE interfaces connect through a network switch on the external Ethernet interface
  • A monitor with HDMI or VGA, plus a network connection to your router for remote viewing through EZView
32 x POE PORTS
$614.45 AUD $614.45 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $984.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $614.45

§ 01Overview

What the NVR504-32B-P16 is

The Uniview NVR504-32B-P16 is designed for a site that combines direct PoE cameras with additional cameras on the external network. Its operating limits are Max 30W for single port, Max 150W in total, 320Mbps incoming and a 10M/100M/1000M Ethernet interface, while 4 SATA interfaces accept Up to 10TB for each disk. Retention on a system this size is decided by drive count as much as by Ultra 265/H.265/H.264 compression, which is why all 4 SATA interfaces matter.

The decoder is the stronger part of this model. Recording resolution goes up to 16MP per camera, and decoding is rated at 2 x 16MP@30, 4 x 4K@30 or 16 x 1080P@30 in Ultra 265/H.265, with the 4K (3840x2160)@30 HDMI output and VGA output independent of each other. Live-view layouts go up to 32. When a camera's resolution exceeds the decoding capacity, the window goes black with the words No Resource; enabling Sub Stream First draws the sub streams instead of the main streams and uses less decoding resource.

The honest limitation is that the supported smart functions run on compatible cameras, not on the recorder. It records and searches SIP, Face Detection, Face Comparison, Vehicle Detection, UMD and Video Metadata from a total of 8-ch of cameras that perform the analysis themselves. It does not add those functions to a camera that lacks them.

Physically, it measures 400mm × 368mm × 74mm and weighs no more than 4Kg without drives. It uses 100~240V AC, operates from -10°C ~ +55°C, and provides 16-ch alarm input, 4-ch alarm output and RS485.

§ 02Engineering

NVR504-32B-P16 specifications

Uniview NVR504-32B-P16 — 32-ch IP video input, 16 RJ45 PoE interfaces, IEEE 802.3af/at, Max 30W for single port and Max 150W in total — direct PoE camera connections with room for network-connected channels
Recording — resolution up to 16MP, Ultra 265/H.265/H.264 and 320Mbps incoming — compression options support recording within the stated traffic ceiling
Storage — 4 SATA interfaces, Up to 10TB for each disk — retention can be expanded by populating more interfaces
Decoding — 2 x 16MP@30, 4 x 4K@30 or 16 x 1080P@30 in Ultra 265/H.265 — these are the rated high-resolution decoding combinations
Display — 1-ch HDMI, 1-ch VGA, 4K (3840x2160)@30 HDMI and live-view layouts of 1/4/6/8/9/16/25/32 — independent outputs support separate display layouts
Smart by camera — SIP, Face Detection, Face Comparison, Vehicle Detection, UMD and Video Metadata, Total 8-ch — compatible cameras supply analytics and targeted search data
Alarm I/O — 16-ch alarm input, 4-ch alarm output and RS485 — dedicated alarm connections sit alongside the video channels
Network — 1 RJ-45 10M/100M/1000M interface, 128 remote users, ANR and cloud upgrade — supports remote access while ANR enhances storage reliability when the network is disconnected
Physical — 400mm × 368mm × 74mm, no more than 4Kg without drives, 100~240V AC and -10°C ~ +55°C — these are the figures to check against the installation location

§ 03Full datasheet

Detailed specifications

Video

Video — Uniview NVR504-32B-P16 32-ch PoE NVR, 4 SATA
FeatureDetail
IP Video Input 32-ch
Decoding Format Ultra 265/H.265/H.264
Decoding Capability (Ultra 265/H.265) 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25
Decoding Capability (H.264) 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
Recording Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Live view/Playback 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Video Output 1-ch HDMI, 1-ch VGA, HDMI and VGA independent output
HDMI Output 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
VGA Output 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
Liveview Display 1/4/6/8/9/16/25/32
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Synchronous Playback 16-ch
Snapshot 4-ch snapshot, up to D1 resolution

§ 07Documentation

Manuals & guides

Quick Start Guide

§ 08Questions

Frequently asked about the NVR504-32B-P16

Q.01

Does the Uniview NVR504-32B-P16 come with a hard drive?
No hard drive is included. It has 4 SATA interfaces with capacity up to 10TB for each disk; when free space reaches 0, recording stops unless overwrite is enabled, so set storage to Overwrite rather than Full and Stop.
Q.02

Where do this model's smart analytics run?
The supported smart functions run on compatible cameras, not on the recorder. It handles camera-side SIP, Face Detection, Face Comparison, Vehicle Detection, UMD and Video Metadata on a total of 8-ch, with searches for face snapshots, motor vehicles, non-motor vehicles and human bodies.
Q.03

Why is a live-view window black and showing No Resource?
The black window appears when a camera's resolution exceeds the recorder's decoding capacity. In Ultra 265/H.265 it is rated at 2 x 16MP@30, 4 x 4K@30 or 16 x 1080P@30; enabling Sub Stream First under Menu>System>Preview>Advanced reduces demand by using sub streams.
Q.04

How do I connect cameras beyond the built-in PoE interfaces?
Connect cameras directly to the 16 RJ45 PoE interfaces, then place the remaining cameras on a network switch connected to the external Ethernet interface. The external Ethernet and PoE interfaces use different IP segments. Do not connect a switch to a PoE interface because each is designed for one camera only.
Q.05

A camera on a PoE interface is not showing up. What should I check?
Confirm that the camera and recorder use the same PoE protocol and that the camera's demand fits Max 30W for single port and Max 150W in total. Then move a working camera to the failing interface and wait a couple of minutes to isolate whether the interface, cable or camera is at fault.
Q.06

Will third-party ONVIF cameras work with this model?
Mainstream cameras conforming to ONVIF Profile S, Profile G or Profile T, and cameras using RTSP protocols, are supported. Add a third-party camera using ONVIF, its HTTP port and its login; Private protocol is for Uniview cameras, while Custom uses the third-party camera's RTSP stream. Some cameras require separate ONVIF credentials, and the camera and recorder must share the same local network and be able to ping each other.
Q.07

Does this model support two-way audio?
Yes. Two-way audio is 1-ch, RCA using the recorder's audio input and output, so the external audio path is connected at the recorder.
Q.08

How do I see the cameras on my phone?
Use the EZView app over EZCloud. Turn EZCloud on under Setup>EZCloud in the web interface or Menu>Network>Basic>EZCloud on the monitor, where it may also be labelled My Cloud or P2P. Add the recorder through Devices>Add>Scan using the QR code, then allow a couple of minutes for the cloud connection before starting live view.
Q.09

What warranty and certifications does it have?
The warranty period is 36 Months. Its certifications are CE, FCC, UL, RoHS and WEEE.
