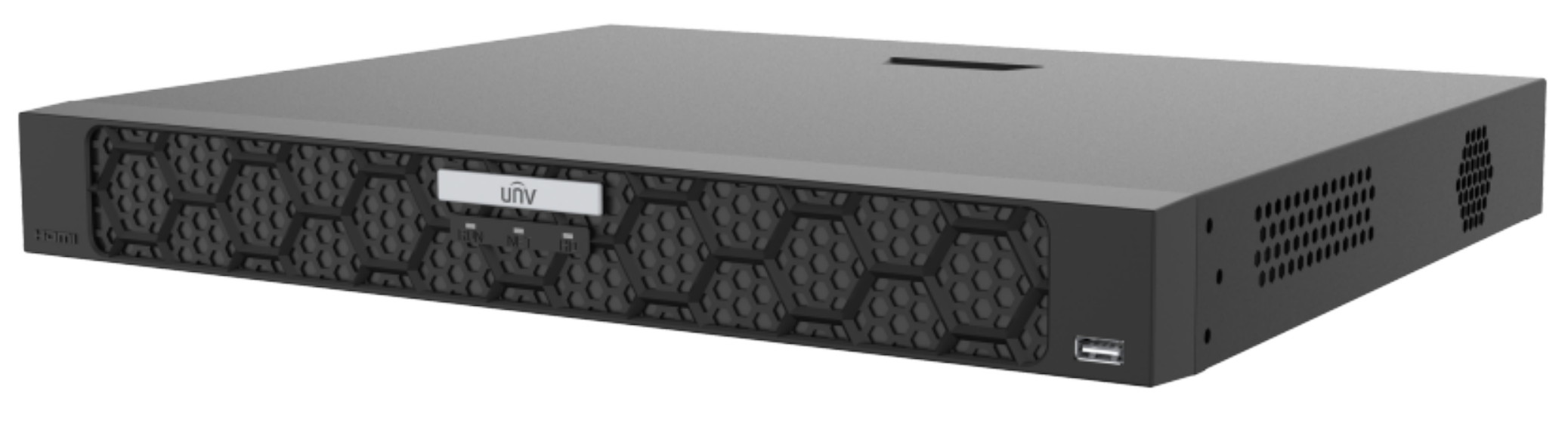

Uniview NVR502-16B-P16-IQ 16-ch PoE AI NVR, RAID 1

SKU: NVR502-16B-P16-IQ
Description

The Uniview NVR502-16B-P16-IQ is a 16-ch AI network video recorder with 16 PoE ports, recording resolutions up to 16MP, 2 SATA Interfaces with RAID 1, and smart detection processed by the recorder.

What you get

  • Recorder configuration — 16-ch IP video input, Ultra 265 / H.265 / H.264, 1-ch HDMI and 1-ch VGA with independent output, 8-ch alarm input and 2-ch alarm output, AC 100~240V

You'll also need

  • At least one compatible surveillance hard drive; 2 SATA Interfaces support Up to 16TB for each HDD
  • Compatible PoE cameras selected within the recorder's channel and power limits
  • A monitor with HDMI or VGA, plus a network connection to your router for EZView access
16 x POE PORTS
$481.00 AUD $481.00 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $851.00

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $481.00

§ 01Overview

What the NVR502-16B-P16-IQ is

Uniview NVR502-16B-P16-IQ is a 16-ch PoE network video recorder designed to sit at the centre of an IP surveillance system. Its PoE budget is Max 30W for single port, Max 240W in total under IEEE 802.3at, IEEE 802.3af, while incoming bandwidth is Smart Off: 320Mbps; Smart On: 160Mbps.

Recording and viewing use separate capacity limits. It records supported resolutions up to 16MP, while live decoding is rated at 2 x 16MP@30, 4 x 4K@30 or 16 x 1080P@30 with Smart off. With Smart on, incoming bandwidth changes to 160Mbps and the decoding choices change, so a fully loaded high-resolution system must stay within both active limits.

The second storage interface is the reason to choose this model over a single-bay recorder. Its 2 SATA Interfaces accept Up to 16TB for each HDD, and the drives can operate as RAID 1 so a failed disk does not take the recordings with it, or as a disk group with redundant recording for selected channels. Both configurations are available through the recorder's storage settings.

The IQ functions run on the recorder: Smart Intrusion Prevention on 4-ch, Ultra Motion Detection on 8-ch, face detection with up to 50,000 face pictures in total, and searches for images, human bodies and motor vehicles. Its 8-ch alarm input and 2-ch alarm output provide external alarm connections for compatible equipment.

The limits are clear: it accepts 16-ch IP video input, not more, and its PoE interface uses 16 RJ45 10M/100M self-adaptive Ethernet Interface. Power is AC 100~240V, and the working range is -10 °C ~ 50 °C (14 °F ~ 122 °F) at ≤ 90% RH (non-condensing), so the installation location must remain within those conditions.

§ 02Engineering

NVR502-16B-P16-IQ specifications

Uniview NVR502-16B-P16-IQ capacity — 16-ch IP video input · 16 RJ45 10M/100M self-adaptive Ethernet Interface · IEEE 802.3at, IEEE 802.3af · Max 30W for single port, Max 240W in total — brings camera connections and power onto one recorder
Recording — up to 16MP · Ultra 265, H.265, H.264 · Smart Off: 320Mbps; Smart On: 160Mbps — lets you plan camera streams against the active bandwidth limit
Decoding — 2 x 16MP@30 · 4 x 4K@30 · 16 x 1080P@30 with Smart off — shows which live-view combinations fit the decoding capacity
Storage — 2 SATA Interfaces · Up to 16TB for each HDD · RAID 1 · disk group · redundant storage — supports mirrored or separately redundant recording layouts
Display — 1-ch HDMI · 1-ch VGA · HDMI and VGA independent output · 4K(3840x2160)/30Hz — provides independent local display outputs
Smart processing — Smart Intrusion Prevention on 4-ch · Ultra Motion Detection on 8-ch · up to 50,000 face pictures in total — applies recorder-side analytics to selected channels
Search — Search by Image · Human Body Search · Motor Vehicle Search — narrows footage review to relevant subjects
Alarm connections — 8-ch alarm input · 2-ch alarm output · RS485 — connects compatible external alarm equipment to recorder events
Physical and network — 1U · 380mm × 322mm × 53mm (15.0" × 12.7" × 2.1") · ≤ 2.7Kg (6.0lb) · AC 100~240V · 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface — sets the space, mains and network requirements

§ 03Full datasheet

Detailed specifications

Video

Video — Uniview NVR502-16B-P16-IQ 16-ch PoE AI NVR, RAID 1
FeatureDetail
IP Video Input 16-ch
Decoding Format Ultra 265, H.265, H.264
Decoding Capability (Smart Off) 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30
Decoding Capability (Smart On) 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 16 x 720P@30
Recording Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Video Output 1-ch HDMI, 1-ch VGA, HDMI and VGA independent output
HDMI Output 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Liveview Display 1/4/6/8/9/16
Corridor Mode Screen 3/4/5/7/9/10/12/16
Synchronous Playback in Local 16-ch
Snapshot 4-ch snapshot, up to 4K resolution

§ 07Documentation

Manuals & guides

Quick Start Guide

§ 08Questions

Frequently asked about the NVR502-16B-P16-IQ

Q.01

Does the Uniview NVR502-16B-P16-IQ come with a hard drive?
No hard drive is included. It has 2 SATA Interfaces with Up to 16TB for each HDD, and recording requires at least one fitted drive. Smart functions require a drive in Slot 1 with normal status, while overwrite must be enabled if recording should continue after free space reaches zero.
Q.02

How many cameras can I run on the NVR502-16B-P16-IQ?
It accepts 16-ch IP video input and provides 16 RJ45 10M/100M self-adaptive Ethernet Interface for PoE connections, which means up to sixteen cameras. If a live-view pane displays No Resource, the camera resolution has exceeded the active decoding capacity. Enabling Sub Stream First reduces decoding demand by displaying sub streams instead of main streams.
Q.03

What changes when I switch the smart functions on?
Incoming bandwidth changes from Smart Off: 320Mbps to Smart On: 160Mbps. The available decoding combinations also change, so camera streams must remain within the active bandwidth and decoding limits. Smart functions require a drive in Slot 1 with normal status.
Q.04

What does RAID 1 do, and how is redundant recording different?
RAID 1 mirrors recordings across two hard disks so one remains available if the other fails. This protection uses half of the combined drive capacity. Redundant recording instead saves recordings to both the normal and redundant disks at the same time.
Q.05

Do I need a separate PoE switch, and how should the camera cabling be arranged?
A separate switch is unnecessary when compatible cameras connect directly to the recorder. Each PoE port is intended for one camera, with Max 30W for single port and Max 240W in total under IEEE 802.3at, IEEE 802.3af. Plan each cable route for the selected camera and cable, and connect any required switch through the external network rather than a recorder PoE port.
Q.06

Which cameras and lenses suit the NVR502-16B-P16-IQ, and does the recorder control night vision?
It supports mainstream cameras of ONVIF conformance using Profile S, Profile G, Profile T and RTSP protocols. Lens selection and night behaviour depend on the selected camera rather than the recorder. Before connecting a camera to PoE, confirm that its PoE protocol and power consumption fit the single-port and total power limits.
Q.07

Does it support two-way audio and external alarm connections?
Yes. It provides 1-ch, RCA (Using the audio input and output) for two-way audio. It also provides 8-ch alarm input and 2-ch alarm output for compatible external alarm connections.
Q.08

Where can the recorder be installed, and what warranty and certifications apply?
Its working range is -10 °C ~ 50 °C (14 °F ~ 122 °F) at ≤ 90% RH (non-condensing), so use it only where those conditions can be maintained. The Australian warranty term is 36 Months, and its certifications are CE, FCC, UL, RoHS, WEEE.
Q.09

How do I use EZView and keep the firmware current?
Turn on EZCloud under Menu>Network>Basic>EZCloud on the recorder or Setup>EZCloud in its web interface, then add the device in EZView. Allow time for the cloud connection to complete before opening live view. Firmware upgrades are user-initiated through Check New Version in the web interface or Upgrade by Cloud on the recorder.
