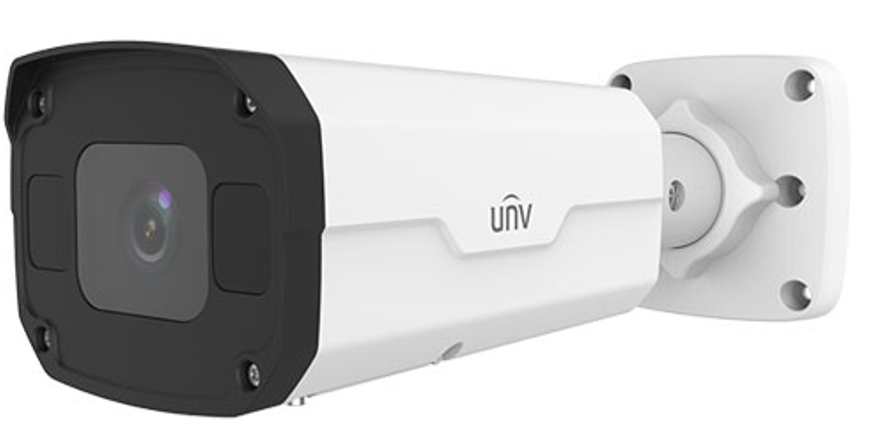

Uniview IPC2322SB-DZK-I0 2MP LightHunter Zoom Bullet Camera
SKU: IPC2322SB-DZK-I0
Description
The Uniview IPC2322SB-DZK-I0 is a full HD bullet camera for a view you want to set after it is mounted: a 2.7 ~ 13.5mm motorised zoom with autofocus, LightHunter low-light imaging, infrared to 50m, and on-camera detection that classifies what crosses the line.
What you get
- 1 × IPC2322SB-DZK-I0 bullet camera in a metal housing, with an alarm input and output and an audio input and output on the tail
You'll also need
- A PoE recorder or PoE switch supporting 802.3af, or a 12V DC supply for the Ø5.5 mm coaxial plug
- One network cable run per camera, Cat5e or Cat6
- Somewhere to record: a microSD card of up to 256GB in the camera, or a network video recorder
- A microphone and speaker at the camera end if the two-way audio is to be used, since neither is built in
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Uniview IPC2322SB-DZK-I0 2MP LightHunter Zoom Bullet Camera
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Build your setup
Build a complete CCTV system
—
Complete setup from
$848.60
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
Add accessories
Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
01Overview
What the IPC2322SB-DZK-I0 is
The Uniview IPC2322SB-DZK-I0 exists for the mounting position you cannot easily reach twice. Its 2.7 ~ 13.5mm motorised zoom lens focuses itself, so the framing is set from the browser or the recorder after the bracket is fixed, and adjusted later without a ladder. Wide, it sees 121.36° across; at full zoom, 33.51°.
That range changes what the camera is for. Uniview rates it to identify a face at 4.2 m wide and 20.9 m zoomed in, and to detect movement from 41.9 m out to 209.5 m. One camera can therefore watch a gate for identification or a long boundary for presence, depending only on how it is set.
Detection happens on the camera and it names what it saw. Smart intrusion prevention covers cross line, intrusion, enter area and leave area detection, with false alarm filtering that classifies a target as a human, a vehicle or a non-motor vehicle. People flow counting and crowd density detection run alongside, so an entrance can be counted as well as watched. Motion, ultra motion, tampering and audio detection remain available underneath.
Low light is the other half of it. LightHunter with an F1.2 lens holds colour down to 0.0005Lux, and when the light finally goes the smart infrared reaches 50m at 850nm. 120dB WDR keeps a face readable against a bright sky behind it, and HLC, BLC and digital defog handle headlights, backlight and haze.
What it does not have is a built-in microphone or speaker: two-way audio works through the audio input and output on the tail, with external devices. Storage is a microSD card of up to 256GB with ANR and NAS, and it draws at most 8.5W on PoE 802.3af or 12V DC. The metal housing measures 245.4 × 85.4 × 86.4mm, weighs 0.92kg, carries IP67 and IK10 with 6KV surge protection, and works from -30°C to 60°C.
See it in action
What the IPC2322SB-DZK-I0 features actually look like
Representative illustrations of how each key feature performs in a real scene.
50m IR Night Vision
Built-in infrared sees in total darkness up to around 50m — good for longer driveways, car parks and wider properties. People and vehicles stay visible well beyond the reach of a porch light.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio
Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.
02Engineering
IPC2322SB-DZK-I0 specifications
Uniview IPC2322SB-DZK-I0 lens — 2.7 ~ 13.5mm motorised zoom with automatic focusing, 121.36° down to 33.51° — the view is set and reset from the app, not the ladder
Sensor — 1/2.8" 2MP at 1920*1080 and 30fps, triple streams — full HD that is light on the recorder and the network
DORI — identify 4.2 m wide or 20.9 m zoomed, detect 41.9 m to 209.5 m — one camera covers a gate or a boundary depending on the zoom
Intelligent detection — smart intrusion prevention across cross line, intrusion, enter area and leave area, filtered by classification of human, vehicle and non-motor vehicle — the alert says what crossed the line
Counting — people flow counting and crowd density detection on the camera — an entrance is counted without a separate sensor
Low light — LightHunter, colour to 0.0005Lux at F1.2, then smart IR to 50m at 850nm — colour for longer, and the far end still covered in the dark
Dynamic range — 120dB WDR with HLC, BLC and digital defog — a gate with the afternoon sun behind it stays readable
Connections — alarm 1 in and 1 out, audio 1 in and 1 out, two-way audio through external devices — a gate contact or a siren wires straight to the tail
Build — metal housing, IP67 and IK10, 6KV surge protection, -30°C to 60°C, PoE 802.3af or 12V DC at max 8.5W — a pole, a wall or a fence line
Sensor — 1/2.8" 2MP at 1920*1080 and 30fps, triple streams — full HD that is light on the recorder and the network
DORI — identify 4.2 m wide or 20.9 m zoomed, detect 41.9 m to 209.5 m — one camera covers a gate or a boundary depending on the zoom
Intelligent detection — smart intrusion prevention across cross line, intrusion, enter area and leave area, filtered by classification of human, vehicle and non-motor vehicle — the alert says what crossed the line
Counting — people flow counting and crowd density detection on the camera — an entrance is counted without a separate sensor
Low light — LightHunter, colour to 0.0005Lux at F1.2, then smart IR to 50m at 850nm — colour for longer, and the far end still covered in the dark
Dynamic range — 120dB WDR with HLC, BLC and digital defog — a gate with the afternoon sun behind it stays readable
Connections — alarm 1 in and 1 out, audio 1 in and 1 out, two-way audio through external devices — a gate contact or a siren wires straight to the tail
Build — metal housing, IP67 and IK10, 6KV surge protection, -30°C to 60°C, PoE 802.3af or 12V DC at max 8.5W — a pole, a wall or a fence line
03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Max Resolution | 2MP |
| Sensor | 1/2.8", 2.0megapixel, progressive scan, CMOS |
| Min. Illumination | Colour: 0.0005Lux (F1.2, AGC ON), 0Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° |
| S/N | >52 dB |
| WDR | 120dB |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Corridor Mode | 9:16 Corridor Mode Supported |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Model | IPC2322SB-DZK-I0 |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length | 2.7 ~ 13.5mm |
| Lens Type | AF automatic focusing and motorized zoom lens |
| Iris | F1.2 |
| Field of View (H) | 121.36° ~ 33.51° |
| Field of View (V) | 58.4° ~ 14.9° |
| Field of View (D) | 139.9° ~ 33.4° |
| DORI Lens | 2.7 mm, 13.5 mm |
| DORI Detect | 41.9 m, 209.5 m |
| DORI Observe | 16.8 m, 83.8 m |
| DORI Recognize | 8.4 m, 41.9 m |
| DORI Identify | 4.2 m, 20.9 m |
| Iris Type | Fixed |
| DORI Distance (Lens) | 2.7 to 13.5 mm |
| DORI Distance (Detect) | 41.9 m to 209.5 m (137.5 ft. to 687.3 ft.) |
| DORI Distance (Observe) | 16.8 m to 83.8 m (55.1 ft. to 274.9 ft.) |
| DORI Distance (Recognize) | 8.4 m to 41.9 m (27.6 ft. to 137.5 ft.) |
| DORI Distance (Identify) | 4.2 m to 20.9 m (13.8 ft. to 68.6 ft.) |
Night Vision
| Feature | Detail |
|---|---|
| Low Light Technology | LightHunter technology ensures ultra-high image quality in low illumination environment |
| Illumination Distance (IR) | Up to 50m (164ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Supplemental Light | IR |
| Smart IR | Support |
Video
| Feature | Detail |
|---|---|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Main Stream Frame Rate | 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps |
| Sub Stream Frame Rate | 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Third Stream Frame Rate | D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Frame Rate | Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
| U-code | Support |
| Video Stream | Triple streams |
| Corridor Mode | Supports 9:16 corridor mode |
| Video Output | N/A |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711 |
| Two-way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
Network & Storage
| Feature | Detail |
|---|---|
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | EZStation, EZView, EZLive |
| Network Interface | 1 RJ45 10M/100M Base-TX Ethernet |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| WIFI | N/A |
| Serial Port | N/A |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm I/O | 1/1 |
| Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p], 1 Output: impedance 600Ω; amplitude 2V [p-p] |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
Power & Electrical
| Feature | Detail |
|---|---|
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 8.5W |
| Surge Protection | 6KV |
| Power Interface | Ø5.5 mm coaxial power plug |
General & Environment
| Feature | Detail |
|---|---|
| Dimensions | 245.4 × 85.4 × 86.4mm (9.7" × 3.4" × 3.4") (L × W × H) |
| Weight | 0.92kg (2.03lb) |
| Material | Metal |
| Protection | IP67; IK10 |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Reset Button | N/A |
| Certification | CE: EN 60950-1; UL: UL60950-1; FCC: FCC Part 15 |
| Compatible Accessories | TR-JB07-D-IN Junction Box; TR-JB06-A-IN Junction Box; TR-UP06-B-IN Pole Mount; TR-UP06-C-IN Pole Mount; TR-A01-IN Waterproof Joint |
| Series | PRIME-I |
| Colour | WHITE |
| Warranty | 36 Months |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| Statistical Analysis | N/A |
| Camera & Image — Max Resolution | 2MP |
|---|---|
| Camera & Image — Sensor | 1/2.8", 2.0megapixel, progressive scan, CMOS |
| Camera & Image — Min. Illumination | Colour: 0.0005Lux (F1.2, AGC ON), 0Lux with IR on |
| Camera & Image — Day/Night | IR-cut filter with auto switch (ICR) |
| Camera & Image — Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s |
| Camera & Image — Adjustment Angle | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° |
| Camera & Image — S/N | >52 dB |
| Camera & Image — WDR | 120dB |
| Camera & Image — White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Camera & Image — Digital Noise Reduction | 2D/3D DNR |
| Camera & Image — Smart IR | Support |
| Camera & Image — Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Camera & Image — Corridor Mode | 9:16 Corridor Mode Supported |
| Camera & Image — Dewarping | N/A |
| Camera & Image — HLC | Support |
| Camera & Image — BLC | Support |
| Camera & Image — Defog | Digital Defog |
| Camera & Image — Model | IPC2322SB-DZK-I0 |
| Lens & Distance — Focal Length | 2.7 ~ 13.5mm |
| Lens & Distance — Lens Type | AF automatic focusing and motorized zoom lens |
| Lens & Distance — Iris | F1.2 |
| Lens & Distance — Field of View (H) | 121.36° ~ 33.51° |
| Lens & Distance — Field of View (V) | 58.4° ~ 14.9° |
| Lens & Distance — Field of View (D) | 139.9° ~ 33.4° |
| Lens & Distance — DORI Lens | 2.7 mm, 13.5 mm |
| Lens & Distance — DORI Detect | 41.9 m, 209.5 m |
| Lens & Distance — DORI Observe | 16.8 m, 83.8 m |
| Lens & Distance — DORI Recognize | 8.4 m, 41.9 m |
| Lens & Distance — DORI Identify | 4.2 m, 20.9 m |
| Lens & Distance — Iris Type | Fixed |
| Lens & Distance — DORI Distance (Lens) | 2.7 to 13.5 mm |
| Lens & Distance — DORI Distance (Detect) | 41.9 m to 209.5 m (137.5 ft. to 687.3 ft.) |
| Lens & Distance — DORI Distance (Observe) | 16.8 m to 83.8 m (55.1 ft. to 274.9 ft.) |
| Lens & Distance — DORI Distance (Recognize) | 8.4 m to 41.9 m (27.6 ft. to 137.5 ft.) |
| Lens & Distance — DORI Distance (Identify) | 4.2 m to 20.9 m (13.8 ft. to 68.6 ft.) |
| Night Vision — Low Light Technology | LightHunter technology ensures ultra-high image quality in low illumination environment |
| Night Vision — Illumination Distance (IR) | Up to 50m (164ft) IR range |
| Night Vision — Wavelength | 850nm |
| Night Vision — IR On/Off Control | Auto/Manual |
| Night Vision — Supplemental Light | IR |
| Night Vision — Smart IR | Support |
| Video — Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video — H.264 Code Profile | Baseline profile, Main profile, High profile |
| Video — Main Stream Frame Rate | 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps |
| Video — Sub Stream Frame Rate | 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Video — Third Stream Frame Rate | D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Video — Video Bit Rate | 128 Kbps~16 Mbps |
| Video — OSD | Up to 8 OSDs |
| Video — Privacy Mask | Up to 4 areas |
| Video — ROI | Up to 8 areas |
| Video — Motion Detection | Up to 4 areas |
| Video — Frame Rate | Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
| Video — U-code | Support |
| Video — Video Stream | Triple streams |
| Video — Corridor Mode | Supports 9:16 corridor mode |
| Video — Video Output | N/A |
| Audio — Audio Compression | G.711 |
| Audio — Two-way Audio | Supported |
| Audio — Suppression | Supported |
| Audio — Sampling Rate | 8KHZ |
| Audio — Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps |
| Audio — Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Audio — Built-in Mic | N/A |
| Audio — Built-in Speaker | N/A |
| Network & Storage — Edge Storage | Micro SD, up to 256GB |
| Network & Storage — Network Storage | ANR, NAS(NFS) |
| Network & Storage — Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Network & Storage — Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Network & Storage — Client | EZStation, EZView, EZLive |
| Network & Storage — Network Interface | 1 RJ45 10M/100M Base-TX Ethernet |
| Network & Storage — User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Network & Storage — Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Network & Storage — Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Network & Storage — Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Network & Storage — WIFI | N/A |
| Network & Storage — Serial Port | N/A |
| Event & Alarm — Alarm I/O | 1/1 |
| Event & Alarm — Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p], 1 Output: impedance 600Ω; amplitude 2V [p-p] |
| Event & Alarm — Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| Event & Alarm — General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Power & Electrical — Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power & Electrical — Power Consumption | Max 8.5W |
| Power & Electrical — Surge Protection | 6KV |
| Power & Electrical — Power Interface | Ø5.5 mm coaxial power plug |
| General & Environment — Dimensions | 245.4 × 85.4 × 86.4mm (9.7" × 3.4" × 3.4") (L × W × H) |
| General & Environment — Weight | 0.92kg (2.03lb) |
| General & Environment — Material | Metal |
| General & Environment — Protection | IP67; IK10 |
| General & Environment — Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| General & Environment — Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| General & Environment — Reset Button | N/A |
| General & Environment — Certification | CE: EN 60950-1; UL: UL60950-1; FCC: FCC Part 15 |
| General & Environment — Compatible Accessories | TR-JB07-D-IN Junction Box; TR-JB06-A-IN Junction Box; TR-UP06-B-IN Pole Mount; TR-UP06-C-IN Pole Mount; TR-A01-IN Waterproof Joint |
| General & Environment — Series | PRIME-I |
| General & Environment — Colour | WHITE |
| General & Environment — Warranty | 36 Months |
| General & Environment — EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B) |
| General & Environment — Safety | CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| General & Environment — Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
| General & Environment — Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
| AI & Deep Learning — Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| AI & Deep Learning — People Counting | Support people flow counting and crowd density detection |
| AI & Deep Learning — Statistical Analysis | N/A |
04Why choose this
Built for the way you actually use the IPC2322SB-DZK-I0
It tells a person from a vehicle
Smart intrusion prevention covers cross line, intrusion, enter area and leave area detection, with false alarm filtering that classifies the target as a human, a vehicle or a non-motor vehicle. That is the difference between an alert worth reading and one that fires at headlights.
It counts as well as watches
People flow counting and crowd density detection run on the camera itself, so a shop entrance or a forecourt produces a count without a separate sensor.
Colour holds after dusk
LightHunter and an F1.2 lens keep a colour picture down to 0.0005Lux. When the light finally goes, smart infrared reaches 50m without washing out anyone standing close.
One camera, two jobs
At 4.2 m it identifies a face wide, at 20.9 m zoomed, and it detects movement out to 209.5 m. The same unit suits a gate or a boundary run depending on how it is set.
Built to be hit and left outside
A metal body with IK10 impact resistance and IP67 sealing, 6KV surge protection and a -30°C to 60°C range. It is specified for the pole and the fence line, not just the eave.
05Where it fits
Right at home in these scenarios
Driveway or front gate of an Australian property
The Uniview IPC2322SB-DZK-I0 is zoomed in to put a face inside its 20.9 m identify distance at the gate, while intrusion detection with classification keeps the alerts to people and vehicles. LightHunter holds colour at dusk when most arrivals happen.
Long boundary or rear fence
Set wide, the camera detects movement out to 209.5 m and the 50m infrared covers the near part of that in darkness. Cross line detection along the fence reports a crossing rather than every moving branch.
Shopfront or forecourt
People flow counting and crowd density detection turn the entrance into a counter, and the alarm and audio connections on the tail let a gate contact or a siren share the same run. Two-way audio needs an external microphone and speaker.
06Setup
Installation & setup
-
01
What arrives and what does not
The Uniview IPC2322SB-DZK-I0 is supplied as the camera with its motorised lens and cable tail. A bracket, a plug pack, a memory card and any microphone or speaker for the two-way audio are separate items, so have them on site before the install.
-
02
Where to mount it
Choose the position for the job first: close for identification at a door or gate, further back for a boundary, since the zoom changes the framing but not the physics. The camera pans through 360°, tilts to 90° and rotates through 360° in its bracket.
-
03
Cabling and power
Run one network cable per camera, Cat5e or Cat6, and keep each run under 100 m to the switch or recorder. Power is PoE 802.3af on that cable, or 12V DC to the Ø5.5 mm coaxial plug, at no more than 8.5W.
-
04
Setting the view
Set the zoom and let the lens focus itself from the browser or the recorder once the bracket is fixed. Check the framing against what the camera is for: a face at the gate needs the identify distance, not the detect distance.
-
05
Detection settings
Draw the intrusion area or the cross line where the approach is, and use the classification filter so people and vehicles raise the alert. Set the counting areas separately if the entrance is to be counted.
-
06
Recording, recorder and screen
Fit a microSD card of up to 256GB for edge storage, or add the camera to a network video recorder. A recorder needs its own surveillance-rated hard drive and a monitor on its video output, and it belongs in a ventilated indoor spot near the router.
-
07
When you need an electrician
Only for a new power point or for cabling inside a wall cavity, and that work is for a licensed electrician. The camera itself runs on PoE or low-voltage DC and needs no mains work.
08Questions
Frequently asked about the IPC2322SB-DZK-I0
Q.01
What does the motorised zoom on the Uniview IPC2322SB-DZK-I0 do?
It changes the field of view from 121.36° wide to 33.51° zoomed, between 2.7 and 13.5mm, and focuses itself. The framing is set from the browser or the recorder rather than by adjusting the camera on the bracket.
Q.02
How far away can it identify someone?
Identification is rated at 4.2 m at the wide end and 20.9 m zoomed in. Recognition reaches 8.4 m to 41.9 m, and detection 41.9 m to 209.5 m.
Q.03
Does it tell a person from a vehicle?
Yes. Smart intrusion prevention supports false alarm filtering with classification of human, non-motor vehicle and vehicle, across cross line, intrusion, enter area and leave area detection.
Q.04
Can it count people?
Yes. People flow counting and crowd density detection run on the camera, which suits a shop entrance or a forecourt.
Q.05
How does it see at night?
LightHunter holds colour down to 0.0005Lux at F1.2, and smart infrared reaches 50m at 850nm once there is no usable light. Smart IR stops a close subject being washed out.
Q.06
Does it have a microphone and speaker?
No. Two-way audio is supported through the audio input and output on the tail, so an external microphone and speaker are needed at the camera end.
Q.07
What can I wire to the alarm connections?
One alarm input and one alarm output, so a gate contact, a beam or a siren can share the camera position rather than running back to the panel.
Q.08
Will it work with a recorder from another brand?
It supports ONVIF Profile S, G and T, so a recorder using the same protocol can take it, using the camera IP address, its port and its web login.
Q.09
How tough is it outdoors?
It is IP67 sealed and IK10 impact rated in a metal housing, with 6KV surge protection, and works from -30°C to 60°C at up to 95% non-condensing humidity.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Add a PoE recorder or switch
The Uniview IPC2322SB-DZK-I0 takes power and video over one cable using PoE 802.3af at no more than 8.5W. Check the recorder or switch supports 802.3af and has a spare port before ordering.
Add a microSD card
A card of up to 256GB gives the camera edge storage and lets ANR fill a gap if the network to the recorder drops. Order one per camera, because the slot takes a single card.
Add the bracket and the waterproof joint
A pole, a corner or a pendant run needs the matching mount, and an exposed cable joint needs a waterproof gland. Choose them with the camera so the install is not held up on the day.
