TP-Link Insight 8MP Bullet CCTV Kit: 4 x IP Cameras (Full-Colour Speaker / Mic / Light) + 4CH NVR

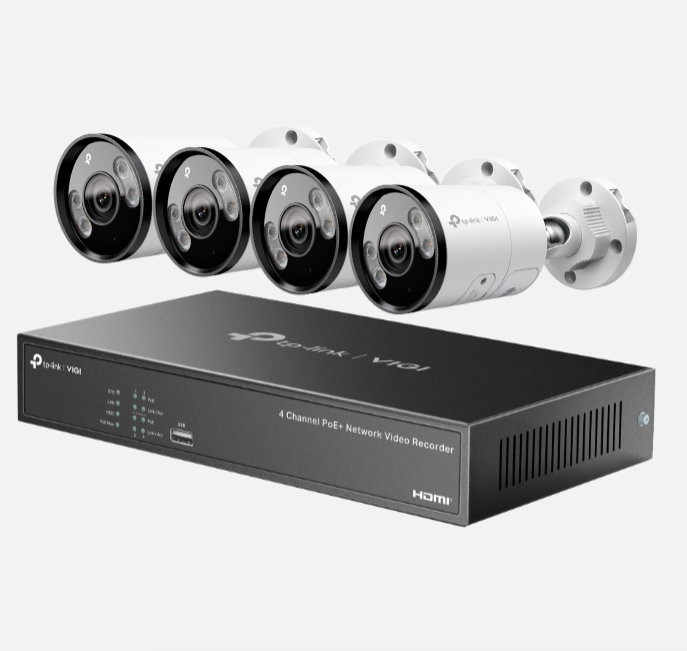

This TP-Link VIGI kit pairs four InSight S385 8MP (4K) full-colour bullet cameras with the VIGI NVR1004H-4P 4-channel PoE recorder — a complete bullet-camera system for a home or small business. Each camera records in true colour around the clock to about 30 metres, classifies people and vehicles to cut false alerts, and has a built-in microphone and speaker for two-way audio and active deterrence. The bullet form factor with a visible body suits driveways and approaches where a deterrent presence helps. No hard drive is included, so you can choose the storage that suits you.
Kit includes
- 4 × VIGI InSight S385 8MP 4K full-colour bullet cameras (2.8 mm), IP67
- 1 × VIGI NVR1004H-4P 4-channel PoE network video recorder
- No hard drive included (add a surveillance-grade drive separately)
- Two-way audio, active deterrence and human/vehicle AI on every camera
- NDAA compliant; 3-year warranty and local support
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
- 4 × TP-Link InSight S385 8MP Full-Colour Bullet Network Camera
- 1 × tp-link VIGI VIGI NVR1004H-4P 4 Channel PoE+ Network Video Recorder (4ch)
- No HDD included (add one below)
No hard drive selected
Without a hard drive the system cannot record footage.
§ 01Overview
What the kit-tp-link-vigi4x8mp4ch_Bullet is
This TP-Link VIGI 8MP kit is a complete four-camera bullet system for the main approaches of a home or small business. It brings together four InSight S385 8MP full-colour bullet cameras and the VIGI NVR1004H-4P, a 4-channel recorder with built-in PoE so each camera connects over a single network cable that carries both power and data.
At 8MP (3840 × 2160) the S385 captures fine detail for identifying faces, clothing and number plates, and its bullet shape with a wide 2.8 mm lens (about 111° horizontal) gives a long, obvious presence that suits driveways, fence lines and entrances. It records in full colour 24/7 using a high-sensitivity sensor and white LEDs to about 30 metres, with 850 nm infrared on hand for a discreet view, also to 30 metres and helped by Smart IR to avoid over-exposing close objects. AI classification of people and vehicles keeps notifications meaningful, and a built-in microphone and speaker give you two-way audio and active deterrence on every camera. The IP67 housings handle outdoor weather, and H.265+ keeps the four streams efficient on storage.
One practical note. The recorder does not include a hard drive — add a surveillance-grade drive sized to your cameras and how long you want to keep footage; a 2TB drive is a sensible start for four cameras, with 4TB or more for longer retention across 4K streams. The cameras ship with the 2.8 mm wide lens, work with the VIGI app, Security Manager or web, and also support ONVIF and RTSP for third-party recorders. TP-Link VIGI is NDAA compliant, and the kit is genuine stock with a local 3-year warranty and support.
See it in action
What the kit-tp-link-vigi4x8mp4ch_Bullet features actually look like
Representative illustrations of how each key feature performs in a real scene.
8MP Ultra HD
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
30m IR Night Vision
Dual-Light Night Vision
Full Color Night Vision
False Alarm Reduction
Human/Vehicle Detection
IP67 Weatherproof
Two-Way Audio
Illustrative — simulated for demonstration
§ 02Engineering
kit-tp-link-vigi4x8mp4ch_Bullet specifications
- VIGI NVR1004H-4P 4-channel recorder with 4 built-in PoE ports (one cable per camera)
- 24/7 full colour with white LEDs to about 30 m; 850 nm infrared also to 30 m with Smart IR
- Wide 2.8 mm lens (about 111 degrees horizontal) suited to driveways and approaches
- Human and vehicle classification plus smart events to cut false alerts
- Two-way audio and active deterrence: built-in microphone, speaker and light on each camera
- No hard drive included - add a surveillance-grade drive; H.265+ compression
- NDAA compliant; genuine stock with a local 3-year warranty and support
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Product Model | InSight S385 (2.8mm/4mm) |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Day & Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range (WDR) | 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Max. Resolution | 3840 X 2160 |
Lens & Distance
| Feature | Detail |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 2.8mm/4 mm |
| Aperture | F1.6 |
| FOV | 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° | 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 2.8 mm: Detect: 85 m (278 ft); Observe: 35 m (116 ft); Recognize: 17 m (56 ft); Identify: 8 m (28 ft) | 4 mm: Detect: 107 m (350 ft); Observe: 44 m (146 ft); Recognize: 21 m (70 ft); Identify: 11 m (35 ft) |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 90° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| IR LED | Quantity: 2; Range: 30m; Wavelength: 850nm |
| White LED | Quantity: 2; Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Feature | Detail |
|---|---|
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 | Notes: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. When People & Vehicle Analytics is enabled, the frame rate can only support up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 | Notes: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. When People & Vehicle Analytics is enabled, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main stream: H.265/H.265+/H.264/H.264+; Sub-stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile* |
| H.265+ | Main Stream Supported* |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps; Sub-Stream: 64 Kbps to 1 Mbps |
Audio
| Feature | Detail |
|---|---|
| Audio Communication | Two-way audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Human & Vehicle Classification | Intelligently distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. |
| Smart Detection | Line-Crossing Detection; Intrusion Detection; Abandoned Object Detection; Object Removal Detection; Region Exiting Detection; Region Entering Detection; Scene Change Detection; Loitering Detection |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| API | Open Network Video Interface (Profile S/T/G) |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web, VMS Local, VIGI Cloud VMS |
| Cloud | Yes |
| ONVIF | Yes |
Event & Alarm
| Feature | Detail |
|---|---|
| Smart Event | Human & Vehicle Classification; Intrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection |
| Basic Event | Motion Detection; Video Tampering Detection; Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording; Message Push; Audible Warning; White Light Flashing |
| Output Notification | Message Push |
Interface
| Feature | Detail |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** |
| Built-in Speaker | Yes |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Reset Button | Yes |
| Power | DC Power Port |
General & Environment
| Feature | Detail |
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-condensing) |
| Storage Humidity | 95% or Less (Non-condensing) |
| Power Supply | 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 11.5 W |
| Material | Metal |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 74 × 184 × 74 mm |
| Package Contents | VIGI Network Camera; Quick Start Guide; Waterproof Cable Attachments; Mounting Accessories |
| Net Weight | 0.525 Kg |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
| Camera & Image — Product Model | InSight S385 (2.8mm/4mm) |
|---|---|
| Camera & Image — Image Sensor | 1/2.7" Progressive Scan CMOS |
| Camera & Image — Min. Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Camera & Image — Shutter Speed | 1/3 to 1/10000 s |
| Camera & Image — Slow Shutter | Yes |
| Camera & Image — Day & Night Mechanism | IR Cut Filter |
| Camera & Image — Day/Night Switch | Unified/Scheduled/Auto |
| Camera & Image — Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Camera & Image — Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Camera & Image — Wide Dynamic Range (WDR) | 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| Camera & Image — SNR | ≥ 52 dB |
| Camera & Image — Image Parameters Switch | Yes |
| Camera & Image — Privacy Mask | Up to 4 Masks |
| Camera & Image — ROI | 1 Region |
| Camera & Image — OSD Setting | Yes |
| Camera & Image — Max. Resolution | 3840 X 2160 |
| Lens & Distance — Type | Fixed Focal Lens |
| Lens & Distance — Focal Length | 2.8mm/4 mm |
| Lens & Distance — Aperture | F1.6 |
| Lens & Distance — FOV | 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° | 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6° |
| Lens & Distance — Lens Mount | M12*P 0.5 |
| Lens & Distance — DORI Distance | 2.8 mm: Detect: 85 m (278 ft); Observe: 35 m (116 ft); Recognize: 17 m (56 ft); Identify: 8 m (28 ft) | 4 mm: Detect: 107 m (350 ft); Observe: 44 m (146 ft); Recognize: 21 m (70 ft); Identify: 11 m (35 ft) |
| Lens & Distance — Pan Range | 0° to 360° |
| Lens & Distance — Tilt Range | 0° to 90° |
| Lens & Distance — Rotation Range | 0° to 360° |
| Night Vision — IR LED | Quantity: 2; Range: 30m; Wavelength: 850nm |
| Night Vision — White LED | Quantity: 2; Range: 30m |
| Night Vision — Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Video — Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 | Notes: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. When People & Vehicle Analytics is enabled, the frame rate can only support up to 20fps. |
| Video — Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 | Notes: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. When People & Vehicle Analytics is enabled, the frame rate can only support up to 20fps. |
| Video — Bit Rate Control | CBR, VBR |
| Video — Video Compression | Main stream: H.265/H.265+/H.264/H.264+; Sub-stream: H.265/H.264 |
| Video — H.264 Type | High Profile |
| Video — H.264+ | Main Stream Supported |
| Video — H.265 Type | Main Profile* |
| Video — H.265+ | Main Stream Supported* |
| Video — Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps; Sub-Stream: 64 Kbps to 1 Mbps |
| Audio — Audio Communication | Two-way audio |
| Audio — Audio Input | Yes |
| Audio — Audio Output | Yes |
| Audio — Audio Compression | Yes |
| Audio — Audio Sampling Rate | 8KHz |
| Audio — Environment Noise Filtering | Yes |
| Audio — Audio Bit Rate | 64 Kbps(G.711 alaw) |
| AI & Deep Learning — Human & Vehicle Classification | Intelligently distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. |
| AI & Deep Learning — Smart Detection | Line-Crossing Detection; Intrusion Detection; Abandoned Object Detection; Object Removal Detection; Region Exiting Detection; Region Entering Detection; Scene Change Detection; Loitering Detection |
| AI & Deep Learning — People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| Network & Storage — Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Network & Storage — API | Open Network Video Interface (Profile S/T/G) |
| Network & Storage — Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Network & Storage — Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Network & Storage — Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Network & Storage — Client | VIGI App, VIGI Security Manager, VIGI NVR, Web, VMS Local, VIGI Cloud VMS |
| Network & Storage — Cloud | Yes |
| Network & Storage — ONVIF | Yes |
| Event & Alarm — Smart Event | Human & Vehicle Classification; Intrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection |
| Event & Alarm — Basic Event | Motion Detection; Video Tampering Detection; Exception (Illegal Login) |
| Event & Alarm — Alarm Linkage | Memory Card Video Recording; Message Push; Audible Warning; White Light Flashing |
| Event & Alarm — Output Notification | Message Push |
| Interface — Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Interface — On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** |
| Interface — Built-in Speaker | Yes |
| Interface — Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Interface — Reset Button | Yes |
| Interface — Power | DC Power Port |
| General & Environment — Operating Temperature | -30–60 °C |
| General & Environment — Storage Temperature | -40–60 °C |
| General & Environment — Operating Humidity | 95% or Less (Non-condensing) |
| General & Environment — Storage Humidity | 95% or Less (Non-condensing) |
| General & Environment — Power Supply | 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 11.5 W |
| General & Environment — Material | Metal |
| General & Environment — Protection | IP67 |
| General & Environment — Product Dimensions (L x W x H) | 74 × 184 × 74 mm |
| General & Environment — Package Contents | VIGI Network Camera; Quick Start Guide; Waterproof Cable Attachments; Mounting Accessories |
| General & Environment — Net Weight | 0.525 Kg |
| General & Environment — Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
§ 04Why choose this
Built for the way you actually use the kit-tp-link-vigi4x8mp4ch_Bullet
Colour, not grey, at night
White LEDs keep footage in true colour to about 30 m, so people and vehicles stay identifiable after dark.
Fewer false alerts
Human and vehicle AI ignores animals, branches and shadows so notifications focus on people and cars.
Talk and deter
Built-in microphone, speaker and light on every camera let you warn off someone live from your phone.
§ 05Where it fits
Right at home in these scenarios
Driveways and fence lines
The bullet shape and wide lens cover long approaches with an obvious deterrent presence.
Family home
Cover the front, drive, back and side of a house in 4K colour day and night.
Small shop or workshop
Watch the entrance, yard and loading area with people and vehicle alerts and talk-down audio.
Rental property
A neat PoE install with remote VIGI app access suits a landlord managing a property off-site.
§ 06Setup
Installation & setup
What's in the box
Four VIGI InSight S385 bullet cameras (2.8 mm) with mounting accessories, one VIGI NVR1004H-4P recorder and guides. A hard drive, network cables and a monitor are supplied separately.
Installation requirements
Mount the four cameras over the approaches you want, run one network cable from each to the NVR's PoE ports, and fit a surveillance-grade hard drive before recording. Set up the system in the VIGI app or on a monitor, then test each view and the night mode before relying on it.
§ 08Questions
Frequently asked about the kit-tp-link-vigi4x8mp4ch_Bullet
Q.01
Is a hard drive included in this kit?
Q.02
What is the difference between a bullet and a turret kit?
Q.03
Do the cameras record in colour at night?
Q.04
Does the kit have two-way audio?
Q.05
Can I add more cameras later?
Q.06
Will the cameras work with a non-VIGI NVR?
Q.07
Is the kit suitable for Australian outdoor use and is it NDAA compliant?
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
§ 10Bundles
Recommended packages
Add a hard drive to record
The recorder ships without a drive — add a surveillance-grade 2TB drive or 6TB drive sized to your retention.
Prefer a turret look?
Compare the 4-camera S485 turret kit, which uses the same 8MP class in a compact turret on a 4-channel NVR.
Add matching cameras
Expand on a larger NVR with extra InSight S385 8MP bullet cameras.
Need more channels?
Step up to a larger recorder such as the VIGI NVR1008H (8-channel) when you plan to add cameras.
