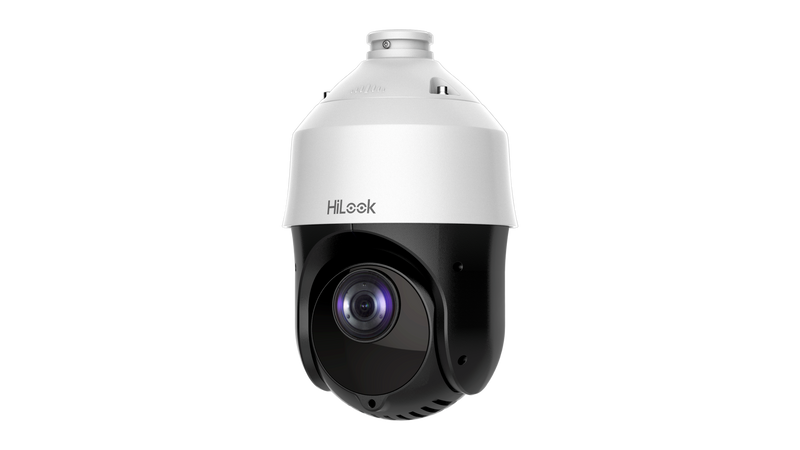

Hilook by Hikvision PTZ-N4215I-DE 2MP 15× Network PTZ Dome Camera
- 2MP Full HD Resolution: Delivers 1920×1080 resolution for clear, detailed footage.
- H.265+ Compression: Reduces bandwidth and storage needs efficiently.
- 15× Optical Zoom: Enables close-up views without image quality loss.
- 100m IR Night Vision: Provides 24/7 surveillance capability in total darkness.
- IP67 Weatherproof Housing: Ensures durability in outdoor and harsh conditions.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
Build your setup Build a complete CCTV system Complete setup from $779.45
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the PTZ-N4215I-DE is
The PTZ-N4215I-DE is a compact 2MP network PTZ dome camera for monitoring wide areas and tracking movement in real time.
Equipped with 15× optical zoom, IR night vision up to 100m, and pan-tilt-zoom functionality.
See it in action
What the PTZ-N4215I-DE features actually look like
Representative illustrations of how each key feature performs in a real scene.
IP67 Weatherproof
Illustrative — simulated for demonstration
§ 02Engineering
PTZ-N4215I-DE specifications
- H.265 Compression: Support for H.265+ to enable efficient storage
- IR Night Vision: Effective surveillance up to 100m in total darkness
- Optical Zoom: 15× magnification for close-up views without quality loss
- Pan-Tilt Range: 360° pan and -15° to 90° tilt for comprehensive coverage
- Weather Resistance: IP67-rated housing for dust, rain, and outdoor durability
- Smart Detection: Features include motion, intrusion, and line crossing detection
- Compatibility: ONVIF support for easy integration with third-party systems
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Zoom | 15x optical, 16x digital |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | 120 dB |
| Defog | Digital defog |
| Image Stabilization | No |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable privacy masks |
| Regional Focus | Yes |
| Regional Exposure | Yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length | 5 mm to 75 mm, 15× optical |
| FOV | Horizontal field of view: 53.8° to 4.0° (wide-tele), Vertical field of view: 31.9° to 2.3° (wide-tele), Diagonal field of view: 60.4° to 4.6°(wide-tele) |
| Focus | Auto, semi-auto, manual |
| Aperture | F1.6 to F3.0 |
| Zoom Speed | Approx. 2.4 s (optical lens, wide-tele) |
| Movement Range (Pan) | 360° endless |
| Movement Range (Tilt) | From -15° to 90° (Auto-flip) |
| Pan Speed | Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s |
| Tilt Speed | Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Status Display | Yes |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust |
| Power-off Memory | Yes |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 100 m |
| Smart Supplement Light | Yes |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16384 Kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | Main stream, sub-stream and third stream respectively support four fixed areas |
Audio
| Feature | Detail |
|---|
AI & Deep Learning
| Feature | Detail |
|---|
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface, ISAPI, SDK, ISUP |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Security | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Network Storage | NAS (NPS, SMB/ CIPS), ANR |
| Client | iVMS-4200, HiLookVision |
| Web Browser | IE10-11, Chrome 57+, Firefox 52+, Safari 12+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion Detection, Video Tampering Detection, Exception Detection |
| Smart Event | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3 at, class4) |
| On-board Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC, 2.0 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4 | Max.:18 W (IR Max.6 W) |
| Dimension | Ø 165.9 mm × 290 mm (Ø 6.53" × 11.42") |
| Weight | Approx. 2.5 kg (5.51 lb) |
| Material | ADC 12, PC+10% GF |
| Operating Condition | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 62368-1) | CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013), 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
§ 04Why choose this
Built for the way you actually use the PTZ-N4215I-DE
2 MP 1080p Resolution
Full HD at up to 25 fps. Sufficient for general surveillance and identification at moderate distances.
100 m IR Night Vision
Longer IR than many budget PTZ cameras. Covers a residential block or small car park.
Pan 360° / Tilt 90°
Full rotation with up to 300 presets. Patrol routes for scheduled area coverage.
IP67 Weatherproof
Sealed against dust and rain. Suitable for outdoor pole or wall mounting.
§ 05Where it fits
Right at home in these scenarios
Residential Backyard or Property
Budget PTZ for homes. 15× zoom checks the fence line or gate from one position.
Small Car Park
Pan and tilt to sweep the area. 100 m IR covers the lot at night.
School or Community Centre
Patrol presets cover entry points and play areas. Affordable enough for multiple units.
Small Warehouse or Yard
15× zoom identifies workers and vehicles. IP66 handles outdoor conditions.
§ 06Setup
Installation & setup
What's in the Box
1. Hilook PTZ-N4215I-DE Camera × 1 2. Mounting Bracket × 1 3. Quick Start Guide × 1
Installation Requirements
1. Power: PoE+ (IEEE 802.3at) or 12V DC. 2. Cable: Cat5e or Cat6, max 100 m. 3. Mounting: Wall, ceiling, or pole. Camera weighs about 1.5 kg. 4. Clearance: Allow space for 360° pan.
App Setup
1. Download Hik-Connect or HiLookVision app (iOS or Android). 2. Power the camera via PoE+. Wait about 90 seconds. 3. Add by QR code or serial number. 4. Set preset positions and patrol routes.
