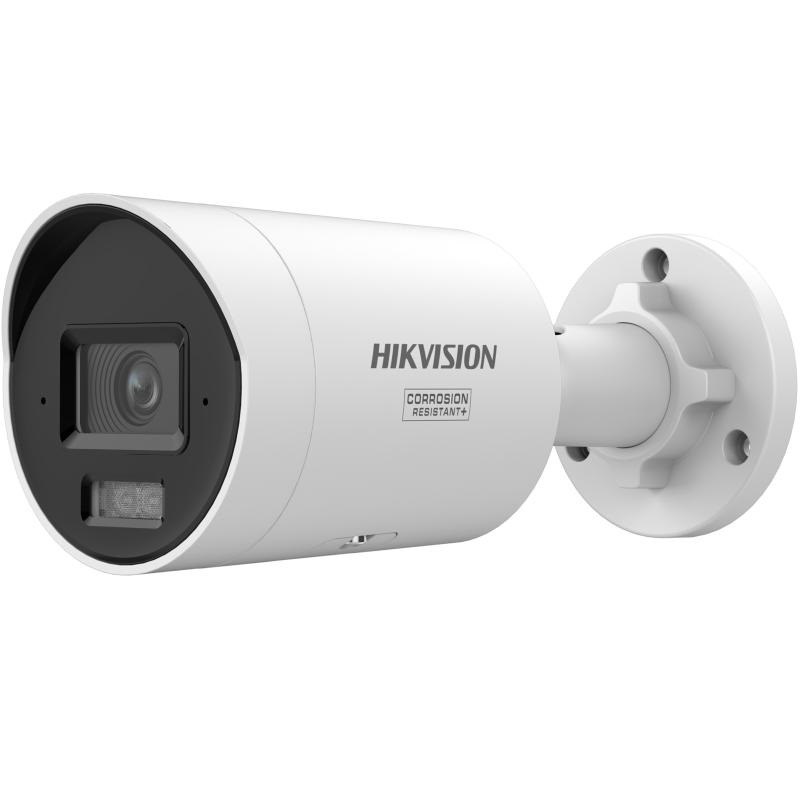

Name: Hikvision DS-2CD2087G2H-LIU/SL 8MP ColorVu Mini Bullet Camera, Hybrid Light, Liveguard 2.8 / 4mm
Brand: Hikvision
Price: 341.45 AUD
Availability: InStock

Build your setup Build a complete CCTV system Complete setup from $1,285.05

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count

None

Hikvision DS-7604NI-M1/4P 4ch M-Series PoE NVR, 40Mbps, H.265, 4 PnP Ports, 1 HDD Bay, 4TB ~~$748.00~~$674.15

Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR, 128Mbps, 4K, 2 Bay, 1RU, 4TB ~~$1,055.00~~$966.10

Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR, 128Mbps, 4K, 2 Bay, 1RU, 6TB $1,140.70

Hikvision DS-7616NI-M2/16P 16ch M-Series PoE NVR, 256Mbps, H.265, 16 PnP Ports, 2 HDD Bay, 4TB ~~$1,314.00~~$1,164.00

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7

None

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB $269.45

6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB ~~$418.00~~$405.00

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB ~~$616.00~~$545.15

10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB ~~$792.00~~$699.00

Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.

Hikvision DS-1280ZJ-XS Junction Box ~~$22.00~~$21.35

1

Cable · 10m $13.00

1

Cable · 20m $28.00

1

Cable · 30m $40.00

1

Cable · 50m $65.00

1

§ 01Overview

What the DS-2CD2087G2H-LIU/SL is

Lens options: 2.8mm or 4mm focal length.

Color options: White or Black.

Note: Please indicate your choice in your order message.

Hikvision ColorVu 3.0 IP cameras deliver 24/7 HD color night vision for Australian outdoor security systems The AI-powered imaging drastically reduces noise and motion blur in low light conditions

See it in action

What the DS-2CD2087G2H-LIU/SL features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2) — 8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2) — 8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

40m IR Night Vision — Built-in infrared sees in total darkness up to around 40m, reaching further across a ... (1/2) — 40m IR Night Vision
Built-in infrared sees in total darkness up to around 40m, reaching further across a larger yard or laneway. Subjects appear in clear black-and-white, sharper and brighter as they get closer.

40m IR Night Vision — Built-in infrared sees in total darkness up to around 40m, reaching further across a ... (2/2) — 40m IR Night Vision
Built-in infrared sees in total darkness up to around 40m, reaching further across a larger yard or laneway. Subjects appear in clear black-and-white, sharper and brighter as they get closer.

Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d... — Full Color Night Vision
Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.

Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying... — Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.

IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h... — IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s... — Two-Way Audio
Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.

Strobe Light — On detecting activity, the camera can trigger a bright flashing strobe to make an intruder a... — Strobe Light
On detecting activity, the camera can trigger a bright flashing strobe to make an intruder aware they've been spotted — a visible warning rather than silent recording.

Illustrative — simulated for demonstration

§ 02Engineering

DS-2CD2087G2H-LIU/SL specifications

- 8MP high resolution for detailed identification
- Crystal-clear images with 24/7 ColorVu and AI enhancement
- Scene-adaptive WDR technology for perfect exposure in all lighting
- AI-powered smart alerts for person and vehicle detection
- Clear audio with dual microphones and two-way talk
- Anti-corrosion design with IP67 rating for weatherproof outdoor security
- Intelligent hybrid IR/white light illumination for superior night vision
- Proactive security strobe light and audio alarm for effective deterrence
- 2.8mm fixed lens for wide-angle video surveillance coverage

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision DS-2CD2087G2H-LIU/SL 8MP ColorVu Mini Bullet Camera, Hybrid Light, Liveguard 2.8 / 4mm
Feature	Detail
Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	3840 × 2160
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Image Parameters Switch	Yes
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	130 dB
SNR	≥ 52 dB
Image Stabilization	EIS
Image Enhancement	BLC, HLC, 3D DNR, Distortion Correction, Defog
Privacy Mask	4 programmable polygon privacy masks

Lens & Distance

Lens & Distance — Hikvision DS-2CD2087G2H-LIU/SL 8MP ColorVu Mini Bullet Camera, Hybrid Light, Liveguard 2.8 / 4mm
Feature	Detail
Lens Mount	M16
Focal Length & FOV	2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° \| 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
Iris Type	Fixed
Aperture	F1.0
Depth of Field	2.8 mm: 3.3 m to ∞ \| 4 mm: 3.8 m to ∞ \| 6 mm: 8.3 m to ∞
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
DORI	2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m \| 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
Pan Range	0° to 360°
Tilt Range	0° to 90°
Rotation Range	0° to 360°

Night Vision

Night Vision — Hikvision DS-2CD2087G2H-LIU/SL 8MP ColorVu Mini Bullet Camera, Hybrid Light, Liveguard 2.8 / 4mm
Feature	Detail
Smart Supplement Light	Yes
Supplement Light Type	White Light, IR
IR Wavelength	850 nm
Supplement Light Range	Up to 40 m

Video

Video — Hikvision DS-2CD2087G2H-LIU/SL 8MP ColorVu Mini Bullet Camera, Hybrid Light, Liveguard 2.8 / 4mm
Feature	Detail
Main Stream	50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) \| 60 Hz: 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) \| 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream	50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) \| 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); Third stream is supported under certain settings.
Video Compression	Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 (supported under certain settings)
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline Profile, Main Profile, High Profile
H.265 Type	Main Profile
Bit Rate Control	CBR, VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region for main stream

Audio

Audio — Hikvision DS-2CD2087G2H-LIU/SL 8MP ColorVu Mini Bullet Camera, Hybrid Light, Liveguard 2.8 / 4mm
Feature	Detail
Audio Type	Mono sound
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering	Yes

AI & Deep Learning

AI & Deep Learning — Hikvision DS-2CD2087G2H-LIU/SL 8MP ColorVu Mini Bullet Camera, Hybrid Light, Liveguard 2.8 / 4mm
Feature	Detail
Face Capture	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)

Network & Storage

Network & Storage — Hikvision DS-2CD2087G2H-LIU/SL 8MP ColorVu Mini Bullet Camera, Hybrid Light, Liveguard 2.8 / 4mm
Feature	Detail
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View	Up to 6 channels
API	ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host	Up to 32 users; 3 user levels: administrator, operator, and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage	NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Web Browser	Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+; Local service: Chrome 80+, Firefox 80+, Edge 89+
Client	iVMS-4200, Hik-Connect, Hik-Central

Event & Alarm

Event & Alarm — Hikvision DS-2CD2087G2H-LIU/SL 8MP ColorVu Mini Bullet Camera, Hybrid Light, Liveguard 2.8 / 4mm
Feature	Detail
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event	Scene change detection
Linkage	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing

Interface

Interface — Hikvision DS-2CD2087G2H-LIU/SL 8MP ColorVu Mini Bullet Camera, Hybrid Light, Liveguard 2.8 / 4mm
Feature	Detail
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Speaker	Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
Built-in Microphone	Arrayed dual-microphone
Reset Key	Yes

General & Environment

General & Environment — Hikvision DS-2CD2087G2H-LIU/SL 8MP ColorVu Mini Bullet Camera, Hybrid Light, Liveguard 2.8 / 4mm
Feature	Detail
Package Dimension	234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Material	Front cover: Metal, body: Metal, bracket: Metal
Power	12 VDC ± 25%, 1.25 A, max. 15 W, Ø 5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3at, Class 4, max. 18 W
Weight	Approx. 530 g (1.2 lb.)
With Package Weight	Approx. 815 g (1.8 lb.)
Dimension	Ø 74.4 mm × 176.3 mm (Ø 2.93" × 6.94")
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function	Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Flashing Light	/SRB model: Red and Blue Light \| /SL model: White Light
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
Safety	UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU
Anti-Corrosion Protection	NEMA 4X (NEMA 250-2018)
Protection	IP67: IEC 60529-2013
Anti-corrosion Level	Moderate protection

§ 04Why choose this

Built for the way you actually use the DS-2CD2087G2H-LIU/SL

8MP 4K with F1.0 Super Aperture

1/1.8" sensor at 3840 × 2160. The F1.0 lens pulls in more light than standard cameras, keeping colour detail in near-dark scenes.

Smart Hybrid Light

Automatically switches between IR and warm LED. Colour footage when a person is detected, IR when the scene is quiet — no constant glare.

Live Guard with Strobe and Speaker

Built-in strobe light and speaker trigger on human or vehicle detection. Supports custom voice messages and two-way talk.

130 dB WDR

Handles bright shopfront windows and dark awnings in the same shot. Critical at building entrances with mixed lighting.

AcuSense Deep Learning

Classifies human and vehicle targets. Supports face capture and perimeter protection. Cuts false alarms from animals and leaves.

§ 05Where it fits

Right at home in these scenarios

Driveway and Fence Line

Bullet shape aims naturally down a long path. Hybrid light gives colour footage of approaching vehicles at night.

Shopfront or Building Entry

Mount above the door. 130 dB WDR handles glass-front sunlight. Strobe and speaker warn off after-hours intruders.

Side of House or Laneway

Compact mini bullet fits on a wall or soffit. IP67 handles rain and sprinklers.

Loading Dock or Service Lane

Point along the service road. 8 MP captures plate details. Two-way talk communicates with delivery drivers.

§ 06Setup

Installation & setup

01

What's in the Box

1. Hikvision DS-2CD2087G2H-LIU/SL Camera × 1 2. Mounting Screws & Anchors × 1 set 3. Quick Start Guide × 1

02

Installation Requirements

1. Power: PoE (IEEE 802.3af) or 12V DC. 2. Cable: Cat5e or Cat6, max 100 m. 3. Mounting: Wall or soffit. Compact mini bullet shape. Camera weighs about 700 g. 4. Height: 2.5–3.5 m for best AcuSense accuracy.

03

App Setup

1. Download Hik-Connect app (iOS or Android). Create an account. 2. Power the camera via PoE. Wait about 60 seconds. 3. Scan the QR code or add by serial number. 4. Configure Live Guard rules, detection zones, and notification preferences.

§ 07Questions

Frequently asked about the DS-2CD2087G2H-LIU/SL

Q.01

How is this different from the turret version (DS-2CD2387G2H-LISU/SL)?

Same sensor and features in a mini bullet body. The bullet suits wall mounting pointing outward along a fence or driveway. The turret is more discreet on a ceiling or soffit.

Q.02

Does it stay in colour all night?

In Smart Hybrid Light mode, it uses IR when quiet and switches to warm LED when it detects someone. You can also set it to full-colour all the time.

Q.03

What lens options are available?

2.8 mm (wide, ~108°) or 4 mm (~93°). The 2.8 mm is the default for most residential installs.

Q.04

Does it have alarm I/O?

Yes. 1 alarm input and 1 alarm output. Plus audio input and output for external devices.

Q.05

Is it vandal-proof?

No IK rating on this mini bullet model. It is IP67 weatherproof. For vandal resistance, look at the dome version.
