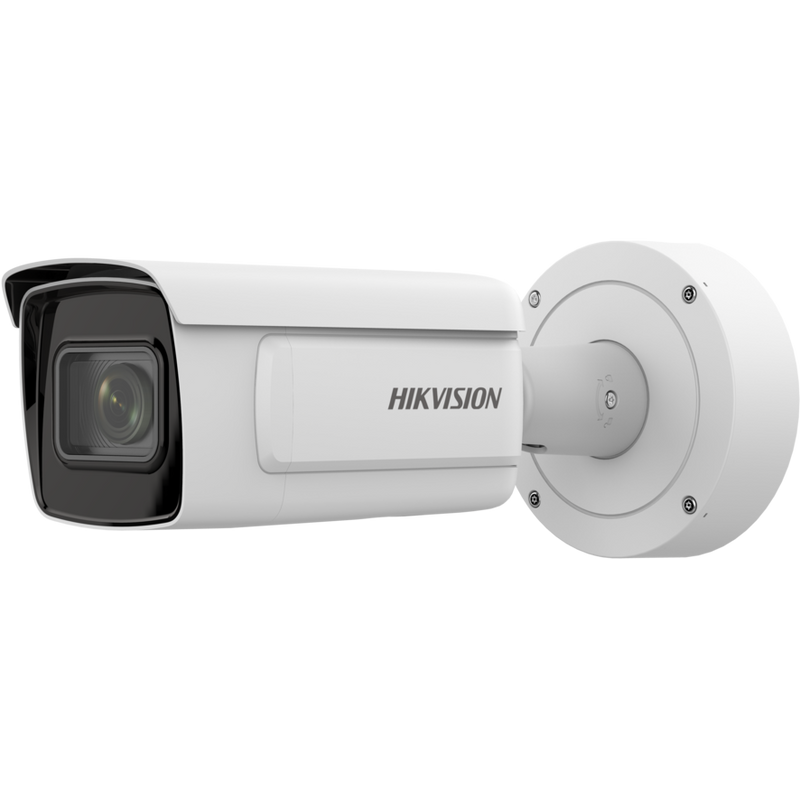

Hikvision DS-2CD7A46G0-IZS Outdoor DeepInView Bullet AI Camera, NEMA 4X, IP67, IK10, 2.8-12mm
SKU: DS-2CD7A46G0-IZS
Description
The Hikvision DS-2CD7A46G0-IZS is a 4 MP DeepinView motorised varifocal bullet built for professional sites that need reliable AI detection and forensic detail. A large 1/1.8" sensor, 140 dB WDR and deep-learning analytics let it pick out people and vehicles, read attributes and run perimeter rules on the camera itself.
Key points
- 4 MP (2688 x 1520) 1/1.8" CMOS DeepinView sensor
- Motorised 2.8 to 12 mm zoom with remote focus
- Infrared night vision up to 50 m (black and white at night)
- 140 dB WDR and DarkFighter low-light imaging
- Deep-learning human and vehicle detection with perimeter rules
- IP67 and IK10 metal body; PoE (802.3at) or 12 VDC
Regular price
$1,036.95 AUD
Sale price
$1,036.95 AUD
Regular price
$1,288.00 AUD
Sale
19.49%
$251.05 AUD
(19.49%)
Member
Sign in to save $20.74 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision DS-2CD7A46G0-IZS Outdoor DeepInView Bullet AI Camera, NEMA 4X, IP67, IK10, 2.8-12mm
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $1,980.55
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2CD7A46G0-IZS is
The Hikvision DS-2CD7A46G0-IZS is a 4 MP DeepinView motorised varifocal bullet aimed at commercial and high-value sites that need accurate AI detection rather than just a high pixel count.
The 1/1.8" sensor and 140 dB Wide Dynamic Range hold detail in difficult light, such as a bright entrance against a shaded interior, and DarkFighter sensitivity keeps usable images as light fades.
At night the camera switches to infrared up to 50 m, so the night image is black and white rather than colour.
What sets this camera apart is the on-board deep learning.
It detects and classifies people, faces and vehicles at the same time, reads attributes, and runs perimeter rules such as line crossing and intrusion that can be set to alarm only on a human or a vehicle.
That target filtering cuts the false alarms that trees, rain and animals trigger on an ordinary camera, and it also supports road-traffic and number-plate functions for entrances and lanes.
The motorised 2.8 to 12 mm lens sets zoom and focus remotely, so one technician can frame a driveway, car park or boundary without re-adjusting the camera by hand.
This is a metal bullet rated IP67 and IK10 for weather and impact, with a microSD slot up to 256 GB, a gigabit network port and alarm connections.
It runs on PoE (802.3at) or 12 VDC.
Audio is handled through a line-in and a line-out for an external microphone and speaker; there is no microphone or speaker inside the camera.
Record it to a Hikvision NVR so the AI events and footage stay quick to search.
See it in action
What the DS-2CD7A46G0-IZS features actually look like
Representative illustrations of how each key feature performs in a real scene.
4MP Ultra HD
4MP captures roughly twice the detail of standard 1080p.
50m IR Night Vision
Built-in infrared sees in total darkness up to around 50m — good for longer driveways, car parks and wider properties. People and vehicles stay visible well beyond the reach of a porch light.
Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DS-2CD7A46G0-IZS specifications
- 4 MP (2688 x 1520) 1/1.8" CMOS DeepinView sensor at up to 30 fps
- Motorised 2.8 to 12 mm varifocal lens with remote zoom and focus
- Deep-learning detection of people, faces and vehicles with attributes
- Perimeter rules that can alarm on human or vehicle targets only
- Infrared night vision up to 50 m (black and white at night)
- 140 dB WDR and DarkFighter low-light imaging
- Line-in and line-out for external audio; microSD up to 256 GB
- IP67 and IK10 metal bullet; PoE (802.3at) or 12 VDC
- Motorised 2.8 to 12 mm varifocal lens with remote zoom and focus
- Deep-learning detection of people, faces and vehicles with attributes
- Perimeter rules that can alarm on human or vehicle targets only
- Infrared night vision up to 50 m (black and white at night)
- 140 dB WDR and DarkFighter low-light imaging
- Line-in and line-out for external audio; microSD up to 256 GB
- IP67 and IK10 metal bullet; PoE (802.3at) or 12 VDC
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day ＆ Night | IR cut filter; Blue glass module to reduce ghost phenomenon |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | BLC,HLC,3D DNR,Distortion Correction,Defog |
| SNR | ≥ 52 dB |
| Privacy Mask | 8 programmable polygon privacy masks |
| Image Stabilization | EIS |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length ＆ FOV | 2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48° | 8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3° |
| Focus | Auto,Semi-auto,Manual |
| Iris Type | P-iris |
| Aperture | 2.8 to 12 mm: F1.2 to F2.5 | 8 to 32 mm: F1.7 to F1.73 |
| DORI | Wide: | 2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m | 8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 m | Tele: | 2.8 to 12 mm: D (Detect): 149 m, O (Observe): 59.1 m, R (Recognize): 29.8 m, I (Identify): 14.9 m | 8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | 2.8 to 12 mm: 50 m | 8 to 32 mm: 100 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: | 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) | 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720) | 60 Hz: | 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) | 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) | 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) | 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) | 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Fifth Stream | 50 Hz: 25 fps (704 × 576, 640 × 480) | 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Target Cropping | Yes |
| e-PTZ | Support Patrol and Auto Tracking settings |
Audio
| Feature | Detail |
|---|---|
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Type | Mono sound |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Model Specification | Up to 4 models, Model type: detection model, classification model, mixed model (detection model and classification model) |
| Multi-target-type Detection | Supports simultaneous detection and capture of human body, face, and vehicle, Gets 7 face features, Gets 13 human body features, Gets 2 vehicle features, Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle, Supports dynamic mosaic mask |
| Face Capture | Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures, Supports best shot and quick shot for capture mode, Supports dynamic mosaic mask, Gets 7 face features |
| Face Comparison | Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total, Supports face library encryption |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle); Support combined event alarm triggering |
| People Counting | Supports Multi-Dimension People Counting, Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.), Supports real-time uploading and uploading by statistic cycle, Supports generating daily, weekly, monthly or annually reports, Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval, Supports face feature deduplication, Supports people flow data replenishment |
| Queue Management | Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 2 detection modes: regional people queuing-up, waiting time detection; Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue; Supports raw data export for further analysis; Supports real-time data uploading and scheduled data uploading; Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold; Waiting time detection: supports 1 alarm trigger condition, including greater than threshold |
| Heat Map | A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart. |
| Hard Hat Detection | Detects up to 30 human targets simultaneously; Supports up to 4 shield regions |
| Metadata | Intrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection |
| Regional People Counting | Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection; Supports parameter settings: alarm times per exception, alarm interval, first alarm delay; Supports searching real-time number of people; People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading; Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B); Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B) |
| On/Off Duty Detection | Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 2 detection modes: absence detection, on/off duty detection; Supports parameter settings: person on duty, absence duration |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256 |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200,Hik-Connect,Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection |
| Smart Event | scene change detection,audio exception detection,defocus detection |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning |
Interface
| Feature | Detail |
|---|---|
| Video Output | 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Audio | With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC, 1 A) |
| RS-485 | With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | Yes |
| Power Output | With -Y: 12 VDC, max. 100 mA |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W |
| Material | Aluminum alloy body |
| Dimension | Without -Y: Ø 144 mm × 347 mm (Ø 5.7" × 13.7") | With -Y: Ø 140 mm × 351 mm (Ø 5.5" × 13.8") |
| Package Dimension | 405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1") |
| Weight | Approx. 1950 g (4.2 lb.) |
| With Package Weight | Approx. 3070 g (6.7 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, mirror, password protection, one-key reset |
| Heater | Yes |
| Device Management | Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces |
| EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| Anti-Corrosion Protection | -Y: NEMA 4X (NEMA 250-2018) |
| Automotive and Railway | EN50121-4 |
| Other | PVC FREE |
| CC | Common Criteria, Assurance Level: EAL2 + ALC_FLR.2 |
§ 04Why choose this
Built for the way you actually use the DS-2CD7A46G0-IZS
Fewer false alarms
Perimeter rules can trigger only on human or vehicle targets, cutting nuisance alerts.
Clear in hard light
140 dB WDR and DarkFighter imaging hold detail against backlight and in low light.
Built for tough sites
An IP67, IK10 metal body handles Australian weather and impact on exposed positions.
§ 05Where it fits
Right at home in these scenarios
Commercial perimeters
Alarm only on people or vehicles crossing a boundary line after hours.
Car parks and entrances
Capture vehicles and plates at a gate or lane with the motorised zoom.
Logistics and depots
Classify foot and vehicle traffic at a yard and filter out animals and weather.
Building approaches
Balance a bright doorway against a darker interior with 140 dB WDR.
§ 06Setup
Installation & setup
What's in the box
One DS-2CD7A46G0-IZS bullet camera with a mounting template, fixings and a quick guide. The PoE switch or NVR, network cable, microSD card and any junction box are supplied separately.
Installation requirements
Mount it on a wall or eave aimed along the area you want to cover and run one network cable back to a PoE switch or NVR that supports 802.3at, or use 12 VDC. Set the zoom, focus and AI rules in the software, add external audio to the line connections if needed, and record it to a Hikvision NVR that supports the AI metadata.
§ 07Questions
Frequently asked about the DS-2CD7A46G0-IZS
Q.01
What makes the DS-2CD7A46G0-IZS a DeepinView camera?
It runs deep-learning analytics on the camera itself, so it does more than record. It detects and classifies people, faces and vehicles, reads attributes, and can trigger perimeter alarms only for the target types you choose, which makes it a proactive camera rather than a passive one.
Q.02
Does it filter people and vehicles to cut false alarms?
Yes. Its perimeter rules, such as line crossing and intrusion, can be set to alarm only on a human or a vehicle, so moving branches, rain and animals are far less likely to set off a false alert than on a basic motion camera.
Q.03
Does it record in colour at night?
No. It has DarkFighter low-light imaging that holds colour as light fades, but in darkness it uses infrared up to 50 m, so the night image is black and white. It is not a 24/7 full-colour camera.
Q.04
Does it have a built-in microphone or two-way audio?
No. It has a line-in and a line-out connection for an external microphone and speaker, but there is no microphone or speaker inside the camera. Add your own audio devices if you need sound.
Q.05
Can it read number plates?
It supports road-traffic and plate functions alongside its people and vehicle detection, so it can capture plates at an entrance or lane when it is aimed and set up for that job. For dedicated long-range plate capture, a purpose-built ANPR camera is the better fit.
Q.06
What does the motorised lens do?
The 2.8 to 12 mm lens is powered, so you can zoom in or out and refocus remotely from the app or recorder. That makes it easy to frame a driveway, car park or boundary exactly, and to adjust later without returning to the camera.
Q.07
What power and recorder does it need?
It runs on PoE (802.3at) over a single network cable, or on 12 VDC. Record it to a Hikvision AcuSense or DeepinView NVR so the AI events are stored and searchable; check your switch or NVR supplies 802.3at.
Q.08
Is it suitable for outdoors in Australia?
Yes. It is rated IP67 against dust and water and IK10 against impact, and operates across a wide temperature range, so it suits exposed outdoor positions and harsh sites.
§ 09Bundles
Recommended packages
Record and review it
Feed it to a Hikvision AcuSense recorder such as the 16-channel DS-7732NXI-I4/16P NVR for larger sites, or the 8-channel DS-7608NI-I2/8P for smaller ones. Add a surveillance-grade drive like the 8 TB for weeks of continuous footage.
Power it over one cable
Run a single network cable per camera from a PoE source. The HiLook 8-port PoE switch feeds several cameras and the recorder, keeping the cabling tidy on multi-camera sites.
Mount it cleanly
A DS-1280ZJ-S junction box tidies the cabling and screw runs behind the bullet and gives a neat finish on a wall or eave.
