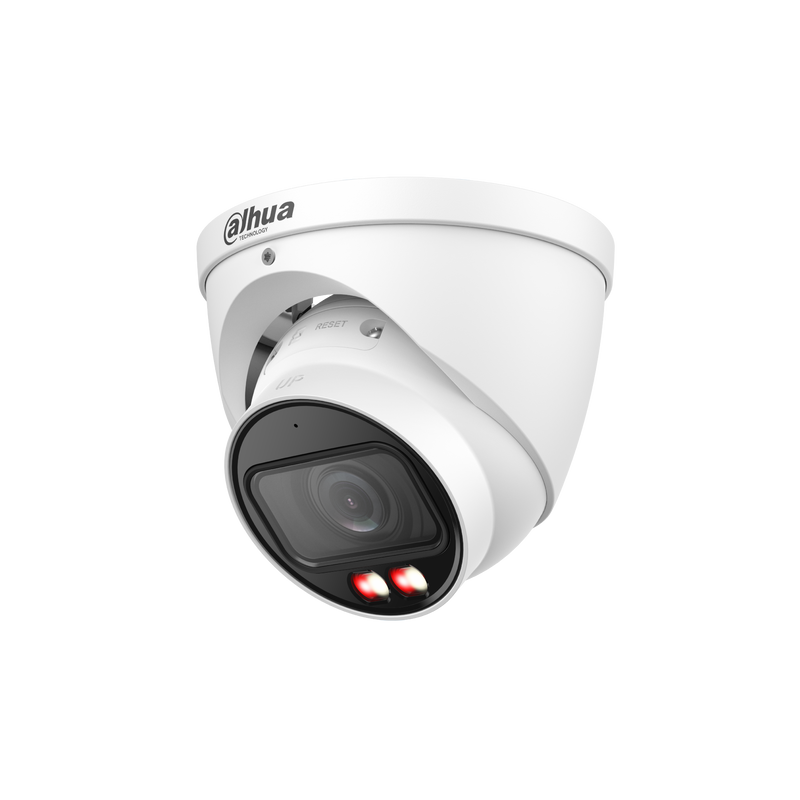

Dahua DH-IPC-HDW3867T-ZS-IL-ANZ 8MP Smart Dual-light Varifocal Turret Network Camera
- 8MP Resolution: Delivers 4K video at 3840 × 2160 @25/30fps.
- Smart Dual Light: Switches from IR to warm white light upon human/vehicle detection.
- Built-in Microphone: Enables audio capture for integrated recording.
- SMD 4.0: AI motion detection significantly reduces false alarms.
- IP67 Rating: Dust-tight and waterproof housing for harsh weather.
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
01Overview
What the DH-IPC-HDW3867T-ZS-IL-ANZ is
Lens: 2.8mm.
Color options: White or Black.
Note: Please indicate your choice in your order message.
The Dahua DH-IPC-HDW3867T-ZS-IL-ANZ is an 8MP smart dual-light vari-focal eyeball network camera for outdoor environments requiring advanced human/vehicle detection and clear footage day or night.
Equipped with Smart Dual Light technology, intelligent AI detection, motorized zoom lens, and IP67 weather protection.
See it in action
What the DH-IPC-HDW3867T-ZS-IL-ANZ features actually look like
Representative illustrations of how each key feature performs in a real scene.
8MP Ultra HD
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
50m IR Night Vision
Dual-Light Night Vision
Full Color Night Vision
False Alarm Reduction
Human/Vehicle Detection
IP67 Weatherproof
Illustrative — simulated for demonstration
02Engineering
DH-IPC-HDW3867T-ZS-IL-ANZ specifications
- Smart Dual Light: Automatically switches from IR to warm white light upon human/vehicle detection
- H.265+/H.265/H.264+ Encoding: Supports advanced compression formats for efficient storage
- SMD 4.0: AI-powered motion detection minimizes false alarms from irrelevant objects
- Built-in Microphone: Enables audio capture and recording capabilities
- IP67 Rating: Dust-tight and waterproof housing for harsh weather conditions
03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.007 lux@F1.4 (Color, 30 IRE); 0.0007 lux@F1.4 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| AFSA | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resoluton and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm-13.5 mm |
| Max. Aperture | F1.4 |
| Field of View | H: 114°–32°; V: 58°–17°; D: 138°–36° |
| Iris Control | Fixed |
| Close Focus Distance | 0.1 m (0.33 ft) |
| DORI Distance | W: Detect 85.3 m (279.86 ft); Observe 34.0 m (111.55 ft); Recognize 17.1 m (56.10 ft); Identify 8.5 m (27.89 ft) | T: Detect 280.0 m (918.64 ft); Observe 112.0 m (367.45 ft); Recognize 56.0 m (183.73 ft); Identify 28.0 m (91.86 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–78° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | Up to 50 m (164.04 ft) (IR); Up to 40 m (131.23 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–25/30 fps) | Sub stream: 1920 × 1080@(1 fps–25/30 fps) | Third stream: 1920 × 1080@(1 fps–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3200 × 1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR;ABR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in Mic | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 G); NAS |
| Browser | IE: IE11; Chrome; Firefox |
| Management Software | SmartPSS Lite; DSS; DMSS |
| Mobile Client | IOS; Android |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC/PoE (802.3af) |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 3.7W (12 VDC); 4.5 W (PoE) | Max. (H.265 + WDR + warm light + intelligence on): 8.2 W (12 VDC); 9.8 W (PoE) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Casing | Metal |

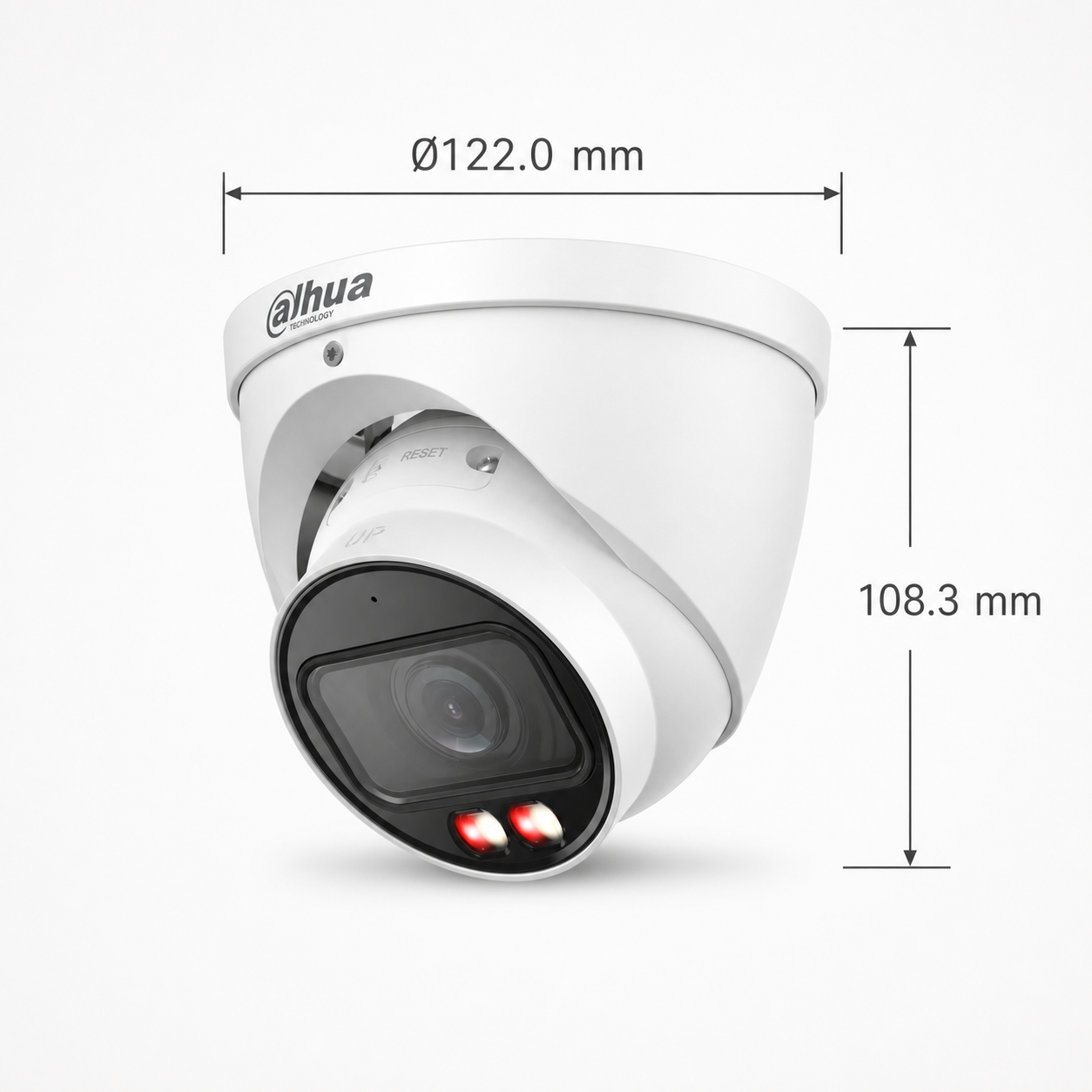

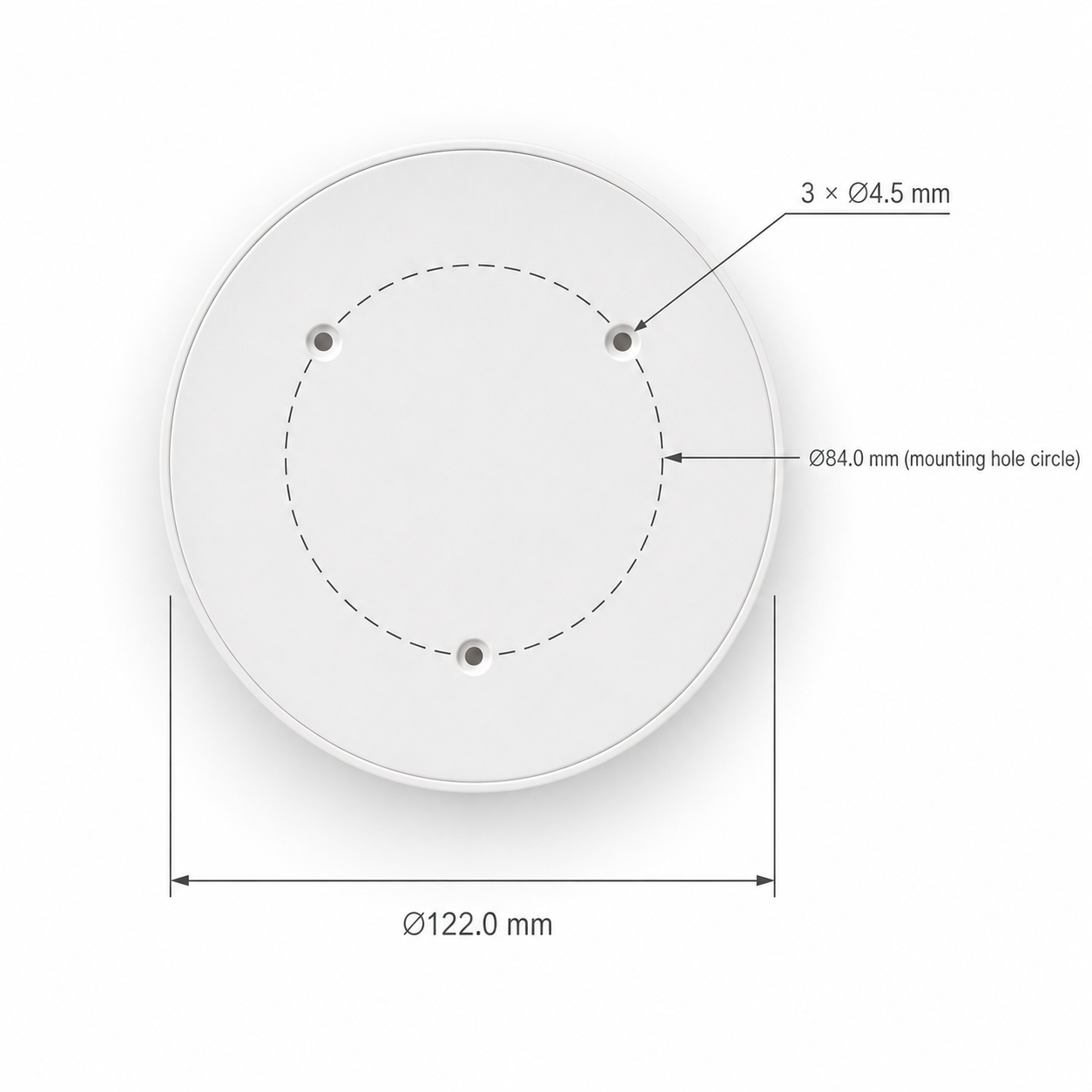

| Product Dimensions | 108.3 mm × Φ122.0 mm (4.26" × Φ4.80") |
| Net Weight | 690 g (1.52 lb) |
| Gross Weight | 920g (2.0 lb) |
| Certifications | CE-LVD: EN62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Camera & Image — Image Sensor | 1/2.7" CMOS |
|---|---|
| Camera & Image — Max. Resolution | 3840 (H) × 2160 (V) |
| Camera & Image — ROM | 256 MB |
| Camera & Image — RAM | 1 GB |
| Camera & Image — Scanning System | Progressive |
| Camera & Image — Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Camera & Image — Min. Illumination | 0.007 lux@F1.4 (Color, 30 IRE); 0.0007 lux@F1.4 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Camera & Image — S/N Ratio | >56 dB |
| Camera & Image — Day/Night | Auto (ICR)/Color/B/W |
| Camera & Image — BLC | Yes |
| Camera & Image — HLC | Yes |
| Camera & Image — WDR | 120 dB |
| Camera & Image — Scene Self-adaptation (SSA) | Yes |
| Camera & Image — White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Camera & Image — Gain Control | Auto |
| Camera & Image — Noise Reduction | 3D NR |
| Camera & Image — Motion Detection | OFF/ON (4 areas, rectangular) |
| Camera & Image — Image Stabilization | Electronic Image Stabilization (EIS) |
| Camera & Image — Region of Interest (RoI) | Yes (4 areas) |
| Camera & Image — Defog | Yes |
| Camera & Image — AFSA | Yes |
| Camera & Image — Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resoluton and lower) |
| Camera & Image — Mirror | Yes |
| Camera & Image — Privacy Masking | 8 areas |
| Lens & Distance — Lens Type | Motorized vari-focal |
| Lens & Distance — Lens Mount | φ14 |
| Lens & Distance — Focal Length | 2.7 mm-13.5 mm |
| Lens & Distance — Max. Aperture | F1.4 |
| Lens & Distance — Field of View | H: 114°–32°; V: 58°–17°; D: 138°–36° |
| Lens & Distance — Iris Control | Fixed |
| Lens & Distance — Close Focus Distance | 0.1 m (0.33 ft) |
| Lens & Distance — DORI Distance | W: Detect 85.3 m (279.86 ft); Observe 34.0 m (111.55 ft); Recognize 17.1 m (56.10 ft); Identify 8.5 m (27.89 ft) | T: Detect 280.0 m (918.64 ft); Observe 112.0 m (367.45 ft); Recognize 56.0 m (183.73 ft); Identify 28.0 m (91.86 ft) |
| Lens & Distance — Pan Range | 0°–360° |
| Lens & Distance — Tilt Range | 0°–78° |
| Lens & Distance — Rotation Range | 0°–360° |
| Night Vision — Illumination Distance | Up to 50 m (164.04 ft) (IR); Up to 40 m (131.23 ft) (Warm light) |
| Night Vision — Illuminator On/Off Control | Auto; Manual |
| Night Vision — Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Night Vision — Smart Illumination | Yes |
| Night Vision — Smart Dual Light | Yes |
| Video — Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Video — Smart Codec | Smart H.265+; Smart H.264+ |
| Video — AI Coding | AI H.265; AI H.264 |
| Video — Video Frame Rate | Main stream: 3840 × 2160@(1 fps–25/30 fps) | Sub stream: 1920 × 1080@(1 fps–25/30 fps) | Third stream: 1920 × 1080@(1 fps–25/30 fps) |
| Video — Stream Capability | 3 streams |
| Video — Resolution | 8M (3840 × 2160); 6M (3200 × 1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video — Bit Rate Control | VBR;CBR;ABR |
| Video — Video Bit Rate | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
| Audio — Built-in Mic | Yes, built-in Mic |
| Audio — Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| AI & Deep Learning — IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
| AI & Deep Learning — SMD | SMD 4.0 |
| AI & Deep Learning — AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI & Deep Learning — AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions |
| AI & Deep Learning — Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Network & Storage — SDK and API | Yes |
| Network & Storage — Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Network & Storage — Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| Network & Storage — User/Host | 20 (Total bandwidth: 64 M) |
| Network & Storage — Storage | FTP; SFTP; Micro SD card (support max. 512 G); NAS |
| Network & Storage — Browser | IE: IE11; Chrome; Firefox |
| Network & Storage — Management Software | SmartPSS Lite; DSS; DMSS |
| Network & Storage — Mobile Client | IOS; Android |
| Network & Storage — Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Event & Alarm — Alarm Event | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception |
| Interface — Network Port | RJ-45 (10/100 Base-T) |
| General & Environment — Power Supply | 12 VDC/PoE (802.3af) |
| General & Environment — Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| General & Environment — Power Consumption | Basic: 3.7W (12 VDC); 4.5 W (PoE) | Max. (H.265 + WDR + warm light + intelligence on): 8.2 W (12 VDC); 9.8 W (PoE) |
| General & Environment — Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| General & Environment — Operating Humidity | ≤95% (RH), non-condensing |
| General & Environment — Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| General & Environment — Storage Humidity | ≤95% (RH), non-condensing |
| General & Environment — Protection | IP67 |
| General & Environment — Casing | Metal |
| General & Environment — Product Dimensions | 108.3 mm × Φ122.0 mm (4.26" × Φ4.80") |
| General & Environment — Net Weight | 690 g (1.52 lb) |
| General & Environment — Gross Weight | 920g (2.0 lb) |
| General & Environment — Certifications | CE-LVD: EN62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
04Why choose this
Built for the way you actually use the DH-IPC-HDW3867T-ZS-IL-ANZ
Smart Dual Light
IR and warm light switch automatically. Colour footage when a target is detected, IR when quiet.
SMD 4.0 with AcuPick
Accurate human and vehicle classification. AcuPick enables fast target search in recorded footage on compatible NVRs.
Built-in Microphone
Records ambient audio alongside video.
IP67 Weatherproof
Sealed against dust and rain. ANZ model for the Australian market.
05Where it fits
Right at home in these scenarios
Front Entrance with Adjustable View
Wide at 2.7 mm for porch coverage, zoomed at 13.5 mm for a narrow path or gate. Adjust remotely after install.
Driveway or Carport
Smart dual light gives colour footage of approaching vehicles. SMD 4.0 alerts only on people and cars.
Side Passage or Alleyway
Zoom to match the passage length. IR covers the full run at night.
Small Retail Entry
Ceiling mount above the door. AcuPick speeds up incident review in playback.
06Setup
Installation & setup
-
01
What's in the Box
- Dahua DH-IPC-HDW3867T-ZS-IL-ANZ Camera × 1
- Mounting Screws & Anchors × 1 set
- Quick Start Guide × 1
-
02
Installation Requirements
- Power: PoE (IEEE 802.3af) or 12V DC.
- Cable: Cat5e or Cat6, max 100 m.
- Mounting: Wall or soffit. Camera weighs about 800 g.
- Height: 2.5–3.5 m for best AI detection range.
-
03
App Setup
- Download DMSS app (iOS or Android). Create an account.
- Power the camera via PoE. Wait about 60 seconds.
- Add by QR code or serial number.
- Adjust zoom remotely. Set detection zones and AcuPick preferences.
08Questions
Frequently asked about the DH-IPC-HDW3867T-ZS-IL-ANZ
Q.01
How is this different from the HDW3649H-ZAS-PV (6MP motorised)?
Q.02
Does it have a speaker?
Q.03
What is the IR range?
Q.04
Is it available in black?
Q.05
What NVR works best with AcuPick?
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
