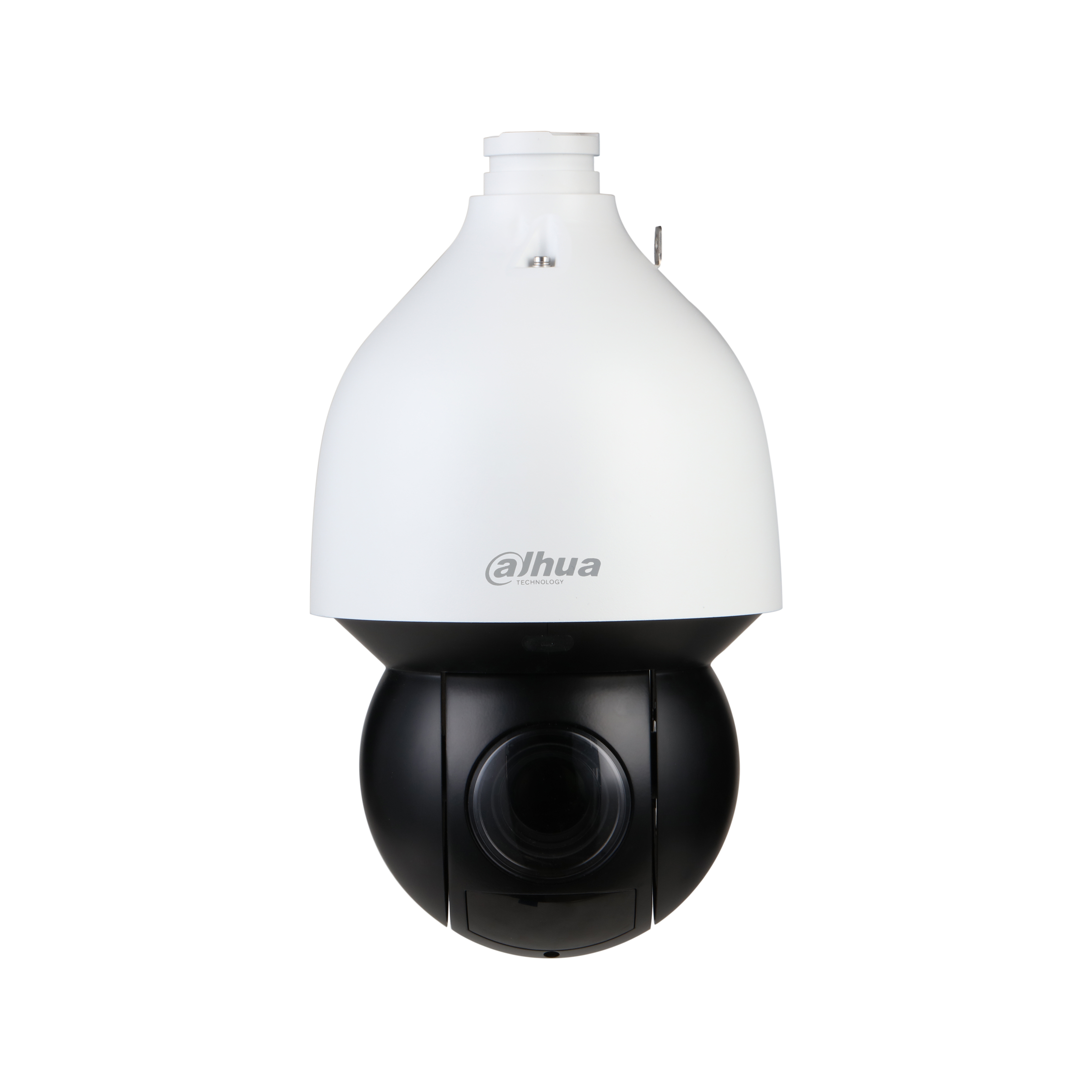

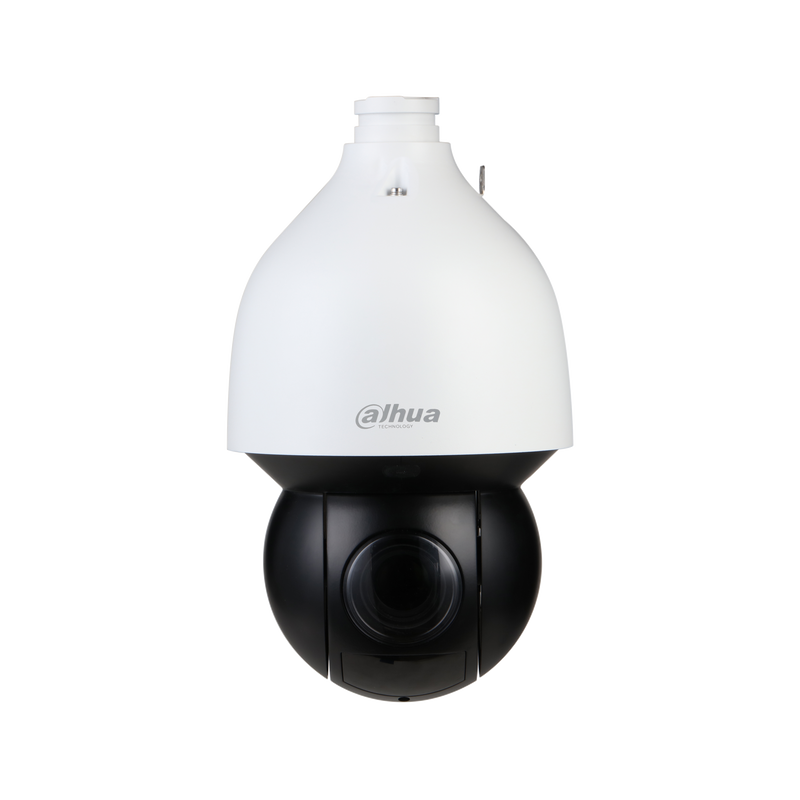

Dahua DH-SD5A425XA-HNR 4MP 25x Starlight IR PTZ AI Network Camera
Dahua DH-SD5A425XA-HNR 4MP 25x Starlight IR PTZ AI Network Camera
1 1
Dahua

Dahua DH-SD5A425XA-HNR 4MP 25x Starlight IR PTZ AI Network Camera

SKU: DH-SD5A425XA-HNR
Description

4MP WizSense 25x Starlight IR network PTZ camera with auto-tracking and AI perimeter protection for large outdoor sites.

  • 1/1.8" 4MP Starlight CMOS, 2560 x 1440 at 25/30 fps
  • 25x optical zoom motorised lens
  • IR up to 150m with Smart IR
  • 360 pan, -15 to +90 tilt, 300 presets
  • Auto-tracking with SMD Plus and perimeter protection
  • Human and vehicle classification, face detection
  • IP67, IK10 and TVS 6000V surge protection
  • PoE+ (802.3at) or 24V DC; microSD up to 256GB
4MP Ultra HD IP67 Weatherproof Human/Vehicle Detection
$1,470.00 AUD $1,470.00 AUD $2,063.00 AUD
Sale 28.74% $593.00 AUD (28.74%)
Member Sign in to save $29.40 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $1,969.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
1
1
Bundle total: $1,470.00
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DH-SD5A425XA-HNR is

The Dahua DH-SD5A425XA-HNR is a 4MP WizSense network PTZ camera built for wide-area monitoring, pairing a 25x optical zoom with a large 1/1.8-inch Starlight sensor for strong low-light imaging and IR reaching up to 150m.

Auto-tracking follows a detected subject across a 360-degree pan, while SMD Plus and perimeter protection classify humans and vehicles to cut nuisance alerts.

A long DORI range identifies detail at distance, and an IP67, IK10 housing with TVS 6000V surge protection, rated from -40C to +70C, suits exposed poles, rooftops and industrial perimeters.

It powers from PoE+ or 24V DC and stores up to 256GB on microSD, recording to a Dahua AI NVR for full WizSense event management.

See it in action

What the DH-SD5A425XA-HNR features actually look like

Representative illustrations of how each key feature performs in a real scene.

4MP Ultra HD — 4MP captures roughly twice the detail of standard 1080p.

4MP Ultra HD

4MP captures roughly twice the detail of standard 1080p.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DH-SD5A425XA-HNR specifications

- Sensor and resolution: 1/1.8" 4MP Starlight CMOS, 2560 x 1440 at up to 25/30 fps, with Starlight low-light imaging

- Zoom: 25x optical motorised lens for wide overview through to long-range identification

- Night vision: IR up to 150m across 4 LEDs with adaptive Smart IR matched to the zoom level

- PTZ: 360 endless pan, -15 to +90 tilt with auto flip, 300 presets, 8 tours, patterns and scans

- Auto-tracking: automatically pans, tilts and zooms to keep a detected target in frame after a rule fires

- AI: SMD Plus and perimeter protection (tripwire, intrusion) with human and vehicle classification, plus face detection

- Durability: IP67 and IK10 housing with TVS 6000V lightning and surge protection, -40C to +70C

- Power and storage: PoE+ (802.3at) or 24V DC, up to 20W with IR on; microSD up to 256GB; Dahua and ONVIF compatible

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua DH-SD5A425XA-HNR 4MP 25x Starlight IR PTZ AI Network Camera
FeatureDetail
Image Sensor 1/1.8" CMOS
Pixel 4MP
Max. Resolution 2560 (H)×1440 (V)
ROM 4GB
RAM 1GB
Electronic Shutter Speed 1/3–1/30,000s
Scanning System Progressive Scanning
Min. Illumination Color: 0.001 Lux@F1.6; B/W: 0.0001 Lux@F1.6; 0Lux (IR light on)
Day/Night Support
BLC Support
WDR 120dB
HLC Support
White Balance Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp
Gain Control Auto/Manual
Noise Reduction 2D/3D
Motion Detection Support
Region of Interest (RoI) Support
Image Stabilization Electronic
Defog Support
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas can be set, with up to 8 areas in the same view

§ 04Why choose this

Built for the way you actually use the DH-SD5A425XA-HNR

Wide coverage from one mount

A 25x optical zoom and 360 endless pan let one PTZ cover a whole perimeter and zoom into distant detail, reducing the number of fixed cameras a large site needs.

Acts on alerts, not just records

Auto-tracking points and follows the camera the moment a perimeter rule fires, turning it into an active monitoring tool for sites with limited staff.

Clear footage after dark

A 1/1.8-inch Starlight sensor and 150m IR with adaptive Smart IR keep distant detail usable along fence lines and open yards in near-dark conditions.

Built for exposed sites

IP67, IK10 and TVS 6000V surge protection across a -40C to +70C range suit masts, rooftops and industrial perimeters where weather and electrical transients are constant.

§ 05Where it fits

Right at home in these scenarios

Large car parks and open yards

The 360 pan, 25x zoom and auto-tracking survey a whole site from one elevated mount and zoom into an incident without operator input.

Industrial perimeter fence lines

Tripwire and intrusion rules filtered to human and vehicle, with 150m IR, give actionable alerts along unlit boundaries without high false-alarm rates.

Critical infrastructure and utilities

Operation from -40C to +70C with TVS 6000V protection and IK10 suits pole-mounted installs at substations, water sites and exposed compounds.

Commercial campuses

Up to 8 patrol tours across 300 presets cycle key zones automatically, and the camera breaks off tour to follow an event then resumes.

§ 06Setup

Installation & setup

01

Use a PoE+ or 24V DC source

Power from an 802.3at PoE+ switch or injector, or a 24V DC, 2.5A supply rated for the full 20W draw with IR on. A 15.4W 802.3af port will not run this camera reliably.

02

Mount on a pole, wall or pendant

At around 4.7kg it needs solid mounting hardware. Use a Dahua-compatible PTZ bracket and a junction box such as the PFA121 to keep connectors water-tight; confirm fit before installing.

03

Set tracking, presets and tours

Configure perimeter tripwire and intrusion rules with auto-tracking, and map presets, tours and scans for the site, allowing for blind spots created by structures or terrain.

04

Earth against surge

Use the TVS 6000V rating with proper earthing on exposed mast and rooftop mounts to protect against lightning-induced spikes.

§ 07Questions

Frequently asked about the DH-SD5A425XA-HNR

Q.01

What power does the DH-SD5A425XA-HNR need?
It draws up to 20W with IR active and needs PoE+ (IEEE 802.3at) or a 24V DC, 2.5A supply. Standard 802.3af PoE is rated 15.4W and will not reliably power the camera, particularly during pan and tilt. Confirm your switch or injector supplies 802.3at on the connected port before installing.
Q.02

How far can it see and identify detail?
The 25x optical zoom gives a long DORI range, identifying a person at roughly 172m and detecting activity much further. Combined with 150m IR, it suits open sites and perimeters where a fixed camera cannot resolve distant detail.
Q.03

How does the auto-tracking work?
When a perimeter rule such as tripwire or intrusion is triggered, the camera automatically points at the target and follows it with pan, tilt and zoom, so it tracks a subject without an operator at the controls.
Q.04

Does the IR adjust as the camera zooms?
Yes. Smart IR adjusts the infrared as the lens zooms toward 25x, preventing overexposure at wide angle and keeping distant subjects lit at full zoom for usable footage.
Q.05

Does it have a microphone or speaker?
No. It provides line audio in and out for external devices, but it has no built-in microphone or speaker, so audio needs external hardware if required.
Q.06

What do SMD Plus and perimeter protection add over basic motion detection?
SMD Plus classifies movement as human or vehicle before alerting, and perimeter protection adds tripwire and intrusion rules filtered to those target types. Together they cut nuisance alarms from animals, foliage and lighting changes on exposed sites.
Q.07

Is it protected against weather and lightning?
Yes. It is IP67 against dust and water, IK10 against impact, and carries TVS 6000V surge protection across a -40C to +70C range, suiting exposed masts and rooftops when properly earthed.
Q.08

Does it work with Dahua NVRs and third-party systems?
It works with Dahua NVRs and DSS over Dahua protocol and supports ONVIF Profile S, G and T plus CGI. PTZ presets, tours and rule-triggered tracking are accessible on compatible Dahua platforms; confirm your NVR supports PTZ control.

§ 09Bundles

Recommended packages

02

PoE+ power and cabling

Power from an 802.3at source such as the Dahua PoE switch (confirm the port supplies PoE+ at up to 20W) and run quality Cat6 cable to the head, or use a 24V DC supply.
