Dahua HDBW3466FP-AS-AUS | 4MP WizSense Dome

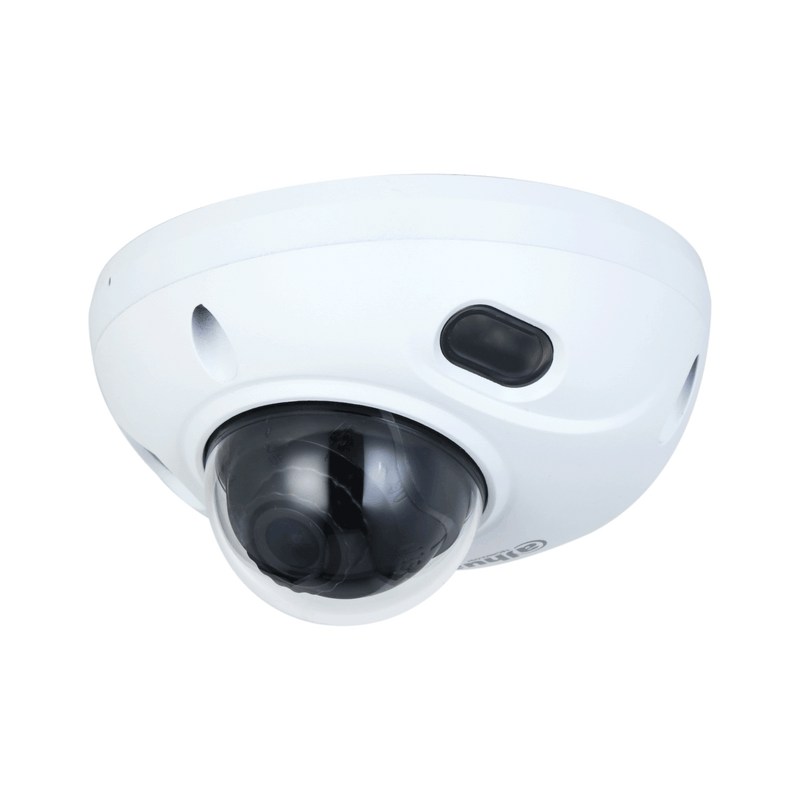

Name: Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-focal Mini Dome Network Camera
Brand: Dahua
Price: 170.0 AUD
Availability: InStock

Build your setup Build a complete CCTV system Complete setup from $669.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count

None

Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder ~~$282.00~~$230.00

Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder ~~$356.00~~$286.00

Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder ~~$695.00~~$576.00

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7

None

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB $269.45

6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB ~~$418.00~~$405.00

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB ~~$616.00~~$545.15

10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB ~~$792.00~~$699.00

Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.

Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder ~~$356.00~~$286.00

1

Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder ~~$695.00~~$576.00

1

Dahua DH-PFA137 Water-proof Junction Box ~~$15.00~~$14.00

1

Cable · 10m $13.00

1

Cable · 20m $28.00

1

Cable · 30m $40.00

1

Cable · 50m $65.00

1

§ 01Overview

What the DH-IPC-HDBW3466FP-AS-AUS is

The Dahua DH-IPC-HDBW3466FP-AS-AUS is a 4 MP WizSense mini dome for sites that want intelligent detection in a small, hard-to-tamper housing.

It captures 2688 x 1520 detail through a fixed 2.8 mm wide lens, and SMD 4.0 uses deep learning to classify human and vehicle targets, so motion alarms and perimeter rules such as tripwire and intrusion focus on real activity and ignore animals and weather.

Starlight technology gives it strong low-light performance, holding usable colour as light fades before a 30 m infrared illuminator takes over in full darkness.

120 dB WDR balances bright and dark areas in the same frame, and a built-in microphone records audio alongside the video.

The dome is rated IP67 against dust and rain and IK10 against impact, so it suits entrances, shopfronts and walls indoors or out.

Two honest notes: it has a built-in microphone but no speaker, so it records audio rather than offering two-way talk on its own.

And like any infrared camera, its night images in full darkness are black-and-white; the Starlight sensor extends colour into low light but is not an always-on full-colour white-light camera.

Power it from PoE or 12 VDC and record it to a Dahua WizSense NVR.

See it in action

What the DH-IPC-HDBW3466FP-AS-AUS features actually look like

Representative illustrations of how each key feature performs in a real scene.

4MP Ultra HD — 4MP captures roughly twice the detail of standard 1080p. — 4MP Ultra HD
4MP captures roughly twice the detail of standard 1080p.

30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2) — 30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.

30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2) — 30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.

Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying... — Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.

IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h... — IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HDBW3466FP-AS-AUS specifications

- 4 MP (2688 x 1520) 1/3" Starlight CMOS at up to 25/30 fps
- SMD 4.0 deep-learning human and vehicle classification
- Starlight low-light colour; 30 m infrared night vision (black-and-white)
- Built-in microphone for audio recording (no built-in speaker)
- 120 dB WDR and 3D NR for high-contrast and low-light scenes
- Perimeter protection: tripwire and intrusion
- Fixed 2.8 mm wide lens; IP67 weatherproof and IK10 vandal resistant
- Powered by PoE or 12 VDC; microSD up to 256 GB

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-focal Mini Dome Network Camera
Feature	Detail
Image Sensor	1/2.9" CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	128 MB
RAM	512 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.005 lux@F1.4 (Color, 30 IRE); 0.0005 lux@F1.4 (B/W, 30 IRE); 0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio	>56 dB
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation (SSA)	Yes
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Defog	Yes
AFSA	Yes
Image Rotation	0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)
Mirror	Yes
Privacy Masking	4 areas

Lens & Distance

Lens & Distance — Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-focal Mini Dome Network Camera
Feature	Detail
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.1 mm; 2.8 mm; 3.6 mm; 6 mm
Max. Aperture	2.1 mm: F2.0; 2.8 mm; 3.6 mm; 6 mm: F1.4
Field of View	2.1 mm: Horizontal: 137°; vertical: 70°; diagonal: 142° \| 2.8 mm: Horizontal: 102°; vertical: 54°; diagonal: 121° \| 3.6 mm: Horizontal: 84°; vertical: 42°; diagonal: 101° \| 6 mm: Horizontal: 52°; vertical: 28°; diagonal: 61°
Iris Control	Fixed
Close Focus Distance	2.1 mm: 0.5 m (1.64 ft); 2.8 mm: 0.9 m (2.95 ft); 3.6 mm: 1.6 m (5.25 ft); 6 mm: 3.2 m (10.50 ft)
DORI Distance	2.1 mm: Detect 52.0 m (170.60 ft); Observe 20.8 m (68.24 ft); Recognize 10.4 m (34.12 ft); Identify 5.2 m (17.06 ft) \| 2.8 mm: Detect 63.6 m (208.66 ft); Observe 25.4 m (83.33 ft); Recognize 12.7 m (41.66 ft); Identify 6.4 m (21.00 ft) \| 3.6 mm: Detect 85.4 m (280.18 ft); Observe 34.2 m (112.20 ft); Recognize 17.1 m (56.10 ft); Identify 8.5 m (27.89 ft) \| 6 mm: Detect 124.0 m (406.82 ft); Observe 49.6 m (162.73 ft); Recognize 24.8 m (81.36 ft); Identify 12.4 m (40.68 ft)
Pan Range	0°–355°
Tilt Range	-20°–70°
Rotation Range	0°–355°

Night Vision

Night Vision — Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-focal Mini Dome Network Camera
Feature	Detail
Illumination Distance	Up to 30 m (98.43 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	2 (IR LED)

Video

Video — Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-focal Mini Dome Network Camera
Feature	Detail
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
AI Coding	AI H.265; AI H.264
Video Frame Rate	Main stream: 2688 × 1520 @ (1–25/30) fps \| Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) \| Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
Stream Capability	3 streams
Resolution	4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps

Audio

Audio — Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-focal Mini Dome Network Camera
Feature	Detail
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723

AI & Deep Learning

AI & Deep Learning — Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-focal Mini Dome Network Camera
Feature	Detail
IVS (Perimeter Protection)	Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
AI SSA	Yes
Quick Pick	With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Network & Storage

Network & Storage — Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-focal Mini Dome Network Camera
Feature	Detail
SDK and API	Yes
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Cyber Security	Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host	20 (Total bandwidth: 64 M)
Storage	FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser	IE: IE11; Chrome; Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Client	IOS; Android

Event & Alarm

Event & Alarm — Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-focal Mini Dome Network Camera
Feature	Detail
Alarm Event	No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception

Interface

Interface — Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-focal Mini Dome Network Camera
Feature	Detail
Network Port	RJ-45 (10/100 Base-T)
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: wet contact, 5 mA 3 V–5 VDC
Alarm Output	1 channel out: wet contact, 300 mA 12 VDC

General & Environment

General & Environment — Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-focal Mini Dome Network Camera
Feature	Detail
Power Supply	12 VDC/PoE (802.3af)
Power Consumption	Basic: 3.8 W (12 VDC); 4.6 W (PoE) \| Max. (WDR + IR intensity + Intelligence): 5.9 W (12 VDC); 7.2 W (PoE)
Operating Temperature	–40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% RH
Storage Temperature	–40 °C to +60 °C (–40 °F to 140 °F)
Protection	IP67, IK10
Casing	Metal
Product Dimensions	64.8 mm × Φ111.0 mm (2.55" × Φ4.37")
Net Weight	423 g (0.93 lb)
Gross Weight	530 g (1.17 lb)
Certifications	CE-LVD: EN62368-1 \| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU \| FCC: 47 CFR FCC Part 15, Subpart B \| UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

§ 04Why choose this

Built for the way you actually use the DH-IPC-HDBW3466FP-AS-AUS

Smart detection in a small dome

SMD 4.0 human and vehicle classification keeps alerts on people and cars, in a discreet vandal-resistant housing.

Strong in low light

Starlight technology holds colour as light fades, with 30 m infrared for full darkness.

Built to take a knock

IP67 and IK10 ratings suit exposed entrances, car parks and public areas.

Audio on board

A built-in microphone records sound alongside the video for added context.

§ 05Where it fits

Right at home in these scenarios

Entrances and doorways

Cover a front door, lobby or shop entry with discreet 4MP detail and audio.

Retail interiors

Watch aisles and counters where a low-profile dome is preferred over a bullet.

Residential walls and eaves

Monitor driveways and approaches with SMD people and vehicle alerts.

Offices and reception

Keep a tidy, vandal-resistant camera over reception and corridors.

§ 06Setup

Installation & setup

01

What's in the box

One DH-IPC-HDBW3466FP-AS-AUS 4MP mini dome camera with mounting template and fixings. The microSD card, power supply or PoE source and any NVR are supplied separately.

02

Installation requirements

Mount it on a wall, eave or ceiling over the area to cover and power it from a PoE switch or NVR or a 12 VDC supply. Connect the network, set the day and night and SMD perimeter rules in the software, and add it to a Dahua NVR for recording and event search.

§ 07Questions

Frequently asked about the DH-IPC-HDBW3466FP-AS-AUS

Q.01

Does the HDBW3466FP record in colour at night?

Its Starlight sensor keeps colour in low light, but in full darkness it switches to a 30 m infrared illuminator and the image is black-and-white. It is not an always-on full-colour white-light camera; for permanent colour at night choose a dual-light or full-colour model.

Q.02

Does it have two-way audio?

It has a built-in microphone so it records audio with the video, but it does not have a built-in speaker, so it is not a two-way talk camera on its own. You can add an external speaker through a recorder if you need talk-back.

Q.03

What does SMD 4.0 do?

SMD 4.0 uses deep learning to classify human and vehicle targets and filter out other movement such as animals, rain and swaying trees. That cuts false alarms and makes searching recorded footage by people or vehicles much faster.

Q.04

Is it tough enough for an exposed or public spot?

Yes. It is rated IP67 against dust and heavy rain and IK10 against impact, so the dome stands up to weather and tampering at entrances, car parks and public areas.

Q.05

How wide is the view from the 2.8 mm lens?

The fixed 2.8 mm lens gives a wide field of view, good for covering a doorway, room or driveway from a close-to-medium distance. It does not zoom, so for a tight long-range view you would choose a varifocal model.

Q.06

How is it powered?

It runs on PoE (802.3af) or a 12 VDC supply. PoE is the usual choice as one cable carries power and data from a PoE NVR or switch.

Q.07

Which recorder works best with it?

Use a Dahua WizSense NVR so the SMD human and vehicle event data is kept for faster searching. A 4 or 8-channel PoE NVR suits a small site; step up to 16 channels for more cameras.

§ 08In motion

Dahua 3466 Camera - High-Quality Surveillance for Your Home or Business

§ 09Bundles

Recommended packages

01

Record and search it

Connect it to a Dahua WizSense NVR such as the DHI-NVR4108HS-8P, or the DHI-NVR4216-16P for larger sites, to keep SMD human and vehicle events.

02

Surface-mount the cabling

Use a DH-PFA137 junction box or a DH-PFB203W wall bracket to route and protect the cable on a wall.

03

Step up to 8MP

For 4K detail and a motorised lens, compare the 8MP HDBW3866RP-ZAS-AUS.
