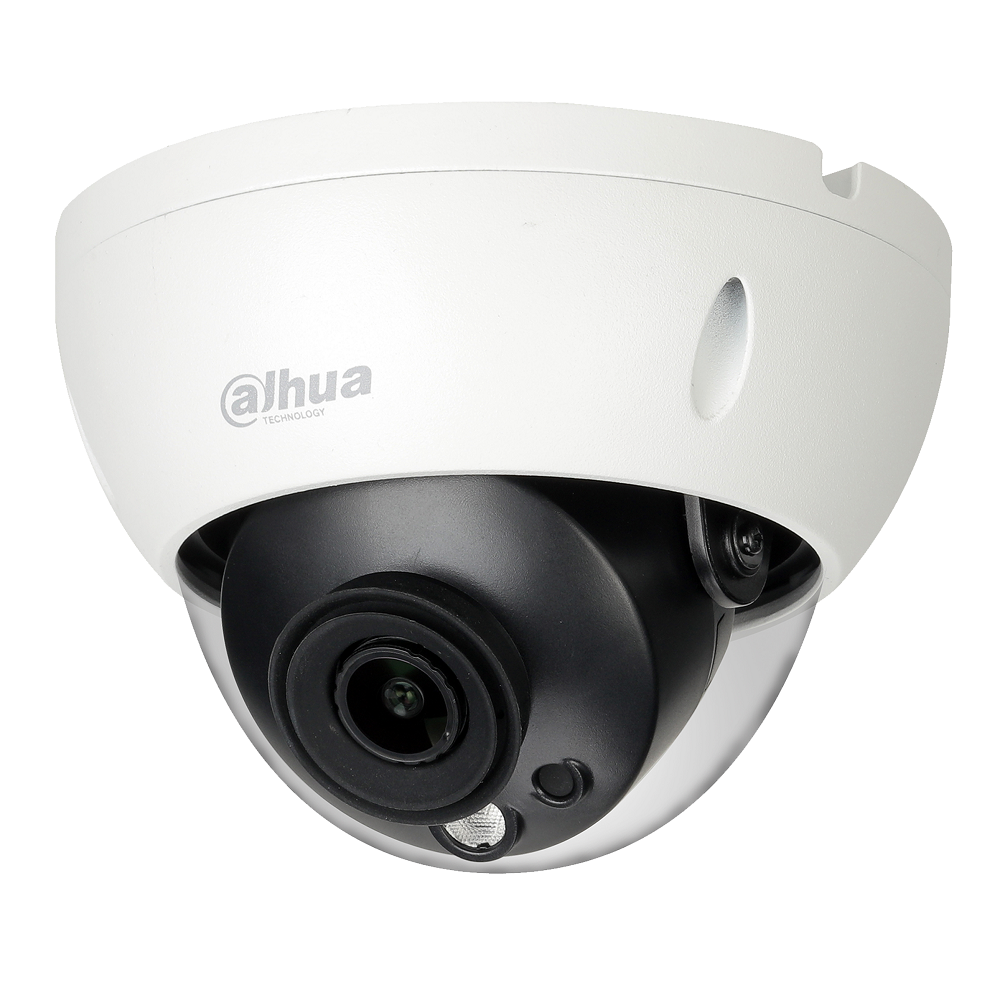

Dahua DH-IPC-HDBW5442EP-ZE-2712 Dahua AI 4MP Starlight+ IP Vandal Dome Motorized 2.7mm~12mm
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua DH-IPC-HDBW5442EP-ZE-2712 Dahua AI 4MP Starlight+ IP Vandal Dome Motorized 2.7mm~12mm
SKU: DH-IPC-HDBW5442EP-ZE-2712
Description
4MP AI-powered dome camera delivering high-definition video, accurate human and vehicle detection, and reliable outdoor surveillance in demanding Australian environments.
Regular price
$617.50 AUD
Sale price
$617.50 AUD
Regular price
$724.00 AUD
Sale
14.71%
$106.50 AUD
(14.71%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Dahua DH-IPC-HDBW5442EP-ZE-2712 Dahua AI 4MP Starlight+ IP Vandal Dome Motorized 2.7mm~12mm
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $1,081.95
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Dahua DH-IPC-HDBW5442EP-ZE-2712 Model 4MP AI Dome Camera Product utilises advanced deep-learning algorithms to provide accurate people and vehicle detection. This Pro AI series includes key Features such as Face Capture and Perimeter Protection to enhance security efficiency for various Australian organisations.
§ 02Engineering
Technical specifications
- AI Face Detection: Supports face image capture and extraction of six attributes including age, gender, expression, and eyewear to assist identification.
- Perimeter Protection: Utilises deep learning to distinguish between humans and vehicles, significantly reducing false alarms for tripwire and intrusion monitoring.
- People Counting: Delivers accurate statistics for line crossing and regional entry with support for independent detection across four separate areas.
- Starlight Technology: Maintains high-quality colour video and image integrity in ultra-low light environments down to 0.003 Lux.
- Motorised Vari-focal Lens: Features a flexible 2.7 mm - 12.0 mm focal length to provide customisable viewing angles and high-detail zoom capabilities.
- Robust Construction: Built with a metal casing certified to IP67 and IK10 standards to ensure protection against harsh weather and physical impact.
- Wide Dynamic Range: Uses 140 dB WDR technology to capture clear details in high-contrast lighting conditions such as bright entrances or shadowed areas.
- Perimeter Protection: Utilises deep learning to distinguish between humans and vehicles, significantly reducing false alarms for tripwire and intrusion monitoring.
- People Counting: Delivers accurate statistics for line crossing and regional entry with support for independent detection across four separate areas.
- Starlight Technology: Maintains high-quality colour video and image integrity in ultra-low light environments down to 0.003 Lux.
- Motorised Vari-focal Lens: Features a flexible 2.7 mm - 12.0 mm focal length to provide customisable viewing angles and high-detail zoom capabilities.
- Robust Construction: Built with a metal casing certified to IP67 and IK10 standards to ensure protection against harsh weather and physical impact.
- Wide Dynamic Range: Uses 140 dB WDR technology to capture clear details in high-contrast lighting conditions such as bright entrances or shadowed areas.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" 4Megapixel progressive scan CMOS |
| Effective Pixels | 2688 (H) × 1520 (V) |
| RAM/ROM | 1 GB/128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3 s–1/100000 s |
| Minimum Illumination | 0.003 Lux@F1.8 |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC Mode | BLC/HLC/WDR (140 dB) |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off/On (4 Zone, Rectangle) |
| Region of Interest | Off/On (4 Zone) |
| Electronic Image Stabilization (EIS) | Yes |
| Defog | Yes |
| Flip | 0°/90°/180°/270° |
| Mirror | Off/On |
| Privacy Masking | Off/On (4 Area, Rectangle) |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Motorized vari-focal |
| Mount Type | Board-in |
| Focal Length | 2.7 mm–12.0 mm |
| Max. Aperture | F1.8 |
| Angle of View | H: 114°–47°, V: 62°–26° |
| Aperture Type | Auto |
| Close Focus Distance | 1.2 m (3.94 ft) |
| DORI Distance | W: Detect 58 m (190 ft); Observe 23 m (75 ft); Recognize 12 m (39 ft); Identify 6 m (20 ft) | T: Detect 131 m (430 ft); Observe 52 m (171 ft); Recognize 26 m (85 ft); Identify 13 m (43 ft) |
| Pan Range | 0˚–355˚ |
| Tilt Range | 0˚–65˚ |
| Rotation Range | 0˚–355˚ |
Night Vision
| Feature | Detail |
|---|---|
| IR Distance | Distance up to 40 m (131 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 3 |
| Smart IR | Yes |
Video
| Feature | Detail |
|---|---|
| Compression | H.265,H.264,H.264B,H.264H, MJPEG (sub stream) |
| Smart Codec | Yes |
| Streaming Capability | 3 Streams |
| Resolution | 2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
| Frame Rate | Main Stream: 2688 × 1520 (1 fps–25/30 fps); 2560 × 1440 (1 fps–25/30 fps); 1920 × 1080 (1 fps–50/60 fps) | Sub Stream: D1 (1 fps–25/30 fps); D1 (1 fps–50/60 fps) | Third Stream: 1080P (1 fps–16 fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 Kbps–8192 Kbps; H.265: 19 Kbps–8192 Kbps |
Audio
| Feature | Detail |
|---|---|
| Compression | G.711a, G.711Mu, G.726, AAC, G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Detection | Support face image capture |
| Face Attributes | Support 6 kinds of face attributes extraction: Age, Gender, Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard |
| Perimeter Protection | Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering |
| People Counting | Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection |
| General Intelligence | Object Abandoned/Missing |
| Heat Map | Yes |
Network & Storage
| Feature | Detail |
|---|---|
| Protocol | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P |
| Streaming Method | Unicast/Multicast |
| Max. User Access | 20 Users |
| Edge Storage | NAS;FTP;SFTP; Micro SD card 256 GB |
| Web Viewer | IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12) |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | iOS, Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Event Trigger | Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly |
Interface
| Feature | Detail |
|---|---|
| Ethernet | RJ-45 (10/100 Base-T) |
| Audio Interface | 1/1 channel In/Out |
| RS485 | N/A |
| Alarm Input | 1 channel In: 5mA 5V DC |
| Alarm Output | 1 channel Out: 300mA 12V DC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | DC 12V (±30%), AC 24V (±30%), PoE (802.3af) (Class 0) |
| Power Consumption | <12.4W |
| Operating Conditions | -30° C to +60° C (-22° F to +140° F)/Less than 95% RH |
| Storage Conditions | -30° C to +60° C (-22° F to +140° F) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Casing | Metal |
| Dimensions | Φ159.0 mm × 117.9 mm (6.26" × 4.64") |
| Net Weight | 0.95 kg (2.09 lb) |
| Gross Weight | 1.20 kg (2.65 lb) |
| Certifications | CE-LVD: EN60950-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | FCC: 47 CFR FCC Part 15, Subpart B | UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
