Dahua DH-EPC230U Reliable 2MP 30x Explosion-proof IR IP Camera
SKU: DH-EPC230U
Description
2MP explosion-protected IP camera with 30x optical zoom and a 304 stainless steel housing certified to ATEX and IECEx for hazardous gas and dust areas.
- 1/2.8" 2MP STARVIS CMOS, 1920 x 1080 up to 50/60 fps
- 30x optical zoom, 4.5-135mm lens, F1.6-F4.4
- Smart IR up to 100m
- Explosion-proof: ATEX and IECEx certified, Ex db IIC T6 Gb / Ex tb IIIC T80C Db
- 304 stainless steel housing, IP68
- Starlight low light and 120dB true WDR
- AC220V or Hi-PoE; -40C to +60C
Regular price
$3,575.00 AUD
Sale price
$3,575.00 AUD
Regular price
$3,575.00 AUD
Member
Sign in to save $71.50 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Dahua DH-EPC230U Reliable 2MP 30x Explosion-proof IR IP Camera
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $4,074.45
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DH-EPC230U is
The Dahua DH-EPC230U is a specialist explosion-protected IP camera for hazardous industrial environments where standard cameras cannot be used safely.
A 304 stainless steel housing is certified to ATEX and IECEx, with explosion-proof marking Ex db IIC T6 Gb for gas and Ex tb IIIC T80C Db for dust, making it suitable for Zone 1 and Zone 2 gas atmospheres and Zone 21 and 22 dust atmospheres found in oil and gas, refining, chemical, pipeline and grain handling sites.
A 2MP 1/2.8-inch STARVIS sensor with a 30x optical zoom (4.5-135mm) captures detail across large facilities, with a published identify range around 186m, Starlight low-light imaging and 120dB true WDR for high-contrast scenes.
A Smart IR illuminator reaches up to 100m for night coverage.
Because this is a certified explosion-protected device, it must be selected, installed and commissioned by personnel qualified for the relevant hazardous-area zone, following the equipment marking and local regulations.
It powers from AC220V or Hi-PoE and operates from -40C to +60C.
§ 02Engineering
DH-EPC230U specifications
- Sensor and resolution: 1/2.8" 2MP STARVIS CMOS, 1920 x 1080 at up to 50/60 fps
- Optical zoom: 30x, 4.5-135mm lens, F1.6-F4.4, for long-range detail across large facilities
- Night vision: Smart IR up to 100m, with auto and manual control
- Explosion protection: ATEX and IECEx certified, marking Ex db IIC T6 Gb (gas) and Ex tb IIIC T80C Db (dust)
- Housing: 304 stainless steel, IP68 against dust and water, for corrosive and washdown environments
- Imaging: Starlight low light to 0.005 lux, 120dB true WDR, EIS and defog
- Analytics: IVS tripwire, intrusion, abandoned and missing object, face detection and heat map
- Power and environment: AC220V or Hi-PoE; -40C to +60C operating range
- Optical zoom: 30x, 4.5-135mm lens, F1.6-F4.4, for long-range detail across large facilities
- Night vision: Smart IR up to 100m, with auto and manual control
- Explosion protection: ATEX and IECEx certified, marking Ex db IIC T6 Gb (gas) and Ex tb IIIC T80C Db (dust)
- Housing: 304 stainless steel, IP68 against dust and water, for corrosive and washdown environments
- Imaging: Starlight low light to 0.005 lux, 120dB true WDR, EIS and defog
- Analytics: IVS tripwire, intrusion, abandoned and missing object, face detection and heat map
- Power and environment: AC220V or Hi-PoE; -40C to +60C operating range
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.8" STARVIS™ CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels |
| RAM/ROM | 512M/128M |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1s~1/30,000s |
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on) |
| S/N Ratio | More than 55dB |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR (120dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Motion Detection | Support |
| Region of Interest | Support |
| Electronic Image Stabilization (EIS) | Support |
| Defog | Support |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length | 4.5mm~135mm |
| Max. Aperture | F1.6 ~ F4.4 |
| Angle of View | H: 67.8° ~ 2.4° |
| Optical Zoom | 30x |
| Focus Control | Auto/Manual |
| Close Focus Distance | 100mm~ 1000mm |
| DORI Distance | Detect 1862m(6109ft); Observe 744m(2441ft); Recognize 372m(1220ft); Identify 186m(610ft) |
Night Vision
| Feature | Detail |
|---|---|
| IR Distance | Distance up to 100m (328ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 6 |
Video
| Feature | Detail |
|---|---|
| Compression | H.265+/H.265/H.264+/H.264 |
| Streaming Capability | 3 Streams |
| Resolution | 1080P(1920×1080)/1.3M(1280×960)/720P(1280× 720)/D1(704×576/704×480)/CIF(352×288/352×240) |
| Frame Rate | Main stream: 1080P/1.3M/720P(1~50/60fps) | Sub stream1: D1/CIF(1 ~ 25/30fps) | Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps |
Audio
| Feature | Detail |
|---|---|
| Compression | G.711a/G.711Mu/AAC/G.722/G.726/MPEG2-L2 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Auto Tracking | N/A |
| IVS | Tripwire, Intrusion, Abandoned/Missing, Face Detection, Heat Map |
Network & Storage
| Feature | Detail |
|---|---|
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
| Interoperability | ONVIF Profile S&G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users |
| Edge Storage | NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
Event & Alarm
| Feature | Detail |
|---|
Interface
| Feature | Detail |
|---|---|
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) |
| RS485 | 1 |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | AC220V(AC100V ~ 240V), Hi-PoE |
| Power Consumption | 10W, 25W (IR on) |
| Operating Conditions | -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH |
| Ingress Protection | IP68 |
| Vandal Resistance | N/A |
| Casing | 304 Stainless Steel |
| Dimensions | Φ396.1mm×149.5mm×143mm |
| Net Weight | 8.7kg(19.18lb) |
| Gross Weight | 10.4kg(22.93lb) |
| Certifications | CE: EN55032/EN55024/EN50130-4 | FCC: Part15 subpartB,ANSI C63.4- 2014 | ATEX: EN 60079-0/EN 60079-1/EN 60079-31 | IECEx : IEC 60079-0/IEC 60079-1/IEC 60079-31 |
| Explosion-proof Marking | ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db | IECEx : Ex db IIC T6 Gb, Ex tb IIIC T80°C Db |
§ 04Why choose this
Built for the way you actually use the DH-EPC230U
Corrosion-resistant build
A 304 stainless steel housing rated IP68 stands up to coastal, chemical and washdown environments across a -40C to +60C range.
Long-range plant monitoring
A 30x optical zoom on a 2MP STARVIS sensor reads detail across large facilities, with around 186m identify range and 100m IR at night.
Proven industrial analytics
IVS tripwire, intrusion and object detection automate alerting on critical process and perimeter areas without a separate analytics device.
§ 05Where it fits
Right at home in these scenarios
Oil, gas and refining
Flameproof monitoring of process areas, tank farms and loading points in classified gas hazardous zones.
Chemical and pharmaceutical plants
Corrosion-resistant coverage of reactors, pipework and storage where flammable vapours or dust are present.
Grain handling and milling
Dust-rated monitoring of silos, conveyors and handling areas where combustible dust atmospheres form.
Pipelines and energy sites
Long-range surveillance of remote, exposed energy infrastructure with stainless steel durability.
§ 06Setup
Installation & setup
Confirm the hazardous-area classification
Match the camera marking (Ex db IIC T6 Gb / Ex tb IIIC T80C Db) to the zone, gas group and temperature class of the site before specifying. Use a qualified hazardous-area designer where needed.
Use qualified installers
Installation, flameproof cable entry, earthing and commissioning must be completed by personnel competent in explosion-protected equipment, following the manual and local regulations.
Plan the power method
Provide AC220V mains or Hi-PoE as suited to the site, sizing the supply and any injector for the load and meeting the hazardous-area wiring requirements.
Mount for coverage and access
Fix the camera on a rated bracket or pole with a clear view of the area, allowing safe access for maintenance within the hazardous-area procedures.
§ 07Questions
Frequently asked about the DH-EPC230U
Q.01
What does explosion-proof certification mean for this camera?
The housing is certified to ATEX and IECEx with marking Ex db IIC T6 Gb for gas and Ex tb IIIC T80C Db for dust. The flameproof enclosure contains any internal spark so it cannot ignite the surrounding atmosphere, allowing safe use in classified hazardous areas where a standard camera would be a risk.
Q.02
Which hazardous zones is it rated for?
It suits Zone 1 and Zone 2 explosive gas atmospheres and Zone 21 and Zone 22 combustible dust atmospheres, typical of oil and gas, refining, chemical plants, pipelines and grain handling. Always confirm the equipment marking matches the zone, gas group and temperature class of your specific site.
Q.03
Does it need special installation?
Yes. As a certified explosion-protected device it must be selected, installed, cabled and commissioned by personnel qualified for hazardous-area work, following the marking, the installation manual and local regulations. The flameproof cable entries and earthing must be completed correctly to maintain the certification.
Q.04
How far does it see, day and night?
The 30x optical zoom on a 2MP sensor gives a published identify range around 186m in good light, suitable for monitoring large plant areas. A Smart IR illuminator reaches up to 100m at night, and Starlight low-light imaging holds usable detail in dim conditions.
Q.05
Is the housing suitable for corrosive sites?
Yes. The 304 stainless steel housing with an IP68 rating resists corrosion, dust and water in coastal, chemical and washdown environments. It operates from -40C to +60C, covering hot processing areas and cold outdoor plant.
Q.06
How is it powered?
It runs on AC220V mains or Hi-PoE. Hi-PoE carries power and data over network cabling, while AC mains suits sites with existing high-voltage supply. Size the supply and any injector for the camera load and follow the hazardous-area wiring requirements for the chosen method.
Q.07
Does it perform human and vehicle detection?
It includes IVS analytics such as tripwire, intrusion, abandoned and missing object, face detection and heat map. It does not provide the SMD human and vehicle classification found on Dahua WizSense cameras, so its smart alerts are rule-based rather than target-classified.
Q.08
Does it record audio?
It provides line-level audio in and out connections for external devices, but it has no built-in microphone or speaker. On its own it does not capture on-site audio or support two-way talk.
§ 08In motion

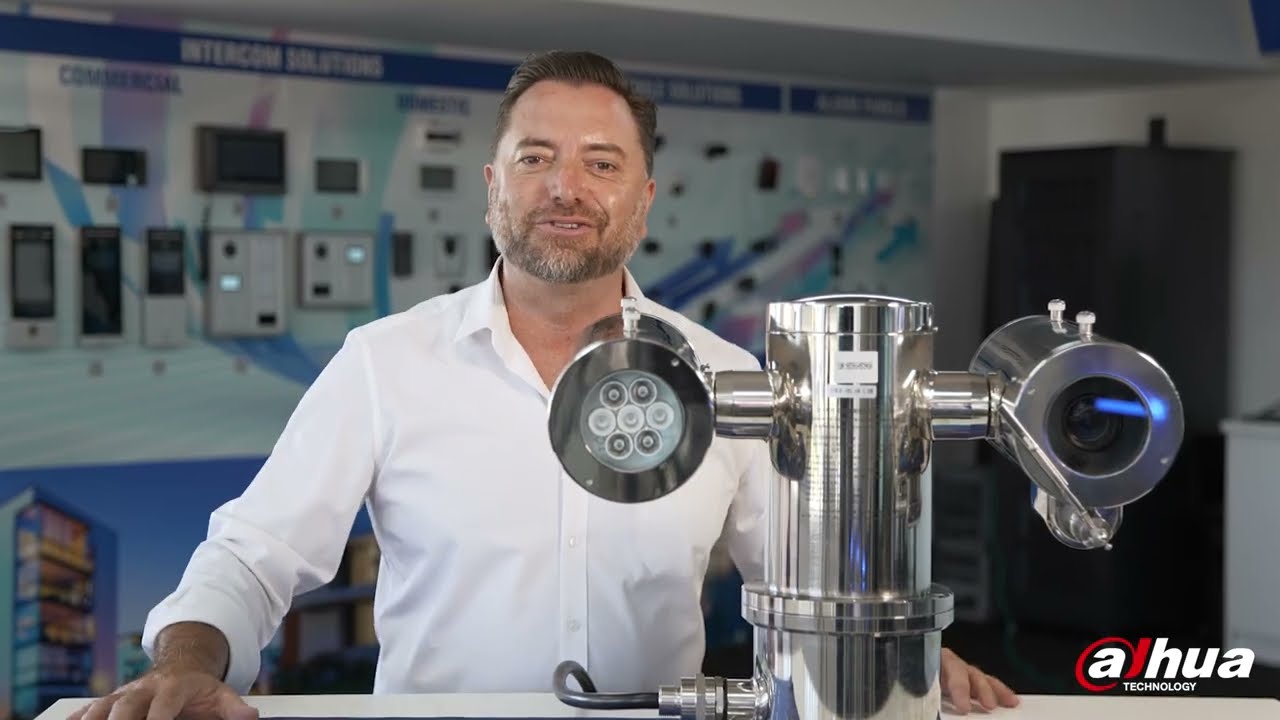

Dahua EPC230U Explosion-proof IR Network Camera
§ 09Bundles
Recommended packages
Recorders and storage
Record to a Dahua NVR such as the 16-channel NVR4216-16P or NVR5216-16P, fitted with a 6TB or 8TB surveillance hard drive.
Power and cabling
Where Hi-PoE is used, plan a Hi-PoE switch or injector sized for the load and quality Cat6 cable; for AC mains, follow the hazardous-area wiring requirements.
Specialist installation
This is a certified explosion-protected device; engage hazardous-area qualified designers and installers for selection, wiring and commissioning. Contact us to confirm suitability for your zone classification.
