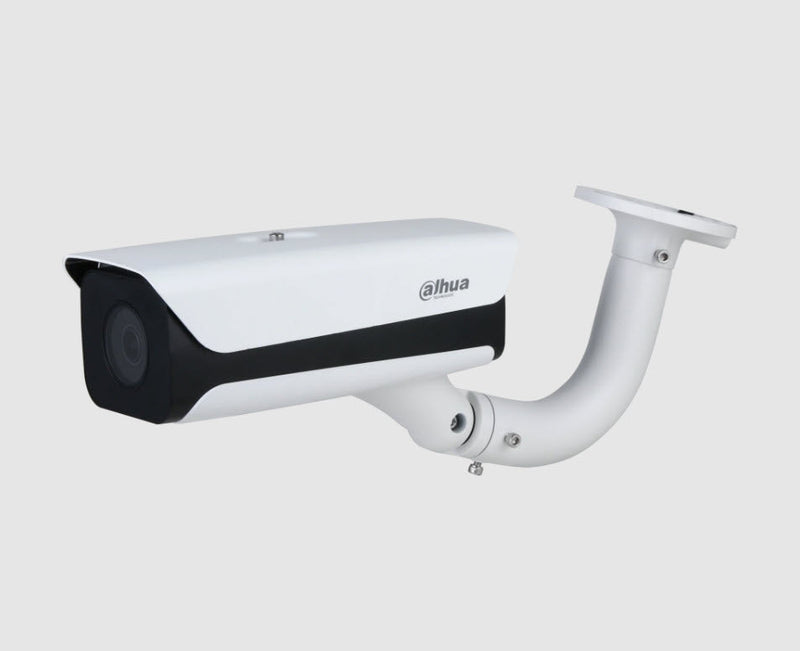

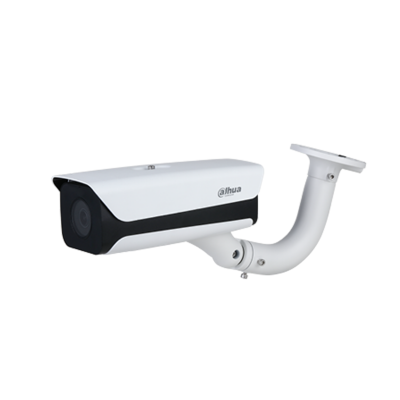

Dahua DHI-ITC215-PW6M-IRLZF-B ANPR Short Range Motorised Camera Max 8M Distance
SKU: DHI-ITC215-PW6M-IRLZF-B
Description
2MP short-range ANPR bullet that reads number plates and identifies vehicle attributes at a controlled entry, with a motorised lens, built-in IR and direct barrier control.
- 2MP 1/2.8" CMOS, 1920 x 1080
- Purpose-built ANPR for short-range entries, plate capture around 3-6m
- Reads vehicles at up to 30km/h
- Motorised 3.2-10.5mm lens, set the view from the recorder
- Built-in IR illuminator to 12m for 24/7 plate capture
- Recognises plate, vehicle type, logo, series and colour, plus no-plate vehicles
- Alarm and relay outputs to trigger a boom gate; IP67; 12V DC, 24V AC or PoE+
Regular price
$1,110.00 AUD
Sale price
$1,110.00 AUD
Regular price
$1,111.00 AUD
Sale
0.09%
$1.00 AUD
(0.09%)
Member
Sign in to save $22.20 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Dahua DHI-ITC215-PW6M-IRLZF-B ANPR Short Range Motorised Camera Max 8M Distance
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $1,609.45
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DHI-ITC215-PW6M-IRLZF-B is
The Dahua DHI-ITC215-PW6M-IRLZF-B is a 2MP ANPR camera built specifically for short-range vehicle entries such as boom gates, residential estate gates and car park lanes.
Unlike a general surveillance camera, it runs a dedicated number plate recognition engine that reads the plate and identifies vehicle attributes including type, logo, series and colour, and can flag vehicles with no visible plate.
The manufacturer datasheet lists a capture range of around 3 to 6m and a maximum detected vehicle speed of 30km/h, so it is designed for slow-moving or stationary vehicles at a defined stop point rather than open roads.
A motorised 3.2-10.5mm lens lets you frame the capture zone precisely from the recorder after mounting, which simplifies set-up in tight lanes.
A built-in IR illuminator (rated to 12m) keeps plate capture working day and night without external lighting, and a 96dB WDR sensor holds detail against backlight and headlight glare.
Alarm inputs and relay outputs let the camera trigger a boom barrier or gate directly on a recognised plate.
The IP67 metal-and-plastic housing suits outdoor entries, and it powers from 12V DC, 24V AC or PoE+.
To use the plate database, allow and block lists and event search end to end, pair it with a Dahua recorder or platform that supports ANPR.
It has line-level audio terminals but no built-in microphone, so it does not record on-site audio on its own.
See it in action
What the DHI-ITC215-PW6M-IRLZF-B features actually look like
Representative illustrations of how each key feature performs in a real scene.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DHI-ITC215-PW6M-IRLZF-B specifications
- ANPR engine: reads number plates and recognises vehicle type, logo, series and colour, plus vehicles with no plate
- Short-range design: datasheet capture range around 3-6m for controlled entries, with vehicles read at up to 30km/h
- Sensor and resolution: 2MP 1/2.8" CMOS, 1920 x 1080, with 96dB WDR for backlight and headlight glare
- Motorised lens: 3.2-10.5mm, set the capture zone from the recorder without moving the camera
- Night capture: built-in IR illuminator rated to 12m for consistent plate reads after dark
- Barrier control: alarm inputs and relay outputs trigger a boom gate or barrier on a recognised plate
- Durability and power: IP67 housing, -30C to +65C; 12V DC, 24V AC or PoE+ (under 20W)
- Pair with a Dahua ANPR-capable recorder or platform for plate lists and event search
- Short-range design: datasheet capture range around 3-6m for controlled entries, with vehicles read at up to 30km/h
- Sensor and resolution: 2MP 1/2.8" CMOS, 1920 x 1080, with 96dB WDR for backlight and headlight glare
- Motorised lens: 3.2-10.5mm, set the capture zone from the recorder without moving the camera
- Night capture: built-in IR illuminator rated to 12m for consistent plate reads after dark
- Barrier control: alarm inputs and relay outputs trigger a boom gate or barrier on a recognised plate
- Durability and power: IP67 housing, -30C to +65C; 12V DC, 24V AC or PoE+ (under 20W)
- Pair with a Dahua ANPR-capable recorder or platform for plate lists and event search
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.8'' CMOS |
| Image Resolution | 1920 × 1080 (OSD black strip excluded) |
| Min Ambient Illuminance | 0.002 Lux. Illuminator is designed with the camera for illumination |
| Electronic Shutter Speed | 1/50–1/10000, auto or manual |
| Shutter | Single shutter |
| WDR | 96 db |
| White Balance | Full auto, auto color temperature range, customized color temperature |
| Noise Reduction | 3DNR |
| Edge Enhancement | Yes |
| Exposure Mode | Full auto, customized auto, customized |
| Image Tampering Prevention | Yes. Video/picture can be checked through watermark and verification |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens | 3.2 mm –10.5 mm |
| Lens Mount | Φ14 |
| Iris Control | Auto iris (W: 1.6–T: 3.3) |
| Field of View | Horizontal: 108.1° (W)–30.3° (T); Vertical: 56.3° (W)–17.1° (T); Diagonal: 130.9° (W)–34.8° (T) |
| Capture Range | 3 m–6 m (9.84 ft–19.69 ft) |
| Detected Lane Width | 3 m –4 m (9.84 ft–13.12 ft) |
Night Vision
| Feature | Detail |
|---|---|
| Illuminator Number | 6 IR illuminators, brightness adjustable |
| Illumination Distance | 12 m (39.37 ft) |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.264B/H.264M/H.264H/H.265/MJPEG |
| Video Resolution | Main stream: 1080P (1920 × 1080)/720P (1280 × 720) | Sub stream: 720P (1280 × 720)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240) |
| Video Frame Rate | PAL: Main stream (1920 × 1080@25fps, 1280 × 720@25fps), sub stream (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps) | NTSC: Main stream (1920 × 1080@30fps, 1280 × 720@30fps), sub stream (1280 × 720@30fps, 704 × 408@30fps, 352 × 240@30fps) |
| Bit Rate | H.264B: 32Kbps–32768Kbps; H.264M: 32Kbps–32768Kbps; H.264H: 32Kbps–32768Kbps; H.265: 32Kbps–32768Kbps; MJPEG: 512Kbps–65536Kbps |
| Picture Encoding Format | JPEG |
Audio
| Feature | Detail |
|---|
AI & Deep Learning
| Feature | Detail |
|---|---|
| Vehicle Detection | Vehicle capture rate ≥99% |
| Vehicle Recognition | Supports recognizing vehicle type, vehicle logo, vehicle series, vehicle color, license plate, features of driver and front-seat passenger, and vehicle without plate. Vehicle recognition rate ≥95% |
| Video Metadata | Yes |
| Intelligent Track Frame | Intelligent frame display. Supports displaying vehicle plate and vehicle path |
| OSD Overlay | Supports overlay of time, address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type) |
| Max Speed that the Camera Detects | 30 km/h |
Network & Storage
| Feature | Detail |
|---|---|
| Storage | 1 built-in TF card port. Supports Kingston 16G, 32G, 64G, and 128G; Dahua 16G, 32G, 64G, and 128G; SanDisk 16G, 32G, 64G, and 128G |
| Security | Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control |
| Automatic Network Replenishment (ANR) | Yes. Platform/FTP |
| Auto Registration | Yes |
Event & Alarm
| Feature | Detail |
|---|---|
| Trigger Mode | Video detection; I/O coil; video detection and I/O coil |
| Alarm Event | Alarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal access |
Interface
| Feature | Detail |
|---|---|
| Network | 1 100/1000M Ethernet port (RJ-45) |
| Analog Output | 1 |
| RS-485 | 2 |
| RS-232 | 1 |
| Alarm Input | 3, optocoupler input (on-off input) |
| Alarm Output | 3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers |
| Audio Input | 1-channel RCA port |
| Audio Output | 1-channel RCA port |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12V DC, 24V AC, PoE+ |
| Power Consumption | ＜20W |
| Operating Temperature | −30°C to +65°C (−22°F to +149 °F) |
| Operating Humidity | 10%RH–90%RH (no condensation) |
| Casing | Metal and plastic |
| Protection Grade | IP67 |
| Dimensions | 486.7 mm × 124.3 mm × 185.5 mm (19.16'' × 4.89'' × 7.30'') (L × W × H) |
| Net Weight | 1.9 kg (4.19 lb) |
| Gross Weight | 3.3 kg (7.28 lb) |
| Installation | Installed with bracket |
| Certification | CE, FCC; RoHS |
§ 04Why choose this
Built for the way you actually use the DHI-ITC215-PW6M-IRLZF-B
Triggers the gate itself
Relay outputs let a recognised plate open a boom barrier directly, simplifying single-lane access without a separate controller.
Reliable day-and-night reads
Built-in IR to 12m and a 96dB WDR sensor keep plates legible against darkness, backlight and headlight glare.
Quick to frame and weatherproof
A motorised 3.2-10.5mm lens sets the capture zone from the recorder, and an IP67 housing suits exposed outdoor gates.
§ 05Where it fits
Right at home in these scenarios
Boom gates and barriers
Triggers a boom arm on a recognised plate at a single controlled lane, logging each vehicle that enters or exits.
Residential estate entries
Automates access at a gated estate where vehicles slow or stop within the short capture range of the camera.
Car park entry and exit lanes
Captures plates and vehicle attributes for ticketing or permit systems at slow-approach entry and exit points.
Secured facility access
Logs delivery and staff vehicles at a controlled gate, with relay output to integrate with barrier hardware.
§ 06Setup
Installation & setup
Mount for a perpendicular plate view
Fix the camera so it has a near-straight view of the number plate within roughly 3 to 6m, as both distance and angle affect read accuracy. Test with the actual vehicles used at the site.
Power with 12V DC, 24V AC or PoE+
Provide PoE+ from a capable switch or injector, or a 12V DC or 24V AC supply. Standard PoE may not deliver enough power for the camera and illuminator.
Wire the barrier control
Connect the alarm and relay outputs to your boom gate or barrier controller so a recognised plate can trigger the gate.
Set the lens and ANPR rules
Frame the capture zone with the motorised lens from the recorder, then configure plate recognition, allow and block lists on a Dahua ANPR-capable recorder or platform.
§ 07Questions
Frequently asked about the DHI-ITC215-PW6M-IRLZF-B
Q.01
What distance and speed does this ANPR camera work at?
The manufacturer datasheet lists a capture range of around 3 to 6m and a maximum detected speed of 30km/h. It is a short-range access camera for controlled entries where vehicles slow or stop at a defined point, such as a boom gate or driveway, rather than open roads or fast approaches. For longer or faster lanes, choose a long-range ANPR model instead.
Q.02
Does it only read number plates, or vehicle details too?
Alongside the plate, the deep-learning engine recognises vehicle type, logo, series and colour, and can flag vehicles that show no plate. This gives richer access logs and helps with incident review, so each entry event records structured vehicle data rather than just video.
Q.03
Can it open a boom gate or barrier directly?
Yes. It has alarm inputs and relay outputs that connect to a boom barrier or gate controller, so a recognised plate can trigger the gate to open. In many single-lane installations this removes the need for a separate trigger device at the entry point.
Q.04
Why does the lens spec differ from some listings?
The official Dahua datasheet for this model lists a motorised 3.2-10.5mm lens. Some third-party listings quote a different range, so we have followed the datasheet figure. The lens is motorised, so you set the exact capture zone from the recorder after mounting.
Q.05
Does it record audio?
No. The camera has line-level audio input and output terminals for connecting external audio devices, but it does not have a built-in microphone or speaker. On its own it does not capture on-site audio.
Q.06
How is it powered?
It accepts 12V DC, 24V AC or PoE+ (802.3at), drawing under 20W. Confirm your switch or injector supplies PoE+ rather than standard PoE, as the camera and its illuminator need the higher power budget for reliable operation.
Q.07
Do I need a special recorder for the ANPR features?
To use plate allow and block lists, vehicle attribute logging and plate event search end to end, pair it with a Dahua recorder or management platform that supports ANPR. The camera performs the recognition itself, but a compatible recorder or platform is needed to store, search and act on the results.
Q.08
Is it suitable for outdoor entries in Australia?
Yes. The metal-and-plastic housing is IP67-rated against dust and water across a -30C to +65C range, suiting exposed gates and lanes. Mount it so the camera has a near-perpendicular view of the plate within the short capture range, as angle and distance both affect read accuracy.
§ 09Bundles
Recommended packages
ANPR-capable recorders and storage
Record and run plate lists on a Dahua AI recorder such as the 16-channel NVR4216-16P or NVR5216-16P, fitted with a 6TB surveillance hard drive; confirm ANPR support on the recorder or platform.
PoE power and cabling
Distribute PoE+ power and data with a Dahua PoE switch and quality Cat6 cable, one run per camera.
Plan the entry integration
Wire the relay output to your boom barrier controller for automatic gate opening on a recognised plate. Contact us to confirm recorder and barrier compatibility for your lane.
