Dahua DH-SD5A432XB-HNR 4MP IP 32X PTZ CAMERA with Wizsense
Dahua DH-SD5A432XB-HNR 4MP IP 32X PTZ CAMERA with Wizsense
1 1
Dahua

Dahua DH-SD5A432XB-HNR 4MP IP 32X PTZ CAMERA with Wizsense

SKU: DH-SD5A432XB-HNR
Description

4MP 32x Starlight network PTZ camera with WizSense AI, two-way audio and deep-learning auto tracking.

  • 1/2.8" 4MP STARVIS CMOS, 2560 x 1440 at 25/30 fps
  • 32x optical zoom, 4.8-154mm motorised lens
  • IR up to 150m with Starlight low-light imaging
  • 360 endless pan, -15 to +90 tilt, 300 presets
  • WizSense SMD Plus, perimeter protection, face detection
  • Deep-learning auto tracking, two-way audio
  • PoE+ power; IP67 and IK10 housing
  • microSD storage; Dahua and ONVIF compatible
4MP Ultra HD IP67 Weatherproof Human/Vehicle Detection Two-Way Audio
$1,460.00 AUD $1,460.00 AUD $2,063.00 AUD
Sale 29.23% $603.00 AUD (29.23%)
Member Sign in to save $29.20 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $1,959.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
1
1
Bundle total: $1,460.00
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DH-SD5A432XB-HNR is

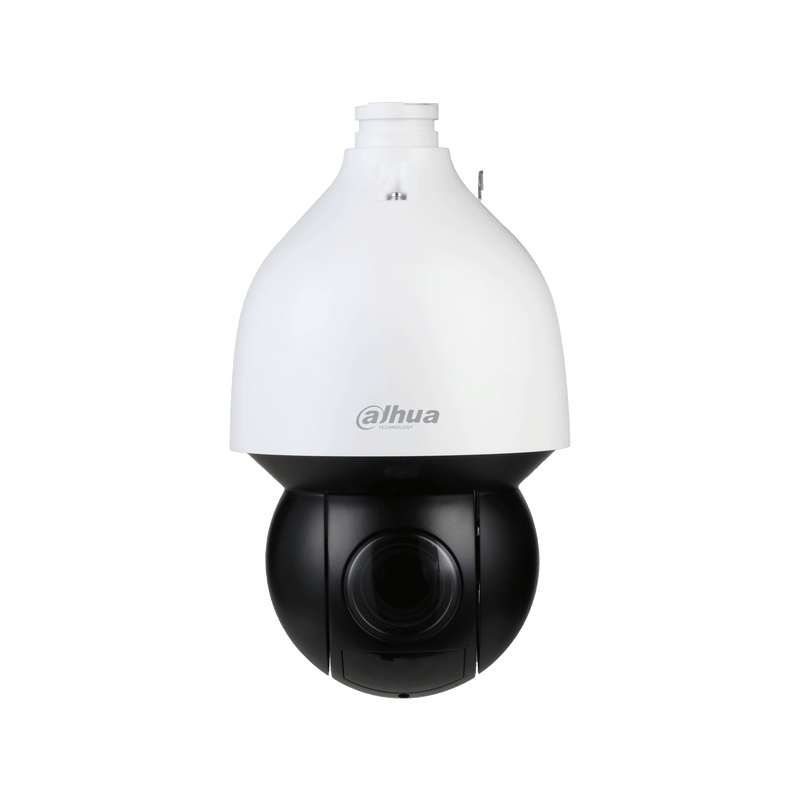

The Dahua SD5A432XB-HNR is a 4MP 32x PTZ camera built for wide-area outdoor surveillance, pairing a 4.8-154mm motorised zoom with Starlight low-light imaging and IR to 150m.

WizSense SMD Plus and perimeter protection classify humans and vehicles, while deep-learning auto tracking follows a detected target across the scene with pan, tilt and zoom.

It supports two-way audio, runs on PoE+ over a single cable, and carries an IP67 and IK10 housing with 120dB true WDR, suiting car parks, yards and perimeters that need operator-controlled coverage and long-range night vision.

See it in action

What the DH-SD5A432XB-HNR features actually look like

Representative illustrations of how each key feature performs in a real scene.

4MP Ultra HD — 4MP captures roughly twice the detail of standard 1080p.

4MP Ultra HD

4MP captures roughly twice the detail of standard 1080p.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s...

Two-Way Audio

Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.

Illustrative — simulated for demonstration

§ 02Engineering

DH-SD5A432XB-HNR specifications

- Sensor and resolution: 1/2.8" 4MP STARVIS CMOS, 2560 x 1440 at 25/30 fps with Starlight imaging

- Zoom and PTZ: 32x optical (4.8-154mm), 360 endless pan, -15 to +90 tilt, auto flip, 300 presets

- Night vision: IR up to 150m with Smart IR for long-range black-and-white coverage

- AI: WizSense SMD Plus and perimeter protection (human/vehicle), face detection, deep-learning auto tracking

- Audio: two-way audio for listen-in and talk-back with connected audio devices

- Image processing: 120dB true WDR for balanced footage in harsh and changing light

- Power: PoE+ for single-cable installation

- Durability: IP67 weatherproof and IK10 impact-resistant housing; microSD storage; Dahua and ONVIF compatible

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua DH-SD5A432XB-HNR 4MP IP 32X PTZ CAMERA with Wizsense
FeatureDetail
Image Sensor 1/2.8" CMOS
Pixel 4 MP
Max. Resolution 2560 (H) × 1440 (V)
ROM 4 GB
RAM 1 GB
Electronic Shutter Speed 1/1 s–1/30,000 s
Scanning System Progressive
Min. Illumination Color: 0.005 lux@F1.6; B/W: 0.0005 lux@F1.6; 0 lux (IR light on)
Day/Night Auto (ICR); Color; B/W
BLC Yes
WDR 120 dB
HLC Yes
White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; Manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization EIS
Defog Electronic
Digital Zoom 16×
Image Rotation 180°
Privacy Masking Up to 24 areas can be set, with up to 8 areas in the same view
S/N Ratio ≥ 55 dB

§ 04Why choose this

Built for the way you actually use the DH-SD5A432XB-HNR

Long-range coverage from one unit

32x optical zoom with 360 pan lets a single PTZ sweep a large site and zoom into a distant target, reducing the number of fixed cameras required.

Clear at distance after dark

IR to 150m and Starlight imaging keep long driveways, fence lines and yards covered in near-dark conditions.

Tracks and talks

Deep-learning auto tracking follows targets automatically, and two-way audio lets operators listen in and speak through the camera on monitored sites.

Built for exposed positions

An IP67 and IK10 housing with 120dB WDR handles weather, impact and harsh light on poles, walls and rooftops.

§ 05Where it fits

Right at home in these scenarios

Commercial car parks and yards

The zoom and 150m IR cover bays, lanes and perimeters from one unit, with SMD Plus keeping alerts focused on people and vehicles.

Industrial perimeters

A corner-mounted PTZ sweeps a yard and zooms along a fence line, with IK10 and IP67 protection for exposed boundaries.

Monitored security operations

Full PTZ control plus two-way audio lets staff track and challenge subjects across a site in real time.

Transport and logistics sites

Long-range zoom and auto tracking suit depots, gates and access roads where activity moves across wide areas.

§ 06Setup

Installation & setup

01

Use a PoE+ source

Power from a PoE+ switch, NVR port or injector rated for this PTZ. Allow for peak current during cold-start pan and tilt; an underpowered port can cause resets.

02

Mount on pole, wall or ceiling

It suits pole, wall, pendant or ceiling positions. Use a Dahua-compatible PTZ bracket and junction box rated for the camera weight; confirm fit before installing.

03

Configure tracking and rules

Set up perimeter rules and auto tracking with the detection zones defined for the scene, so the camera follows genuine targets rather than background movement.

04

Protect exposed mounts

Use proper earthing and surge protection on exposed pole and rooftop positions to guard against lightning-induced spikes.

§ 07Questions

Frequently asked about the DH-SD5A432XB-HNR

Q.01

How far does the SD5A432XB-HNR see at night?
Infrared reaches up to 150m for long-range black-and-white coverage, while the Starlight sensor holds detail in low light. Smart IR adjusts the illumination to the zoom level to avoid over or under exposure.
Q.02

What does the 32x optical zoom cover?
The 4.8-154mm lens gives a wide overview at its shortest length and a long telephoto reach at 154mm, so one camera can monitor a broad scene then zoom into a distant gate, vehicle or person from the same position.
Q.03

Does it have two-way audio?
Yes. The Dahua datasheet lists two-way audio, so with connected audio devices it supports listen-in and talk-back in addition to video, useful for operator-monitored sites.
Q.04

How does the auto tracking work?
Deep-learning auto tracking follows a detected target by automatically adjusting pan, tilt and zoom. It can be triggered manually or by configured rules, keeping a moving subject in view across a wide area without manual control during the event.
Q.05

What does SMD Plus do on this camera?
SMD Plus classifies motion as human or vehicle before raising an alert, filtering out animals, foliage and lighting changes. For a wide-area PTZ this reduces the volume of irrelevant alarms.
Q.06

What power does it need?
It runs on PoE+ over a single network cable, so confirm your switch, NVR port or injector supplies PoE+ at the wattage this PTZ requires, allowing for peak current during pan and tilt.
Q.07

Is it weatherproof and vandal resistant?
Yes. The housing is rated IP67 against dust and water and IK10 against impact, suiting exposed poles, walls and public-facing positions.
Q.08

Is it compatible with Dahua NVRs?
Yes. It works with Dahua NVRs and ONVIF-compatible platforms, with PTZ presets, patrols and rule-triggered tracking available on compatible Dahua recorders and DSS software. Confirm your NVR supports PTZ control.

§ 09Bundles

Recommended packages

02

PoE+ power

Power the camera from a PoE+ source such as the Dahua PoE switch (confirm the port supplies PoE+ at the required wattage) and run quality Cat6 cable to the head.
