Dahua HDW3849H-PRO 10-Camera 8MP CCTV Kit + 16CH PoE NVR, No HDD
Email us
1 1
Dahua

Dahua HDW3849H-PRO 10-Camera 8MP CCTV Kit + 16CH PoE NVR, No HDD

SKU: KIT-HDW3849H-PRO-10CAM-NVR4216-NOHDD
Description

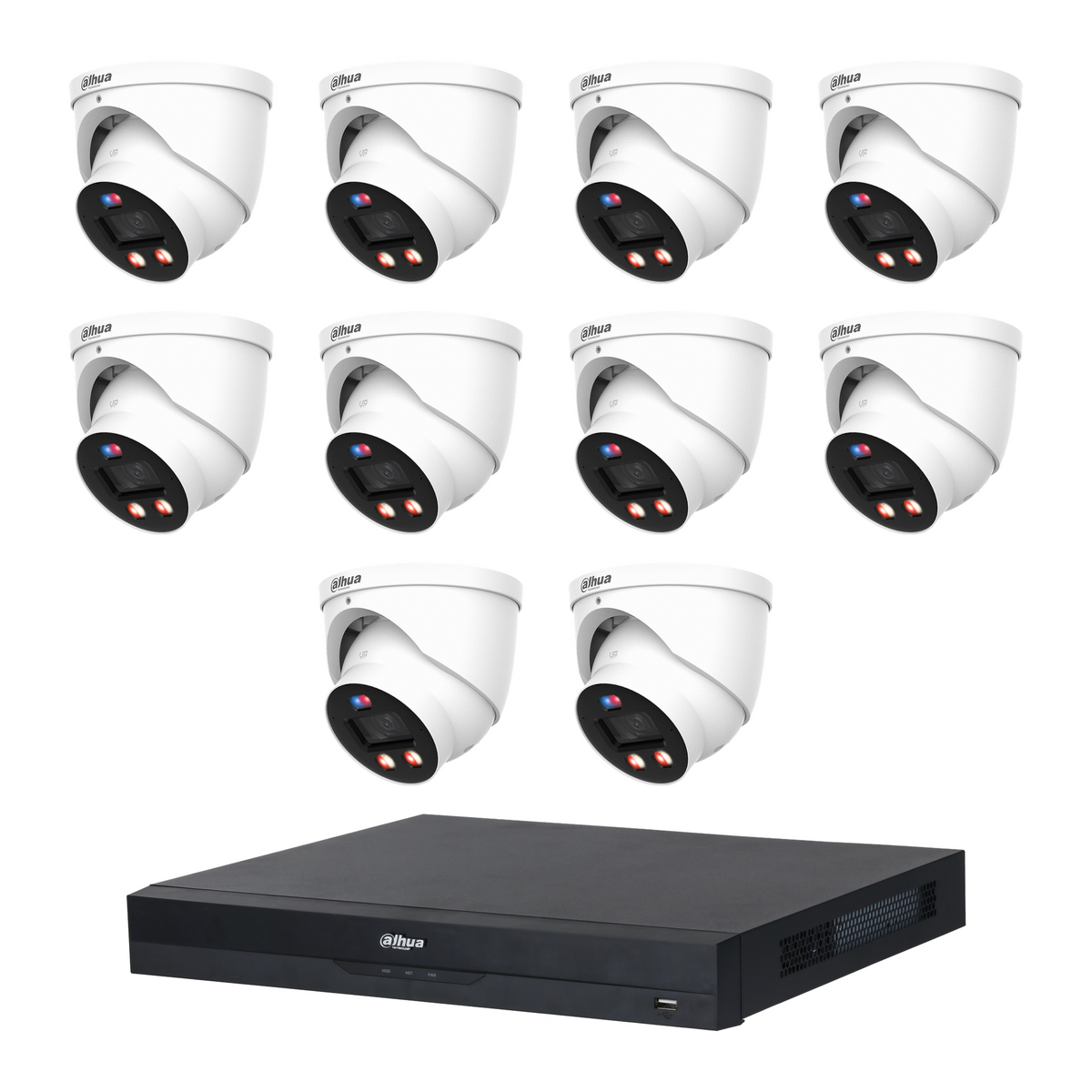

10 × HDW3849H-PRO 8MP WizColor TiOC PRO, supplied in white with 2.8 mm fixed lenses, plus one DHI-NVR4216-16P-AI/ANZ 16-channel PoE recorder.

WizColor TiOC PRO cameras provide coordinated views across 10 positions. HDW3849H-PRO: IR and warm light, each rated up to 30 m.

No HDD included. Surveillance storage, network cabling, microSD cards and optional mounting accessories are separate.

$3,528.00 AUD $3,528.00 AUD $5,572.00 AUD
Sale 36.68% $2,044.00 AUD (36.68%)
Bulk Price$3,316.32 AUD
6% off $1,500+ · Auto at checkout

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Customize this kit Kit price$3,528.00 Bulk Price $3,316.32
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 10 × Dahua DH-IPC-HDW3849H-AS-PV-PRO 8MP TiOC PRO Turret Camera
  • 1 × Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder (16ch)
  • No HDD included (add one below)
Add extra cameras DH-IPC-HDW3849H-AS-PV-PRO-ANZ
+$0.00
NVR · channels ≥ your total camera count Base: 16ch · Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add cablingAdd mounts or cabling as needed
0
0
0
0
Price breakdown:
  • Dahua HDW3849H-PRO 10-Camera 8MP CCTV Kit + 16CH PoE NVR, No HDD $3,528.00
Total: $3,528.00
Bulk Price$3,316.32 6% off $1,500+ · Auto at checkout

01Overview

What the KIT-HDW3849H-PRO-10CAM-NVR4216-NOHDD is

Give each access route or activity area its own camera view. This 10-camera kit combines 10 white DH-IPC-HDW3849H-AS-PV-PRO-ANZ 8MP turret cameras and one DHI-NVR4216-16P-AI/ANZ 16-channel PoE recorder. All supplied camera lenses are 2.8 mm.

HDW3849H-PRO (10 included): 8MP 3840 × 2160 at up to 25/30 fps, subject to stream settings; 1/1.8-inch sensor, F1.0 lens and WizColor AI-ISP; IR and warm light, each rated up to 30 m; SMD 4.0 and human/vehicle intrusion and tripwire classification; Red/blue warning lights, voice alarm, dual microphones and speaker with two-way talk; 120 dB WDR and IP67 metal housing. WizColor combines a 1/1.8-inch sensor, F1.0 lens and AI-ISP for low-light colour. Smart Dual Light can use infrared for black-and-white viewing or warm light for colour events. This TiOC PRO camera also has red/blue warning lights, voice alarms and two-way talk; set illumination and event rules for the scene.

The recorder provides 16 camera inputs, 16 built-in PoE ports, HDMI and VGA outputs, and two SATA drive bays. 6 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings. Its live display decoding capacity and AI processing limits are separate from the number of cameras it can record; choose suitable substreams for a multi-camera grid.

Connect one suitable Ethernet cable from each camera to a recorder PoE port. The specified maximum camera PoE loads total 100 W before cable losses. Allow for remaining power and bandwidth when adding cameras. No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 10 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Network cabling and optional mounting accessories are separate.

02Engineering

KIT-HDW3849H-PRO-10CAM-NVR4216-NOHDD specifications

- 10 × DH-IPC-HDW3849H-AS-PV-PRO-ANZ — 8MP WizColor TiOC PRO turret, white, 2.8 mm lens; IR and warm light, each rated up to 30 m.
- HDW3849H-PRO — 3840 × 2160 up to 25/30 fps; SMD 4.0; built-in dual microphones and speaker; two-way talk; IP67.
- 16CH PoE recorder — DHI-NVR4216-16P-AI/ANZ, 16 integrated PoE ports, HDMI and VGA.
- 6 spare camera inputs — 6 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
- Camera-set maximum PoE: 100 W, excluding cable losses.
- Storage chosen separately — 2 SATA bays; no HDD, network cables or microSD cards included.

03Full datasheet

Detailed specifications

Kit Configuration

Kit Configuration — Dahua HDW3849H-PRO 10-Camera 8MP CCTV Kit + 16CH PoE NVR, No HDD
FeatureDetail
Camera composition 10 × HDW3849H-PRO 8MP WizColor TiOC PRO
Recorder 1 × DHI-NVR4216-16P-AI/ANZ
Hard drive included No
Network cabling included No
Supplied colour / lens White / 2.8 mm fixed
Unused NVR channels / PoE ports 6 / 6

04Why choose this

Built for the way you actually use the KIT-HDW3849H-PRO-10CAM-NVR4216-NOHDD

A defined camera plan

Plan 10 views around entrances, approaches and activity areas. Identify the detail required at each position before choosing mounting height and angle.

One recorder for the supplied views

Connect the 10 cameras to the recorder's built-in PoE ports. 6 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.

Choose lighting deliberately

HDW3849H-PRO: WizColor combines a 1/1.8-inch sensor, F1.0 lens and AI-ISP for low-light colour. Smart Dual Light can use infrared for black-and-white viewing or warm light for colour events. This TiOC PRO camera also has red/blue warning lights, voice alarms and two-way talk; set illumination and event rules for the scene.

Plan recording and playback

No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 10 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Set event zones and recording schedules, then play back sample recordings before relying on the installation.

05Where it fits

Right at home in these scenarios

Entrances and points of activity

Use the 10 cameras to give each entrance, driveway or activity area a separate view. Test detail at the target distance and check the image after dark.

Shops, offices and warehouses

Map the camera positions around entries, counters, loading access, stock areas or corridors. Keep views clear of shelving and ensure the lighting arrangement suits each camera.

Outdoor approaches

The camera housings are IP67-rated. Weatherproof exposed connections, avoid direct strong light in the lens and keep lenses clean. Install the NVR in a dry, ventilated indoor position.

06Setup

Installation & setup

  1. Included in the base configuration

    • 10 × DH-IPC-HDW3849H-AS-PV-PRO-ANZ, white, 2.8 mm turret camera
    • 1 × DHI-NVR4216-16P-AI/ANZ 16CH PoE recorder
    • No HDD, microSD cards or network cabling. Optional mounting accessories are separate.

  2. Prepare the site and cabling

    • Allocate all 10 camera positions and label their intended views.
    • Route one suitable Ethernet cable to a recorder PoE port for each supplied camera; label both ends.
    • Use the exact camera installation guide for mounts and sealing; weatherproof exposed connectors and leave access for maintenance.

  3. Commission and test recording

    • Fit compatible surveillance SATA storage and initialise the devices with strong passwords.
    • Set the correct time, recording schedule, main/substreams and event zones within recorder limits.
    • Verify every daylight and night-time view, test relevant audio functions and play back sample recordings.

07Documentation

Manuals & guides

Quick Start Guide

08Questions

Frequently asked about the KIT-HDW3849H-PRO-10CAM-NVR4216-NOHDD

Q.01

Does this kit include a hard drive?
No. The base configuration contains 10 × HDW3849H-PRO 8MP WizColor TiOC PRO and one DHI-NVR4216-16P-AI/ANZ recorder, without storage. The recorder has two SATA bays. Select compatible surveillance storage separately for bitrate, recording schedule and retention.
Q.02

Where should I place the cameras?
Plan a separate view for each activity area or access route. WizColor combines a 1/1.8-inch sensor, F1.0 lens and AI-ISP for low-light colour. Smart Dual Light can use infrared for black-and-white viewing or warm light for colour events. This TiOC PRO camera also has red/blue warning lights, voice alarms and two-way talk; set illumination and event rules for the scene.
Q.03

Can I add more cameras?
6 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
Q.04

Will all cameras provide colour images in darkness?
HDW3849H-PRO: WizColor combines a 1/1.8-inch sensor, F1.0 lens and AI-ISP for low-light colour. Smart Dual Light can use infrared for black-and-white viewing or warm light for colour events. This TiOC PRO camera also has red/blue warning lights, voice alarms and two-way talk; set illumination and event rules for the scene.
Q.05

How are the cameras powered?
The supplied set connects to 10 of the recorder's 16 built-in PoE ports, using one suitable Ethernet cable per camera for power and video. Cabling is not included. The calculated maximum camera-set PoE demand is 100 W before cable losses.
Q.06

What should I check when setting recording quality?
HDW3849H-PRO: 3840 × 2160 up to 25/30 fps. Frame-rate limits depend on stream settings and video standard. NVR recording bandwidth, AI processing limits and simultaneous live-view decoding are separate considerations; use suitable substreams for multi-camera grids.
Q.07

Does this kit include full AcuPick smart search?
The supplied recorder is the standard NVR4216 AI model. Quick Pick helps search for people and vehicles in suitable SMD event video when used with compatible cameras and firmware. AcuPick is a separate end-to-end search capability requiring a compatible recorder and camera configuration; full AcuPick search is not promised for this base kit. Choose camera coverage and recording needs alongside the search functions you will actually use.
