Dahua HDW2541EMP 10-Camera 5MP CCTV Kit + 16CH PoE NVR, No HDD

SKU: KIT-HDW2541EMP-10CAM-NVR4216-NOHDD
Description

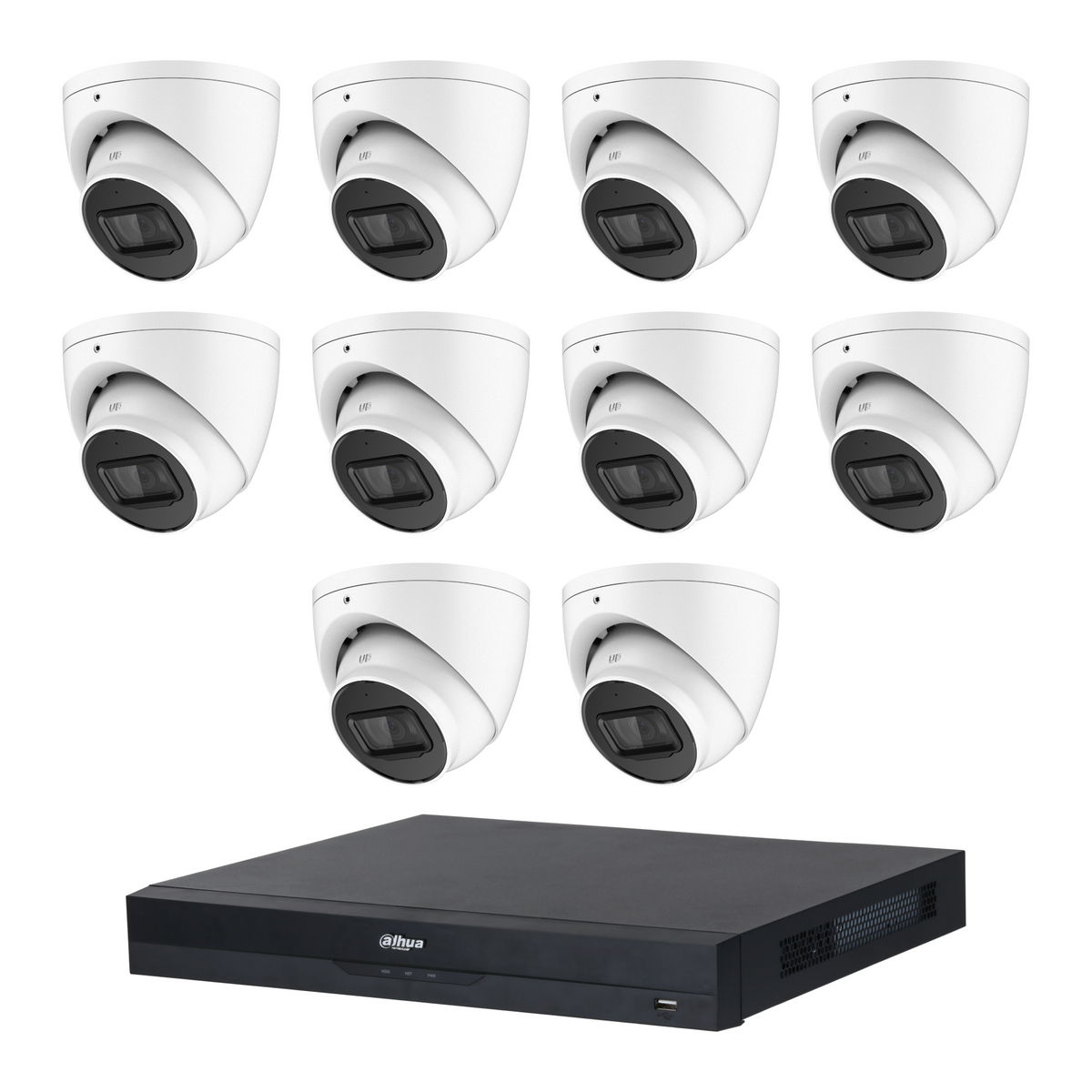

10 × HDW2541EMP 5MP IR, supplied in white with 2.8 mm fixed lenses, plus one DHI-NVR4216-16P-AI/ANZ 16-channel PoE recorder.

IR cameras provide coordinated views across 10 positions. HDW2541EMP: IR up to 30 m.

No HDD included. Surveillance storage, network cabling, microSD cards and optional mounting accessories are separate.

10 cameras 5MP Ultra HD IP67 Weatherproof Human/Vehicle Detection Built-in Microphone 16 x POE PORTS
$1,567.02 AUD $1,567.02 AUD $1,599.00 AUD
Sale 2.0% $31.98 AUD (2.0%)
Bulk Price$1,473.00 AUD
6% off $1,500+ · Auto at checkout

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Customize this kit Kit price$1,567.02 Bulk Price $1,473.00
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 10 × Dahua DH-IPC-HDW2541EMP-AS-ANZ 5MP Network Camera 50m IR 2.8mm Wizsense
  • 1 × Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder (16ch)
  • No HDD included (add one below)
Add extra cameras DH-IPC-HDW2541EMP-AS-ANZ
+$0.00
NVR · channels ≥ your total camera count Base: 16ch · Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add cablingAdd mounts or cabling as needed
0
0
0
0
Price breakdown:
  • Dahua HDW2541EMP 10-Camera 5MP CCTV Kit + 16CH PoE NVR, No HDD $1,567.02
Total: $1,567.02
Bulk Price$1,473.00 6% off $1,500+ · Auto at checkout

01Overview

What the KIT-HDW2541EMP-10CAM-NVR4216-NOHDD is

Give each access route or activity area its own camera view. This 10-camera kit combines 10 white DH-IPC-HDW2541EMP-AS-ANZ 5MP turret cameras and one DHI-NVR4216-16P-AI/ANZ 16-channel PoE recorder. All supplied camera lenses are 2.8 mm.

HDW2541EMP (10 included): 5MP at up to 20 fps with a fixed2.8mm lens; Infrared illumination rated up to 30 m; SMD Plus and human/vehicle intrusion and tripwire classification; Built-in microphone, 120dB WDR and IP67 housing. Black-and-white imagery with infrared active in darkness; colour requires sufficient visible light.

The recorder provides 16 camera inputs, 16 built-in PoE ports, HDMI and VGA outputs, and two SATA drive bays. 6 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings. Its live display decoding capacity and AI processing limits are separate from the number of cameras it can record; choose suitable substreams for a multi-camera grid.

Connect one suitable Ethernet cable from each camera to a recorder PoE port. The specified maximum camera PoE loads total 50 W before cable losses. Allow for remaining power and bandwidth when adding cameras. No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 10 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Network cabling and optional mounting accessories are separate.

The 10 camera maxima total 50 W before cable losses. The recorder allows 130 W total PoE; any expansion also needs bitrate, channel and cable-loss checks.

02Engineering

KIT-HDW2541EMP-10CAM-NVR4216-NOHDD specifications

- 10 × DH-IPC-HDW2541EMP-AS-ANZ — 5MP IR turret, white, 2.8 mm lens; IR up to 30 m.
- HDW2541EMP — 5MP up to 20 fps; 2688×1520 up to 25/30 fps; SMD Plus; built-in microphone; IP67.
- 16CH PoE recorder — DHI-NVR4216-16P-AI/ANZ, 16 integrated PoE ports, HDMI and VGA.
- 6 spare camera inputs — 6 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
- Camera-set maximum PoE: 50 W, excluding cable losses.
- Storage chosen separately — 2 SATA bays; no HDD, network cables or microSD cards included.

03Full datasheet

Detailed specifications

Kit Configuration

Kit Configuration — Dahua HDW2541EMP 10-Camera 5MP CCTV Kit + 16CH PoE NVR, No HDD
FeatureDetail
Camera composition 10 × HDW2541EMP 5MP IR
Recorder 1 × DHI-NVR4216-16P-AI/ANZ
Hard drive included No
Network cabling included No
Supplied colour / lens White / 2.8 mm fixed
Unused NVR channels / PoE ports 6 / 6

04Why choose this

Built for the way you actually use the KIT-HDW2541EMP-10CAM-NVR4216-NOHDD

A defined camera plan

Plan 10 views around entrances, approaches and activity areas. Identify the detail required at each position before choosing mounting height and angle.

One recorder for the supplied views

Connect the 10 cameras to the recorder's built-in PoE ports. 6 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.

Choose lighting deliberately

HDW2541EMP: Black-and-white imagery with infrared active in darkness; colour requires sufficient visible light.

Plan recording and playback

No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 10 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Set event zones and recording schedules, then play back sample recordings before relying on the installation.

05Where it fits

Right at home in these scenarios

Entrances and points of activity

Use the 10 cameras to give each entrance, driveway or activity area a separate view. Test detail at the target distance and check the image after dark.

Shops, offices and warehouses

Map the camera positions around entries, counters, loading access, stock areas or corridors. Keep views clear of shelving and ensure the lighting arrangement suits each camera.

Outdoor approaches

The camera housings are IP67-rated. Weatherproof exposed connections, avoid direct strong light in the lens and keep lenses clean. Install the NVR in a dry, ventilated indoor position.

06Setup

Installation & setup

  1. Included in the base configuration

    • 10 × DH-IPC-HDW2541EMP-AS-ANZ, white, 2.8 mm turret camera
    • 1 × DHI-NVR4216-16P-AI/ANZ 16CH PoE recorder
    • No HDD, microSD cards or network cabling. Optional mounting accessories are separate.

  2. Prepare the site and cabling

    • Allocate all 10 camera positions and label their intended views.
    • Route one suitable Ethernet cable to a recorder PoE port for each supplied camera; label both ends.
    • Use the exact camera installation guide for mounts and sealing; weatherproof exposed connectors and leave access for maintenance.

  3. Commission and test recording

    • Fit compatible surveillance SATA storage and initialise the devices with strong passwords.
    • Set the correct time, recording schedule, main/substreams and event zones within recorder limits.
    • Verify every daylight and night-time view, test relevant audio functions and play back sample recordings.

07Documentation

Manuals & guides

Quick Start Guide

08Questions

Frequently asked about the KIT-HDW2541EMP-10CAM-NVR4216-NOHDD

Q.01

What is included, and what storage do I need?
The base contains 10 white 2.8 mm DH-IPC-HDW2541EMP-AS-ANZ cameras and one DHI-NVR4216-16P-AI/ANZ recorder, without a hard drive. It has 2 SATA bays. Choose compatible surveillance storage for the combined bitrates, schedule and retention. Network cables and microSD cards are separate.
Q.02

Does Starlight mean colour images in complete darkness?
Colour needs sufficient visible light. The exact ANZ camera has infrared supplementation up to 30 m and produces black-and-white night images with IR active. Check the actual lighting, mounting angle and desired detail at each position.
Q.03

Can it record 5MP at 30 fps?
The stated maximum at 5MP is 20 fps. The 2688 × 1520 mode supports up to 25/30 fps. Set camera streams within the recorder’s incoming bandwidth and its separate display decoding limits.
Q.04

Can I expand the camera count?
There are 6 unused recording inputs and PoE ports. The 10 camera maxima total 50 W before cable losses. The recorder allows 130 W total PoE; any expansion also needs bitrate, channel and cable-loss checks.
Q.05

What audio and detection functions are included?
The cameras have built-in microphones, SMD Plus and human/vehicle classification for supported tripwire and intrusion events. Configure event zones for the actual scene and test audio and event playback during commissioning.
