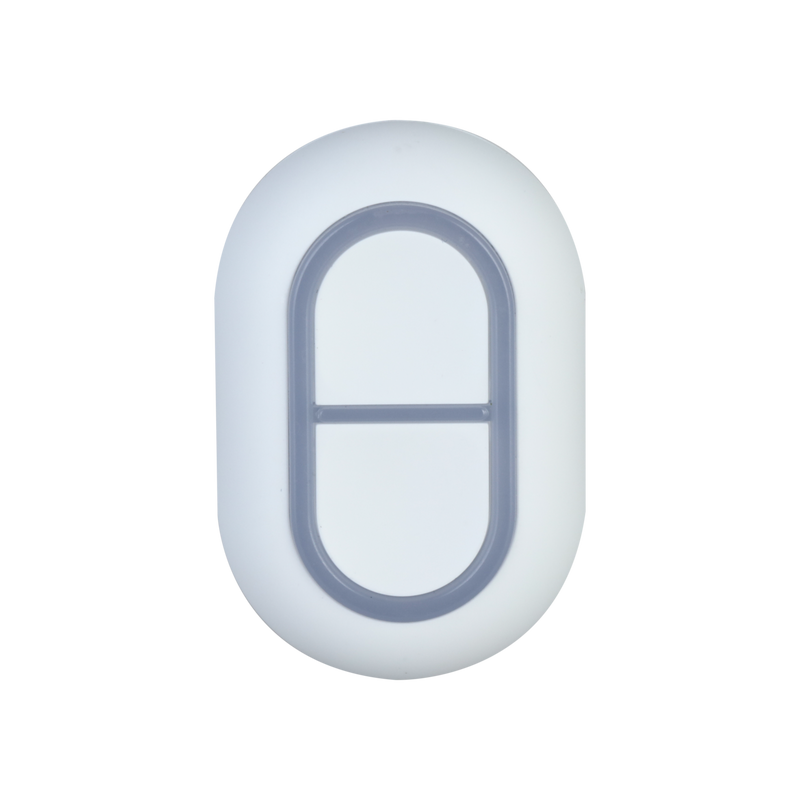

Dahua DHI-ARD822-W2 Wireless Panic Button
SKU: DHI-ARD822-W2
Description
The Dahua DHI-ARD822-W2 is a dual-button wireless panic button for the Dahua AirShield alarm system. It needs both buttons pressed together to raise an alarm, which makes accidental activation far less likely — ideal for busy counters, schools or anywhere a single button could be knocked. The alert goes to your AirShield hub and your phone. It is IP54 rated, battery powered, and links to the hub over an encrypted 868 MHz two-way connection. An AirShield hub is required and sold separately.
Key points
- Two buttons pressed together raise the alarm — strong false-alarm prevention
- 868 MHz two-way radio with AES128 encryption and frequency hopping
- Range up to 1,200 m in open space to the hub
- IP54 rated; multi-status LED with battery level in the app
- CR2032 battery, around 3 years; wall-mount or portable
- Requires a Dahua AirShield hub
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Dahua DHI-ARD822-W2 Wireless Panic Button
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DHI-ARD822-W2 is
The Dahua DHI-ARD822-W2 is the dual-button version of the AirShield panic button. Instead of a single press, it needs both buttons pressed at the same time to raise an emergency alarm, which all but rules out a false alert from a bump, a child or a pocket. When it does fire it sends an immediate alarm to your AirShield hub and your phone, and a multi-status LED shows pairing and signal with battery level visible in the DMSS app.
It is the right choice where a button is in reach of a lot of people or movement — a shop counter, a classroom, a reception desk — but still needs to be quick to use in a real emergency. The IP54 casing handles dust and splashes, it mounts on a wall or is carried, and it links to the hub over 868 MHz two-way radio with AES128 encryption and frequency hopping at up to 1,200 m in open space.
Honest notes: like every AirShield device it needs a Dahua AirShield hub and is not a standalone alarm; you set in the app what the alarm does and who is notified. If you would rather a one-press button, the ARD821-W2 is the single-button model. It runs on a CR2032 cell for around three years with a low-battery warning, and it is genuine Australian Dahua stock with local 3-year warranty and support.
02Engineering
DHI-ARD822-W2 specifications
- Dual-button wireless panic button for the Dahua AirShield alarm system
- Requires both buttons pressed together to alarm — strong accidental-press prevention
- One combined press raises an immediate emergency alarm to the hub and your phone
- 868 MHz two-way communication with AES128 encryption and frequency hopping
- Range up to 1,200 m in open space to the AirShield hub
- IP54 rated casing; multi-status LED; battery level shown in the DMSS app; cloud update
- CR2032 battery, around 3 years of life, with low-battery warning
- Wall-mount or portable; EN 50131 Security Grade 2; requires an AirShield hub
- Requires both buttons pressed together to alarm — strong accidental-press prevention
- One combined press raises an immediate emergency alarm to the hub and your phone
- 868 MHz two-way communication with AES128 encryption and frequency hopping
- Range up to 1,200 m in open space to the AirShield hub
- IP54 rated casing; multi-status LED; battery level shown in the DMSS app; cloud update
- CR2032 battery, around 3 years of life, with low-battery warning
- Wall-mount or portable; EN 50131 Security Grade 2; requires an AirShield hub
03Full datasheet
Detailed specifications
Network & Storage
| Feature | Detail |
|---|---|
| Remote Update | Cloud update |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Communication Distance | Up to 1,200 m (3937.01 ft) in an open space |
| Communication Mechanism | Two–way |
| Encryption Mode | AES128 |
| Frequency Hopping | Yes |
| Signal Strength | Yes |
Event & Alarm
| Feature | Detail |
|---|---|
| Low Battery Detection | Yes |
| Test Mode | Yes |
Interface
| Feature | Detail |
|---|---|
| Indicator Light | 1 for multiple statuses (pairing, communication, and operation) |
| Button | 2 |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 1 × CR2032 |
| Battery Life | 3 years (if used twice a week) |
| Battery Level Display | Displays battery level on app |
| Operating Current | 28 mA |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | 10%–90% (RH) |
| Product Dimensions | 55 mm × 36 mm × 14.2 mm (2.17" × 1.42" × 0.56") (L × W × H) |
| Packaging Dimensions | 95 mm × 59.5 mm × 30.5 mm (3.74" × 2.34" × 1.20") (L × W × H) |
| Installation | Wall mount; portable |
| Net Weight | 18 g (0.04 lb) |
| Gross Weight | 48 g (0.11 lb) |
| Casing Material | PC + ABS |
| Protection | IP54 |
| Certifications | CE; EN 50131-1:2006+A1:2009+A2:2017+A3:2020; EN 50131-3:2009; EN 50131-6:2017; EN 50131-5-3:2017; Security Grade 2; Environmental Class II |
| Network & Storage — Remote Update | Cloud update |
|---|---|
| Network & Storage — Carrier Frequency | 868.0 MHz–868.6 MHz |
| Network & Storage — Communication Distance | Up to 1,200 m (3937.01 ft) in an open space |
| Network & Storage — Communication Mechanism | Two–way |
| Network & Storage — Encryption Mode | AES128 |
| Network & Storage — Frequency Hopping | Yes |
| Network & Storage — Signal Strength | Yes |
| Event & Alarm — Low Battery Detection | Yes |
| Event & Alarm — Test Mode | Yes |
| Interface — Indicator Light | 1 for multiple statuses (pairing, communication, and operation) |
| Interface — Button | 2 |
| General & Environment — Power Supply | 1 × CR2032 |
| General & Environment — Battery Life | 3 years (if used twice a week) |
| General & Environment — Battery Level Display | Displays battery level on app |
| General & Environment — Operating Current | 28 mA |
| General & Environment — Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| General & Environment — Operating Humidity | 10%–90% (RH) |
| General & Environment — Product Dimensions | 55 mm × 36 mm × 14.2 mm (2.17" × 1.42" × 0.56") (L × W × H) |
| General & Environment — Packaging Dimensions | 95 mm × 59.5 mm × 30.5 mm (3.74" × 2.34" × 1.20") (L × W × H) |
| General & Environment — Installation | Wall mount; portable |
| General & Environment — Net Weight | 18 g (0.04 lb) |
| General & Environment — Gross Weight | 48 g (0.11 lb) |
| General & Environment — Casing Material | PC + ABS |
| General & Environment — Protection | IP54 |
| General & Environment — Certifications | CE; EN 50131-1:2006+A1:2009+A2:2017+A3:2020; EN 50131-3:2009; EN 50131-6:2017; EN 50131-5-3:2017; Security Grade 2; Environmental Class II |
04Why choose this
Built for the way you actually use the DHI-ARD822-W2
Still fast in an emergency
A deliberate two-finger press is quick and natural, so genuine emergencies are not slowed down.
Where it needs to be
IP54 rated and compact, it mounts at a counter or desk or is carried, with battery level visible in the app.
Confirmed, secure link
868 MHz two-way radio with AES128 encryption and frequency hopping confirms each alarm and resists interference.
05Where it fits
Right at home in these scenarios
Retail counters and tills
Fit one where staff can reach it during a hold-up, with the two-button action preventing accidental alarms in a busy area.
Schools and reception desks
Use it where many people pass a fixed button and false presses would otherwise be common.
Duress alarm in an office
Place it under a desk as a discreet duress button that will not fire by mistake.
Shared or public areas
Mount it where a single-press button would be too easily knocked, keeping false alarms down.
06Setup
Installation & setup
-
01
What's in the box
One DHI-ARD822-W2 dual panic button with a CR2032 battery; strap or bracket mounting options depending on the variant. A Dahua AirShield hub is required and not included.
-
02
Installation requirements
Enrol it to your AirShield hub in the DMSS app and set what a combined press does and who is alerted. Mount it where staff can reach both buttons easily, and test a press to confirm a good two-way signal before relying on it.
08Questions
Frequently asked about the DHI-ARD822-W2
Q.01
How is the ARD822-W2 different from the ARD821-W2?
The ARD822-W2 has two buttons and needs both pressed together to raise an alarm, which makes accidental activation far less likely. The ARD821-W2 is a single-button model that fires on one press. Choose the dual button where false presses are a concern, and the single button where speed and simplicity matter most.
Q.02
Does it work on its own?
No. It is a panic button for the Dahua AirShield system and needs an AirShield hub. The hub receives the alarm and handles the sirens and notifications, so on its own the button has nothing to signal.
Q.03
Why does it need two buttons pressed at once?
Requiring a deliberate two-finger press almost eliminates false alarms from knocks, children or a button carried in a pocket, while still being quick to trigger on purpose. That makes it well suited to busy or public locations.
Q.04
Is it weatherproof?
It carries an IP54 rating, which resists dust and splashes, so it copes with a damp area or being carried outdoors. It is not designed to be submerged or exposed to driving rain like an outdoor siren.
Q.05
Can it be mounted and carried?
Yes. It can be fixed to a wall at a counter or desk, or carried with strap or bracket options, so it works as both a fixed and a personal panic button.
Q.06
How far can it be from the hub?
Up to 1,200 metres in open space. Indoors through walls the practical range is shorter, but it easily covers a normal home, shop or office where the button and hub share a building.
Q.07
How long does the battery last?
It runs on a single CR2032 coin cell for around three years, and the DMSS app shows its battery level so you have plenty of warning before a change is needed.
Q.08
Is this genuine Australian Dahua stock?
Yes. It is the 868 MHz AirShield dual panic button supplied as genuine Australian Dahua stock with local 3-year warranty and support, matching the AirShield hubs and peripherals sold here.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Pair it with an AirShield hub (required)
The button needs a hub to work — build your system on the DHI-ARC3800H-FW2 Alarm Hub 2, or the smaller DHI-ARC3000H-FW2 hub.
Prefer a one-press version?
For a single-button panic button, choose the ARD821-W2 panic button.
Make the alarm heard
Add an ARA12-W2 indoor siren indoors and an ARA13-W2 outdoor siren outside so an alarm is loud and obvious.
Build the rest of the system
Add detection with a ARD1233-W2 PIR detector and arming with the ARK30T-W2 keypad or ARA24-W2 keyfob.
