Uniview 6 x 8MP IPC3628LE-ADF28K-WP ColorHunter Turret CCTV Kit + NVR501-08B-P8-IQ 8CH PoE NVR, No HDD
1 1
Uniview

Uniview 6 x 8MP IPC3628LE-ADF28K-WP ColorHunter Turret CCTV Kit + NVR501-08B-P8-IQ 8CH PoE NVR, No HDD

SKU: UNVKIT-IPC3628LE-ADF28K-WP-6CAM-NVR501-08B-P8-IQ
Description

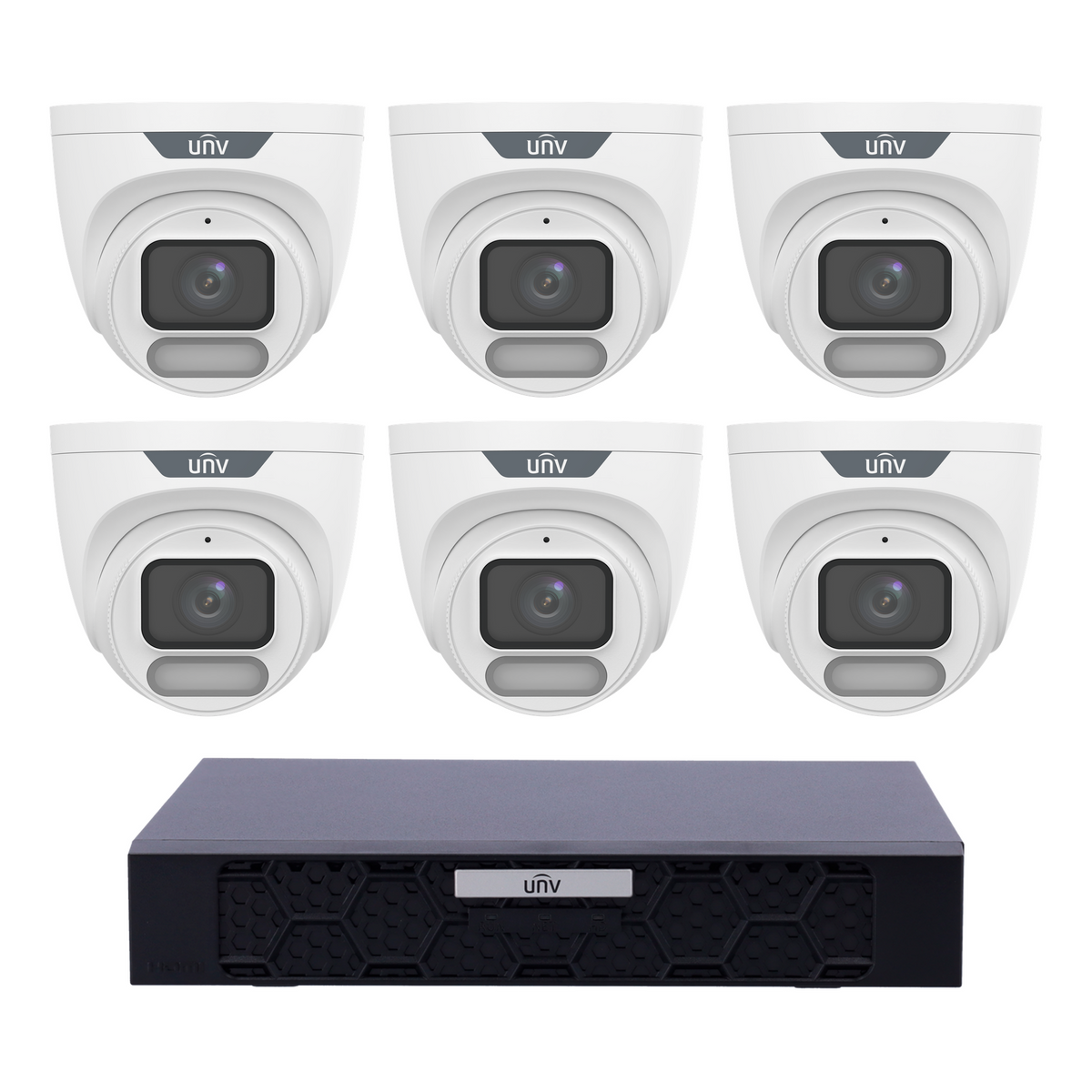

6 x Uniview IPC3628LE-ADF28K-WP 8MP ColorHunter turret cameras,
1 x Uniview NVR501-08B-P8-IQ 8-channel PoE NVR (no hard drive included, add a surveillance drive to record).
6 cameras 8MP Ultra HD Full Color Night Vision IP67 Weatherproof Human/Vehicle Detection Built-in Microphone 8 x POE PORTS
$1,443.00 AUD $1,443.00 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Customize this kit $1,443.00
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 6 × Uniview IPC3628LE-ADF28K-WP 8MP ColorHunter Turret Camera
  • 1 × Uniview NVR501-08B-P8-IQ 8 Channel 8 PoE 4K AI NVR
  • No HDD included (add one below)
Add extra cameras IPC3628LE-ADF28K-WP
+$0.00
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessoriesAdd mounts or cabling as needed
Not sure? Read the guide →
0
0
0
0
0
0
0
0
0
0
0
0
Price breakdown:
  • Uniview 6 x 8MP IPC3628LE-ADF28K-WP ColorHunter Turret CCTV Kit + NVR501-08B-P8-IQ 8CH PoE NVR, No HDD $1,443.00
Total: $1,443.00

§ 01Overview

What the UNVKIT-IPC3628LE-ADF28K-WP-6CAM-NVR501-08B-P8-IQ is

This kit pairs six IPC3628LE-ADF28K-WP ColorHunter turret cameras with the NVR501-08B-P8-IQ 8-channel recorder. Every camera takes one Ethernet run to the recorder, which powers it over PoE and records its stream, so there is no separate switch or power supply per camera. No hard drive is included: add a surveillance drive before checkout and the recorder is ready to record.

The IPC3628LE is the camera for a driveway or front door that should stay in colour after dark. A 1/1.8" CMOS sensor behind a 2.8 mm F1.0 lens holds colour down to 0.0003 lux, and a warm light reaching 30 m, switched automatically or manually, covers a yard with no light of its own. It records 8MP (3840 × 2160) at up to 20 fps, sees 111.0° across, and raises alerts on intrusion and cross-line detection based on human body and vehicle detection, so alerts are raised for people and vehicles rather than for any movement. A built-in microphone records sound; there is no speaker. 120 dB WDR is there for a subject against a bright sky, and the IP67 housing is rated for -30 °C to 60 °C.

The NVR501-08B-P8-IQ has 8 PoE ports at up to 30 W each and 75 W in total, records up to 16MP per channel, and takes one SATA drive of up to 16TB. With six cameras connected, 2 PoE channels remain for later.

See it in action

What the UNVKIT-IPC3628LE-ADF28K-WP-6CAM-NVR501-08B-P8-IQ features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2)
8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2)

8MP Ultra HD

8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d...

Full Color Night Vision

Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

UNVKIT-IPC3628LE-ADF28K-WP-6CAM-NVR501-08B-P8-IQ specifications

6 x IPC3628LE-ADF28K-WP — 1/1.8" CMOS, 8MP (3840 × 2160) at up to 20 fps, 2.8 mm F1.0 fixed lens, 111.0° horizontal view — one camera covers a driveway or a shopfront
Night vision — colour to 0.0003 lux, warm light to 30 m under auto or manual control — night footage stays in colour
Detection on the camera — intrusion and cross-line detection based on human body and vehicle detection — alerts about people and vehicles, not raw motion
Audio — built-in microphone, no speaker — records sound, cannot talk back
NVR501-08B-P8-IQ — 8 channels, 8 PoE ports (IEEE 802.3af/at, 30 W per port, 75 W total), records up to 16MP — cameras plug straight in
Storage — 1 SATA bay, up to 16TB, no drive included — add a surveillance drive to record
PoE budget — six cameras at max 3.9 W each is 23.4 W against the recorder's 75 W — headroom for 2 more of the same camera
Outdoor — IP67 housings rated for -30 °C to 60 °C, 4 kV surge protection — the cameras live outside, the recorder stays inside

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Uniview 6 x 8MP IPC3628LE-ADF28K-WP ColorHunter Turret CCTV Kit + NVR501-08B-P8-IQ 8CH PoE NVR, No HDD
FeatureDetail
Max Resolution 8 MP
Sensor 1/1.8" CMOS
Min. Illumination Colour: 0.0003 lux (F1.0, AGC ON)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N >52 dB
WDR 120 dB
White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
HLC Support
BLC Support
Defog Digital Defog
Flip Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Corridor Mode 9:16 Corridor Mode supported
Smart Illumination Support
Dewarping N/A
Image Stabilization N/A

§ 06Setup

Installation & setup

01

What's in the Box

1. Uniview IPC3628LE-ADF28K-WP camera × 6 2. Uniview NVR501-08B-P8-IQ NVR × 1 (no hard drive included)

02

Installation Requirements

1. One Cat5e or Cat6 Ethernet run from each camera to a PoE port on the recorder, up to 100 m per run; the port carries power and video together. 2. Mount each camera under an eave or on a wall; the turret body pans and tilts in its base, so aim after fixing. 3. Fit a SATA surveillance hard drive in the recorder and connect its network port to your router for remote viewing. Recording runs on the local network without internet.

03

Setup

1. Power the recorder, set a strong password and initialise the drive from the storage menu with overwrite enabled. 2. Add the cameras on the PoE ports from the recorder's camera menu and set each camera's name and time. 3. Draw each camera's intrusion and cross-line zones tight to your own property and both rules detect on people and vehicles.

§ 08Questions

Frequently asked about the UNVKIT-IPC3628LE-ADF28K-WP-6CAM-NVR501-08B-P8-IQ

Q.01

Does the Uniview 6-camera IPC3628LE kit come with a hard drive?
No. The NVR501-08B-P8-IQ has one SATA bay for a surveillance-rated drive of up to 16TB, and a drive must be fitted and initialised before it records. Choose a 2TB to 10TB drive in the kit customiser before checkout, or fit your own.
Q.02

Can the NVR501-08B-P8-IQ power all six cameras?
Yes. The recorder supplies IEEE 802.3af and 802.3at PoE at up to 30 W per port and 75 W in total, and each IPC3628LE draws a maximum of 3.9 W, so six cameras need 23.4 W at most.
Q.03

Can I add more cameras later?
Yes. 2 of the 8 PoE channels are free, and the recorder records up to 16MP per channel, so a further Uniview PoE camera plugs straight into a spare port; keep the total draw under the recorder's 75 W PoE budget (six IPC3628LE use 23.4 W at most).
Q.04

Do the cameras record sound, and can I talk through them?
It records sound, but cannot talk back. Each IPC3628LE has a built-in microphone and no speaker, so audio is captured alongside the video and there is no two-way talk or siren on the cameras. Check your state's rules on audio recording before enabling it on cameras that face public space.
Q.05

Is night footage in colour or black and white?
In colour. The IPC3628LE holds colour down to 0.0003 lux on its 2.8 mm F1.0 lens, and its warm light, reaching 30 m under automatic or manual control, lights a scene with no light of its own, so night footage stays in colour rather than dropping to infrared black and white.
Q.06

Does it need an internet connection?
Not for recording. Recording, detection and playback run on the recorder over your local network; internet is only needed for remote viewing, which the recorder supports over P2P for up to 128 remote users.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

§ 10Bundles

Recommended packages

04

Adding a hard drive

The NVR501-08B-P8-IQ takes one SATA surveillance drive of up to 16TB; pick a 2TB to 10TB drive in the kit customiser before checkout.
