TP-Link 6 x 8MP CCTV Kit: 6 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 8CH NVR 2TB
Skip to product information
1
/
of
1
Vendor:
TP-Link
TP-Link 6 x 8MP CCTV Kit: 6 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 8CH NVR 2TB
SKU: kit-tp-link-vigi6x8ch-2TBFREEPROMO
Description

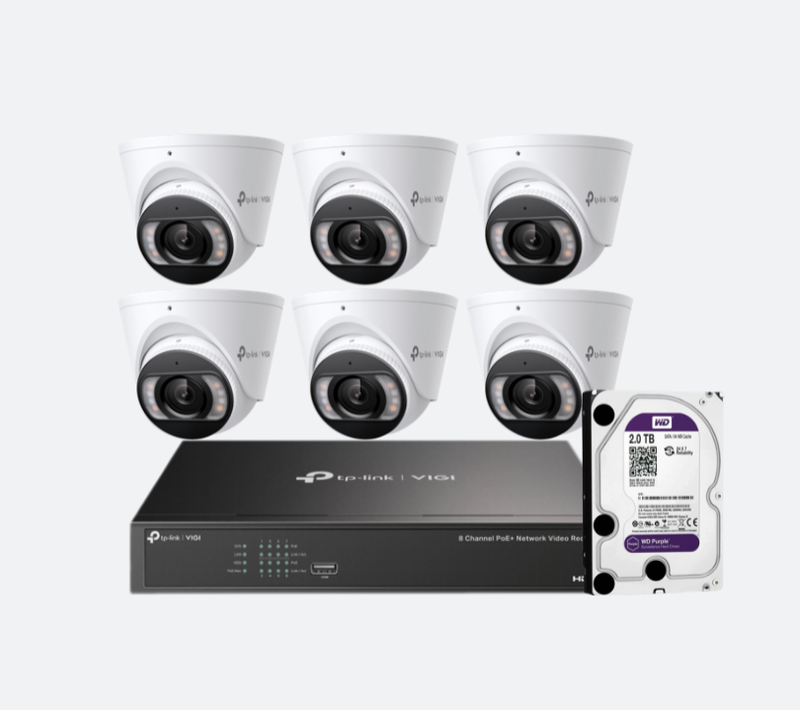

MThe VIGI C485 Kit includes:
6 x VIGI C485
1 x VIGI NVR1008H‑8MP
1 x 2TB HDD
Regular price
$1,342.35 AUD
Sale price
$1,342.35 AUD
Regular price
$1,505.00 AUD
Sale
10.81%
$162.65 AUD
(10.81%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
TP-Link 6 x 8MP CCTV Kit: 6 x IP Turret Cameras (Full-Colour Speaker / Mic / Light) + 8CH NVR 2TB
1
/
of
1
Customize this kit Kit price $1,342.35
This kit includes:
- 6 × tp-link VIGI C485 8MP Full-Colour Speaker / Mic / Light Turret Network Camera DISCONTINUED
- 1 × tp-link VIGI NVR1008H-8MP 8 Channel PoE+ 8 Channel Network Video Recorder with 8 POE (8ch)
- 1 × 2TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (2TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The TP-Link kit-tp-link-vigi6x8ch-2TBFREEPROMO 8MP 8-Channel PoE Network Camera Kit offers an elite 4K security solution for Australian commercial and residential sites. It includes six 8MP full-colour turret cameras and a versatile 8-channel recorder with a pre-installed 2TB surveillance-grade hard drive for immediate high-definition recording.
§ 02Engineering
Technical specifications
- 6 x 8MP 4K Ultra-High-Definition Cameras: Capture 3840 x 2160 resolution video to provide maximum clarity for identifying faces, number plates, and small details across your property.
- Eight-Channel PoE+ Network Video Recorder: Features integrated Power over Ethernet ports to simplify installation by running a single cable for both power and data to each camera.
- 24/7 Full-Colour Night Imaging: Utilises powerful white LEDs and advanced sensors to record vivid colour footage in total darkness, ensuring critical details aren't lost at night.
- Intelligent Human and Vehicle Detection: Employs AI-driven analytics to identify specific targets, significantly reducing false alerts triggered by animals, rain, or moving foliage.
- Integrated Two-Way Audio and Deterrence: Built-in microphones and speakers allow for real-time communication and active deterrence of unauthorised visitors through the mobile app.
- IP67 Weatherproof Rated Protection: Designed with a rugged exterior to withstand the demanding Australian climate, ensuring reliable operation in heavy rain, dust, and heat.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Product Model | InSight S485 (2.8mm/4mm) |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Day & Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range (WDR) | 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Max. Resolution | 3840 X 2160 |
Lens & Distance
| Feature | Detail |
|---|---|
| Type | Fixed Focal Lens |
| Focal Length | 4 mm; 2.8mm |
| Aperture | F1.6 |
| FOV | 2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° | 4 mm: Horizontal FOV: 91.5°, Vertical FOV: 46.1°, Diagonal FOV: 109.6° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 2.8 mm: Detect: 85 m (278 ft); Observe: 35 m (116 ft); Recognize: 17 m (56 ft); Identify: 8 m (28 ft) | 4 mm: Detect: 107 m (350 ft); Observe: 44 m (146 ft); Recognize: 21 m (70 ft); Identify: 11 m (35 ft) |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| IR LED | Quantity: 4; Range: 30 m; Wavelength: 850 nm |
| White LED | Quantity: 4; Range: 30 m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Feature | Detail |
|---|---|
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 | Notes: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. When People & Vehicle Analytics is enabled, the frame rate can only support up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 | Notes: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. When People & Vehicle Analytics is enabled, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main stream: H.265/H.265+/H.264/H.264+; Sub-stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
Audio
| Feature | Detail |
|---|---|
| Audio Communication | Two-way audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Human & Vehicle Classification | Intelligently distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. |
| Smart Detection | Line-Crossing Detection; Intrusion Detection; Abandoned Object Detection; Object Removal Detection; Region Exiting Detection; Region Entering Detection; Scene Change Detection; Loitering Detection |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| API | Open Network Video Interface (Profile S/T/G) |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web, VMS Local, VIGI Cloud VMS |
| Cloud | Yes |
| ONVIF | Yes |
Event & Alarm
| Feature | Detail |
|---|---|
| Smart Event | Human & Vehicle Classification; Intrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection |
| Basic Event | Motion Detection; Video Tampering Detection; Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording; Message Push; Audible Warning; White Light Flashing |
| Output Notification | Message Push |
Interface
| Feature | Detail |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
| Built-in Speaker | Yes |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Reset Button | Yes |
| Power | DC Power Port |
General & Environment
| Feature | Detail |
|---|---|
| Operating Temperature | -30 °C to 60 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity | 95% or Less (Non-condensing) |
| Storage Humidity | 95% or Less (Non-condensing) |
| Power Supply | 12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 12.5 W |
| Material | Metal |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 4.4 × 4.4 × 3.3 in (111 × 111 × 83.7 mm) |
| Package Contents | VIGI Network Camera; Quick Start Guide; Waterproof Cable Attachments; Mounting Accessories |
| Net Weight | 0.48 Kg |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
