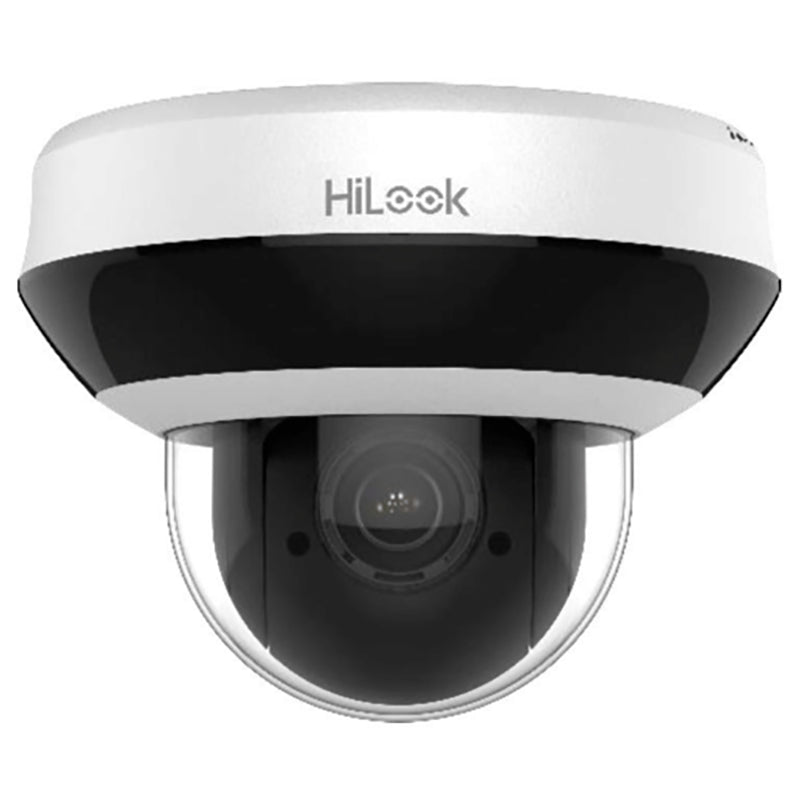

HiLook PTZ-N2404I-DE3 PTZ 2-inch 4 MP 4X Powered by DarkFighter IR Network Speed Dome
Skip to product information
1
/
of
1
Vendor:
Hilook
HiLook PTZ-N2404I-DE3 PTZ 2-inch 4 MP 4X Powered by DarkFighter IR Network Speed Dome
SKU: PTZ-N2404I-DE3
Description
- 4 MP Resolution: Clear 4 megapixel imaging with 4x optical zoom capability.
- H.265+ Compression: Efficient bandwidth and storage optimization technology.
- 120 dB WDR: True Wide Dynamic Range for clear backlight performance.
- 20 m Enhanced IR: Strong night vision up to 20 meters distance.
- IP66 & IK10 Rated: Dust/water resistant and vandal-proof protection.
Regular price
$291.00 AUD
Sale price
$291.00 AUD
Regular price
$350.00 AUD
Sale
16.86%
$59.00 AUD
(16.86%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock

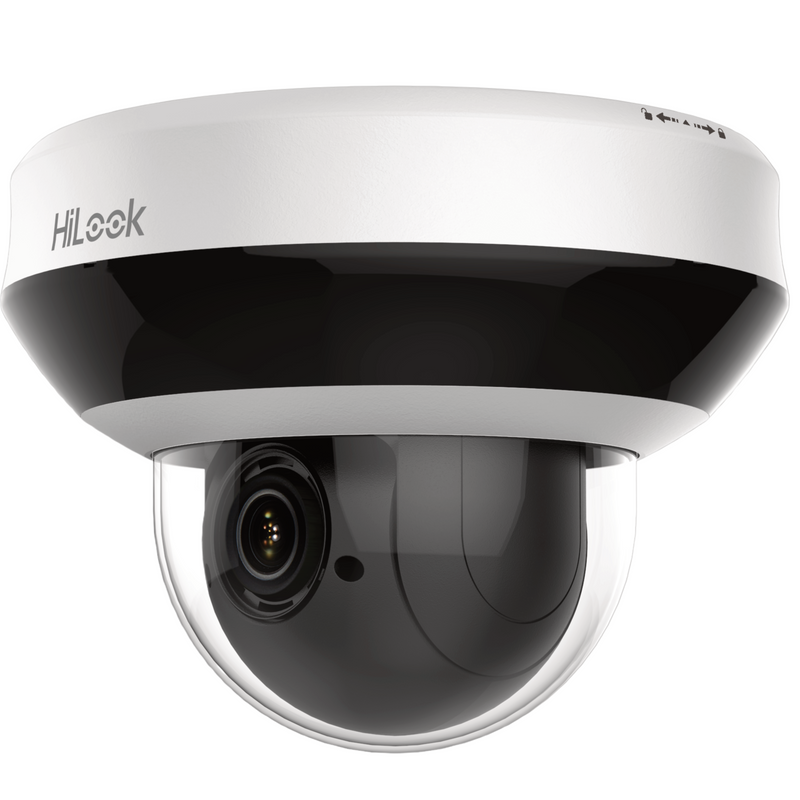

HiLook PTZ-N2404I-DE3 PTZ 2-inch 4 MP 4X Powered by DarkFighter IR Network Speed Dome
1
/
of
1
3-Year WarrantyOn all cameras
Free ShippingOn orders over $300
30-Day ReturnsUnopened items
Fast Delivery1–5 days Australia-wide
Build your setup Build a complete CCTV system Complete setup from $811.00
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
§ 01Overview
What the PTZ-N2404I-DE3 is
The PTZ-N2404I-DE3 is a 2-inch 4 MP PTZ network dome camera for surveillance.
Equipped with H.265+ compression, 120 dB true WDR, 20 m enhanced IR night vision, and IP66/IK10 protection.
See it in action
What the PTZ-N2404I-DE3 features actually look like
Representative illustrations of how each key feature performs in a real scene.
4MP Ultra HD
4MP captures roughly twice the detail of standard 1080p.
Illustrative — simulated for demonstration
§ 02Engineering
PTZ-N2404I-DE3 specifications
- Resolution: 4 MP resolution for clear, detailed imaging.
- PTZ Capability: Features pan, tilt, and 4x optical zoom for versatile monitoring.
- H.265+ Compression: Utilizes efficient H.265+ technology to save bandwidth and storage.
- True WDR: 120 dB wide dynamic range ensures sharp images against strong backlight.
- Enhanced IR: Delivers up to 20 m night vision with DarkFighter technology for superior low-light performance.
- IP66 Protection: Water and dust resistant for durability in harsh environments.
- IK10 Vandal Proof: High impact resistance to deter tampering or damage.
- PTZ Capability: Features pan, tilt, and 4x optical zoom for versatile monitoring.
- H.265+ Compression: Utilizes efficient H.265+ technology to save bandwidth and storage.
- True WDR: 120 dB wide dynamic range ensures sharp images against strong backlight.
- Enhanced IR: Delivers up to 20 m night vision with DarkFighter technology for superior low-light performance.
- IP66 Protection: Water and dust resistant for durability in harsh environments.
- IK10 Vandal Proof: High impact resistance to deter tampering or damage.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.8" progressive scan CMOS |
| Min. Illumination | Color: 0.005 Lux @(F1.5, AGC ON), B/W: 0.001 Lux @(F1.5, AGC ON), 0 Lux with IR |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Gain | Auto/Manual |
| Shutter Time | 50Hz: 1/1 s to 1/30,000 s, 60Hz: 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16× |
| Privacy Mask | 24 programmable privacy masks |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR | 120 dB WDR |
| Max. Resolution | 2560 × 1440 |
| Image Enhancement | 3D DNR, BLC, HLC, Regional Exposure, Regional Focus |
Lens & Distance
| Feature | Detail |
|---|---|
| FOV | Horizontal field of view: 100° to 33° (Wide-Tele), Vertical field of view: 53° to 18° (Wide-Tele), Diagonal field of view: 119° to 37.5° (Wide-Tele) |
| Focal Length | 2.8 mm to 12 mm, 4× optical zoom |
| Zoom Speed | Approx. 2 s (optical lens, wide-tele) |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.5 to F2.7 |
| Movement Range (Pan) | 0° to 355° |
| Pan Speed | Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s |
| Movement Range (Tilt) | 0° to 90° |
| Tilt Speed | Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s |
| Proportional Zoom | Support |
| Presets | 300 |
| Power-off Memory | Support |
Night Vision
| Feature | Detail |
|---|---|
| IR Distance | 20 m |
| Smart IR | Support |
Video
| Feature | Detail |
|---|---|
| H.264+ | Support |
| H.265+ | Support |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG |
| H.265 Type | Main Profile |
| Video Bitrate | 32 Kbps to 16384 Kbps |
| SVC | Support |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 24 fps (2560 × 1440), 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| ROI | Main stream, sub-stream, and third stream respectively support two fixed areas. |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2) |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Smart Detection | Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
Network & Storage
| Feature | Detail |
|---|---|
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets |
| API | Open-ended, support Open Network Video Interface, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support HiLookVision |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator and User |
| Client | iVMS-4200, HikCentral Pro, HiLookVision |
| Web Browser | IE 10-11, Chrome 57+, Firefox 52+, Safari 11+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event Detection | Motion Detection, Video Tampering Detection, Exception |
Interface
| Feature | Detail |
|---|---|
| Audio Input | 1-ch audio input (line in) |
| Audio Output | 1-ch audio output (line out) |
| Network Interface | 1 RJ45 10 M/100 M Ethernet, PoE |
| Built-in Microphone | 1 built-in microphone, picking up sounds in the radius up to 5 meters |
General & Environment
| Feature | Detail |
|---|---|
| Material | Aluminum alloy, PC, PC+ABS |
| Dimensions | Ø 130.7 mm × 101.7 mm (Ø 5.15" × 4.00") |
| Weight | Approx. 0.53 kg (1.17 lb) |
| Protection Level | IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Power | 12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR) | PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR) |
| Working Temperature | -20°C to 60°C (-4°F to 140°F) |
| Working Humidity | ≤ 90% |
| Camera & Image — Image Sensor | 1/2.8" progressive scan CMOS |
|---|---|
| Camera & Image — Min. Illumination | Color: 0.005 Lux @(F1.5, AGC ON), B/W: 0.001 Lux @(F1.5, AGC ON), 0 Lux with IR |
| Camera & Image — White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Camera & Image — Gain | Auto/Manual |
| Camera & Image — Shutter Time | 50Hz: 1/1 s to 1/30,000 s, 60Hz: 1/1 s to 1/30,000 s |
| Camera & Image — Day & Night | IR Cut Filter |
| Camera & Image — Digital Zoom | 16× |
| Camera & Image — Privacy Mask | 24 programmable privacy masks |
| Camera & Image — Focus Mode | Auto/Semi-automatic/Manual |
| Camera & Image — WDR | 120 dB WDR |
| Camera & Image — Max. Resolution | 2560 × 1440 |
| Camera & Image — Image Enhancement | 3D DNR, BLC, HLC, Regional Exposure, Regional Focus |
| Lens & Distance — FOV | Horizontal field of view: 100° to 33° (Wide-Tele), Vertical field of view: 53° to 18° (Wide-Tele), Diagonal field of view: 119° to 37.5° (Wide-Tele) |
| Lens & Distance — Focal Length | 2.8 mm to 12 mm, 4× optical zoom |
| Lens & Distance — Zoom Speed | Approx. 2 s (optical lens, wide-tele) |
| Lens & Distance — Working Distance | 10 mm to 1500 mm (wide-tele) |
| Lens & Distance — Aperture Range | F1.5 to F2.7 |
| Lens & Distance — Movement Range (Pan) | 0° to 355° |
| Lens & Distance — Pan Speed | Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s |
| Lens & Distance — Movement Range (Tilt) | 0° to 90° |
| Lens & Distance — Tilt Speed | Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s |
| Lens & Distance — Proportional Zoom | Support |
| Lens & Distance — Presets | 300 |
| Lens & Distance — Power-off Memory | Support |
| Night Vision — IR Distance | 20 m |
| Night Vision — Smart IR | Support |
| Video — H.264+ | Support |
| Video — H.265+ | Support |
| Video — H.264 Type | Baseline Profile/Main Profile/High Profile |
| Video — Video Compression | Main Stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG |
| Video — H.265 Type | Main Profile |
| Video — Video Bitrate | 32 Kbps to 16384 Kbps |
| Video — SVC | Support |
| Video — Main Stream | 50 Hz: 25 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 24 fps (2560 × 1440), 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Video — Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Video — Third Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Video — ROI | Main stream, sub-stream, and third stream respectively support two fixed areas. |
| Audio — Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio — Audio Bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2) |
| AI & Deep Learning — Smart Detection | Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
| AI & Deep Learning — Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
| Network & Storage — Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Network & Storage — Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
| Network & Storage — Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, Websocket, Websockets |
| Network & Storage — API | Open-ended, support Open Network Video Interface, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support HiLookVision |
| Network & Storage — Simultaneous Live View | Up to 20 channels |
| Network & Storage — User/Host | Up to 32 users, 3 levels: Administrator, Operator and User |
| Network & Storage — Client | iVMS-4200, HikCentral Pro, HiLookVision |
| Network & Storage — Web Browser | IE 10-11, Chrome 57+, Firefox 52+, Safari 11+ |
| Event & Alarm — Basic Event Detection | Motion Detection, Video Tampering Detection, Exception |
| Interface — Audio Input | 1-ch audio input (line in) |
| Interface — Audio Output | 1-ch audio output (line out) |
| Interface — Network Interface | 1 RJ45 10 M/100 M Ethernet, PoE |
| Interface — Built-in Microphone | 1 built-in microphone, picking up sounds in the radius up to 5 meters |
| General & Environment — Material | Aluminum alloy, PC, PC+ABS |
| General & Environment — Dimensions | Ø 130.7 mm × 101.7 mm (Ø 5.15" × 4.00") |
| General & Environment — Weight | Approx. 0.53 kg (1.17 lb) |
| General & Environment — Protection Level | IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| General & Environment — Power | 12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR) | PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR) |
| General & Environment — Working Temperature | -20°C to 60°C (-4°F to 140°F) |
| General & Environment — Working Humidity | ≤ 90% |
§ 04Why choose this
Built for the way you actually use the PTZ-N2404I-DE3
120 dB True WDR
Handles bright doorways and dark areas simultaneously.
20 m IR Night Vision
Covers a porch, entry, or small room in darkness.
IP66 + IK10
Weatherproof and vandal-proof. Compact dome suits exposed positions.
HiLook Budget PTZ
Affordable mini PTZ with Hikvision DarkFighter technology. Standard PoE — no PoE+ needed.
§ 05Where it fits
Right at home in these scenarios
Residential Front Door or Patio
Small dome is discreet. 4× zoom checks faces at the door. IK10 resists tampering.
Small Retail or Office Entry
Ceiling mount above the door. Pan and tilt to check different areas.
Apartment Building Lobby
Compact and vandal-proof. Does not intimidate visitors.
Meeting Room or Reception
Adjust the view for different seating arrangements.
§ 06Setup
Installation & setup
What's in the Box
1. HiLook PTZ-N2404I-DE3 Camera × 1 2. Mounting Bracket × 1 3. Quick Start Guide × 1
Installation Requirements
1. Power: PoE (IEEE 802.3af) or 12V DC. 2. Cable: Cat5e or Cat6, max 100 m. 3. Mounting: Ceiling or wall. Compact 2-inch dome — under 800 g. 4. Clearance: Allow space for pan (330°) and tilt movement.
App Setup
1. Download Hik-Connect or HiLookVision app (iOS or Android). 2. Power via PoE. Wait about 60 seconds. 3. Add by QR code or serial number. 4. Set preset positions. Note: this model does not support patrol routes.
§ 07Questions
Frequently asked about the PTZ-N2404I-DE3
Q.01
Does it support patrol routes?
No. The PTZ-N2404I-DE3 supports presets but not scheduled patrol scanning. For patrols, step up to the PTZ-N4215I-DE or a Hikvision PTZ.
Q.02
Does it need PoE+?
No. Standard PoE (802.3af) is enough. The compact motor draws less power than larger PTZ cameras.
Q.03
Does it have auto-tracking?
No. Manual pan/tilt/zoom only. For auto-tracking, use a Hikvision or Dahua Pro PTZ.
Q.04
Does it have a microphone?
Yes. Built-in microphone for one-way audio recording.
Q.05
What is the pan range?
330° (not full 360°). Tilt range varies by model revision.
