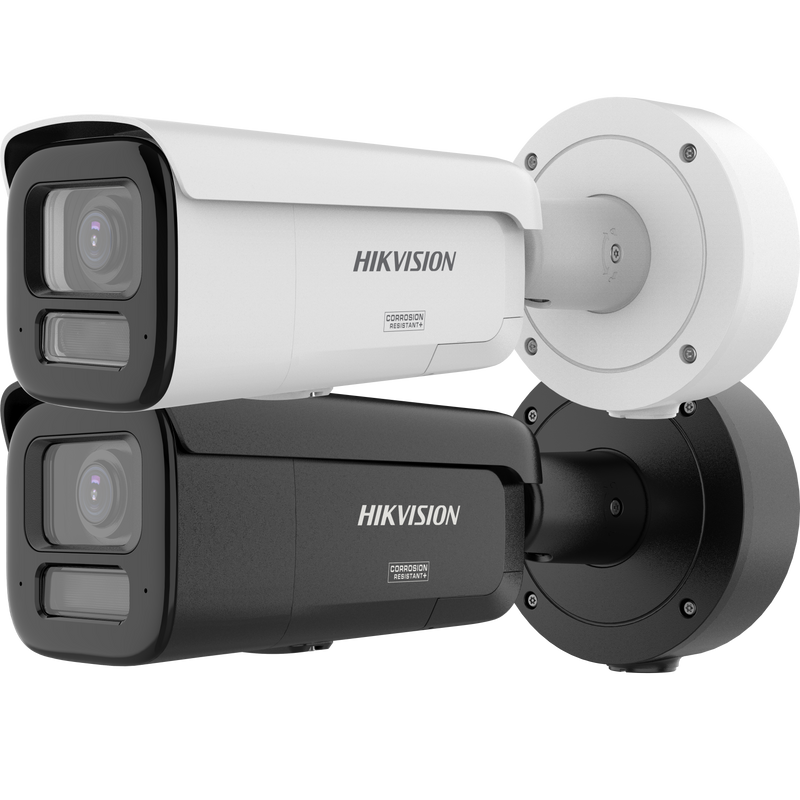

Hikvision DS-2CD3686G3-LIZSU(Y)/SL 8MP Dual Illumination Strobe Light and Audible Warning Motorized Varifocal Bullet Camera
Hikvision DS-2CD3686G3-LIZSU Y SL 8MP Dual Illumination Strobe Audible Warning Motorized Varifocal Bullet Camera
1 1
Hikvision

Hikvision DS-2CD3686G3-LIZSU(Y)/SL 8MP Dual Illumination Strobe Light and Audible Warning Motorized Varifocal Bullet Camera

SKU: DS-2CD3686G3-LIZSU(Y)/SL
Description

The Hikvision DS-2CD3686G3-LIZSU(Y)/SL is an 8 MP dual-illumination bullet with a motorised 2.7 to 13.5 mm zoom, active deterrence and two-way audio. Smart Hybrid Light keeps full colour at night, AcuSense filters alerts to people and vehicles, and a flashing white strobe plus an audible alarm warn intruders off.

Key points
- 8 MP (3840 x 2160) on a 1/1.8" sensor with an F1.2 lens
- Motorised 2.7 to 13.5 mm varifocal zoom, set remotely
- Smart Hybrid Light: infrared, white light or smart mode, up to 60 m
- AcuSense human and vehicle detection with auto-tracking
- Active deterrence strobe and audible alarm; two-way audio
- IP67 and IK10 (NEMA 4X on -Y); PoE (802.3at) or 12 VDC
8MP Ultra HD 60m IR Night Vision Full Color Night Vision IP67 Weatherproof Human/Vehicle Detection Two-Way Audio
$718.45 AUD $718.45 AUD $740.67 AUD
Sale 3.0% $22.22 AUD (3.0%)
Member Sign in to save $14.37 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $1,662.05

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
1
Bundle total: $718.45
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DS-2CD3686G3-LIZSU(Y)/SL is

The Hikvision DS-2CD3686G3-LIZSU(Y)/SL is an 8 MP dual-illumination bullet with a motorised 2.7 to 13.5 mm zoom, built for large sites that need a flexible field of view, full-colour night images and active deterrence.

A large 1/1.8" sensor and an F1.2 lens capture sharp 8 MP (3840 x 2160) images, the motorised varifocal lens sets the zoom and focus remotely from wide-angle to telephoto, and 130 dB Wide Dynamic Range holds detail in high-contrast light.

Smart Hybrid Light gives three night modes: infrared up to 60 m for a discreet black-and-white image, constant white light for full colour, and a smart mode that runs on infrared and brings in white light to capture full colour when a person or vehicle is detected.

AcuSense deep learning classifies people and vehicles on the camera, runs perimeter rules that alarm only on those targets, and supports auto-tracking and people counting.

When a target is detected, the /SL white light flashes as a strobe and the speaker sounds an audible alarm, moving an intruder on in real time.

A built-in dual-microphone array and a built-in speaker give two-way audio, so an operator can listen and talk back.

It is a metal bullet rated IP67 against dust and water and IK10 against impact, with a NEMA 4X anti-corrosion rating on the -Y version for salt-affected and industrial sites.

An open HEOP platform lets integrators add custom analytics, a microSD slot takes a card up to 512 GB and H.265+ keeps storage down.

It runs on PoE (802.3at) or 12 VDC, so confirm your switch or NVR supplies 802.3at for the motorised lens, strobe, speaker and lights.

Record it to a Hikvision AcuSense NVR so the events and audio stay easy to review.

See it in action

What the DS-2CD3686G3-LIZSU(Y)/SL features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2)
8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2)

8MP Ultra HD

8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
60m IR Night Vision — Built-in infrared sees in total darkness up to around 60m, covering long driveways an... (1/2)
60m IR Night Vision — Built-in infrared sees in total darkness up to around 60m, covering long driveways an... (2/2)

60m IR Night Vision

Built-in infrared sees in total darkness up to around 60m, covering long driveways and large properties. Even well away from the house, people and vehicles remain clear in black-and-white.
Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d...

Full Color Night Vision

Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s...

Two-Way Audio

Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.

Illustrative — simulated for demonstration

§ 02Engineering

DS-2CD3686G3-LIZSU(Y)/SL specifications

- 8 MP (3840 x 2160) on a 1/1.8" CMOS sensor with an F1.2 lens
- Motorised 2.7 to 13.5 mm varifocal zoom, set remotely from wide to tele
- Smart Hybrid Light: infrared, white light or smart mode, up to 60 m
- AcuSense human and vehicle detection with auto-tracking and people counting
- Active deterrence: flashing white strobe and audible alarm
- Two-way audio with a built-in dual-microphone array and speaker
- 130 dB WDR; open HEOP platform for custom analytics
- IP67 and IK10 (NEMA 4X on -Y); microSD up to 512 GB; PoE (802.3at) or 12 VDC

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision DS-2CD3686G3-LIZSU(Y)/SL 8MP Dual Illumination Strobe Light and Audible Warning Motorized Varifocal Bullet Camera
FeatureDetail
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with light
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR, Distortion Correction, Defog
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 130 dB
Image Stabilization EIS
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask 8 programmable polygon privacy masks

§ 04Why choose this

Built for the way you actually use the DS-2CD3686G3-LIZSU(Y)/SL

Full colour and deterrence

Smart Hybrid Light holds full colour at night, and a flashing strobe and audible alarm warn intruders off in real time.

Frame it from anywhere

A motorised 2.7 to 13.5 mm zoom sets the field of view remotely, from a wide forecourt to a long perimeter.

Follows the action

AcuSense auto-tracking keeps a detected person or vehicle framed within the field of view.

Talk and listen on site

A built-in dual-microphone array and speaker give two-way audio for live challenges and announcements.

§ 05Where it fits

Right at home in these scenarios

Large perimeters and yards

Zoom along a long boundary, follow an intruder with auto-tracking and trigger the strobe and alarm.

Car parks and forecourts

Frame a wide area or zoom onto a bay, with full colour at night and live deterrence.

Industrial and logistics sites

Cover loading and storage areas with people and vehicle filtering and two-way audio.

Critical infrastructure

Use the open HEOP platform to add custom analytics on larger, integrated systems.

§ 06Setup

Installation & setup

01

What's in the box

One DS-2CD3686G3-LIZSU(Y)/SL bullet camera with a mounting template, fixings and a quick guide. The PoE switch or NVR, network cable, microSD card and any junction box are supplied separately.

02

Installation requirements

Mount it on a wall, eave or pole aimed along the area to cover, and run one network cable back to a PoE (802.3at) switch or NVR, or use 12 VDC. Set the motorised zoom and focus, the Smart Hybrid Light mode, the AcuSense rules and the strobe and audio responses in the software, and record it to a Hikvision AcuSense NVR. A junction box tidies the cabling on a flat wall.

§ 07Questions

Frequently asked about the DS-2CD3686G3-LIZSU(Y)/SL

Q.01

Does the DS-2CD3686G3-LIZSU(Y)/SL record in colour at night?
Yes, in white-light or smart mode. Smart Hybrid Light gives three modes: infrared to 60 m for a discreet black-and-white image, constant white light for full colour, and a smart mode that runs on infrared and brings in white light to capture full colour when a target is detected.
Q.02

How does the active deterrence work?
When AcuSense detects a person or vehicle, the /SL white light flashes as a strobe and the speaker plays an audible alarm. That moves an intruder on in real time rather than just recording, and you can also speak through the camera using its two-way audio.
Q.03

Does it have two-way audio?
Yes. It has a built-in dual-microphone array and a built-in speaker, so an operator can listen to a scene and talk back through the camera, for example to greet a visitor or challenge someone after hours.
Q.04

What does auto-tracking do?
The camera supports patrol and auto-tracking with its electronic PTZ, so it can follow a moving person or vehicle within its field of view and keep them framed. Combined with AcuSense, it focuses on people and vehicles rather than general movement.
Q.05

What does the motorised lens do?
The 2.7 to 13.5 mm lens is powered, so you set the zoom and focus remotely from the software or NVR. That makes it easy to frame a wide forecourt or reach down a long perimeter, and to fine-tune the view later without returning to the camera.
Q.06

Is it vandal and corrosion resistant?
It has an IK10-rated metal housing built to take impact and an IP67 rating against dust and water. The -Y version adds a NEMA 4X anti-corrosion rating for salt-affected, coastal-adjacent and industrial positions.
Q.07

What power and recorder does it need?
It runs on PoE (802.3at) over one network cable, or on 12 VDC. The motorised lens, strobe, speaker and lights draw more than a basic camera, so make sure your switch or NVR supplies 802.3at. Record it to a Hikvision AcuSense NVR to keep the events and audio searchable.
Q.08

Is it suitable for outdoors in Australia?
Yes. It has an IP67 metal body with an IK10 impact rating and a wide operating temperature range, so it suits exposed walls, poles and perimeters through heat, dust and rain, with the -Y version adding anti-corrosion protection.

§ 09Bundles

Recommended packages

01

Record and review it

Feed it to a Hikvision AcuSense recorder such as the 8-channel DS-7608NI-M2/8P, or the 16-channel DS-7616NI-M2/16P for larger sites. Add a surveillance-grade drive like the 8 TB for weeks of continuous footage.

02

Power it over one cable

Run a single network cable per camera from a PoE source. The HiLook 8-port PoE switch feeds several cameras and the recorder, keeping the cabling tidy on multi-camera sites.

03

Mount it cleanly

A DS-1260ZJ junction box tidies the cabling and screw runs behind the bullet and gives a neat finish on a wall or eave.
