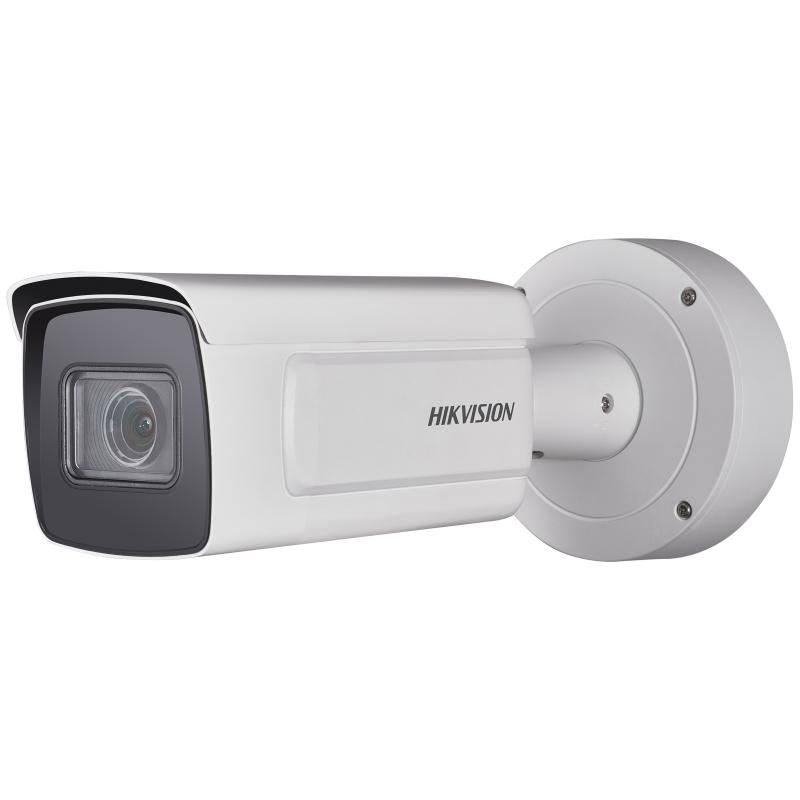

Hikvision DS-2CD5A46G0-IZS Darkfighter 4MP Outdoor Bullet Camera 50m IR, 2.8-12mm
Hikvision DS-2CD5A46G0-IZS Darkfighter 4MP Outdoor Bullet Camera 50m IR 2.8-12mm
1 1
Hikvision

Hikvision DS-2CD5A46G0-IZS Darkfighter 4MP Outdoor Bullet Camera 50m IR, 2.8-12mm

SKU: DS-2CD5A46G0-IZS
Description

The Hikvision DS-2CD5A46G0-IZS is a 4 MP DarkFighter motorised varifocal bullet built for long-range, low-light professional sites. It combines an ultra-sensitive 1/1.8" sensor, 140 dB WDR and AcuSense human and vehicle detection with infrared night vision and a powered zoom lens.

Key points
- 4 MP (2560x1440) 1/1.8" CMOS
- DarkFighter ultra-low-light performance; 140 dB WDR
- Motorised 2.8 to 12 mm zoom; P-Iris, F1.2
- face capture
- Infrared night vision up to 50 m;
- IP67 and IK10 with heater; includes DS-1260ZJ junction box; PoE, 12 VDC
4MP Ultra HD 50m IR Night Vision Human/Vehicle Detection
$927.30 AUD $927.30 AUD $1,152.00 AUD
Sale 19.51% $224.70 AUD (19.51%)
Member Sign in to save $18.55 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $1,870.90

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
1
1
Bundle total: $927.30
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DS-2CD5A46G0-IZS is

The Hikvision DS-2CD5A46G0-IZS is a 4 MP DarkFighter motorised varifocal bullet aimed at professional sites that need to watch a long approach in poor light.

The large 1/1.8" sensor and an F1.2 P-Iris lens capture clean, low-noise detail in dim conditions, and 140 dB Wide Dynamic Range balances bright and dark areas in the same frame, which helps along driveways, fence lines and entrances where headlights or a bright sky would wash out an ordinary camera.

AcuSense deep-learning analytics classify human and vehicle targets, so line-crossing, intrusion and motion events trigger on people and cars and skip animals, rain and moving branches; the camera also captures faces for review.

The motorised 2.8 to 12 mm lens sets zoom and focus remotely, and built-in infrared reaches up to 50 m for clear black and white footage at night.

An RS-485 port and three alarm inputs and outputs let it tie into wider security systems.

This is a metal bullet rated IP67 and IK10 with a built-in heater for cold or exposed positions, and it ships with a DS-1260ZJ junction box for tidy cabling.

It supports a microSD card up to 256 GB and runs on PoE, 12 VDC or 24 VAC.

Audio is handled through a line-in and a line-out connector for an external microphone and speaker; there is no built-in microphone or speaker on this model.

Record it to a Hikvision AcuSense NVR so the human and vehicle events stay quick to search.

See it in action

What the DS-2CD5A46G0-IZS features actually look like

Representative illustrations of how each key feature performs in a real scene.

4MP Ultra HD — 4MP captures roughly twice the detail of standard 1080p.

4MP Ultra HD

4MP captures roughly twice the detail of standard 1080p.
50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (1/2)
50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (2/2)

50m IR Night Vision

Built-in infrared sees in total darkness up to around 50m — good for longer driveways, car parks and wider properties. People and vehicles stay visible well beyond the reach of a porch light.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.

Illustrative — simulated for demonstration

§ 02Engineering

DS-2CD5A46G0-IZS specifications

- 4 MP (2560x1440) 1/1.8" CMOS DarkFighter sensor
- Ultra-low-light imaging with 140 dB WDR
- Motorised 2.8 to 12 mm P-Iris lens, F1.2, remote zoom and focus
- face capture
- Infrared night vision up to 50 m (2.8 to 12 mm lens)
- 2 alarm inputs / 2 outputs;
- microSD up to 256 GB;
- IP67 and IK10 metal bullet; PoE, 12 VDC

§ 03Full datasheet

Detailed specifications

Camera

Camera — Hikvision DS-2CD5A46G0-IZS Darkfighter 4MP Outdoor Bullet Camera 50m IR, 2.8-12mm
FeatureDetail
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination 0.0014 Lux @ (F1.4, AGC ON), 0 Lux with IR on
Shutter Speed 1/3 s to 1/100,000 s
Wide Dynamic Range 140 dB
Day & Night ICR Cut

§ 04Why choose this

Built for the way you actually use the DS-2CD5A46G0-IZS

Long range in the dark

DarkFighter low-light imaging and 50 m infrared cover a long driveway or fence line at night.

Smart, meaningful alerts

AcuSense human and vehicle classification keeps line-crossing and intrusion alarms focused on people and cars.

Frame it remotely

A motorised 2.8 to 12 mm P-Iris lens sets zoom and focus from the app and holds sharpness as light changes.

Ready to install

An IP67, IK10 metal bullet with a heater and an included junction box handles tough outdoor positions.

§ 05Where it fits

Right at home in these scenarios

Long driveways and approaches

Reach up to 50 m at night and zoom in on a gate or vehicle with the powered lens.

Rural and acreage boundaries

Cover a long fence line in low light with human or vehicle alerts to cut false triggers.

Commercial perimeters

Watch a yard or car park edge after hours with clean low-light detail and 140 dB WDR.

Cold or exposed positions

Use the heated, weatherproof bullet on southern, coastal or unheated sites.

§ 06Setup

Installation & setup

01

What's in the box

One DS-2CD5A46G0-IZS bullet camera with the DS-1260ZJ junction box, a mounting template, fixings and a quick guide. The PoE switch or NVR, network cable and microSD card are supplied separately.

02

Installation requirements

Mount it on a wall, eave or pole aimed along the area you want to cover, using the supplied junction box for the cabling, and run one network cable back to a PoE switch or NVR, or use 12 VDC or 24 VAC. Set the zoom, focus and AcuSense rules in the software, add external audio to the line-in and line-out if needed, and record it to a Hikvision AcuSense NVR.

§ 07Questions

Frequently asked about the DS-2CD5A46G0-IZS

Q.01

How far can the DS-2CD5A46G0-IZS see at night?
Built-in infrared reaches up to 50 m with the 2.8 to 12 mm lens. The night image is black and white, as the camera uses infrared rather than white light at night. Zoomed in with the powered lens, it can pick out detail well down a driveway or fence line.
Q.02

What is the resolution?
It is a 4 MP camera with a maximum resolution of 2560x1440. The emphasis is on clean low-light images and dynamic range rather than the highest pixel count, which suits long-range night-time identification.
Q.03

Does it filter people and vehicles?
Yes. AcuSense deep-learning analytics classify human and vehicle targets, so line-crossing, intrusion and motion events trigger on people and cars and skip animals, rain and swaying plants, which cuts false alarms and speeds up searching footage.
Q.04

Does it have a built-in microphone?
No. It has a line-in and a line-out connector for an external microphone and speaker, but there is no microphone or speaker inside the camera. Add your own audio devices if you need sound.
Q.05

Does it come with a junction box?
Yes. It ships with a DS-1260ZJ junction box, which gives a tidy enclosure for the cabling behind the camera and a clean finish on a wall or pole.
Q.06

What power does it use?
It runs on PoE, 12 VDC or 24 VAC. PoE keeps it to one cable; check your switch or NVR can supply enough power for the camera and heater.
Q.07

Does it need a Hikvision NVR?
It works with ONVIF recorders, but AcuSense search, smart events and the easiest setup are at their best with a Hikvision AcuSense NVR. For the full feature set, pair it with a matching Hikvision recorder.

§ 09Bundles

Recommended packages

01

Record and search it

Connect it to a Hikvision AcuSense recorder such as the 8-channel DS-7608NI-I2/8P NVR, or the larger 16-channel DS-7732NXI-I4/16P, so human and vehicle events stay quick to find. Add a surveillance-grade drive like the 8 TB for weeks of continuous footage.

02

Power it over one cable

Run a single network cable per camera from a PoE source. The HiLook 8-port PoE switch feeds several cameras and the recorder, keeping the cabling tidy on multi-camera sites.
