Hikvision DS-2CD5A26G0-IZS 2MP Outdoor Darkfighter Bullet Camera, IR, VCA, 60fps, 2.8-12mm
Skip to product information
1
/
of
1
Vendor:
Hikvision
Hikvision DS-2CD5A26G0-IZS 2MP Outdoor Darkfighter Bullet Camera, IR, VCA, 60fps, 2.8-12mm
SKU: DS-2CD5A26G0-IZS
Description

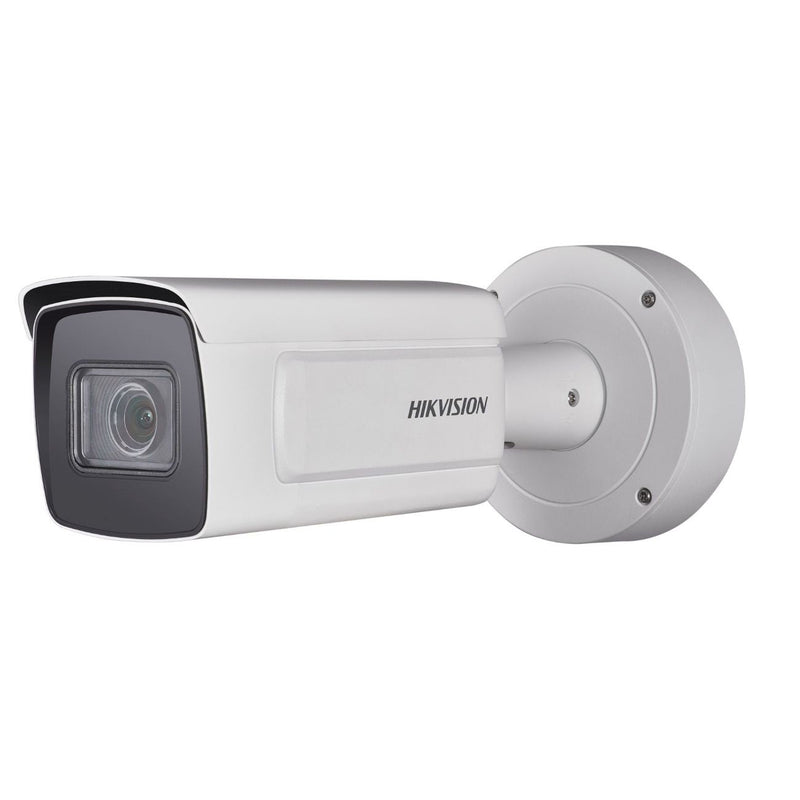

The Hikvision DS-2CD5A26G0-IZS is a 2 MP DarkFighter bullet with a motorised 2.8 to 12 mm zoom, built for ultra-low-light scenes. DarkFighter and 140 dB WDR balance dark areas and harsh backlight, 60 fps captures fast movement, and infrared reaches up to 50 m.
Key points
- 2 MP (1920 x 1080) at up to 60 fps on a 1/1.8" sensor
- DarkFighter ultra-low-light imaging; 140 dB WDR
- Motorised 2.8 to 12 mm varifocal zoom, set remotely
- Infrared night vision up to 50 m (black and white)
- VCA smart events: line crossing, intrusion, face detection, counting
- IP67, IK10; microSD up to 256 GB; PoE (802.3at) or 12 VDC
Regular price
$776.00 AUD
Sale price
$776.00 AUD
Regular price
$913.00 AUD
Sale
15.01%
$137.00 AUD
(15.01%)
Member
Sign in to save $15.52 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision DS-2CD5A26G0-IZS 2MP Outdoor Darkfighter Bullet Camera, IR, VCA, 60fps, 2.8-12mm
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $1,719.60
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2CD5A26G0-IZS is
The Hikvision DS-2CD5A26G0-IZS is a 2 MP DarkFighter bullet with a motorised 2.8 to 12 mm zoom, chosen for sites where the light is poor and the action is fast.
Rather than chase a high megapixel count, it puts a 2 MP image on a large 1/1.8" sensor, which gathers far more light per pixel, so it stays clean at dusk, under street lighting and in shadow.
It runs at up to 60 fps, which keeps moving vehicles and people sharp instead of smeared, and 140 dB Wide Dynamic Range holds detail when a dark yard sits against a bright sky or headlights.
This is the -IZS model with the 2.8 to 12 mm lens, and its infrared reaches up to 50 m for night cover.
(The longer 8 to 32 mm version of this family reaches further, but that is a different lens build; this listing is the 50 m model.) DarkFighter is a low-light, high-sensitivity technology, not a white-light ColorVu, so the night image is sharp black and white under infrared rather than full colour.
The motorised lens lets you set zoom and focus remotely from wide-angle to a tighter long view, which suits a perimeter or a long approach that you want to frame from the ground.
On-camera VCA covers line crossing, intrusion, region entry and exit, face detection and people counting, useful for an enterprise perimeter, though this generation does not carry AcuSense human and vehicle classification, so treat its smart events as scene-based rules.
It supports five streams, takes a microSD card up to 256 GB, and uses H.265+ to cut bandwidth.
The metal body is IP67 and IK10, and it runs on PoE (802.3at) or 12 VDC.
Record it to a Hikvision NVR for continuous, searchable footage.
See it in action
What the DS-2CD5A26G0-IZS features actually look like
Representative illustrations of how each key feature performs in a real scene.
50m IR Night Vision
Built-in infrared sees in total darkness up to around 50m — good for longer driveways, car parks and wider properties. People and vehicles stay visible well beyond the reach of a porch light.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DS-2CD5A26G0-IZS specifications
- 2 MP (1920 x 1080) at up to 60 fps on a large 1/1.8" CMOS sensor
- DarkFighter ultra-low-light imaging for dusk, shadow and street light
- 140 dB true WDR for dark scenes against bright backlight
- Motorised 2.8 to 12 mm varifocal zoom, set remotely
- Infrared night vision up to 50 m, sharp black and white
- VCA: line crossing, intrusion, region entry/exit, face detection, counting
- Five streams; H.265+; microSD up to 256 GB
- IP67, IK10 metal body; PoE (802.3at) or 12 VDC
- DarkFighter ultra-low-light imaging for dusk, shadow and street light
- 140 dB true WDR for dark scenes against bright backlight
- Motorised 2.8 to 12 mm varifocal zoom, set remotely
- Infrared night vision up to 50 m, sharp black and white
- VCA: line crossing, intrusion, region entry/exit, face detection, counting
- Five streams; H.265+; microSD up to 256 GB
- IP67, IK10 metal body; PoE (802.3at) or 12 VDC
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| WDR | 140 dB |
| Angle Adjustment | Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360° |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS, distortion correction |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Target Cropping | Yes |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| SNR | ≥52dB |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Motorized lens, 2.8 to 12 mm and 8 to 32 mm optional |
| Aperture | 2.8 to 12 mm: F1.2 to 2.5 | 8 to 32 mm: F1.6, Constant F1.6 throughout the zoom range |
| Focus | Auto, semi auto, manual |
| Auto-iris | P-iris |
| FOV | 2.8 to 12 mm, horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° | 8 to 32 mm, horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3° |
| Lens Mount | Integrated |
Night Vision
| Feature | Detail |
|---|---|
| IR Range | 2.8 to 12 mm: up to 50 m; 8 to 32 mm: up to 100 m |
| Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Max. Resolution | 1920 × 1080 |
| Video Stream | 5 defined streams and up to 5 custom stream |
| Main Stream | 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) | 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480) | 60Hz: 30fps (704 × 480, 640 × 480) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) | 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) | 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fifth Stream | 50Hz: 25fps (704 × 576, 640 × 480) | 60Hz: 30fps (704 × 480, 640 × 480) |
| Custom Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) | 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 | Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream support |
| H.265 Type | Main Profile |
| H.265+ | Main stream support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest | Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions for each stream |
Audio
| Feature | Detail |
|---|
AI & Deep Learning
| Feature | Detail |
|---|---|
| Smart Event | Line crossing detection, up to 4 lines configurable; Intrusion detection, up to 4 regions configurable; Region entrance detection, up to 4 regions configurable; Region exiting detection, up to 4 regions configurable; Unattended baggage detection, up to 4 regions configurable; Object removal detection, up to 4 regions configurable; Face detection: detects faces and upload images; Scene change detection, defocus detection |
| Statistics | Counting |
Network & Storage
| Feature | Detail |
|---|---|
| Network Storage | microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome |
| Smooth Streaming | Yes |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1 |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE8+ | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ | Local service: Chrome57.0+, Firefox52.0+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Linkage Method | Trigger recording: memory card, network storage, pre-record and post-record | Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email | Trigger notification: HTTP, ISAPI, alarm output, Email |
Interface
| Feature | Detail |
|---|---|
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port |
| Alarm Input | 2 inputs (max. 24 VDC/VAC, 1A) |
| Alarm Output | 2 outputs (max. 24 VDC/VAC, 1A) |
| Video Out | 1Vp-p composite output (75 Ω/CVBS), only for adjustment |
| Interface Style | Connector panel |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
General & Environment
| Feature | Detail |
|---|---|
| Firmware Version | 5.6.0 |
| Web Client Language | 32 languages | English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Embedded Open Platform | Yes. The camera supports installation and running up to 4 extra applications. |
| General Function | Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening |
| Reset | Reset via reset button on camera body, web browser and client software |
| Startup and Operating Conditions | -30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F) | Humidity 95% or less (non-condensing) |
| Storage Conditions | -30 °C to 65 °C (-22 °F to 149 °F) | Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 20%, two-core terminal block; reverse polarity protection, PoE (802.3at, class 4) |
| Power Consumption and Current | -IZS: 12 VDC, 1.08 A, max. 13 W; PoE (802.3at, 42.5 V to 57 V), 0.31 A to 0.23 A, max. 13 W | -IZHS: 12 VDC, 1.13 A, max. 13.5 W; PoE (802.3at, 42.5 V to 57 V), 0.42 A to 0.32 A, max. 18 W |
| Heater | -H: yes |
| Material | Metal |
| Dimensions | Camera: Φ144 × 347 mm (Φ5.7" × 13.7") | With package: 405 × 190 × 180 mm (15.9" × 7.5" × 7.1") |
| Weight | Camera: approx. 2.45 kg (5.40 lb.) | With package: approx. 2.7 kg (5.95 lb.) |
| EMC | 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015 |
| Safety | UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015 |
| Chemistry | 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006 |
| Protection | Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013) |
§ 04Why choose this
Built for the way you actually use the DS-2CD5A26G0-IZS
Sharp on fast movement
Up to 60 fps keeps moving vehicles and people clear, so number plates and faces are not smeared at the moment that matters.
Frames from the ground
The motorised 2.8 to 12 mm lens is set from software, so one camera covers a wide area or reaches a long approach without a ladder.
Built tough
An IP67, IK10 metal body with 140 dB WDR handles weather, knocks and harsh backlight on an exposed perimeter.
§ 05Where it fits
Right at home in these scenarios
Low-light perimeters
Dusk, shaded fence lines and street-lit yards are where the DarkFighter sensor earns its place, with clean detail when other cameras struggle.
Roads, gates and entrances
60 fps capture keeps fast vehicles and people sharp, and the zoom reaches a gate or lane from one mounting point.
Loading docks and yards
140 dB WDR balances a dark dock against a bright opening, so you keep detail in both at once.
Enterprise sites needing VCA
Line crossing, intrusion and counting rules suit larger sites that build their own scene-based event logic.
§ 06Setup
Installation & setup
In the box
Camera, mounting template and screw pack, a waterproofing kit for the network lead and the quick start guide. A microSD card, NVR and power supply are bought separately.
Mounting
Surface-mount the bullet to a wall or eave and angle it along the line you want to watch. A junction box tidies the cabling on a flush wall.
Power and cabling
Run one Cat6 lead to a PoE (802.3at) switch or NVR, or use a 12 VDC supply. Keep the run within about 100 m or add a PoE switch or extender.
Setup tips
Set the motorised zoom from software for the framing you want, raise the shutter speed where you need to freeze fast vehicles, and aim infrared away from nearby walls to avoid glare.
§ 07Questions
Frequently asked about the DS-2CD5A26G0-IZS
Q.01
Why is the DS-2CD5A26G0-IZS only 2 MP when other cameras are 8 MP?
It trades pixel count for light. Fewer, larger pixels on a 1/1.8 inch sensor collect more light, so the image stays clean in poor light where a high-megapixel camera turns grainy. For dusk, shaded yards and street-lit areas, this DarkFighter image is usually cleaner than an 8 MP camera on a small sensor.
Q.02
How far does its night vision reach, and is it in colour?
The 2.8 to 12 mm -IZS model has infrared up to 50 metres. DarkFighter is a low-light technology, not a white-light ColorVu, so the night image is sharp black and white under infrared rather than full colour.
Q.03
I have seen this model listed with 100 m IR. Which is right?
Both exist as different lens builds. The 8 to 32 mm version of this family reaches up to 100 metres. This listing is the 2.8 to 12 mm -IZS, which is rated to 50 metres. Match the lens to the distance you need to cover.
Q.04
What is 60 fps useful for?
Sixty frames per second doubles the smoothness of standard 25 to 30 fps recording, so fast vehicles, runners and the moment of an incident stay clear rather than blurred. It helps on roads, gates and busy entrances.
Q.05
Does it have AcuSense human and vehicle detection?
No. This generation uses VCA smart events such as line crossing, intrusion and face detection, which are scene-based rules. It does not carry AcuSense human and vehicle classification, so if filtering people and vehicles is essential, look at an AcuSense model instead.
Q.06
Does it record audio?
No. The datasheet lists no audio input or output and no microphone, so this model is video only. If you need sound, choose a camera with a built-in microphone.
Q.07
Can I set the zoom remotely?
Yes. The 2.8 to 12 mm lens is motorised, so you set zoom and focus from the NVR or software after mounting, without returning to the camera.
Q.08
What do I need to run it?
A single PoE (802.3at) cable to a switch or NVR, or a local 12 VDC supply. Record it to any Hikvision NVR; a microSD card up to 256 GB gives on-board backup if the network drops.
§ 09Bundles
Recommended packages
Record and review it
Send it to a Hikvision NVR such as the 4-channel DS-7604NI-M1/4P for a small site or the 8-channel DS-7608NI-M2/8P for more cameras, and add a surveillance drive like the 6 TB drive for continuous footage.
Cover the wide-area view as well
Pair this low-light zoom bullet with an 8 MP wide camera such as the DS-2CD3786G2HT-LIZSUY dome so you get both detail at distance and full-scene context.
Add on-camera storage
A microSD card up to 256 GB records to the camera and keeps footage if the network link drops.
