Hikvision 8MP 8CH CCTV Kit:6xAcusenseOutdoor Turret With Strobe & Siren + 8CH NVR/4TB
SKU: DS-2CD2386G2-ISU/SL
Description
This Hikvision 8 MP kit pairs six DS-2CD2386G2-ISU/SL Live-Guard turret cameras, each with a strobe light, audible warning and two-way audio, with an 8-channel PoE NVR and a 4 TB hard drive, ready to actively deter intruders out of the box.

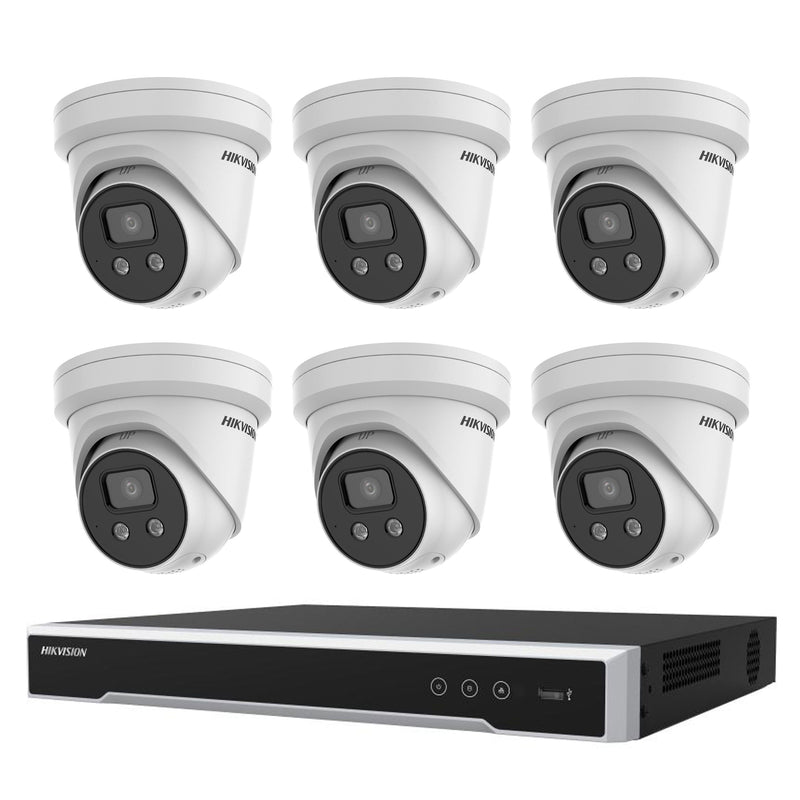

What's in the kit
- 6 x DS-2CD2386G2-ISU/SL 8 MP (4K) AcuSense turret cameras
- Active strobe light and audible warning to scare intruders off
- Built-in microphone and speaker for two-way audio
- Human and vehicle classification; 30 metre IR; 120 dB WDR; IP67
- 1 x DS-7608NI-I2/8P 8-channel PoE NVR
- 4 TB surveillance hard drive fitted and ready
- Two spare channels to expand the system
Regular price
$2,766.45 AUD
Sale price
$2,766.45 AUD
Regular price
$3,506.00 AUD
Sale
21.09%
$739.55 AUD
(21.09%)
Member
Sign in to save $55.33 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision 8MP 8CH CCTV Kit:6xAcusenseOutdoor Turret With Strobe & Siren + 8CH NVR/4TB
1
/
of
1
Customize this kit Kit price $2,766.45
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
- 6 × Hikvision Acusense DS-2CD2386G2-ISU/SL IP Camera 8MP 4K With Sound & Strobe Turret Camera
- 1 × Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR, 128Mbps, 4K, 2 Bay, 1RU, 4TB (8ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2CD2386G2-ISU/SL is
This Hikvision 8 MP kit is built around active deterrence, not just recording.
It brings together six DS-2CD2386G2-ISU/SL Live-Guard turret cameras, an eight-channel DS-7608NI-I2/8P PoE NVR and a 4 TB surveillance hard drive already fitted.
Each camera runs on a single network cable to a built-in PoE port, the recorder is set up to capture all six channels from the start, and two spare channels are left for adding cameras later.
What sets these cameras apart is how they respond to an intruder.
When AcuSense detects a person or vehicle in a protected area, the camera can flash its built-in strobe light and play an audible warning, and through the built-in microphone and speaker you can also speak to whoever is there using two-way audio from your phone.
AcuSense deep learning classifies human and vehicle targets, which Hikvision rates as cutting false alarms by up to around 95 per cent, so the deterrence fires on real threats rather than on rain or animals.
Each camera is an 8 MP (4K) turret with 120 dB wide dynamic range for detail against backlight.
A few honest notes so it is set up correctly.
At night these are infrared cameras with a 30 metre range, so the standard night image is black and white; the white strobe is a deterrence flash rather than continuous full-colour ColorVu lighting.
The metal bodies are IP67 rated against dust and water for outdoor mounting.
The 4 TB drive is included as standard for generous everyday retention, H.265+ compression keeps storage efficient, and you can fit a larger drive later.
See it in action
What the DS-2CD2386G2-ISU/SL features actually look like
Representative illustrations of how each key feature performs in a real scene.
8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio
Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.
Illustrative — simulated for demonstration
§ 02Engineering
DS-2CD2386G2-ISU/SL specifications
- 6 x DS-2CD2386G2-ISU/SL 8 MP (4K) AcuSense Live-Guard turret cameras
- Active strobe light and audible warning to deter intruders on detection
- Built-in microphone and speaker for two-way audio
- AcuSense human and vehicle classification to reduce false alarms
- 30 m infrared at night (infrared black-and-white image)
- 120 dB true WDR for clear detail against strong backlight; IP67
- DS-7608NI-I2/8P 8-channel NVR with built-in PoE ports
- 4 TB surveillance hard drive fitted; H.265+; two spare channels
- Active strobe light and audible warning to deter intruders on detection
- Built-in microphone and speaker for two-way audio
- AcuSense human and vehicle classification to reduce false alarms
- 30 m infrared at night (infrared black-and-white image)
- 120 dB true WDR for clear detail against strong backlight; IP67
- DS-7608NI-I2/8P 8-channel NVR with built-in PoE ports
- 4 TB surveillance hard drive fitted; H.265+; two spare channels
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| SNR | ≥ 52 dB |
| Target Cropping | Yes |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Iris Type | Fixed |
| Focal Length & FOV | 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131° | 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102° | 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60° |
| Aperture | F1.6 |
| Lens Mount | M12 |
| DORI | 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m | 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m | 6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| IR Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Visual Alarm | Yes |
Video
| Feature | Detail |
|---|---|
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 24 fps (3840 × 2160); 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Supports human and vehicle targets classification |
Network & Storage
| Feature | Detail |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light |
Interface
| Feature | Detail |
|---|---|
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA) |
| Audio | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; 1 built-in speaker, 1 built-in microphone |
| Built-in Microphone | Yes |
| Built-in Speaker | Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB. |
| On-Board Storage | Built-in micro SD/SDHC/SDXC slot, up to 512 GB |
| Hardware Reset | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
General & Environment
| Feature | Detail |
|---|---|
| Web Client Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Software Reset | Yes |
| Firmware Version | V5.5.112 |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, reverse polarity protection; PoE: 802.3af, Class 3 |
| Power Consumption and Current | 12 VDC, 0.75 A, max. 9 W; PoE (802.3af, 36 V to 57 V), 0.28 A to 0.17 A, max. 10 W |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Camera Material | Metal except for trim ring |
| Camera Dimension | Ø138.3 mm× 124.5 mm (Ø5.4" × 4.9") |
| Package Dimension | 170 mm × 170 mm × 150 mm (6.9" × 6.9" × 5.9") |
| Camera Weight | Approx. 840 g (1.9 lb.) |
| With Package Weight | Approx. 1160 g (2.6 lb.) |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
§ 04Why choose this
Built for the way you actually use the DS-2CD2386G2-ISU/SL
Fewer false alarms
AcuSense human and vehicle classification, rated at up to around 95 per cent fewer false alarms, keeps the deterrence and alerts focused on real threats.
4K detail with two-way audio
8 MP resolution and 120 dB WDR capture identifiable detail, and a built-in mic and speaker let you hear and speak through every camera.
Ready to record, room to grow
Six cameras, an eight-channel PoE NVR and a fitted 4 TB drive arrive set up, with two spare channels for later.
§ 05Where it fits
Right at home in these scenarios
Homes wanting active protection
Flash and warn off anyone approaching the house at night, and speak to visitors from your phone.
Retail and small business
Deter loitering and theft at entries and car parks with strobe, audio warnings and 4K evidence.
Yards and storage areas
Challenge intruders at gates and compounds with human and vehicle alerts and live audio.
Holiday and rental properties
Remotely warn off trespassers at an unattended property through the mobile app.
§ 06Setup
Installation & setup
In the box
Six DS-2CD2386G2-ISU/SL turret cameras, the DS-7608NI-I2/8P NVR with a 4 TB drive fitted, power supply and mounting accessories. Connect a monitor for local viewing.
Cabling
Run one network cable from each camera to a PoE port on the NVR. Standard Ethernet runs apply, and a PoE switch can extend reach for a distant camera.
Mounting
Fix each turret to a wall or eave covering an entrance, driveway or open area within the 30 metre infrared range, and aim using the three-axis turret movement.
Setup
Connect the NVR to a screen and the network, add the cameras on the plug-and-play PoE ports, set the AcuSense rules and the strobe, audio warning and recording schedule, and set up two-way audio and remote viewing in the Hik-Connect app.
§ 07Questions
Frequently asked about the DS-2CD2386G2-ISU/SL
Q.01
How does the active deterrence actually work?
When the camera's AcuSense detects a person or vehicle in an area you have set, it can automatically flash its strobe light and play an audible warning to scare the intruder off before anything happens. You can also trigger it manually, or speak through the built-in speaker, from the Hik-Connect app on your phone.
Q.02
Can I talk to someone through the cameras?
Yes. Each camera has a built-in microphone and speaker for two-way audio, so you can listen and speak to a visitor or intruder from the app or the recorder. You can use a live warning or one of the pre-recorded messages. Confirm that recording audio is permitted for your site before enabling it.
Q.03
Is everything included to get recording straight away?
Yes. The kit includes the six 8 MP Live-Guard cameras, the eight-channel DS-7608NI-I2/8P PoE NVR and a 4 TB surveillance hard drive already fitted, so each camera connects on one cable and the recorder captures all six channels. Add a screen or use the mobile app to view.
Q.04
Do the cameras record in colour at night?
The standard night image is infrared black and white to about 30 metres. The white light on these cameras is a strobe used to deter intruders, not a continuous ColorVu light, so for full-colour footage all night you would choose a ColorVu kit instead. The strobe and warning are the deterrence feature here.
Q.05
What does AcuSense do?
AcuSense uses on-camera deep learning to classify human and vehicle targets and ignore other movement such as rain, leaves or animals. Hikvision rates it as cutting false alarms by up to around 95 per cent, which keeps the strobe and audio deterrence firing on real threats and makes recordings easy to search.
Q.06
Can I add more cameras later?
Yes. The recorder is an eight-channel NVR and the kit uses six channels, so there are two spare PoE ports and channels for more cameras. Beyond eight cameras you would move to a larger recorder and add a PoE switch.
Q.07
Are the cameras suitable for outdoors?
Yes. The turret cameras are IP67 rated against dust and water in a metal body, so they suit outdoor walls and eaves as well as indoor positions, with 30 metre infrared for night coverage and the strobe and warning for active deterrence.
Q.08
How much will the 4 TB drive store?
The included 4 TB surveillance drive gives generous everyday retention for six 8 MP cameras, helped by H.265+ compression. Exact days depend on motion, frame rate and quality, and you can fit a larger drive for longer retention.
§ 09Bundles
Recommended packages
Use the two spare channels
Add up to two more DS-2CD2386G2-ISU/SL Live-Guard turret cameras to fill the eight-channel recorder, or mix in a standard AcuSense turret.
Add storage headroom
The kit includes a 4 TB drive; for longer retention fit an 8TB surveillance hard drive or a 10TB surveillance hard drive rated for continuous recording.
Grow beyond eight cameras
Step up to a DS-7616NI-M2/16P 16-channel PoE NVR and add an NS-0109P-60 8-port PoE switch for the extra ports.
