Dahua DH-HAC-HDW2501TMQP-A-0280B-S2 5MP HDCVI IR Eyeball Camera (2.8mm)
SKU: DH-HAC-HDW2501TMQP-A
Description

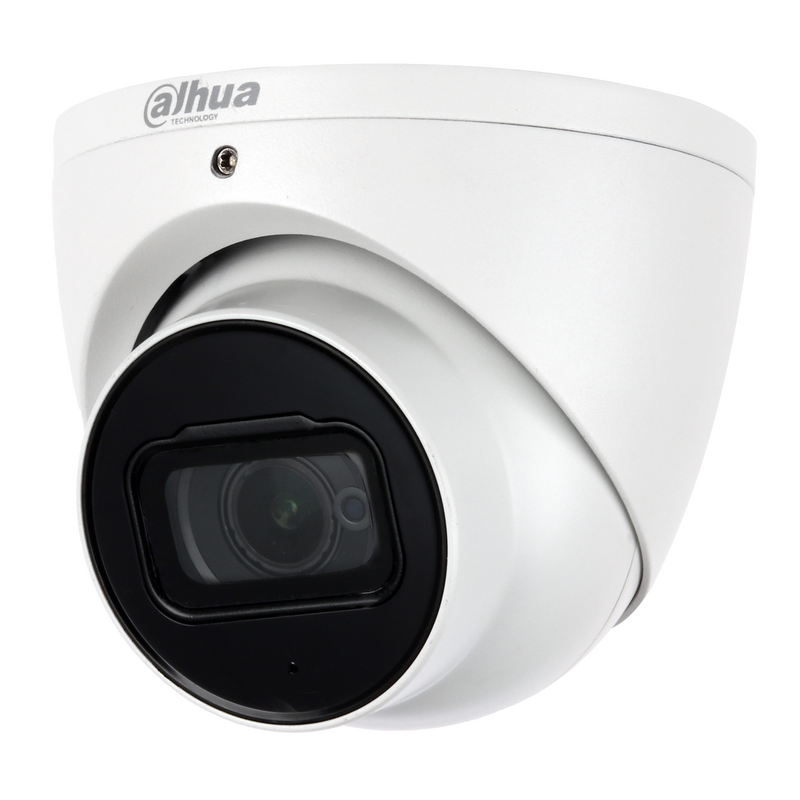

The Dahua DH-HAC-HDW2501TMQP-A is a 5MP HDCVI eyeball camera for analogue (coax) systems. It pairs a 2.8mm wide-angle lens with Starlight low-light performance and 120 dB true WDR to hold detail in bright and dark areas of the same scene.
At a glance
- 5MP (2880 x 1620) HDCVI over coax, output switchable CVI / TVI / AHD / CVBS
- Starlight sensor and 120 dB true WDR for high-contrast scenes
- Smart IR to 60 m; built-in microphone for one channel of audio
- 12 VDC powered, IP67 metal eyeball housing for outdoor use
Regular price
$132.00 AUD
Sale price
$132.00 AUD
Regular price
$134.00 AUD
Sale
1.49%
$2.00 AUD
(1.49%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Dahua DH-HAC-HDW2501TMQP-A-0280B-S2 5MP HDCVI IR Eyeball Camera (2.8mm)
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Build your setup
Build a complete CCTV system
—
Complete setup from
$732.00
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
§ 01Overview
What the DH-HAC-HDW2501TMQP-A is
The Dahua DH-HAC-HDW2501TMQP-A is a 5MP HDCVI eyeball camera built for analogue CCTV systems that record over coaxial cable. It suits homeowners and installers upgrading an existing analogue setup to 5MP without re-cabling to network gear, delivering 2880 x 1620 footage with Starlight low-light sensitivity and 120 dB true WDR.
This is an HDCVI camera, so it connects to a Dahua HDCVI XVR or DVR rather than an IP network recorder. To run it at full 5MP, the recorder firmware must support 5MP HDCVI input. A built-in microphone adds one channel of audio over the coax run, and the IP67 metal housing handles outdoor positions. The lens is fixed at 2.8mm and the camera runs on 12 VDC.
See it in action
What the DH-HAC-HDW2501TMQP-A features actually look like
Representative illustrations of how each key feature performs in a real scene.
60m IR Night Vision
Built-in infrared sees in total darkness up to around 60m, covering long driveways and large properties. Even well away from the house, people and vehicles remain clear in black-and-white.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DH-HAC-HDW2501TMQP-A specifications
- Resolution: 5MP 1/2.7" CMOS sensor outputs 2880 x 1620 at up to 25 fps for clear, wide 16:9 coverage.
- Starlight low light: Captures usable colour detail in low light before switching to infrared in full darkness.
- True WDR: 120 dB true wide dynamic range balances bright entrances against shaded interiors in one frame.
- Smart IR: Infrared reaches up to 60 m and dims automatically to stop close objects washing out at night.
- Flexible output: One BNC carries CVI, TVI, AHD or CVBS via a DIP switch, so it works with most analogue recorders.
- Built-in microphone: One audio channel is recorded alongside the video on supporting HDCVI recorders.
- Weatherproof: IP67 metal eyeball housing is rated for dust and rain in outdoor Australian conditions.
- Starlight low light: Captures usable colour detail in low light before switching to infrared in full darkness.
- True WDR: 120 dB true wide dynamic range balances bright entrances against shaded interiors in one frame.
- Smart IR: Infrared reaches up to 60 m and dims automatically to stop close objects washing out at night.
- Flexible output: One BNC carries CVI, TVI, AHD or CVBS via a DIP switch, so it works with most analogue recorders.
- Built-in microphone: One audio channel is recorded alongside the video on supporting HDCVI recorders.
- Weatherproof: IP67 metal eyeball housing is rated for dust and rain in outdoor Australian conditions.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7 inch CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pixel | 5 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/3 s–1/100,000 s; NTSC: 1/4 s–1/100,000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.001 Lux/F1.6, 30IRE, 0Lux IR on |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR/3D NR |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 areas, rectangle) |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical) | 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical) | 6 mm: 65° × 57° × 30° (diagonal × horizontal × vertical) |
| Iris Type | Fixed iris |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft); 3.6 mm: 1.6 m (5.2 ft); 6 mm: 3.1 m(10.2 ft) |
| DORI Distance | 2.8 mm: Detect 63.6 m (208.7 ft); Observe 25.4 m (83.3 ft); Recognize 12.7 m (41.7 ft); Identify 6.4 m (21.0 ft) | 3.6 mm: Detect 80 m (262.5 ft); Observe 32 m (105.0 ft); Recognize 16 m (52.5 ft); Identify 8 m (26.2 ft) | 6 mm: Detect 120 m (393.7 ft); Observe 48 m (157.5 ft); Recognize 24 m (78.7 ft); Identify 12 m (39.4 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–78° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | 60 m (196.9 ft) |
| Illuminator On/Off Control | Auto / Manual |
| Illuminator Number | 2 |
| Smart IR | Yes |
Video
| Feature | Detail |
|---|---|
| Frame Rate | CVI — PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps | CVI — NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps | AHD — PAL: 4M@25 fps | AHD — NTSC: 4M@30 fps | TVI — PAL: 4M@25 fps | TVI — NTSC: 4M@30 fps | CVBS — PAL: 960H | CVBS — NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480) |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes, one channel built-in mic |
Interface
| Feature | Detail |
|---|---|
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | DC 12V ±30% |
| Power Consumption | Max 5.9W (12V DC, IR on) |
| Operating Temperature | –40°C to +60°C (–40°F to +140°F); < 95% (non-condensation) |
| Storage Temperature | –40°C to +60°C (–40°F to +140°F); < 95% (non-condensation) |
| Protection Grade | IP67 |
| Casing | Metal dome+metal cover+plastic decorative ring |
| Camera Dimensions | φ121.9 mm × 99.1 mm (φ4.8" × 3.9") |
| Net Weight | 0.43 kg (0.95 lb) |
| Gross Weight | 0.6 kg (1.32 lb) |
| Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017); FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014); UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Camera & Image — Image Sensor | 1/2.7 inch CMOS |
|---|---|
| Camera & Image — Max. Resolution | 2880 (H) × 1620 (V) |
| Camera & Image — Pixel | 5 MP |
| Camera & Image — Scanning System | Progressive |
| Camera & Image — Electronic Shutter Speed | PAL: 1/3 s–1/100,000 s; NTSC: 1/4 s–1/100,000 s |
| Camera & Image — S/N Ratio | > 65 dB |
| Camera & Image — Min. Illumination | 0.001 Lux/F1.6, 30IRE, 0Lux IR on |
| Camera & Image — Day/Night | Auto switch by ICR |
| Camera & Image — BLC | BLC/HLC/WDR/HLC-Pro |
| Camera & Image — WDR | 120 dB |
| Camera & Image — White Balance | Auto / Manual |
| Camera & Image — Gain Control | Auto / Manual |
| Camera & Image — Noise Reduction | 2D NR/3D NR |
| Camera & Image — Mirror | Off/On |
| Camera & Image — Privacy Masking | Off/On (8 areas, rectangle) |
| Lens & Distance — Lens Type | Fixed-focal |
| Lens & Distance — Mount Type | M12 |
| Lens & Distance — Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Lens & Distance — Max. Aperture | F1.6 |
| Lens & Distance — Field of View | 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical) | 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical) | 6 mm: 65° × 57° × 30° (diagonal × horizontal × vertical) |
| Lens & Distance — Iris Type | Fixed iris |
| Lens & Distance — Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft); 3.6 mm: 1.6 m (5.2 ft); 6 mm: 3.1 m(10.2 ft) |
| Lens & Distance — DORI Distance | 2.8 mm: Detect 63.6 m (208.7 ft); Observe 25.4 m (83.3 ft); Recognize 12.7 m (41.7 ft); Identify 6.4 m (21.0 ft) | 3.6 mm: Detect 80 m (262.5 ft); Observe 32 m (105.0 ft); Recognize 16 m (52.5 ft); Identify 8 m (26.2 ft) | 6 mm: Detect 120 m (393.7 ft); Observe 48 m (157.5 ft); Recognize 24 m (78.7 ft); Identify 12 m (39.4 ft) |
| Lens & Distance — Pan Range | 0°–360° |
| Lens & Distance — Tilt Range | 0°–78° |
| Lens & Distance — Rotation Range | 0°–360° |
| Night Vision — Illumination Distance | 60 m (196.9 ft) |
| Night Vision — Illuminator On/Off Control | Auto / Manual |
| Night Vision — Illuminator Number | 2 |
| Night Vision — Smart IR | Yes |
| Video — Frame Rate | CVI — PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps | CVI — NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps | AHD — PAL: 4M@25 fps | AHD — NTSC: 4M@30 fps | TVI — PAL: 4M@25 fps | TVI — NTSC: 4M@30 fps | CVBS — PAL: 960H | CVBS — NTSC: 960H |
| Video — Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480) |
| Audio — Built-in MIC | Yes, one channel built-in mic |
| Interface — Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| General & Environment — Power Supply | DC 12V ±30% |
| General & Environment — Power Consumption | Max 5.9W (12V DC, IR on) |
| General & Environment — Operating Temperature | –40°C to +60°C (–40°F to +140°F); < 95% (non-condensation) |
| General & Environment — Storage Temperature | –40°C to +60°C (–40°F to +140°F); < 95% (non-condensation) |
| General & Environment — Protection Grade | IP67 |
| General & Environment — Casing | Metal dome+metal cover+plastic decorative ring |
| General & Environment — Camera Dimensions | φ121.9 mm × 99.1 mm (φ4.8" × 3.9") |
| General & Environment — Net Weight | 0.43 kg (0.95 lb) |
| General & Environment — Gross Weight | 0.6 kg (1.32 lb) |
| General & Environment — Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017); FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014); UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
§ 04Why choose this
Built for the way you actually use the DH-HAC-HDW2501TMQP-A
Detail in tough light
Starlight plus 120 dB true WDR keeps faces and plates readable at backlit doorways and dim driveways.
Honest night reach
Smart IR to 60 m is genuine infrared: night footage is sharp black-and-white, not colour, with no glare from close objects.
Simple, sealed install
A fixed 2.8mm lens and IP67 eyeball body make for a quick, weather-sealed outdoor fit.
§ 05Where it fits
Right at home in these scenarios
Analogue system upgrades
Swap an ageing 2MP analogue camera for 5MP on the same coax and recorder, where the recorder supports 5MP HDCVI.
Home entries and carports
The wide 2.8mm view covers a front door, carport or side gate from a single eave position.
Small shops on DVR
Retail counters and storerooms already running a Dahua DVR gain higher resolution and an audio channel.
Mixed-format sites
CVI, TVI, AHD and CVBS output lets it slot into legacy recorders of different brands during a staged upgrade.
§ 06Setup
Installation & setup
Recorder type
This is an analogue HDCVI camera. Connect it to a Dahua HDCVI XVR or DVR over coax, not to an IP NVR. For 5MP capture, confirm the recorder firmware supports 5MP HDCVI input.
Power
Supply 12 VDC from a regulated CCTV power supply or balun-fed source. The camera does not use PoE.
Cabling
Run RG59 coax for video and a separate 2-core for 12 VDC, or use a suitable combined siamese cable, keeping runs within HDCVI distance limits.
Mounting
Fix the eyeball base to a wall or ceiling, aim the lens, then lock the gimbal. Add a junction box where extra cable space or a cleaner finish is needed.
§ 08Questions
Frequently asked about the DH-HAC-HDW2501TMQP-A
Q.01
Is this an IP camera or an analogue camera?
It is an analogue HDCVI camera that records over coaxial cable. It connects to a Dahua HDCVI XVR or DVR, not to an IP network video recorder.
Q.02
What recorder do I need to get the full 5MP?
You need a Dahua HDCVI XVR or DVR that supports 5MP HDCVI input, with firmware updated to a version that enables 5MP. Older recorders may only capture it at a lower resolution.
Q.03
Does it record in colour at night?
It uses Starlight to hold colour in low light, but in full darkness it switches to infrared and records in black and white. Infrared reaches up to 60 m.
Q.04
Does it have audio?
Yes, it has a built-in microphone for one channel of audio. It does not have a speaker, so it cannot do two-way talk. The recorder must support audio over coax.
Q.05
How is it powered?
It runs on 12 VDC from a regulated CCTV power supply. It does not use PoE, so plan a separate power feed alongside the coax video run.
Q.06
Can it work with my existing non-Dahua DVR?
Often yes. The output switches between CVI, TVI, AHD and CVBS by DIP switch, so it can match many analogue recorders, though full features are best on a Dahua HDCVI recorder.
Q.07
What lens does it have and how wide is the view?
It has a fixed 2.8mm lens giving a wide field of view, well suited to covering a doorway, carport or small yard from one position.
Q.08
Is it suitable for outdoor use?
Yes. The metal eyeball housing is rated IP67 against dust and rain, so it can be mounted under eaves and in exposed outdoor positions.
