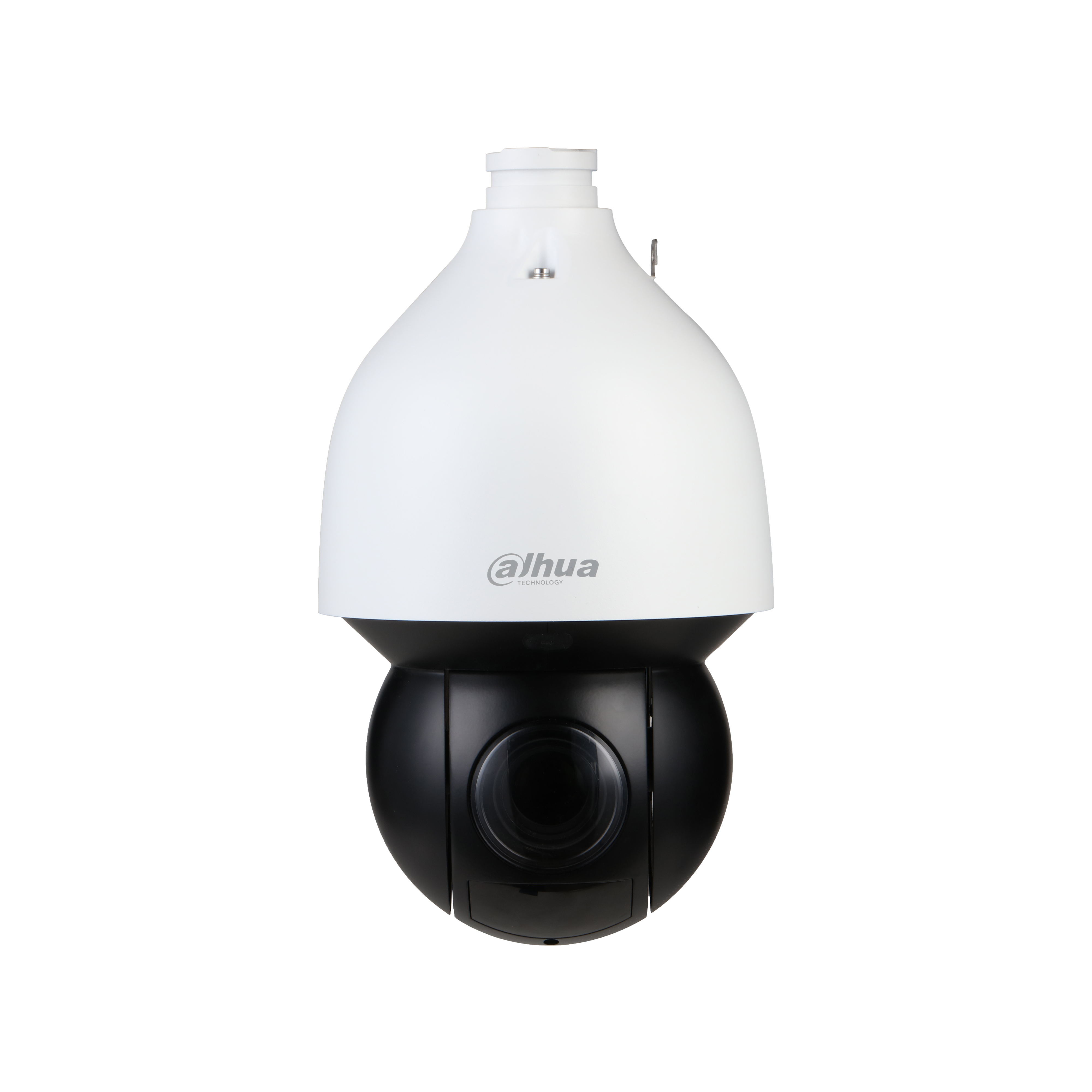

Dahua DH-SD5A432GB-HNR 4MP IP 32X PTZ CAMERA with Wizsense
SKU: DH-SD5A432GB-HNR
Description
- 4MP Resolution: Features a 1/2.8" STARVIS™ CMOS sensor delivering high-quality video at 25/30fps.
- Powerful 32x Optical Zoom: Enables detailed long-distance viewing.
- IR Illumination Up to 150m: Provides clear night vision capability.
- Auto Tracking 3.0: Includes perimeter protection and face detection.
- SMD 4.0 & IP67/IK10: Utilizes advanced motion detection and offers robust weather/dust resistance.
- PoE+ Support: Simplifies installation with Power over Ethernet capability.
Regular price
$1,066.30 AUD
Sale price
$1,066.30 AUD
Regular price
$2,063.00 AUD
Sale
48.31%
$996.70 AUD
(48.31%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock

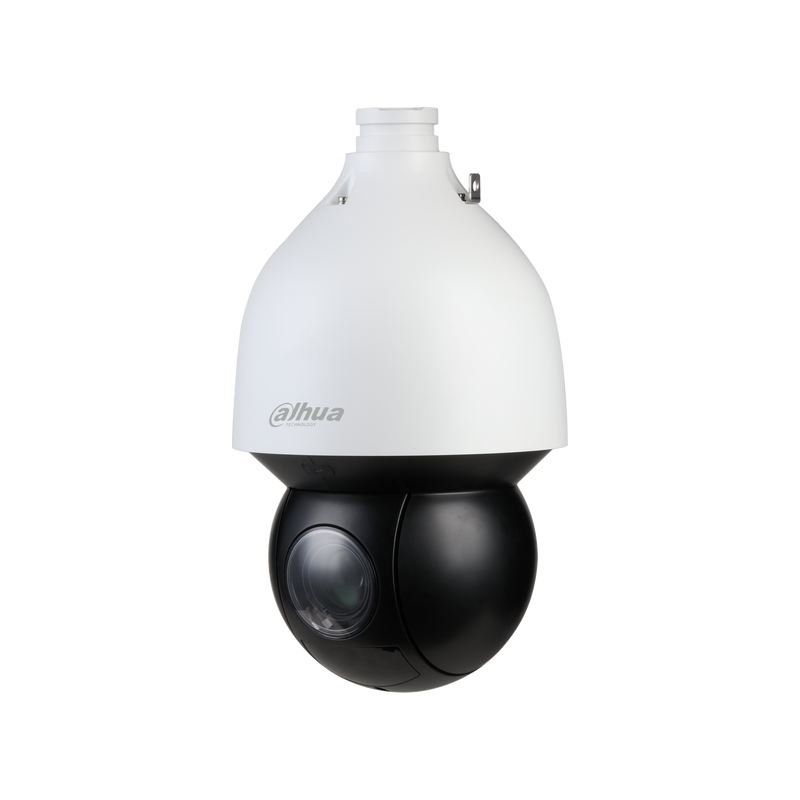

Dahua DH-SD5A432GB-HNR 4MP IP 32X PTZ CAMERA with Wizsense
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Build your setup
Build a complete CCTV system
—
Complete setup from
$1,661.70
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
Add accessories
Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
01Overview
What the DH-SD5A432GB-HNR is
The Dahua DH-SD5A432GB-HNR is a 4MP Starlight IR WizSense network PTZ camera for surveillance.
Equipped with a 1/2.8"" STARVIS™ CMOS sensor, 32x optical zoom (4.8 mm–154 mm), deep-learning auto tracking, perimeter protection, SMD 4.0, IR night vision up to 150 m, and PoE+ support.
See it in action
What the DH-SD5A432GB-HNR features actually look like
Representative illustrations of how each key feature performs in a real scene.
4MP Ultra HD
4MP captures roughly twice the detail of standard 1080p.
False Alarm Reduction
Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
Two-Way Audio
Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.
Illustrative — simulated for demonstration
02Engineering
DH-SD5A432GB-HNR specifications
- 4MP Resolution: High-definition surveillance with a 1/2.8" STARVIS™ CMOS sensor.
- 32x Optical Zoom: Motorized lens for detailed long-distance monitoring.
- Up to 30fps: Smooth video at 4M resolution.
- IR Night Vision: Illuminates up to 150m for clear low-light images.
- SMD 4.0: Smart Motion Detection that classifies human and vehicle targets and filters false alarms.
- Auto Tracking 3.0: Automatically follows moving objects with perimeter protection.
- Face Detection: Recognizes human faces for enhanced security alerts.
- PoE+: Supports Power over Ethernet Plus for simplified installation.
- IP67 & IK10: Weatherproof and vandal-resistant housing for outdoor durability.
- 32x Optical Zoom: Motorized lens for detailed long-distance monitoring.
- Up to 30fps: Smooth video at 4M resolution.
- IR Night Vision: Illuminates up to 150m for clear low-light images.
- SMD 4.0: Smart Motion Detection that classifies human and vehicle targets and filters false alarms.
- Auto Tracking 3.0: Automatically follows moving objects with perimeter protection.
- Face Detection: Recognizes human faces for enhanced security alerts.
- PoE+: Supports Power over Ethernet Plus for simplified installation.
- IP67 & IK10: Weatherproof and vandal-resistant housing for outdoor durability.
03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.8" STARVIS™ CMOS |
| Pixel | 4MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1/1 s–1/30000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005 Lux@F1.35; B/W: 0.0005 Lux@F1.35; 0 Lux (IR on) |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Support |
| WDR | 120 dB |
| HLC | Support |
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D |
| Motion Detection | Support |
| Region of Interest (RoI) | Support |
| Image Stabilization | Electronic |
| Defog | Electronic |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas, and up to 8 areas in the same view |
| S/N Ratio | ≥ 55 dB |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length | 4.9 mm–156 mm |
| Max. Aperture | F1.35–F4.4 |
| Field of View | H: 61.6°–2.1°; V: 35.1°–1.3°; D: 68.2°–2.5° |
| Optical Zoom | 32x |
| Focus Control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 1 m–1.5 m (3.28 ft–4.92 ft) |
| Iris Control | Auto/Manual/Fixed |
| DORI Distance | Detect 3120 m (10236.22 ft); Observe 1232 m (4041.99 ft); Recognize 624 m (2047.24 ft); Identify 312 m (1023.62 ft) |
| Pan Range | 0°–360° endless |
| Tilt Range | –15° to +90°, auto flip 180 |
| Manual Control Speed | Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Support |
| Idle Motion | Preset/Tour/Pattern/Scanning |
| Protocol | DH-SD; Pelco-P/D (auto recognition) |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | 150 m (492.13 ft) |
| Illuminator On/Off Control | Zoom Prio/Manual/SmartIR |
| Illuminator Number | 4 |
Video
| Feature | Detail |
|---|---|
| Compression | H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream); H.265+; H.264+ |
| Streaming Capability | 3 streams |
| Resolution | 4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate | Main stream: 4M/3M/1080P/1.3M/720P (1–25/30 fps); Sub stream 1: D1/CIF (1–25/30 fps); Sub stream 2: 720P (1–25/30 fps) |
| Bit Rate Control | Variable/Constant |
| Bit Rate | H.264: 3 Kbps–20480 Kbps; H.265: 3 Kbps–20480 Kbps |
Audio
| Feature | Detail |
|---|---|
| Compression | G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723 |
| Two-way Audio | Support |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Smart Capture | Support human, motor vehicle and non-motor vehicle image capture. |
| Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| Face Detection | Support |
| Auto Tracking | Support |
| SMD PLUS | Support |
Network & Storage
| Feature | Detail |
|---|---|
| Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP |
| Interoperability | ONVIF Profile S&G&T; CGI |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth 64M) |
| Storage | FTP; Micro SD card (256G); NAS |
| Browser | IE7 and later versions; Chrome 42 and earlier versions; Firefox 52 and earlier versions; Safari |
| Management Software | Smart PSS; DSS; DMSS; Easy4ip; IVSS |
| Mobile Phone | IOS, Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Event Trigger | Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly. |
Interface
| Feature | Detail |
|---|---|
| Ethernet | RJ-45 (10/100Base-T) |
| Audio Input | 1 |
| Audio Output | 1 (LINE OUT; bare wire) |
| Alarm I/O | 2/1 |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | AC 24V/3A ± 25% (standard); PoE+ (802.3at) |
| Power Consumption | Basic: 12W; Max: 20W |
| Operating Temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating Humidity | ≤ 95% |
| Protection | IP67; IK10; 6000V lightning proof; surge protection; voltage transient protection |
| Dimensions | Φ190 mm × 332 mm (Φ7.48" × 13.07") |
| Net Weight | 4.7 kg (10.36 lb) |
| Gross Weight | 8 kg (17.64 lb) |
| Certifications | CE: EN55032/EN55024/EN50130-4 | FCC: Part15 subpartB, ANSI C63.4-2014 | UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
| Camera & Image — Image Sensor | 1/2.8" STARVIS™ CMOS |
|---|---|
| Camera & Image — Pixel | 4MP |
| Camera & Image — Max. Resolution | 2560 (H) × 1440 (V) |
| Camera & Image — ROM | 4 GB |
| Camera & Image — RAM | 1 GB |
| Camera & Image — Electronic Shutter Speed | 1/1 s–1/30000 s |
| Camera & Image — Scanning System | Progressive |
| Camera & Image — Min. Illumination | Color: 0.005 Lux@F1.35; B/W: 0.0005 Lux@F1.35; 0 Lux (IR on) |
| Camera & Image — Day/Night | Auto (ICR)/Color/B/W |
| Camera & Image — BLC | Support |
| Camera & Image — WDR | 120 dB |
| Camera & Image — HLC | Support |
| Camera & Image — White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
| Camera & Image — Gain Control | Auto/Manual |
| Camera & Image — Noise Reduction | 2D/3D |
| Camera & Image — Motion Detection | Support |
| Camera & Image — Region of Interest (RoI) | Support |
| Camera & Image — Image Stabilization | Electronic |
| Camera & Image — Defog | Electronic |
| Camera & Image — Digital Zoom | 16x |
| Camera & Image — Flip | 180° |
| Camera & Image — Privacy Masking | Up to 24 areas, and up to 8 areas in the same view |
| Camera & Image — S/N Ratio | ≥ 55 dB |
| Lens & Distance — Focal Length | 4.9 mm–156 mm |
| Lens & Distance — Max. Aperture | F1.35–F4.4 |
| Lens & Distance — Field of View | H: 61.6°–2.1°; V: 35.1°–1.3°; D: 68.2°–2.5° |
| Lens & Distance — Optical Zoom | 32x |
| Lens & Distance — Focus Control | Auto/Semi-Auto/Manual |
| Lens & Distance — Close Focus Distance | 1 m–1.5 m (3.28 ft–4.92 ft) |
| Lens & Distance — Iris Control | Auto/Manual/Fixed |
| Lens & Distance — DORI Distance | Detect 3120 m (10236.22 ft); Observe 1232 m (4041.99 ft); Recognize 624 m (2047.24 ft); Identify 312 m (1023.62 ft) |
| Lens & Distance — Pan Range | 0°–360° endless |
| Lens & Distance — Tilt Range | –15° to +90°, auto flip 180 |
| Lens & Distance — Manual Control Speed | Pan: 0.1°/s–300°/s; Tilt: 0.1°/s–200°/s |
| Lens & Distance — Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Lens & Distance — Presets | 300 |
| Lens & Distance — Tour | 8 (up to 32 presets per tour) |
| Lens & Distance — Pattern | 5 |
| Lens & Distance — Scan | 5 |
| Lens & Distance — Power-off Memory | Support |
| Lens & Distance — Idle Motion | Preset/Tour/Pattern/Scanning |
| Lens & Distance — Protocol | DH-SD; Pelco-P/D (auto recognition) |
| Night Vision — Illumination Distance | 150 m (492.13 ft) |
| Night Vision — Illuminator On/Off Control | Zoom Prio/Manual/SmartIR |
| Night Vision — Illuminator Number | 4 |
| Video — Compression | H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream); H.265+; H.264+ |
| Video — Streaming Capability | 3 streams |
| Video — Resolution | 4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Video — Frame Rate | Main stream: 4M/3M/1080P/1.3M/720P (1–25/30 fps); Sub stream 1: D1/CIF (1–25/30 fps); Sub stream 2: 720P (1–25/30 fps) |
| Video — Bit Rate Control | Variable/Constant |
| Video — Bit Rate | H.264: 3 Kbps–20480 Kbps; H.265: 3 Kbps–20480 Kbps |
| Audio — Compression | G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723 |
| Audio — Two-way Audio | Support |
| AI & Deep Learning — Smart Capture | Support human, motor vehicle and non-motor vehicle image capture. |
| AI & Deep Learning — Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
| AI & Deep Learning — Face Detection | Support |
| AI & Deep Learning — Auto Tracking | Support |
| AI & Deep Learning — SMD PLUS | Support |
| Network & Storage — Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP |
| Network & Storage — Interoperability | ONVIF Profile S&G&T; CGI |
| Network & Storage — Streaming Method | Unicast/Multicast |
| Network & Storage — User/Host | 20 (total bandwidth 64M) |
| Network & Storage — Storage | FTP; Micro SD card (256G); NAS |
| Network & Storage — Browser | IE7 and later versions; Chrome 42 and earlier versions; Firefox 52 and earlier versions; Safari |
| Network & Storage — Management Software | Smart PSS; DSS; DMSS; Easy4ip; IVSS |
| Network & Storage — Mobile Phone | IOS, Android |
| Event & Alarm — Event Trigger | Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly. |
| Interface — Ethernet | RJ-45 (10/100Base-T) |
| Interface — Audio Input | 1 |
| Interface — Audio Output | 1 (LINE OUT; bare wire) |
| Interface — Alarm I/O | 2/1 |
| General & Environment — Power Supply | AC 24V/3A ± 25% (standard); PoE+ (802.3at) |
| General & Environment — Power Consumption | Basic: 12W; Max: 20W |
| General & Environment — Operating Temperature | –40°C to +70°C (–40°F to +158°F) |
| General & Environment — Operating Humidity | ≤ 95% |
| General & Environment — Protection | IP67; IK10; 6000V lightning proof; surge protection; voltage transient protection |
| General & Environment — Dimensions | Φ190 mm × 332 mm (Φ7.48" × 13.07") |
| General & Environment — Net Weight | 4.7 kg (10.36 lb) |
| General & Environment — Gross Weight | 8 kg (17.64 lb) |
| General & Environment — Certifications | CE: EN55032/EN55024/EN50130-4 | FCC: Part15 subpartB, ANSI C63.4-2014 | UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
04Why choose this
Built for the way you actually use the DH-SD5A432GB-HNR
4MP Starlight Sensor
Clear colour footage in dim conditions. IR extends to 150 m for complete darkness.
WizSense AI
SMD 4.0 for human and vehicle classification. Face detection and auto-tracking.
Full 360° Speed Dome
Fast pan and tilt with 300 presets. Scheduled patrols and alarm-linked positioning.
IP67 with Lightning Protection
TVS 6000V surge protection. Operating range -40°C to 70°C.
05Where it fits
Right at home in these scenarios
Large Car Park or Transport Hub
32× zoom reads plates from across the lot. 150 m IR covers the entire area at night.
Industrial Perimeter or Mine Site
Speed dome sweeps the fence line. Auto-tracking follows intruders. IP67 handles dust and rain.
Port or Logistics Yard
Long zoom identifies containers and vehicles. Patrol routes cover entry and exit points.
Large Commercial or Government Building
Central mounting covers the full surrounds. Face detection for security screening.
06Setup
Installation & setup
-
01
What's in the Box
- Dahua DH-SD5A432GB-HNR PTZ Camera × 1
- Quick Start Guide × 1
-
02
Installation Requirements
- Power: PoE+ (802.3at) or 24 VDC.
- Cable: Cat5e or Cat6, max 100 m.
- Mounting: Pole or wall. Camera is a full-size speed dome — net weight about 4.7 kg.
- Height: 6–10 m for best zoom and IR range.
-
03
App Setup
- Download DMSS app (iOS or Android). Create an account.
- Power the camera. Wait about 2 minutes.
- Add by QR code or serial number.
- Set presets, patrol routes, auto-tracking, and face detection zones.
08Questions
Frequently asked about the DH-SD5A432GB-HNR
Q.01
How does this compare to the SD49425GB (25× zoom)?
32× zoom gives more reach — useful for very large sites. The body is also larger. For most suburban or small commercial applications, 25× is enough.
Q.02
Does it have active deterrence?
No siren or strobe. For TiOC deterrence in a PTZ, look at the SD6C3425.
Q.03
Does it need Hi-PoE (PoE++)?
No. The camera supports PoE+ (802.3at) or 24 VDC power supply.
Q.04
Does it have a microphone?
Audio input and output ports. Check the specific variant for built-in mic.
Q.05
What SD card does it support?
Up to 512 GB microSD.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
