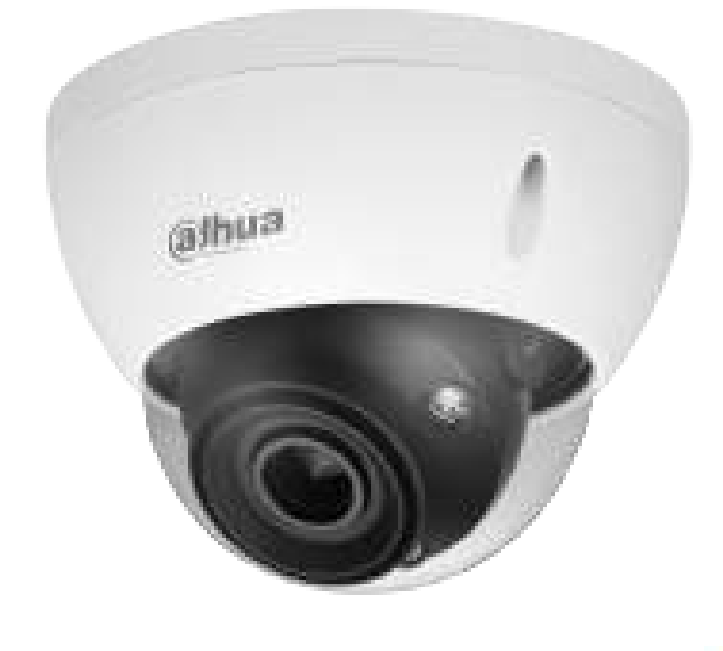

Dahua DH-IPC-HDBW5441E-ZE-HDMI 4MP Hdmi Dome Motorised Camera
SKU: DH-IPC-HDBW5441E-ZE-HDMI
Description
- 4MP HD Resolution: Captures 2688×1520 @25/30fps with low-light clarity.
- Built-in IR LED & Mic: 40m night vision with integrated audio recording.
- Smart Motion Detection (SMD+): AI-driven detection for faces and people counting.
- H.265+/H.265 Encoding: Optimized bandwidth/storage with flexible coding.
- IP67 & IK10 Certified: Vandal-proof and weather-resistant for outdoor use.
Regular price
$364.55 AUD
Sale price
$364.55 AUD
Regular price
$392.00 AUD
Sale
7.0%
$27.45 AUD
(7.0%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock

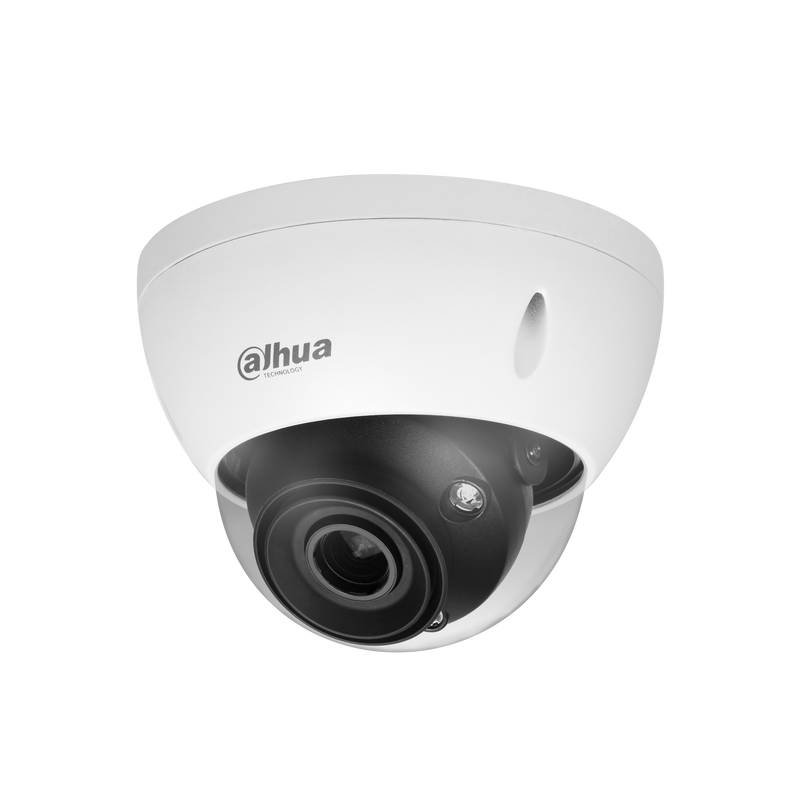

Dahua DH-IPC-HDBW5441E-ZE-HDMI 4MP Hdmi Dome Motorised Camera
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Build your setup
Build a complete CCTV system
—
Complete setup from
$959.95
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
01Overview
What the DH-IPC-HDBW5441E-ZE-HDMI is
Lens: 2.8mm.
Color options: White or Black.
Note: Please indicate your choice in your order message.
The Dahua DH-IPC-HDBW5441E-ZE-HDMI is a 4MP vandal-proof dome network camera for professional surveillance with HDMI output.
Equipped with AI-powered deep learning, motorized vari-focal lens (2.7-13.5mm), 120dB WDR, IR illumination up to 50m, and IP67/IK10 protection.
See it in action
What the DH-IPC-HDBW5441E-ZE-HDMI features actually look like
Representative illustrations of how each key feature performs in a real scene.
4MP Ultra HD
4MP captures roughly twice the detail of standard 1080p.
Two-Way Audio
Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.
Illustrative — simulated for demonstration
02Engineering
DH-IPC-HDBW5441E-ZE-HDMI specifications
- 4MP Resolution: Outputs max 2688×1520 @25/30fps.
- H.265 Encoding: Supports SMART H.264+/H.265+, AI H.265 for efficient compression.
- Built-in IR LED: Provides up to 40m illumination for night vision.
- Built-in Microphone: Enables audio input with audio I/O ports.
- Two-Way Talk: Audio input and output ports support bidirectional communication.
- IP67 Protection: Rated IP67 for dust and water resistance.
- SMD+: AI-powered Smart Motion Detection for advanced alerts.
- H.265 Encoding: Supports SMART H.264+/H.265+, AI H.265 for efficient compression.
- Built-in IR LED: Provides up to 40m illumination for night vision.
- Built-in Microphone: Enables audio input with audio I/O ports.
- Two-Way Talk: Audio input and output ports support bidirectional communication.
- IP67 Protection: Rated IP67 for dust and water resistance.
- SMD+: AI-powered Smart Motion Detection for advanced alerts.
03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" 5Megapixel progressive CMOS |
| Max. Resolution | 2592 (H) × 1944 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.006 Lux@F2.0 (Color, 30IRE); 0.0006 Lux@F2.0 (B/W, 30IRE); 0 Lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Privacy Masking | 4 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 1.4 mm |
| Max. Aperture | F2.0 |
| Field of View | Horizontal: 180°; Vertical: 180°; Diagonal: 180° |
| Iris Type | Fixed |
| Close Focus Distance | 0.2 m (0.7 ft) |
| DORI Distance | Detect 28 m (91.9 ft); Observe 11.2 m (36.7 ft); Recognize 5.6 m (18.4 ft); Identify 2.8 m (9.2 ft) |
| Pan Range | 0°–355° |
| Tilt Range | 0°–55° |
| Rotation Range | 0°–360° |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream (2592 × 1944 @1–25/30 fps); sub stream (704 × 576 @1–25 fps/704 × 480 @1–30 fps); third stream (1280 × 720 @1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G726 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Heat Map | Yes |
| IVS (Perimeter Protection) | Tripwire; intrusion |
| People Counting | Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE8, IE9 and IE11; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception |
Interface
| Feature | Detail |
|---|---|
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12V DC/PoE |
| Power Consumption | Basic power consumption: 3.7W (12V DC); 4.7W (PoE) | Max. power consumption (H.265 + intelligent function + WDR): 5.1W (12V DC); 6W (PoE) |
| Operating Conditions | –30°C to +55°C (–22°F to +131°F)/Less than 95% RH |
| Storage Conditions | –40°C to +60°C (–40°F to +140°F) |
| Protection Grade | IP67; IK10 |
| Casing | Metal |
| Dimensions | 62.0 mm × Φ110.0 mm (2.44" × Φ4.3") |
| Net Weight | 387 g (0.9 lb) |
| Gross Weight | 502 g (1.1 lb) |
| Certification | CE-LVD: EN62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | FCC: 47 CFR FCC Part 15, Subpart B | UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Camera & Image — Image Sensor | 1/2.7" 5Megapixel progressive CMOS |
|---|---|
| Camera & Image — Max. Resolution | 2592 (H) × 1944 (V) |
| Camera & Image — ROM | 128 MB |
| Camera & Image — RAM | 512 MB |
| Camera & Image — Scanning System | Progressive |
| Camera & Image — Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Camera & Image — Min. Illumination | 0.006 Lux@F2.0 (Color, 30IRE); 0.0006 Lux@F2.0 (B/W, 30IRE); 0 Lux (Illuminator on) |
| Camera & Image — S/N Ratio | > 56 dB |
| Camera & Image — Day/Night | Color/B/W |
| Camera & Image — BLC | Yes |
| Camera & Image — HLC | Yes |
| Camera & Image — WDR | 120 dB |
| Camera & Image — Scene Self-adaptation (SSA) | Yes |
| Camera & Image — White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Camera & Image — Gain Control | Auto/Manual |
| Camera & Image — Noise Reduction | 3D DNR |
| Camera & Image — Motion Detection | OFF/ON (4 areas) |
| Camera & Image — Region of Interest (RoI) | Yes (4 areas) |
| Camera & Image — Privacy Masking | 4 areas |
| Lens & Distance — Lens Type | Fixed-focal |
| Lens & Distance — Mount Type | M12 |
| Lens & Distance — Focal Length | 1.4 mm |
| Lens & Distance — Max. Aperture | F2.0 |
| Lens & Distance — Field of View | Horizontal: 180°; Vertical: 180°; Diagonal: 180° |
| Lens & Distance — Iris Type | Fixed |
| Lens & Distance — Close Focus Distance | 0.2 m (0.7 ft) |
| Lens & Distance — DORI Distance | Detect 28 m (91.9 ft); Observe 11.2 m (36.7 ft); Recognize 5.6 m (18.4 ft); Identify 2.8 m (9.2 ft) |
| Lens & Distance — Pan Range | 0°–355° |
| Lens & Distance — Tilt Range | 0°–55° |
| Lens & Distance — Rotation Range | 0°–360° |
| Video — Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Video — Smart Codec | Smart H.265+/ Smart H.264+ |
| Video — Video Frame Rate | Main stream (2592 × 1944 @1–25/30 fps); sub stream (704 × 576 @1–25 fps/704 × 480 @1–30 fps); third stream (1280 × 720 @1–25/30 fps) |
| Video — Stream Capability | 3 streams |
| Video — Resolution | 5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video — Bit Rate Control | CBR/VBR |
| Video — Video Bit Rate | H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps |
| Audio — Built-in MIC | Yes |
| Audio — Audio Compression | PCM; G.711a; G.711Mu; G726 |
| AI & Deep Learning — Heat Map | Yes |
| AI & Deep Learning — IVS (Perimeter Protection) | Tripwire; intrusion |
| AI & Deep Learning — People Counting | Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas |
| AI & Deep Learning — Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Network & Storage — SDK and API | Yes |
| Network & Storage — Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Network & Storage — Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Network & Storage — Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| Network & Storage — User/Host | 20 (Total bandwidth: 64 M) |
| Network & Storage — Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Network & Storage — Browser | IE: IE8, IE9 and IE11; Chrome; Firefox |
| Network & Storage — Management Software | Smart PSS; DSS; DMSS |
| Network & Storage — Mobile Phone | IOS; Android |
| Event & Alarm — Alarm Event | No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception |
| Interface — Audio Input | 1 channel (RCA port) |
| Interface — Audio Output | 1 channel (RCA port) |
| Interface — Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Interface — Alarm Output | 1 channel out: 300mA 12V DC |
| General & Environment — Power Supply | 12V DC/PoE |
| General & Environment — Power Consumption | Basic power consumption: 3.7W (12V DC); 4.7W (PoE) | Max. power consumption (H.265 + intelligent function + WDR): 5.1W (12V DC); 6W (PoE) |
| General & Environment — Operating Conditions | –30°C to +55°C (–22°F to +131°F)/Less than 95% RH |
| General & Environment — Storage Conditions | –40°C to +60°C (–40°F to +140°F) |
| General & Environment — Protection Grade | IP67; IK10 |
| General & Environment — Casing | Metal |
| General & Environment — Dimensions | 62.0 mm × Φ110.0 mm (2.44" × Φ4.3") |
| General & Environment — Net Weight | 387 g (0.9 lb) |
| General & Environment — Gross Weight | 502 g (1.1 lb) |
| General & Environment — Certification | CE-LVD: EN62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | FCC: 47 CFR FCC Part 15, Subpart B | UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
04Why choose this
Built for the way you actually use the DH-IPC-HDBW5441E-ZE-HDMI
WizMind AI with Face Detection
Deep learning supports face detection, people counting, and smart object detection. More advanced analytics than standard WizSense cameras.
Motorised 2.7–13.5 mm Varifocal
Adjust zoom remotely. Wide at 2.7 mm for a room overview, zoomed at 13.5 mm to focus on a doorway or counter.
120 dB WDR + 40 m IR
Handles glass storefronts and brightly lit lobbies. IR covers medium-range corridors and car park lanes.
IK10 + IP67 Vandal-Proof Dome
Metal housing withstands direct blows. Suitable for public spaces where tampering is a risk.
05Where it fits
Right at home in these scenarios
Reception Desk or Guard Room
Connect the HDMI output straight to a monitor for live spot viewing. No NVR required for basic real-time monitoring.
Office Ceiling or Corridor
Dome shape blends into ceiling tiles. Motorised lens lets you adjust coverage remotely after install.
Retail Floor or Showroom
People counting tracks foot traffic. Face detection can log repeat visitors. IK10 resists tampering.
Car Park or Basement
IP67 and IK10 for tough environments. 40 m IR lights up ramps and lanes. 120 dB WDR handles headlight glare.
06Setup
Installation & setup
-
01
What's in the Box
- Dahua DH-IPC-HDBW5441E-ZE-HDMI Camera × 1
- Mounting Screws & Anchors × 1 set
- Quick Start Guide × 1
-
02
Installation Requirements
- Power: PoE (IEEE 802.3af) or ePoE or 12V DC. Max power under 12.5 W.
- Cable: Cat5e or Cat6, max 100 m (ePoE extends up to 300 m at reduced speed).
- Mounting: Ceiling or wall. Camera weighs 0.92 kg. Use junction box (PFA138) for neat cable management.
- HDMI: If using the HDMI output, run a separate HDMI cable (Type A) to your monitor.
-
03
App Setup
- Download DMSS app (iOS or Android). Create an account.
- Power the camera via PoE. Wait about 60 seconds.
- Scan the QR code or add by serial number.
- Adjust zoom remotely. Enable face detection or people counting if needed.
08Questions
Frequently asked about the DH-IPC-HDBW5441E-ZE-HDMI
Q.01
Can I use the HDMI and network recording at the same time?
Yes. The HDMI output mirrors the live view while the camera simultaneously streams to an NVR or records to the SD card over the network.
Q.02
What is ePoE?
Dahua's extended PoE. It lets you run Ethernet up to 300 m (at 10 Mbps) instead of the standard 100 m. Useful for long cable runs in large buildings.
Q.03
Is 4 MP enough compared to 8 MP?
For most indoor and medium-distance outdoor use, 4 MP (2688 × 1520) is plenty. The WizMind AI features and motorised lens add more practical value than extra pixels in many scenarios.
Q.04
Does it have alarm I/O?
Yes. 2 alarm inputs and 1 alarm output. Plus 1 audio input and 1 audio output (RCA). Built-in mic as well.
Q.05
What is the difference between WizMind and WizSense?
WizMind (5-series) has more advanced AI: face detection, people counting, smart object detection. WizSense (3-series) covers human/vehicle classification and perimeter protection.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
09In motion
Dahua HDBW5441E-HDMI Camera Product Review
