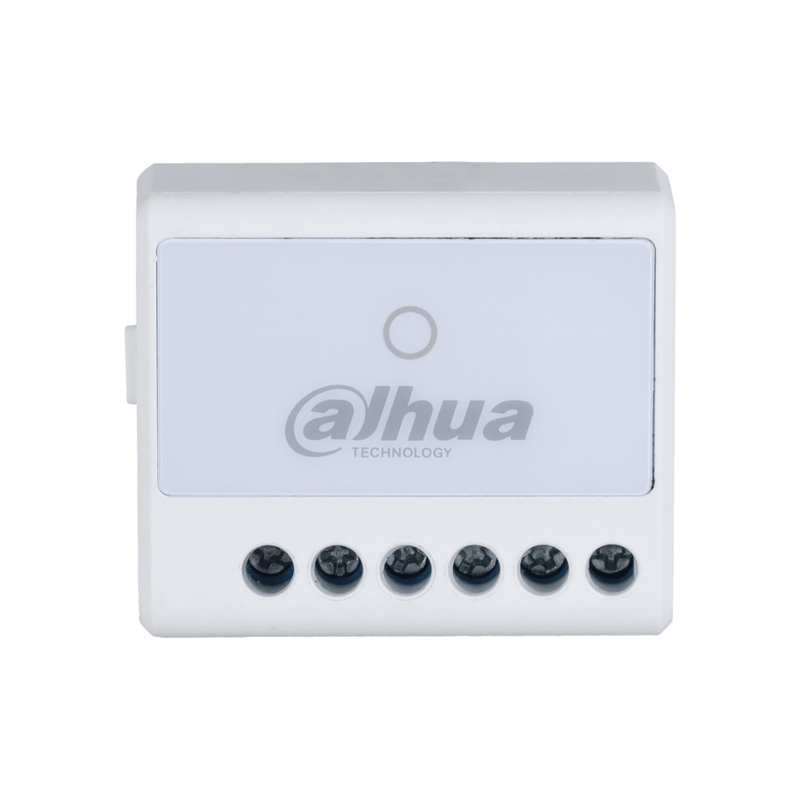

Dahua DHI-ARM7011-W2 Wireless Relay
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua DHI-ARM7011-W2 Wireless Relay
SKU: DHI-ARM7011-W2
Description
The Dahua DHI-ARM7011-W2 is a wireless relay for the Dahua AirShield alarm system. It gives the system a switched, isolated dry contact (0-36 VDC, up to 5 A) that you can trigger from the app, on a schedule, in a scene, or automatically when an alarm event happens — handy for switching a light, a gate or garage trigger, or an extra warning device. It links to the hub over an encrypted two-way radio link and has overheat and overvoltage protection built in. An AirShield hub is required and sold separately.
Key points
- One isolated dry-contact relay output, 0-36 VDC, up to 5 A
- Trigger from the app, a schedule, a scene or an alarm event
- Encrypted two-way radio with AES128 and frequency hopping; range up to 800 m
- Overheat and overvoltage protection; one tamper input
- Powered from 7-24 V DC; compact wall mount
- Requires a Dahua AirShield hub
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Dahua DHI-ARM7011-W2 Wireless Relay
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DHI-ARM7011-W2 is
The Dahua DHI-ARM7011-W2 lets a Dahua AirShield alarm switch other low-voltage equipment. It provides a single relay with an isolated dry contact rated 0-36 VDC at up to 5 A, and because the contact is electrically isolated from the relay's own power it acts as a clean switch you can wire into another circuit. You control it from the DMSS app by hand, on a schedule, as part of a scene, or automatically when an alarm event occurs.
That makes it the link between the alarm and the things around it: switch a light on when an alarm trips, pulse a gate or garage-door trigger input, enable or disable an auxiliary siren or strobe, or bring a small piece of automation under the same system. It supports momentary and latching operation, runs from a 7-24 V DC supply, and includes overheat and overvoltage protection plus a tamper input. The radio link to the hub is two-way with AES128 encryption and frequency hopping at up to 800 m in open space.
Two important notes. The relay is a low-voltage, isolated signalling contact — it is not a mains switch. To control 240 V mains equipment you must wire it to drive a separately powered contactor or interface relay, and that work should be done by a licensed electrician. And like every AirShield device it needs a hub to function; confirm the relay's RF band matches your AirShield hub when ordering. It is genuine Australian Dahua stock with local 3-year warranty and support.
02Engineering
DHI-ARM7011-W2 specifications
- Wireless relay module for the Dahua AirShield alarm system
- One isolated dry-contact relay output: 0-36 VDC, maximum 5 A (NO/NC)
- Trigger by app, schedule, scene or alarm-event linkage; momentary or latching
- Two-way radio with AES128 encryption and frequency hopping; range up to 900 m
- Overheat protection and voltage detection; one external tamper input
- Powered from a 7-24 V DC supply; jamming detection; cloud update
- Compact 39 x 33 x 19 mm wall-mount module, indoor (-10 to +55 C); CE, FCC
- Requires a Dahua AirShield hub; isolated low-voltage contact (not a mains switch)
- One isolated dry-contact relay output: 0-36 VDC, maximum 5 A (NO/NC)
- Trigger by app, schedule, scene or alarm-event linkage; momentary or latching
- Two-way radio with AES128 encryption and frequency hopping; range up to 900 m
- Overheat protection and voltage detection; one external tamper input
- Powered from a 7-24 V DC supply; jamming detection; cloud update
- Compact 39 x 33 x 19 mm wall-mount module, indoor (-10 to +55 C); CE, FCC
- Requires a Dahua AirShield hub; isolated low-voltage contact (not a mains switch)
03Full datasheet
Detailed specifications
Network & Storage
| Feature | Detail |
|---|---|
| Remote Update | Cloud update |
| Carrier Frequency | 433.1 MHz–434.6 MHz |
| Communication Mechanism | Two-way |
| Communication Distance | 800 m (2624.67 ft) in open areas |
| Encryption Mode | AES128 |
| Frequency Hopping | Yes |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Input | 1 for tamper, NO/NC |
| Test Mode | Yes |
Interface
| Feature | Detail |
|---|---|
| Indicator Light | 1 for multiple statuses (pairing, communication) |
| Button | 1 |
| Relay Output | 1, NO/NC (0–36 VDC, Max 5A) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 7–24 VDC |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Operating Humidity | 10%–90% (RH) |
| Storage Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Humidity | 10%–90% (RH) |
| Product Dimensions | 39 mm × 33 mm × 19 mm (1.54" × 1.30" × 0.75") |
| Packaging Dimensions | 95 mm × 59.5 mm × 30.5 mm (3.74" × 2.34" × 1.20") |
| Net Weight | 45 g (0.10 lb) |
| Gross Weight | 60 g (0.13 lb) |
| Installation | Wall mount |
| Casing Material | PC + ABS |
| Certifications | CE, FCC |
| Network & Storage — Remote Update | Cloud update |
|---|---|
| Network & Storage — Carrier Frequency | 433.1 MHz–434.6 MHz |
| Network & Storage — Communication Mechanism | Two-way |
| Network & Storage — Communication Distance | 800 m (2624.67 ft) in open areas |
| Network & Storage — Encryption Mode | AES128 |
| Network & Storage — Frequency Hopping | Yes |
| Event & Alarm — Alarm Input | 1 for tamper, NO/NC |
| Event & Alarm — Test Mode | Yes |
| Interface — Indicator Light | 1 for multiple statuses (pairing, communication) |
| Interface — Button | 1 |
| Interface — Relay Output | 1, NO/NC (0–36 VDC, Max 5A) |
| General & Environment — Power Supply | 7–24 VDC |
| General & Environment — Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| General & Environment — Operating Humidity | 10%–90% (RH) |
| General & Environment — Storage Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| General & Environment — Storage Humidity | 10%–90% (RH) |
| General & Environment — Product Dimensions | 39 mm × 33 mm × 19 mm (1.54" × 1.30" × 0.75") |
| General & Environment — Packaging Dimensions | 95 mm × 59.5 mm × 30.5 mm (3.74" × 2.34" × 1.20") |
| General & Environment — Net Weight | 45 g (0.10 lb) |
| General & Environment — Gross Weight | 60 g (0.13 lb) |
| General & Environment — Installation | Wall mount |
| General & Environment — Casing Material | PC + ABS |
| General & Environment — Certifications | CE, FCC |
04Why choose this
Built for the way you actually use the DHI-ARM7011-W2
Flexible control
Trigger it by hand in the app, on a schedule, in a scene, or automatically on an alarm event, with momentary or latching action.
Protected and isolated
The contact is electrically isolated from the module's power, with overheat and overvoltage protection for safe, reliable switching.
Secure two-way link
AES128 encryption and frequency hopping over a two-way radio link confirm each command and resist interference.
05Where it fits
Right at home in these scenarios
Gate or garage trigger
Pulse the dry contact into a gate motor or garage-door trigger input to open from the alarm app or a keyfob action.
Switch a light on alarm
Turn on a low-voltage light or indicator automatically when an alarm trips, adding a visible response.
Auxiliary siren or strobe
Enable an extra warning device as part of an alarm sequence.
Small automation tasks
Bring a low-voltage device under the alarm system for scheduled or scene-based switching.
06Setup
Installation & setup
-
01
What's in the box
One DHI-ARM7011-W2 wireless relay module with mounting hardware. A Dahua AirShield hub, the 7-24 V DC supply and any contactor for mains switching are not included.
-
02
Installation requirements
Wire the module to a 7-24 V DC supply and connect the dry contact to the low-voltage device or trigger input you want to switch. For any mains-side switching, have a licensed electrician fit a separately powered contactor. Enrol the relay to your AirShield hub in DMSS, set momentary or latching action, and test the switching before relying on it.
08Questions
Frequently asked about the DHI-ARM7011-W2
Q.01
What does the ARM7011-W2 actually do?
It gives your AirShield alarm a switched, electrically isolated dry contact rated 0-36 VDC at up to 5 A. You use that contact to switch or trigger another low-voltage device from the app, a schedule, a scene, or automatically when an alarm event happens.
Q.02
Does it work on its own?
No. It is an accessory for the Dahua AirShield system and needs an AirShield hub. The hub tells it when to switch, so on its own it has nothing controlling it.
Q.03
Can it switch 240 V mains, like a light circuit?
Not directly. Its contact is a low-voltage, isolated dry contact rated to 36 VDC, designed for signalling. To control 240 V mains you wire it to drive a separately powered contactor or interface relay, and that work must be carried out by a licensed electrician.
Q.04
What can I use it to control?
Common uses are pulsing a gate or garage-door trigger input, switching a low-voltage light or indicator, enabling an auxiliary siren or strobe on alarm, or bringing a small automation device under the alarm system.
Q.05
Does it support momentary and latching modes?
Yes. You can set it to pulse briefly (momentary), which suits gate and garage triggers, or to hold its state until switched again (latching), which suits turning something on and leaving it on.
Q.06
What powers the relay itself?
It runs from a 7-24 V DC supply that you provide. That power feeds the module; the relay contact it switches is kept electrically isolated from it.
Q.07
How far can it be from the hub, and is the link secure?
Up to 800 metres in open space, over a two-way radio link with AES128 encryption and frequency hopping. Two-way communication confirms the command and the encryption and hopping resist interference and jamming.
Q.08
Will it match my AirShield hub?
It pairs with the Dahua AirShield hub over the same secure link as the other peripherals. RF bands are region specific, so confirm the relay band matches your hub when you order; it carries genuine Australian Dahua 3-year warranty and support.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Pair it with an AirShield hub (required)
The relay needs a hub to work — build your system on the DHI-ARC3800H-FW2 Alarm Hub 2, or the smaller DHI-ARC3000H-FW2 hub.
Add detection to trigger it
Use detectors such as a ARD1233-W2 PIR detector or a ARD512-W2 glass-break detector so an alarm event can drive the relay automatically.
Add ways to arm and control
Arm and run scenes with the ARK30T-W2 keypad or the ARA24-W2 keyfob.
Want a ready-made system?
Start from a bundled AirShield starter kit and add this relay for switching and automation.
