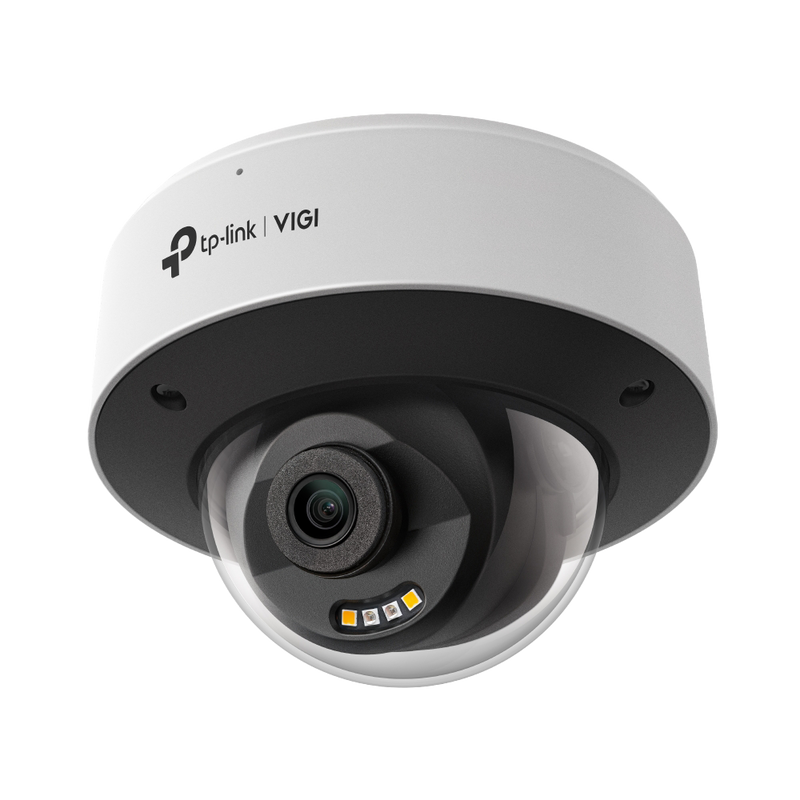

TP-Link InSight S285 8MP Full-Colour Dome Network Camera
Delivers ultra-high-definition 4K full-colour surveillance with AI-powered human and vehicle detection to provide crystal-clear evidence and reliable 24/7 dome security.
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
§ 01Overview
What the Insight S285 is
TP-Link Insight S285 8MP Full-Colour Dome Network Camera provides professional-grade 4K security for residential and commercial organisations.
It features advanced AI detection and a weatherproof Model design, making this Model a dependable choice for monitoring office spaces, retail counters, and building entry points.
See it in action
What the Insight S285 features actually look like
Representative illustrations of how each key feature performs in a real scene.
8MP Ultra HD
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
30m IR Night Vision
Dual-Light Night Vision
Full Color Night Vision
False Alarm Reduction
Human/Vehicle Detection
Two-Way Audio
Strobe Light
Illustrative — simulated for demonstration
§ 02Engineering
Insight S285 specifications
- 8MP 4K Ultra HD Resolution: Captures high-fidelity video at 3840 x 2160 pixels to ensure every detail is recorded with exceptional clarity.
- 24/7 Full-Colour Night Vision: Utilises advanced low-light technology and supplemental lighting to produce vivid colour imagery even in complete darkness.
- Smart AI Detection: Distinguishes between humans and vehicles to focus on real security threats and significantly reduce false alarms from animals or environmental factors.
- IP67 Weatherproof Design: Engineered with a durable housing to withstand harsh rain and dust for reliable operation in both indoor and outdoor environments.
- Wide Dynamic Range (WDR): Automatically balances exposure in high-contrast scenes to prevent overexposure in bright areas and maintain detail in shadows.
- Efficient H.265+ Compression: Reduces network bandwidth and storage requirements/allowing for longer recording times without sacrificing image quality.
- Flexible Power Options: Supports both Power over Ethernet (PoE) and 12V DC for a simplified and versatile installation process.
- Versatile Lens Variants: Available in 2.8mm for a wide 110-degree field of view or 4mm for a more focused and detailed 88-degree view of corridors.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Max. Resolution | 3840 x 2160 |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Min. Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
| Image Settings | Mirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120dB (Note: When People & Vehicle Analytics is enabled, only DWDR is supported.) |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed Focal Lens |
| Focal Length | 2.8 mm / 4 mm |
| Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal FOV: 110°, Vertical FOV: 58.1°, Diagonal FOV: 133.5° | 4 mm: Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 2.8 mm: Detect 85 m (278 ft); Observe 35 m (116 ft); Recognize 17 m (56 ft); Identify 8 m (28 ft) | 4 mm: Detect 107 m (350 ft); Observe 44 m (146 ft); Recognize 21 m (70 ft); Identify 11 m (35 ft) |
| Pan Range | 0° to 346° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 355° |
Night Vision
| Feature | Detail |
|---|---|
| IR LED | Quantity: 2; Range: 30 m; Wavelength: 850 nm |
| White LED | Quantity: 2; Range: 30 m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Feature | Detail |
|---|---|
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 | Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If HDR is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 | Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If HDR is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
Audio
| Feature | Detail |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Human & Vehicle Classification | Intelligently distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | Google Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Event & Alarm
| Feature | Detail |
|---|---|
| Smart Event | Intrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection |
| Basic Event | Motion detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Camera Tampering; Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording; Message Push; Audible Warning; White Light Flashing |
| Output Notification | Message Push |
Interface
| Feature | Detail |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
| Reset Button | Yes |
| Power | DC Power Port |
General & Environment
| Feature | Detail |
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Power Supply | 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug | PoE: 802.3af/at, class 0, Max. 12.3 W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Material | Metal |
| Net Weight | 0.62 Kg |
| Product Dimensions | 4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm) |
| Certifications | CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC |
| Camera & Image — Image Sensor | 1/2.7" Progressive Scan CMOS |
|---|---|
| Camera & Image — Max. Resolution | 3840 x 2160 |
| Camera & Image — Shutter Speed | 1/3 to 1/10000 s |
| Camera & Image — Slow Shutter | Yes |
| Camera & Image — Min. Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Camera & Image — Day/Night Mechanism | IR Cut Filter |
| Camera & Image — Day/Night Switch | Unified/Scheduled/Auto |
| Camera & Image — Image Settings | Mirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software |
| Camera & Image — Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Camera & Image — Wide Dynamic Range | 120dB (Note: When People & Vehicle Analytics is enabled, only DWDR is supported.) |
| Camera & Image — SNR | ≥ 52 dB |
| Camera & Image — Image Parameters Switch | Yes |
| Camera & Image — Privacy Mask | Up to 4 Masks |
| Camera & Image — ROI | 1 Region |
| Camera & Image — OSD Setting | Yes |
| Lens & Distance — Lens Type | Fixed Focal Lens |
| Lens & Distance — Focal Length | 2.8 mm / 4 mm |
| Lens & Distance — Aperture | F1.6 |
| Lens & Distance — Field of View | 2.8 mm: Horizontal FOV: 110°, Vertical FOV: 58.1°, Diagonal FOV: 133.5° | 4 mm: Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4° |
| Lens & Distance — Lens Mount | M12*P 0.5 |
| Lens & Distance — DORI Distance | 2.8 mm: Detect 85 m (278 ft); Observe 35 m (116 ft); Recognize 17 m (56 ft); Identify 8 m (28 ft) | 4 mm: Detect 107 m (350 ft); Observe 44 m (146 ft); Recognize 21 m (70 ft); Identify 11 m (35 ft) |
| Lens & Distance — Pan Range | 0° to 346° |
| Lens & Distance — Tilt Range | 0° to 75° |
| Lens & Distance — Rotation Range | 0° to 355° |
| Night Vision — IR LED | Quantity: 2; Range: 30 m; Wavelength: 850 nm |
| Night Vision — White LED | Quantity: 2; Range: 30 m |
| Night Vision — Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Video — Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 | Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If HDR is turned on, the frame rate can only support up to 20fps. |
| Video — Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps | Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 | Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If HDR is turned on, the frame rate can only support up to 20fps. |
| Video — Bit Rate Control | CBR, VBR |
| Video — Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| Video — H.264 Type | High Profile |
| Video — H.264+ | Main Stream Supported |
| Video — H.265 Type | Main Profile |
| Video — H.265+ | Main Stream Supported |
| Video — Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
| Audio — Audio Communication | Two-Way Audio |
| Audio — Audio Compression | Yes |
| Audio — Audio Sampling Rate | 8KHz |
| Audio — Environment Noise Filtering | Yes |
| Audio — Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Audio — Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Audio — Built-in Speaker | Yes |
| AI & Deep Learning — Human & Vehicle Classification | Intelligently distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. |
| AI & Deep Learning — People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. |
| Network & Storage — Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Network & Storage — ONVIF | Yes |
| Network & Storage — API | Open Network Video Interface (Profile S/T/G) |
| Network & Storage — Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Network & Storage — Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Network & Storage — Web Browser | Google Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above |
| Network & Storage — Cloud | Yes |
| Network & Storage — Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Event & Alarm — Smart Event | Intrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection |
| Event & Alarm — Basic Event | Motion detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Camera Tampering; Exception (Illegal Login) |
| Event & Alarm — Alarm Linkage | Memory Card Video Recording; Message Push; Audible Warning; White Light Flashing |
| Event & Alarm — Output Notification | Message Push |
| Interface — Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Interface — On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
| Interface — Reset Button | Yes |
| Interface — Power | DC Power Port |
| General & Environment — Operating Temperature | -30–60 °C |
| General & Environment — Storage Temperature | -40–60 °C |
| General & Environment — Operating Humidity | 95% or Less (Non-Condensing) |
| General & Environment — Storage Humidity | 95% or Less (Non-Condensing) |
| General & Environment — Power Supply | 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug | PoE: 802.3af/at, class 0, Max. 12.3 W |
| General & Environment — Protection | IP67 Weatherproof, IK10 Vandal Proof |
| General & Environment — Material | Metal |
| General & Environment — Net Weight | 0.62 Kg |
| General & Environment — Product Dimensions | 4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm) |
| General & Environment — Certifications | CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC |
§ 04Why choose this
Built for the way you actually use the Insight S285
Full-Colour Night Vision
Warm LED keeps footage in colour around the clock. Useful for identifying clothing colours and vehicle details after dark.
InSight AI Analytics
Human and vehicle classification with smart detection. Area intrusion, line crossing, and tamper alerts.
H.265+ Compression
Reduces storage and bandwidth usage compared to H.264. An 8 MP stream stays manageable on a standard network.
IP67 Weatherproof
Metal dome housing handles rain, dust, and temperature swings. Suitable for indoor and outdoor mounting.
§ 05Where it fits
Right at home in these scenarios
Office or Retail Ceiling
Dome sits flush and blends in. 8 MP captures fine detail across the room. Full colour at night for after-hours monitoring.
Car Park or Covered Area
Point at the entry lane. 4K reads number plates. Colour night vision identifies vehicle colours.
Warehouse or Storeroom
Dome resists accidental bumps. H.265+ keeps storage costs down over weeks of recording.
Apartment Building Corridor
Discreet dome shape. IP67 handles damp corridors. Smart detection filters out non-human motion.
§ 06Setup
Installation & setup
What's in the Box
1. TP-Link VIGI S285 Camera × 1 2. Mounting Screws & Anchors × 1 set 3. Quick Start Guide × 1
Installation Requirements
1. Power: PoE (IEEE 802.3af) or 12V DC. 2. Cable: Cat5e or Cat6, max 100 m. 3. Mounting: Ceiling or wall. Compact dome shape. Use a junction box for neat cable management. 4. Height: 2.5–3.5 m recommended.
App Setup
1. Download VIGI app (iOS or Android). Create an account. 2. Power the camera via PoE. Wait about 60 seconds. 3. Add the camera by scanning the QR code or serial number. 4. Configure detection zones and notification preferences.
§ 08Questions
Frequently asked about the Insight S285
Q.01
Is the InSight S285 the same as the VIGI C285?
Q.02
Does it have a microphone?
Q.03
Will it work with my existing Hikvision NVR?
Q.04
How much storage does 8 MP use?
Q.05
Is it vandal-proof?
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
