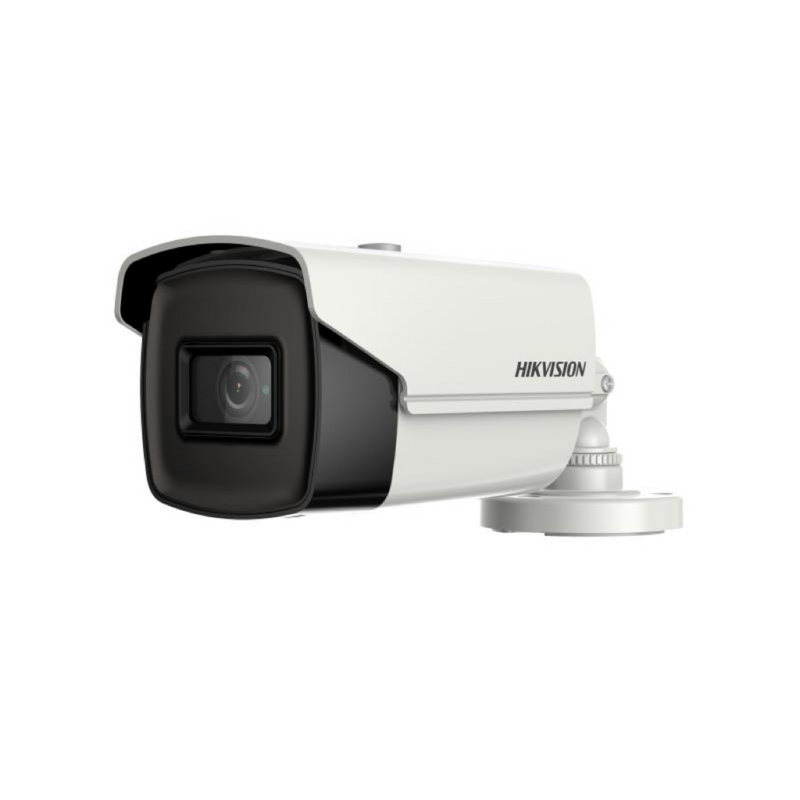

Hikvision DS-2CE16H8T-IT3F TVI4.0 5MP Outdoor Bullet Camera, 130dB WDR, 60m IR, 4 in 1, IP67, 12VDC, 2.8mm
1 1
Hikvision

Hikvision DS-2CE16H8T-IT3F TVI4.0 5MP Outdoor Bullet Camera, 130dB WDR, 60m IR, 4 in 1, IP67, 12VDC, 2.8mm

SKU: DS-2CE16H8T-IT3F
Description

The Hikvision DS-2CE16H8T-IT3F is a 5 MP Turbo HD outdoor bullet camera that delivers high-definition video over your existing coaxial cabling - an affordable way to upgrade an analogue system without rewiring. It is a 4-in-1 camera (switchable TVI, AHD, CVI and CVBS), with 60 m EXIR infrared night vision, 130 dB true WDR and an IP67 weatherproof housing.

Key points
- 5 MP (2560 x 1944) Turbo HD bullet camera
- 4 in 1: switchable TVI / AHD / CVI / CVBS signal
- 60 m EXIR 2.0 infrared night vision
- 130 dB true WDR and 3D DNR for clean images
- 2.8 mm or 3.6 mm fixed wide-angle lens
- IP67 weatherproof for outdoor use
- Runs on 12 VDC over your existing coax (no network or PoE)
5MP Ultra HD 60m IR Night Vision IP67 Weatherproof
$140.65 AUD $140.65 AUD $146.00 AUD
Sale 3.66% $5.35 AUD (3.66%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $1,184.80

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $140.65

§ 01Overview

What the DS-2CE16H8T-IT3F is

The Hikvision DS-2CE16H8T-IT3F is a cost-effective way to bring high-definition video to an analogue CCTV system. It is a 5 MP Turbo HD bullet camera that sends its picture down the coaxial cable you already have, so you can upgrade older cameras to 5 MP detail without running new network wiring.

Because it is a 4-in-1 camera, it outputs TVI, AHD, CVI or CVBS, which means it works with almost any modern Turbo HD or analogue DVR - you simply match the signal to your recorder. At night, EXIR 2.0 infrared lights the scene evenly out to 60 m, and 130 dB true WDR with 3D DNR keeps the image clear against bright backlight and in low light. A 2.8 mm or 3.6 mm fixed lens gives a wide view of a yard, driveway or building face, and the IP67 housing handles outdoor weather.

A couple of honest notes so you order the right parts: this is an analogue Turbo HD camera, not an IP camera, so it connects to a DVR over coax rather than to an NVR over the network, and it does not have PoE. It runs on a 12 VDC supply, and like any infrared camera its night images are black-and-white.

See it in action

What the DS-2CE16H8T-IT3F features actually look like

Representative illustrations of how each key feature performs in a real scene.

60m IR Night Vision — Built-in infrared sees in total darkness up to around 60m, covering long driveways an... (1/2)
60m IR Night Vision — Built-in infrared sees in total darkness up to around 60m, covering long driveways an... (2/2)

60m IR Night Vision

Built-in infrared sees in total darkness up to around 60m, covering long driveways and large properties. Even well away from the house, people and vehicles remain clear in black-and-white.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DS-2CE16H8T-IT3F specifications

- 5 MP (2560 x 1944) Turbo HD outdoor bullet camera
- 4 in 1: switchable TVI / AHD / CVI / CVBS signal for almost any DVR
- 60 m EXIR 2.0 infrared night vision (black-and-white at night)
- 130 dB true WDR and 3D DNR for clear, clean images
- 2.8 mm or 3.6 mm fixed wide-angle lens
- Sends HD video over existing coaxial cable - no rewiring
- IP67 weatherproof housing for outdoor installation
- Analogue camera: connects to a DVR over coax, 12 VDC power (no PoE)

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision DS-2CE16H8T-IT3F TVI4.0 5MP Outdoor Bullet Camera, 130dB WDR, 60m IR, 4 in 1, IP67, 12VDC, 2.8mm
FeatureDetail
Image Sensor 5 MP progressive scan CMOS
Max Resolution 2560 × 1944 (5 MP)
Min Illumination 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Day & Night IR cut filter (ICR)
Wide Dynamic Range 130 dB true WDR
Digital Noise Reduction 3D DNR

§ 04Why choose this

Built for the way you actually use the DS-2CE16H8T-IT3F

Upgrade without rewiring

5 MP detail over your existing coax means a high-definition upgrade without pulling new network cable.

Works with almost any DVR

4-in-1 TVI/AHD/CVI/CVBS output matches modern Turbo HD and analogue recorders.

Strong night vision

60 m EXIR 2.0 infrared lights the scene evenly for clear black-and-white images after dark.

Clear in tricky light

130 dB true WDR and 3D DNR keep faces and vehicles visible against glare and in low light.

§ 05Where it fits

Right at home in these scenarios

Analogue system upgrades

Replace ageing analogue cameras with 5 MP detail while keeping the existing DVR and coax.

Yards and driveways

Cover an open yard or driveway with a wide-angle bullet and long-range IR.

Building perimeters

Watch the face of a home or business with a weatherproof outdoor camera.

Budget HD coverage

Add affordable high-definition coverage where running network cable is not practical.

§ 06Setup

Installation & setup

01

What's in the box

One DS-2CE16H8T-IT3F 5MP Turbo HD bullet camera with mounting template and fixings. The DVR, coaxial cable and 12 VDC power supply are supplied separately.

02

Installation requirements

Mount it on a wall or eave aimed at the area to cover. Run coax back to your DVR and switch the camera to the matching signal (TVI, AHD, CVI or CVBS). Provide 12 VDC power to the camera, then set the view and confirm the night-time IR on the DVR. It is an analogue camera, so it does not use the network or PoE.

§ 08Questions

Frequently asked about the DS-2CE16H8T-IT3F

Q.01

Can I use the DS-2CE16H8T-IT3F on my existing coax cabling?
Yes. It is a Turbo HD analogue camera that sends 5 MP video down standard coaxial cable, so you can upgrade older analogue cameras to high definition without running new network wiring.
Q.02

What does 4 in 1 mean?
The camera can output four signal types - TVI, AHD, CVI or CVBS - and you switch it to match your recorder. That makes it compatible with almost any modern Turbo HD or analogue DVR.
Q.03

How far does the night vision reach?
It has EXIR 2.0 infrared that lights the scene evenly out to 60 m. As with any infrared camera the night image is black-and-white.
Q.04

Does it connect to an NVR or to a DVR?
To a DVR. This is an analogue camera, so it connects over coax to a Turbo HD or analogue DVR, not over the network to an IP NVR.
Q.05

How is it powered - does it use PoE?
No, it does not use PoE. It is powered by a separate 12 VDC supply run to the camera, while the coax carries the video.
Q.06

What lens options does it have and how wide is the view?
It comes with a 2.8 mm or 3.6 mm fixed lens. The 2.8 mm gives a wider field of view for covering a yard or building face, while the 3.6 mm reaches a little further with a slightly narrower angle.
Q.07

Is it suitable for outdoor use?
Yes. It has an IP67 weatherproof rating, so it stands up to dust and rain on outdoor walls and eaves.
Q.08

Will it handle bright backlight, like a driveway facing the sun?
Yes. It has 130 dB true WDR plus 3D DNR, which balances bright and dark areas in the same scene and reduces noise, so faces and vehicles stay visible against strong backlight.
