Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Vandalproof Domes with Acusense + 8CH NVR
SKU: DS-2CD2186G2H-ISU
Description

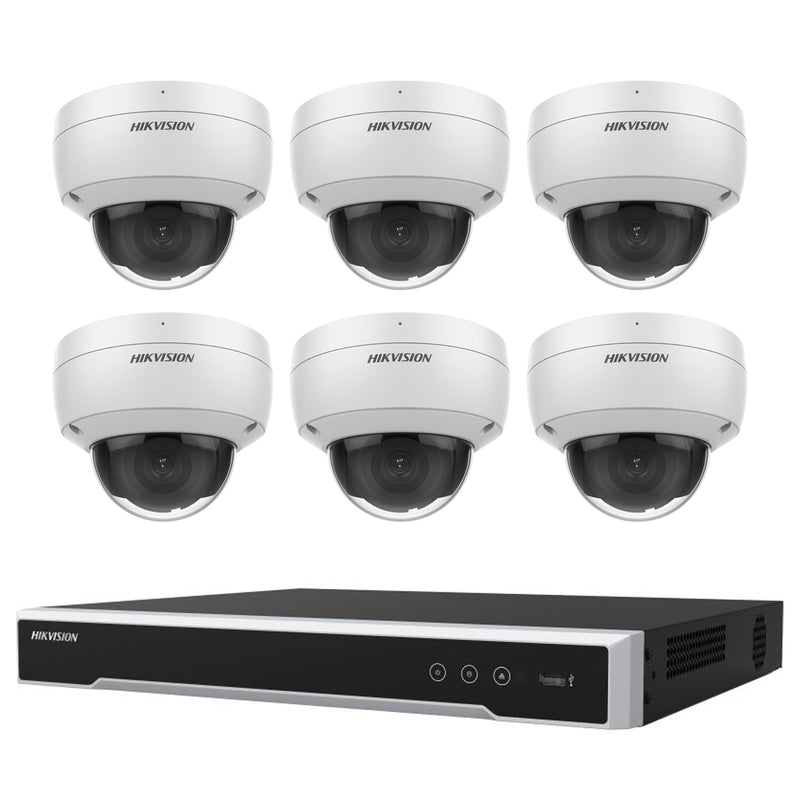

This Hikvision 8 MP 8-channel kit pairs six DS-2CD2186G2H-ISU AcuSense vandal dome cameras with an 8-channel PoE NVR with two spare channels for later.
What's in the kit
- 6 x DS-2CD2186G2H-ISU 8 MP (4K) AcuSense vandal dome cameras
- DarkFighter low-light imaging; built-in microphone
- Human and vehicle classification; 30 m IR; 120 dB WDR
- IP67 weatherproof and IK10 vandal-resistant
- 1 x 8-channel PoE NVR (8 PnP PoE ports, dual HDD bays)
- 4K output, H.265+ compression and two spare channels
Hard drive not included. Please select a hard drive from the options below.
Regular price
$2,585.05 AUD
Sale price
$2,585.05 AUD
Regular price
$3,366.00 AUD
Sale
23.2%
$780.95 AUD
(23.2%)
Bulk Price$2,429.95 AUD
Save $155.10 AUD — 6% off orders over $1,500, applied automatically at checkout.
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Vandalproof Domes with Acusense + 8CH NVR
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Customize this kit
—
Kit price$2,585.05
Bulk Price
$2,429.95
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
- 6 × Hikvision 8MP AcuSense DS-2CD2186G2H-ISU Dome Camera, Fixed 2.8mm, IR 30M, Mic
- 1 × Hikvision DS-7608NI-M2/8P 8ch PoE CCTV NVR, 128Mbps 8 PnP ports, 4K, 2 HDD Bay NO HDD (8ch)
- No HDD included (add one below)
Add extra cameras
DS-2CD2186G2H-ISU
+$0.00
NVR · channels ≥ your total camera count
Base: 8ch · Hikvision DS-7608NI-M2/8P 8ch PoE CCTV NVR, 128Mbps 8 PnP ports, 4K, 2 HDD Bay NO HDD
Add Hard Drive
Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
No hard drive selected
Without a hard drive the system cannot record footage.
01Overview
What the DS-2CD2186G2H-ISU is
This Hikvision 8 MP 8-channel kit is a six-camera vandal dome system for a larger home or business. It pairs six DS-2CD2186G2H-ISU AcuSense dome cameras with an eight-channel PoE NVR, so each camera connects on a single network cable. Because the recorder has eight channels and the kit uses six, there are two spare channels for adding cameras later.
The cameras are the strength of this kit. Each is an 8 MP (4K) dome with DarkFighter low-light imaging for clean detail in dim scenes, AcuSense deep learning that classifies human and vehicle targets so alerts and searches ignore rain, shadows and animals, and a 120 dB wide dynamic range that holds detail against bright backlight. The metal housing is IP67 weatherproof and IK10 vandal-resistant, so these domes suit accessible and public-facing positions such as entrances, shopfronts and car parks where a camera could be knocked or tampered with. Each camera also has a built-in microphone, so the kit can record audio alongside the video.
A couple of honest notes so it is set up correctly. At night these are infrared cameras with a 30 metre range, so the picture is black and white, not full colour; DarkFighter improves low-light quality but this is not a white-light ColorVu kit. The cameras have a built-in microphone for audio recording; they are not sold here as a two-way intercom, so confirm your audio needs if talkback matters. The eight-channel recorder has dual hard-drive bays; H.265+ compression keeps storage efficient, and storage capacity can be chosen to suit your recording needs.
See it in action
What the DS-2CD2186G2H-ISU features actually look like
Representative illustrations of how each key feature performs in a real scene.
8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
False Alarm Reduction
Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
Illustrative — simulated for demonstration
02Engineering
DS-2CD2186G2H-ISU specifications
- 6 x DS-2CD2186G2H-ISU 8 MP (4K) AcuSense vandal dome cameras
- DarkFighter low-light imaging for clean detail in dim scenes
- AcuSense human and vehicle classification to reduce false alarms
- Built-in microphone for audio recording
- 30 m EXIR infrared at night (infrared black-and-white image)
- IP67 weatherproof and IK10 vandal-resistant metal domes
- 8-channel PoE NVR with 8 PnP PoE ports and dual HDD bays
- 4K output, H.265+; two spare channels
- DarkFighter low-light imaging for clean detail in dim scenes
- AcuSense human and vehicle classification to reduce false alarms
- Built-in microphone for audio recording
- 30 m EXIR infrared at night (infrared black-and-white image)
- IP67 weatherproof and IK10 vandal-resistant metal domes
- 8-channel PoE NVR with 8 PnP PoE ports and dual HDD bays
- 4K output, H.265+; two spare channels
03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| SNR | ≥ 52 dB |
| Target Cropping | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131° | 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Working Distance | 2.8 mm: 2.6 m to ∞ | 4 mm: 3.2 m to ∞ |
| DORI | 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m | 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
Video
| Feature | Detail |
|---|---|
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Supports human and vehicle targets classification |
Network & Storage
| Feature | Detail |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception; -S: alarm input and output |
| Smart Event | Scene change detection |
| Linkage Method | Upload to FTP/memory card/NAS, notify surveillance center, send email, trigger recording, trigger capture; -S: trigger alarm output, audible warning |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Material | Metal |
| Screw Material | SUS304 |
| Dimension | Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" ×5.6") |
| Weight | Approx. 590 g (1.3 lb.) |
| With Package Weight | Approx. 850 g (1.9 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Firmware Version | V5.5.112 |
| Power Consumption and Current | 12 VDC, 0.5 A, max. 6 W | PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W |
| Power Supply | 12 VDC ± 25%; PoE: 802.3af, Class 3 |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Software Reset | Yes |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
| Camera & Image — Image Sensor | 1/1.8" Progressive Scan CMOS |
|---|---|
| Camera & Image — Shutter Speed | 1/3 s to 1/100,000 s |
| Camera & Image — Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Camera & Image — Slow Shutter | Yes |
| Camera & Image — P/N | P/N |
| Camera & Image — Wide Dynamic Range | 120 dB |
| Camera & Image — Day & Night | IR cut filter |
| Camera & Image — Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Camera & Image — SNR | ≥ 52 dB |
| Camera & Image — Target Cropping | Yes |
| Camera & Image — Day/Night Switch | Day, Night, Auto, Schedule |
| Camera & Image — Image Enhancement | BLC, HLC, 3D DNR |
| Camera & Image — Image Parameters Switch | Yes |
| Camera & Image — Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Lens & Distance — Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Lens & Distance — Focal Length & FOV | 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131° | 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102° |
| Lens & Distance — Lens Mount | M12 |
| Lens & Distance — Iris Type | Fixed |
| Lens & Distance — Aperture | F1.6 |
| Lens & Distance — Working Distance | 2.8 mm: 2.6 m to ∞ | 4 mm: 3.2 m to ∞ |
| Lens & Distance — DORI | 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m | 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m |
| Night Vision — Supplement Light Type | IR |
| Night Vision — Smart Supplement Light | Yes |
| Night Vision — IR IR Wavelength | 850 nm |
| Night Vision — IR Range | Up to 30 m |
| Video — Max. Resolution | 3840 × 2160 |
| Video — Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video — Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video — Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings. |
| Video — Video Compression | Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; *Third stream is supported under certain settings. |
| Video — Video Bit Rate | 32 Kbps to 16 Mbps |
| Video — H.264 Type | Baseline Profile/Main Profile/High Profile |
| Video — H.265 Type | Main Profile |
| Video — H.264+ | Main stream supports |
| Video — H.265+ | Main stream supports |
| Video — Bit Rate Control | CBR/VBR |
| Video — Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Video — Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| AI & Deep Learning — Face Capture | Yes |
| AI & Deep Learning — Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Supports human and vehicle targets classification |
| Network & Storage — Simultaneous Live View | Up to 6 channels |
| Network & Storage — API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Network & Storage — Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| Network & Storage — User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Network & Storage — Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network & Storage — Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Network & Storage — Client | iVMS-4200, Hik-Connect, Hik-Central |
| Network & Storage — Web Browser | Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Event & Alarm — Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception; -S: alarm input and output |
| Event & Alarm — Smart Event | Scene change detection |
| Event & Alarm — Linkage Method | Upload to FTP/memory card/NAS, notify surveillance center, send email, trigger recording, trigger capture; -S: trigger alarm output, audible warning |
| Interface — Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Interface — On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB |
| Interface — Reset Key | Yes |
| General & Environment — Material | Metal |
| General & Environment — Screw Material | SUS304 |
| General & Environment — Dimension | Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6") |
| General & Environment — Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" ×5.6") |
| General & Environment — Weight | Approx. 590 g (1.3 lb.) |
| General & Environment — With Package Weight | Approx. 850 g (1.9 lb.) |
| General & Environment — Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General & Environment — Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General & Environment — Firmware Version | V5.5.112 |
| General & Environment — Power Consumption and Current | 12 VDC, 0.5 A, max. 6 W | PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W |
| General & Environment — Power Supply | 12 VDC ± 25%; PoE: 802.3af, Class 3 |
| General & Environment — Power Interface | Ø 5.5 mm coaxial power plug |
| General & Environment — Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General & Environment — General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| General & Environment — Software Reset | Yes |
| General & Environment — EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
| General & Environment — Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014) |
| General & Environment — Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| General & Environment — Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
04Why choose this
Built for the way you actually use the DS-2CD2186G2H-ISU
Built to take a hit
IP67 weatherproof and IK10 vandal-resistant metal domes suit accessible, public-facing positions where a camera could be knocked.
Room to grow
Two spare channels and dual drive bays let you add cameras and storage later without replacing the system.
Fewer false alarms
AcuSense human and vehicle classification keeps alerts and searches focused on people and vehicles, not weather or animals.
05Where it fits
Right at home in these scenarios
Larger homes
Cover the front, back, sides and yard of a bigger property with six 4K cameras and people and vehicle alerts.
Shops and retail
Tamper-resistant dome coverage of entrances, aisles, tills and stockrooms with audio context.
Offices and reception
Discreet domes over entries, corridors and waiting areas with strong backlight handling.
Car parks and common areas
Impact-resistant 4K cameras for accessible public spots, with channels to spare for more coverage.
06Setup
Installation & setup
-
01
In the box
Six DS-2CD2186G2H-ISU dome cameras, the eight-channel PoE NVR, power supply and mounting accessories. Connect a monitor for local viewing.
-
02
Cabling
Run one network cable from each camera to a PoE port on the NVR. Standard Ethernet runs apply, and a PoE switch can extend reach or add ports for the spare channels.
-
03
Mounting
Fix each dome to a ceiling, wall or eave covering the area you want watched, within the 30 metre infrared range, and adjust the lens angle inside the housing.
-
04
Setup
Connect the NVR to a screen and the network, add the cameras on the plug-and-play PoE ports, set the AcuSense human and vehicle rules and recording schedule, and set up remote viewing in the Hik-Connect app.
08Questions
Frequently asked about the DS-2CD2186G2H-ISU
Q.01
What cameras and recorder are included?
The kit includes 6 DS-2CD2186G2H-ISU AcuSense cameras and one DS-7608NI-M2/8P eight-channel PoE NVR. Each camera connects to the NVR with one Ethernet cable for power and video.
Q.02
Can I add more cameras later?
Yes. The recorder is an eight-channel NVR and the kit uses six channels, so there are two spare PoE ports and channels for more cameras. Beyond eight cameras you would step up to a larger recorder, such as a sixteen-channel NVR, and add a PoE switch for the extra ports.
Q.03
What does the IK10 rating add over a normal camera?
IK10 is the highest common impact rating, so the dome housing is built to take knocks, kicks and tampering. Combined with IP67 weather sealing, it makes these cameras a strong fit for accessible and public spots such as entrances, shopfronts, stairwells and car parks where a camera might be hit.
Q.04
Do the cameras record sound?
Yes. Each DS-2CD2186G2H-ISU has a built-in microphone, so the kit can record audio alongside the video for added context during incident review. Confirm that recording audio is permitted for your site before enabling it.
Q.05
Do the cameras film in colour at night?
Not in the dark. They use DarkFighter low-light imaging for clean detail in dim conditions, but at night they switch to 30 metre infrared, so the image is black and white. For full-colour footage all night you would choose a ColorVu kit with white-light cameras.
Q.06
What does AcuSense do for me?
AcuSense uses on-camera deep learning to classify human and vehicle targets and ignore other movement such as rain, leaves or animals. The system alerts you to what matters, cuts false alarms, and lets you search recordings by human or vehicle events instead of scrubbing through hours of footage.
Q.07
Is 8 MP worth it over a lower-resolution kit?
8 MP (4K) gives roughly four times the detail of a 1080p camera, so you can zoom into a recorded scene and still read a face or a number plate within range. On domes covering entrances, tills and car parks, that extra detail is what turns footage into usable evidence.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
09In motion
10Bundles
Recommended packages
Use the two spare channels
Add up to two more DS-2CD2186G2H-ISU 8MP AcuSense vandal dome cameras to fill the eight-channel recorder.
Grow beyond eight cameras
Step up to a DS-7616NI-M2/16P 16-channel PoE NVR and add an NS-0109P-60 8-port PoE switch for the extra ports.
