Hikvision 8MP 8CH CCTV Kit: 8 x Outdoor Vandalproof Domes with Acusense + 8CH NVR/4TB
SKU: DS-2CD2186G2-I
Description

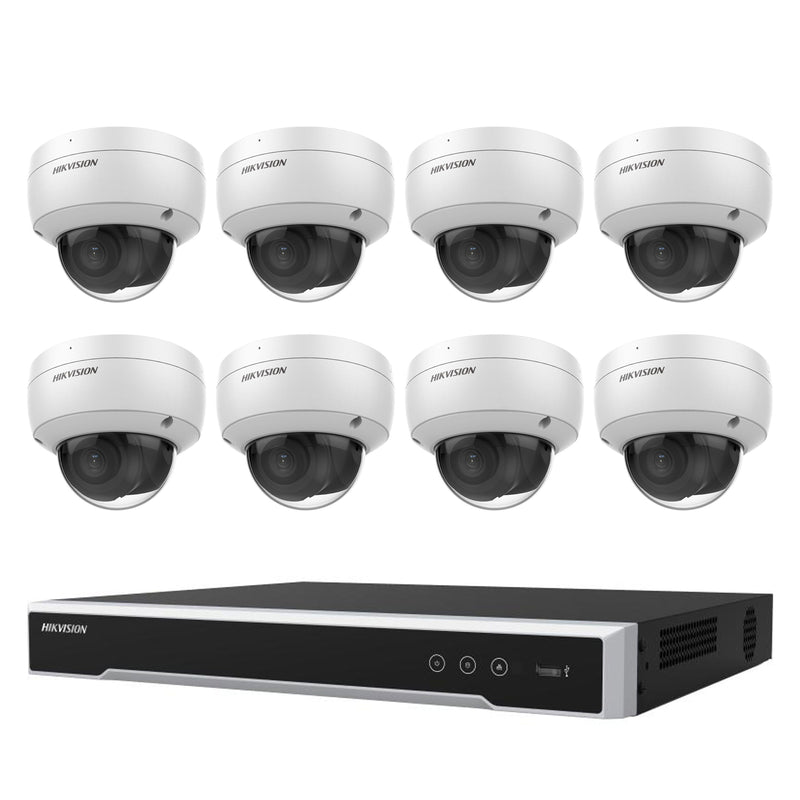

8 x 8MP Hikvision 4K AcuSense Vandal-Proof Dome Cameras
Model: DS-2CD2186G2-I
Specs: 8MP 4K Ultra HD Resolution, AcuSense Human & Vehicle Detection, IK10 Vandal-Proof & IP67 Weatherproof, 30m EXIR 2.0 Night Vision
1 x 8CH Hikvision PoE NVR (4TB HDD)
Model: DS-7608NI-I2-8P
Specs: 8-Port Plug & Play PoE, Dual-OS Design for Reliability, H.265+ Video Compression, 4TB Surveillance-Grade HDD
Regular price
$3,086.20 AUD
Sale price
$3,086.20 AUD
Regular price
$4,132.00 AUD
Sale
25.31%
$1,045.80 AUD
(25.31%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision 8MP 8CH CCTV Kit: 8 x Outdoor Vandalproof Domes with Acusense + 8CH NVR/4TB
1
/
of
1
Customize this kit Kit price $3,086.20
This kit includes:
- 8 × Hikvision DS-2CD2186G2-I 8MP Acusense Outdoor Dome CCTV Camera, 30m IR, 2.8mm
- 1 × Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR, 128Mbps, 4K, 2 Bay, 1RU, 4TB (8ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Hikvision DS-2CD2186 / DS-7608NI-I2-8P 8MP 4K Dome Camera Kit provides an elite-level surveillance solution for Australian residential properties and organisations. This package features a vandal-proof model engineered for ultra-high-definition monitoring and intelligent site security. The kit delivers exceptional clarity and robust protection, making it an ideal choice for businesses and homes requiring a professional-grade security deterrent.
§ 02Engineering
Technical specifications
- 8 x 8MP Cameras: Dome-style outdoor 4K cameras with ultra-high-definition resolution, featuring an Amberella processing chipset and a 4mm fixed lens for focused 79-degree coverage.
- AcuSense AI Technology: Employs deep learning algorithms to provide accurate human and vehicle classification, ensuring security alerts are relevant and effective.
- EXIR 2.0 Infrared Night Vision: Integrated advanced IR technology provides uniform illumination and clear visibility in total darkness up to 30 metres.
- Vandal-Proof Design: Engineered with a rugged, impact-resistant housing (IK10) designed to withstand tampering and harsh Australian outdoor environments.
- Intelligent Video Compression: Supports H.265+ technology which reduces storage and bandwidth requirements by up to 80% without sacrificing image detail.
- True Wide Dynamic Range: 120dB WDR ensures balanced video capture in high-contrast lighting conditions, such as bright glass entrances or shaded perimeters.
- 8CH NVR System: Base setup supports eight cameras with integrated PoE ports and dual-bay HDD slots for expanded high-capacity video storage.
- AcuSense AI Technology: Employs deep learning algorithms to provide accurate human and vehicle classification, ensuring security alerts are relevant and effective.
- EXIR 2.0 Infrared Night Vision: Integrated advanced IR technology provides uniform illumination and clear visibility in total darkness up to 30 metres.
- Vandal-Proof Design: Engineered with a rugged, impact-resistant housing (IK10) designed to withstand tampering and harsh Australian outdoor environments.
- Intelligent Video Compression: Supports H.265+ technology which reduces storage and bandwidth requirements by up to 80% without sacrificing image detail.
- True Wide Dynamic Range: 120dB WDR ensures balanced video capture in high-contrast lighting conditions, such as bright glass entrances or shaded perimeters.
- 8CH NVR System: Base setup supports eight cameras with integrated PoE ports and dual-bay HDD slots for expanded high-capacity video storage.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| SNR | ≥ 52 dB |
| Target Cropping | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131° | 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Working Distance | 2.8 mm: 2.6 m to ∞ | 4 mm: 3.2 m to ∞ |
| DORI | 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m | 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
Video
| Feature | Detail |
|---|---|
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio
| Feature | Detail |
|---|
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Supports human and vehicle targets classification |
Network & Storage
| Feature | Detail |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception; -S: alarm input and output |
| Smart Event | Scene change detection |
| Linkage Method | Upload to FTP/memory card/NAS, notify surveillance center, send email, trigger recording, trigger capture; -S: trigger alarm output, audible warning |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Material | Metal |
| Screw Material | SUS304 |
| Dimension | Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" ×5.6") |
| Weight | Approx. 590 g (1.3 lb.) |
| With Package Weight | Approx. 850 g (1.9 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Firmware Version | V5.5.112 |
| Power Consumption and Current | 12 VDC, 0.5 A, max. 6 W | PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W |
| Power Supply | 12 VDC ± 25%; PoE: 802.3af, Class 3 |
| Power Interface | Ø 5.5 mm coaxial power plug |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Software Reset | Yes |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
