Hikvision KIT-PHA64 AX Hybrid Kit 1x Keypad, 1x Siren Strobe, 3x PIR Detector
SKU: KIT-PHA64
Description
The Hikvision KIT-PHA64 is a complete AX Hybrid Pro wired alarm kit for a home or small business. It includes the AX Hybrid Pro control panel, a wired LCD keypad, an outdoor siren strobe, three pet-immune PIR detectors, a power supply and a backup battery — everything needed for a working hardwired alarm that you arm, disarm and monitor from the free Hik-Connect app.

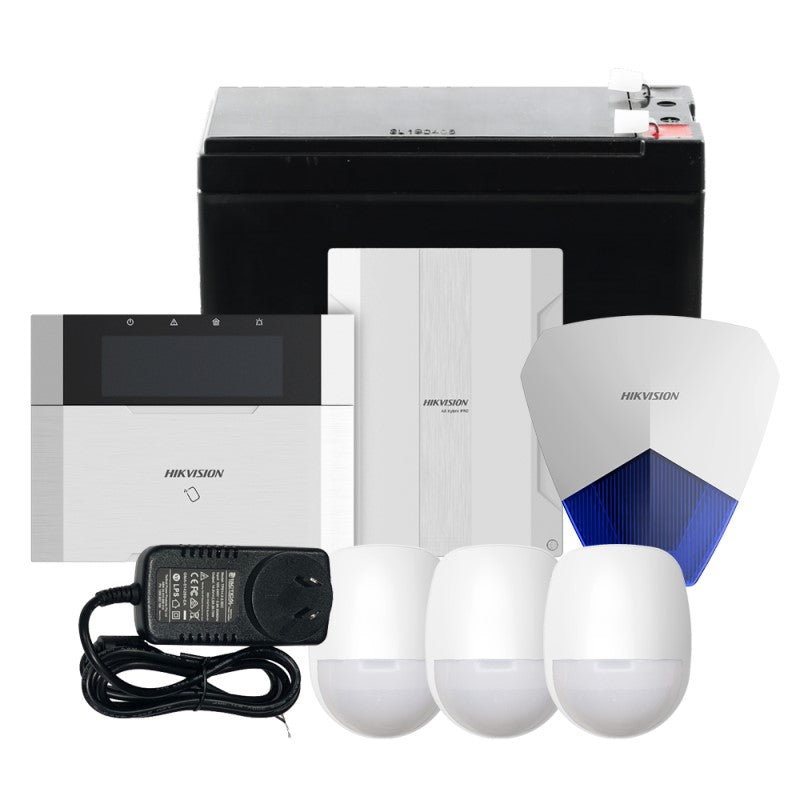

Kit includes
- 1x DS-PHA64-LP/NP AX Hybrid Pro control panel (8 onboard zones, expandable to 64)
- 1x DS-PK1-LRT-HWB wired LCD keypad with card reader
- 1x DS-PS1-B outdoor wired siren strobe (IP54, 105 dB)
- 3x DS-PDP18-EG2 wired indoor pet-immune PIR detectors with EOLR
- 1x power supply and 1x 12 V 7 Ah backup battery
- Arm, disarm and get push alerts from the free Hik-Connect app
- Genuine Australian Hikvision stock with 3-year warranty
Regular price
$451.05 AUD
Sale price
$451.05 AUD
Regular price
$517.00 AUD
Sale
12.76%
$65.95 AUD
(12.76%)
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Hikvision KIT-PHA64 AX Hybrid Kit 1x Keypad, 1x Siren Strobe, 3x PIR Detector
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the KIT-PHA64 is
The Hikvision KIT-PHA64 is a ready-to-install AX Hybrid Pro alarm kit that gives you the core of a professional hardwired intrusion system in one box. At its centre is the DS-PHA64-LP/NP AX Hybrid Pro control panel, with eight onboard zones that expand to 64 wired or wireless zones, support for 45 users and eight areas, so the kit covers a typical home now and grows with the property later.
The kit is wired. It includes a DS-PK1-LRT-HWB LCD keypad with a built-in card reader for arming and disarming, an outdoor DS-PS1-B siren strobe (IP54, 105 dB) to raise the alarm, and three DS-PDP18-EG2 indoor PIR detectors that are pet immune to cut false alarms and wire back to the panel with end-of-line resistors. A power supply and a 12 V 7 Ah backup battery are included so the system keeps working through a mains outage. Because it is the AX Hybrid Pro platform, you can later add wireless detectors and peripherals through a Tri-X wireless receiver if running cable is difficult.
You manage everything from the free Hik-Connect app — arm and disarm, see zone status and receive push notifications — with no forced monthly fee for self-monitoring; an alarm receiving centre can be added later if you want professional monitoring. A couple of honest notes: the DS-PS1-B siren is IP54 (splash resistant, mount it under cover) and has no internal battery, drawing backup from the panel; and the PDP18 detectors are wired, not wireless. It is genuine Australian Hikvision stock with local warranty and support, and professional installation is recommended.
02Engineering
KIT-PHA64 specifications
- Complete AX Hybrid Pro wired alarm kit for a home or small business
- DS-PHA64-LP/NP control panel: 8 onboard zones, expandable to 64 wired/wireless, 45 users, 8 areas
- DS-PK1-LRT-HWB wired LCD keypad with card reader for arming and disarming
- DS-PS1-B outdoor wired siren strobe (IP54, 105 dB) to raise the alarm
- 3x DS-PDP18-EG2 wired indoor pet-immune PIR detectors with EOLR to cut false alarms
- Power supply and 12 V 7 Ah backup battery included for mains-outage protection
- Arm, disarm and receive push alerts from the free Hik-Connect app; no forced monthly fee
- Expandable to wireless via a Tri-X receiver; genuine Australian stock, 3-year warranty
- DS-PHA64-LP/NP control panel: 8 onboard zones, expandable to 64 wired/wireless, 45 users, 8 areas
- DS-PK1-LRT-HWB wired LCD keypad with card reader for arming and disarming
- DS-PS1-B outdoor wired siren strobe (IP54, 105 dB) to raise the alarm
- 3x DS-PDP18-EG2 wired indoor pet-immune PIR detectors with EOLR to cut false alarms
- Power supply and 12 V 7 Ah backup battery included for mains-outage protection
- Arm, disarm and receive push alerts from the free Hik-Connect app; no forced monthly fee
- Expandable to wireless via a Tri-X receiver; genuine Australian stock, 3-year warranty
04Why choose this
Built for the way you actually use the KIT-PHA64
Professional hybrid platform
The AX Hybrid Pro panel is a proper hardwired system that also takes wireless devices later, so it suits both new wiring and retrofits.
No forced monthly fee
Self-monitor from the free Hik-Connect app with push alerts, and add a monitoring centre only if you want one.
Room to grow
Eight onboard zones expand to 64, with 45 users and eight areas, so the system scales from a home to a larger property.
05Where it fits
Right at home in these scenarios
Family homes
Protect entries and living areas with three pet-immune PIRs, an outdoor siren and app control, without nuisance alarms from the family pet.
Small business and offices
Secure a shop, office or workshop with a hardwired alarm, area arming and a keypad with card reader at the door.
New builds and renovations
Wire a proper hardwired alarm during construction, with headroom to add zones and wireless devices later.
Retrofits
Start hardwired and add wireless detectors through a Tri-X receiver where running new cable is impractical.
06Setup
Installation & setup
-
01
What's in the box
One DS-PHA64-LP/NP control panel, one DS-PK1-LRT-HWB wired LCD keypad, one DS-PS1-B outdoor siren strobe, three DS-PDP18-EG2 wired pet-immune PIR detectors, a power supply and a 12 V 7 Ah backup battery.
-
02
Installation requirements
Mount the panel in a secure indoor location near power and the network, wire the keypad, three PIRs and outdoor siren back to the panel with the supplied end-of-line resistors, fit the backup battery, then enrol the system in Hik-Connect for app control and alerts. Mount the IP54 siren under cover and the PIRs at the recommended height aimed across each room. Professional installation is recommended.
08Questions
Frequently asked about the KIT-PHA64
Q.01
What is included in the KIT-PHA64?
The kit includes one DS-PHA64-LP/NP AX Hybrid Pro control panel, one DS-PK1-LRT-HWB wired LCD keypad with card reader, one DS-PS1-B outdoor siren strobe, three DS-PDP18-EG2 wired pet-immune PIR detectors, a power supply and a 12 V 7 Ah backup battery — the core of a working hardwired alarm system.
Q.02
Is this a wired or wireless alarm system?
The kit is wired. The PDP18 detectors, keypad and siren connect by cable to the AX Hybrid Pro panel. Because it is the Hybrid Pro platform you can add wireless detectors and peripherals later through a Tri-X wireless receiver, which is useful where running cable to a new zone is difficult.
Q.03
Is there a monthly fee to use it?
No. You arm, disarm and receive push notifications through the free Hik-Connect app for self-monitoring, with no forced subscription. If you want a security company to respond, the panel can also report to an alarm receiving centre, which is a separate service you arrange.
Q.04
Will the pet-immune detectors ignore my dog?
The DS-PDP18-EG2 detectors are pet immune, so a typical dog or cat moving at floor level should not trigger them when they are mounted at the recommended height. Keep furniture a pet can climb out of the detection path, since a pet up high and close to the sensor can still cause a trigger.
Q.05
How many zones and areas does it support?
The DS-PHA64-LP/NP panel has eight onboard zones and expands to 64 wired or wireless zones, supports up to 45 users and divides into eight areas, so you can protect and arm parts of the property independently as the system grows.
Q.06
Can I expand the kit later?
Yes. You can add more wired detectors directly to the panel's zones, add wireless detectors through a Tri-X receiver, and add extra keypads, sirens, reed switches or a PIR camera as your needs grow, up to the panel's 64-zone capacity.
Q.07
Is the siren weatherproof for outdoors?
The DS-PS1-B is an outdoor siren strobe rated IP54, which is splash resistant rather than fully weatherproof, so mount it under an eave or other cover. It has no internal battery and draws backup power from the panel during a mains outage.
Q.08
Does it keep working in a power cut?
Yes. The included 12 V 7 Ah backup battery keeps the panel, detectors and reporting running through a mains outage for a period that depends on the system load, so the alarm stays armed and can still alert you.
