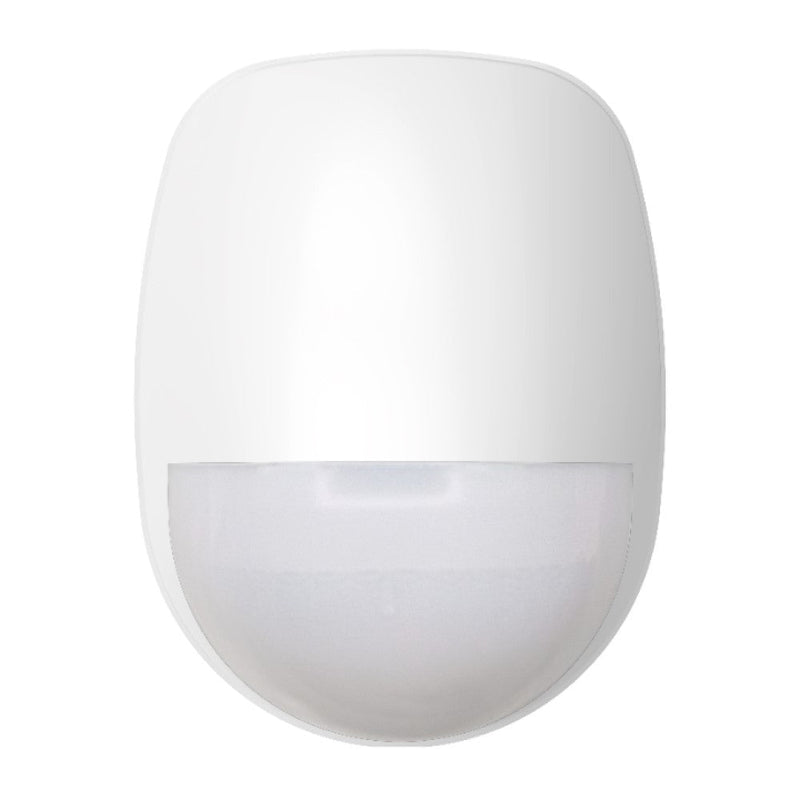

Hikvision DS-PDP18-EG2 AX Hybrid Series Wired internal 18m PIR detector

SKU: DS-PDP18-EG2
Description

The Hikvision DS-PDP18-EG2 is a wired indoor PIR motion detector from the AX Hybrid range, giving 18 metres of volumetric coverage from a slim, unobtrusive housing. It uses a dual-element infrared sensor and a 3D Fresnel lens to detect a moving intruder accurately while ignoring everyday nuisances, and its selectable end-of-line resistors let it wire into almost any hardwired or hybrid alarm panel.

Key points
- 18 m volumetric coverage at an 85.9° detection angle
- Dual-element PIR sensor with 3D Fresnel lens optics
- Creep-zone protection covers the blind spot directly below the unit
- Sealed optical chamber resists insects and false triggers
- Selectable EOL resistors (1K/2K2/4K7/5K6/8K2) suit most panels
- 9-16 VDC wired power with reverse-polarity protection
- Optional pet mask for immunity up to 10 kg

$15.05 AUD $15.05 AUD $22.00 AUD
Sale 31.59% $6.95 AUD (31.59%)

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

01Overview

What the DS-PDP18-EG2 is

The Hikvision DS-PDP18-EG2 is a wired internal PIR (passive infrared) motion detector, part of Hikvision's AX Hybrid alarm range. It is designed to sit discreetly in the corner of a room and cover up to 18 metres across an 85.9° field, picking up an intruder's body heat as they move through the protected area.

Inside, a dual-element infrared sensor works with a 3D Fresnel lens to focus the infrared signal precisely, which improves catch performance on a real target while reducing false alarms. A dedicated creep zone covers the blind spot directly beneath the detector so an intruder cannot crawl under the beam, a sealed optical chamber keeps insects and stray light from causing nuisance trips, and Hikvision's IFT anti-interference circuitry holds the alarm threshold steady when there is electrical or electromagnetic noise nearby. Sensitivity is selectable (High, Auto or Low) to suit the room.

This is a hardwired detector: it runs on 9-16 VDC (12 VDC standard) with reverse-polarity protection, and it offers selectable end-of-line resistor values (1K, 2K2, 4K7, 5K6 and 8K2 for the alarm, plus matching tamper values), so it wires neatly into Hikvision AX Hybrid panels and most other hardwired alarm controllers. It mounts at 1.8 to 2.4 m on a wall or, with the optional bracket, a ceiling. For homes with animals, an optional pet mask gives immunity to pets up to about 10 kg. It is genuine Australian Hikvision stock with local warranty and support.

02Engineering

DS-PDP18-EG2 specifications

- Wired indoor PIR detector with 18 m volumetric coverage at 85.9°
- Dual-element infrared sensor with 3D Fresnel lens for accurate detection
- Creep-zone protection guards the blind spot directly below the unit
- Sealed optical chamber resists insects and internal reflections that cause false alarms
- IFT anti-interference keeps the alarm threshold stable under electrical noise
- Selectable sensitivity (High / Auto / Low) to suit each room
- Selectable EOL alarm resistors (1K/2K2/4K7/5K6/8K2) suit most alarm panels
- 9-16 VDC wired power with reverse-polarity protection and front tamper
- Optional pet mask for immunity to pets up to about 10 kg

03Full datasheet

Detailed specifications

Lens & Distance

Lens & Distance — Hikvision DS-PDP18-EG2 AX Hybrid Series Wired internal 18m PIR detector
FeatureDetail
Detection Range 18 m
Detection Angle 85.9°
Detection Velocity 0.3 to 2 m/s
Sensor Dual-element infrared (PIR)
Lens 3D Fresnel lens

04Why choose this

Built for the way you actually use the DS-PDP18-EG2

Works with almost any panel

Selectable EOL alarm and tamper resistor values (1K to 8K2) let it wire into Hikvision AX Hybrid panels and most other hardwired alarm controllers, so it fits new and existing systems alike.

Fewer false alarms

A sealed anti-insect optical chamber, IFT anti-interference circuitry and selectable sensitivity work together to keep the detector triggering on real intruders, not bugs or electrical noise.

Full-room, no-gap coverage

18 metres at 85.9° with dedicated creep-zone protection covers a large room right down to the wall beneath the unit, leaving no easy path for an intruder to crawl under.

Pet-friendly option

Fit the optional pet mask for immunity to pets up to about 10 kg, so the family cat or small dog will not set the alarm off.

05Where it fits

Right at home in these scenarios

Living and family rooms

Mount in a corner to cover an open living area, hallway or entry where an intruder is most likely to pass.

Offices and shops

Protect a reception, office or retail floor on a hardwired alarm with a detector that resists false trips from insects and electrical noise.

Homes with pets

Add the optional pet mask so animals up to about 10 kg can move around without triggering the alarm.

Upgrades to existing wired alarms

Replace ageing PIRs on a hardwired panel using the selectable resistor values to match the existing zone wiring.

06Setup

Installation & setup

  1. What's in the box

    One DS-PDP18-EG2 wired PIR detector with mounting hardware. The optional pet mask, ceiling bracket and zone cabling are not included; an alarm panel is required.

  2. Installation requirements

    Mount the detector in a room corner at 1.8 to 2.4 m, run the zone cable back to your alarm panel and set the end-of-line resistor value to match the panel. Connect 9-16 VDC power (reverse-polarity protected), choose the sensitivity setting for the room, and walk-test the coverage before arming. Fit the optional pet mask first if you have animals. Professional installation is recommended for hardwired alarm work.

08Questions

Frequently asked about the DS-PDP18-EG2

Q.01

Is the DS-PDP18-EG2 wired or wireless?
It is a wired (hardwired) PIR detector. It runs on 9 to 16 VDC and connects to your alarm panel's zone wiring, which is why it is part of Hikvision's AX Hybrid range rather than the wireless AX PRO range. If you need a wireless PIR, look at the DS-PDP15P-EG2-WB instead.
Q.02

What alarm panels does it work with?
It works with Hikvision AX Hybrid panels such as the DS-PHA64-LP/NP, and because it offers selectable end-of-line resistor values (1K, 2K2, 4K7, 5K6 and 8K2) it also suits most other hardwired alarm controllers on the market. Set the resistor value to match your panel's zone configuration.
Q.03

How far and wide does it detect?
It gives up to 18 metres of volumetric coverage across an 85.9° angle, so a single unit covers a typical large room. Mount it at a height of 1.8 to 2.4 metres in a corner facing across the area you want to protect for the best catch performance.
Q.04

Is it suitable for homes with pets?
Yes, with the optional pet mask fitted it provides immunity to pets up to about 10 kilograms, which reduces false alarms from cats and small dogs. The pet mask is an accessory and is not fitted as standard, so add it if you have animals moving through the protected area.
Q.05

Will it cause false alarms from insects or interference?
It is designed to minimise them. A sealed optical chamber keeps insects out and blocks internal reflections, and Hikvision's IFT anti-interference circuitry adjusts the alarm threshold when there is electrical or electromagnetic noise nearby, which helps keep detection stable.
Q.06

What is creep-zone protection?
The creep zone is the area directly below the detector that a simple lens can miss. The DS-PDP18-EG2's optics include a dedicated creep-zone segment so an intruder cannot avoid detection by crawling close to the wall under the unit.
Q.07

How is it powered and does it need a battery?
It is powered from your alarm panel or a 9 to 16 VDC supply over the wiring, with reverse-polarity protection in case the wires are crossed. There is no battery to replace, as it draws power continuously from the panel like other hardwired detectors.
Q.08

Can it be ceiling mounted?
It is primarily a wall-mount detector installed at 1.8 to 2.4 metres. Wall and ceiling mounting accessories are available as options if you need to fit it to a ceiling or angle it into a corner.
