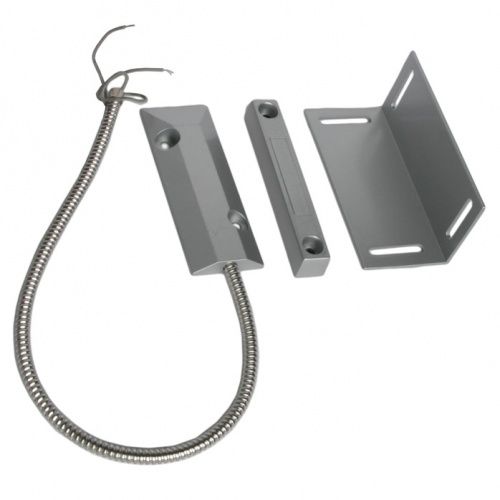

Universal Roller Door Reed Switch RSRDM
SKU: RSRDM
Description
The RSRDM Universal Roller Door Reed Switch is a heavy-duty wired magnetic contact for monitoring roller shutters, garage doors and large commercial doors. It is a normally closed (NC) switch with a wide operating gap and armoured leads, and wires into a zone on any standard hardwired alarm panel.
Key points
- Heavy-duty wired reed switch for roller shutters and garage doors
- Normally closed (NC) output for any standard hardwired alarm zone
- Wide operating gap (around 50-60 mm) to suit large moving doors
- Metal alloy housing with a nickel-plated neodymium magnet
- 480 mm stainless-steel armoured leads (22 AWG) to protect the wiring
- Wired contact (not a wireless device); suits commercial and industrial doors
Regular price
$26.20 AUD
Sale price
$26.20 AUD
Regular price
$36.40 AUD
Sale
28.02%
$10.20 AUD
(28.02%)
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Universal Roller Door Reed Switch RSRDM
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the RSRDM is
The RSRDM Universal Roller Door Reed Switch is a rugged wired magnetic contact made for the doors a normal reed switch cannot handle. It detects whether a roller shutter, garage door or large commercial door is open or closed, and reports it to a zone on a hardwired alarm panel.
It is a normally closed (NC) switch, the configuration most installers prefer because a cut wire or a faulty contact shows the door as open and trips the zone rather than failing silently. The magnet and switch are built into a metal alloy housing with a nickel-plated neodymium magnet, and the contact is fitted with 480 mm stainless-steel armoured leads (22 AWG) so the wiring near the door survives the knocks and movement of a roller door. The wide operating gap (around 50-60 mm) allows for the larger, less precise alignment of shutters and garage doors.
This is a wired device, not a wireless sensor: despite the listing's branding it connects by cable to a panel zone, the same as any standard NC contact, so it works with Bosch and other hardwired or hybrid alarm panels. The switch mounts on the frame and the magnet on the door, aligned so they sit close when the door is closed. It should be installed by a licensed security installer or competent technician familiar with NC alarm-zone wiring.
02Engineering
RSRDM specifications
- Heavy-duty wired reed switch for monitoring roller shutters, garage doors and large commercial doors.
- Normally closed (NC) output, the fault-tolerant choice: a cut wire or faulty contact shows the door as open and trips the zone.
- Wide operating gap (around 50-60 mm) to suit the larger, less precise alignment of roller and garage doors.
- Metal alloy housing with a nickel-plated neodymium magnet for a durable, strong magnetic contact.
- 480 mm stainless-steel armoured leads with 22 AWG wire to protect the cabling at the door against knocks and movement.
- A wired contact (not a wireless device); connects to a zone on any standard hardwired or hybrid alarm panel.
- Normally closed (NC) output, the fault-tolerant choice: a cut wire or faulty contact shows the door as open and trips the zone.
- Wide operating gap (around 50-60 mm) to suit the larger, less precise alignment of roller and garage doors.
- Metal alloy housing with a nickel-plated neodymium magnet for a durable, strong magnetic contact.
- 480 mm stainless-steel armoured leads with 22 AWG wire to protect the cabling at the door against knocks and movement.
- A wired contact (not a wireless device); connects to a zone on any standard hardwired or hybrid alarm panel.
04Why choose this
Built for the way you actually use the RSRDM
Fault-tolerant NC wiring
The normally closed output means a cut wire or fault shows the door as open and trips the zone, rather than failing silently.
Protected wiring
480 mm stainless-steel armoured leads guard the cable at the door against knocks and the movement of a roller door.
Works with any panel
As a plain wired NC contact it connects to a zone on Bosch and other hardwired or hybrid alarm systems.
05Where it fits
Right at home in these scenarios
Garage doors
Monitor whether a tilt or roller garage door is open or closed as part of a home alarm.
Commercial roller shutters
Secure shopfront and warehouse roller shutters where a wide-gap contact is needed.
Industrial and warehouse doors
Protect large moving doors that a standard surface contact cannot cover.
Hardwired alarm zones
Add a durable open/close input to any wired or hybrid alarm panel zone.
06Setup
Installation & setup
-
01
What it is
A wired normally closed (NC) roller-door reed switch. It is not a wireless device: it connects by cable to a zone on a standard alarm panel.
-
02
Mounting
Mount the switch on the door frame and the magnet on the door, aligned so they sit close when the door is closed; the wide gap allows for roller-door movement.
-
03
Wiring
Wire the NC contact into an alarm panel zone (often in series with other NC contacts). The armoured leads protect the cable near the door.
-
04
Professional install
Installation should be completed by a licensed security installer or a competent technician familiar with NC alarm-zone wiring.
08Questions
Frequently asked about the RSRDM
Q.01
What is the RSRDM used for?
It is a heavy-duty wired reed switch that monitors whether a roller shutter, garage door or large commercial door is open or closed.
Q.02
Is it a wireless sensor?
No. Despite the branding it is a wired contact: it connects by cable to a zone on a standard hardwired or hybrid alarm panel.
Q.03
Is it normally open or normally closed?
It is normally closed (NC), so a cut wire or fault shows the door as open and trips the zone.
Q.04
What is the operating gap?
It has a wide operating gap, around 50-60 mm (the listing also references up to about 65 mm); confirm alignment on site.
Q.05
Why use it instead of a standard reed switch?
Roller and garage doors move and align less precisely, so they need a wider-gap, heavy-duty contact like this one.
Q.06
What are the leads like?
It has 480 mm stainless-steel armoured leads with 22 AWG wire to protect the cabling at the door.
Q.07
Which panels does it work with?
Any standard hardwired or hybrid alarm panel with a spare zone, including Bosch systems.
Q.08
Who should install it?
A licensed security installer or competent technician familiar with normally closed alarm-zone wiring.
