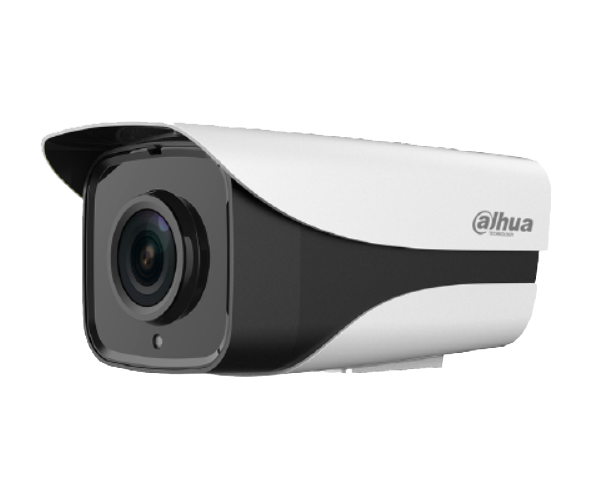

DAHUADH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120 2MP 4G IR BULLET NETWORK CAMERA
SKU: DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120
Description
2MP 4G bullet camera that streams over the mobile network with no fixed internet or cabling, ideal for remote and off-grid sites when paired with a SIM and solar power.
- 2MP 1/2.9" Starlight CMOS, 1920 x 1080
- 4G mobile network with SIM card slot
- Fixed 3.6mm lens (6mm option)
- Smart IR up to 40m
- microSD storage up to 256GB
- IVS tripwire and intrusion detection
- IP67 metal and plastic housing; 12V DC power
Regular price
$578.23 AUD
Sale price
$578.23 AUD
Regular price
$951.00 AUD
Sale
39.2%
$372.77 AUD
(39.2%)
Member Price$560.88 AUD
Sign into save $17.35 AUD · Free to join
Business or bulk buyer? Apply for trade pricing →
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
DAHUADH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120 2MP 4G IR BULLET NETWORK CAMERA
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $1,178.23
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120 is
The Dahua DH-IPC-HFW4230MP-4G-AS-I2 is a 2MP bullet that connects over the 4G mobile network instead of a wired internet connection, so it can be deployed where there is no NBN, no Wi-Fi and no network cabling.
With a SIM card and a mobile data plan it streams and sends alerts over cellular, which makes it a practical choice for construction sites, farms, rural blocks, off-grid sheds and remote yards across Australia.
A 1/2.9-inch 2MP Starlight sensor holds colour detail in low light, and Smart IR reaches up to 40m for night coverage.
It records to a microSD card up to 256GB at the edge (the card is not included), and supports IVS tripwire and intrusion detection.
Because it is a 4G camera it is powered by 12V DC and does not use PoE, so it is commonly run from a solar power kit with a battery for a fully off-grid install.
It is supplied with a fixed 3.6mm lens, with a 6mm option, and the IP67 housing handles dust and rain.
It has IVS rule-based detection rather than SMD human and vehicle classification, and it does not have a built-in microphone, so it does not record on-site audio.
See it in action
What the DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120 features actually look like
Representative illustrations of how each key feature performs in a real scene.
40m IR Night Vision
Built-in infrared sees in total darkness up to around 40m, reaching further across a larger yard or laneway. Subjects appear in clear black-and-white, sharper and brighter as they get closer.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120 specifications
- 4G connectivity: streams and sends alerts over the mobile network using a SIM card and a data plan, no fixed internet needed
- Sensor and resolution: 2MP 1/2.9" Starlight CMOS, 1920 x 1080, for colour detail in low light
- Night vision: Smart IR up to 40m for night coverage of yards and approaches
- Lens: fixed 3.6mm (6mm option), giving a wide view for general site coverage
- Edge storage: microSD card up to 256GB records on-board (card not included)
- Detection: IVS tripwire and intrusion for rule-based alerting on defined zones
- Power: 12V DC, suited to running from a solar power kit with a battery; it does not use PoE
- Durability: IP67 metal and plastic housing, -30C to +60C, for exposed remote sites
- Sensor and resolution: 2MP 1/2.9" Starlight CMOS, 1920 x 1080, for colour detail in low light
- Night vision: Smart IR up to 40m for night coverage of yards and approaches
- Lens: fixed 3.6mm (6mm option), giving a wide view for general site coverage
- Edge storage: microSD card up to 256GB records on-board (card not included)
- Detection: IVS tripwire and intrusion for rule-based alerting on defined zones
- Power: 12V DC, suited to running from a solar power kit with a battery; it does not use PoE
- Durability: IP67 metal and plastic housing, -30C to +60C, for exposed remote sites
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.9” 2Megapixel progressive scan CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| RAM/ROM | 256MB/32MB |
| Scanning System | Progressive |
| Minimum Illumination | 0.04Lux/F2.0( Color,1/3s,30IRE); 0.22Lux/F2.0( Color,1/30s,30IRE); 0Lux/F2.0(IR on) |
| S/N Ratio | More than 56dB |
| Day/Night | Auto ICR |
| BLC Mode | BLC / HLC / DWDR |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization (EIS) | N/A |
| Defog | N/A |
| Digital Zoom | N/A |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 3.6mm (6mm optional) |
| Max. Aperture | F2.0 |
| Angle of View | H: 82.5° (51.5°), V: 44° (29.5°) |
| Optical Zoom | N/A |
| Focus Control | Fixed |
| Close Focus Distance | 0.9m(2m) 29.5ft(6.56ft) |
| DORI Distance | 3.6mm: Detect 53m(174ft); Observe 21m(69ft); Recognize 10m(33ft) | 6mm: Detect 80m(262ft); Observe 32m(105ft); Recognize 16m(52ft) |
| Pan/Tilt/Rotation Range | N/A |
Night Vision
| Feature | Detail |
|---|---|
| IR Distance | Distance up tp 40m (131.2ft) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 2 |
| Smart IR | Support |
Video
| Feature | Detail |
|---|---|
| Compression | H.265/H.264H/MJPEG(Sub Stream) |
| Smart Codec | Support H.265/H.264 |
| Streaming Capability | 2 Streams |
| Frame Rate | Main Stream: 1080P@25fps | Sub Stream: D1@25fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32~10240Kbps H.265: 12~6400Kbps |
Audio
| Feature | Detail |
|---|---|
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS | Tripwire, Intrusion |
Network & Storage
| Feature | Detail |
|---|---|
| Mobile Communication | 4G |
| Operating band | Model 1: TDD-LTE:Band38/39/40/41; FDD-LTE:Band1/3/5/8; WCDMA:Band1/8; TD-SCDMA:Band34/39; EVDO/CDMA1X:BC0; GSM:Band3/8 | Model 2: FDD-LTE:Band1/2/3/4/5/7/8/20; UMTS:Band1/2/5/8; GSM:850/900/1800/1900 |
| Protocol | HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS |
| Interoperability | ONVIF Profile S&G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users /20 Users |
| Edge Storage | NAS; Local PC for instant recording; Mirco SD card 256GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Event Trigger | Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly |
Interface
| Feature | Detail |
|---|---|
| Ethernet | RJ-45 (10/100Base-T) |
| Audio Interface | 1/1 channel In/Out |
| Alarm | 2 channel In: 500mA 5VDC | 2 channel Out: 300mA 12VDC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | DC12V±30% |
| Power Consumption | 3.6W, 9.5W(IR on); 6W(4G on, IR off) |
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Storage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | N/A |
| Casing | Metal+Plastic |
| Dimensions | 194.4mm×96.6mm×89.5mm (7.65”×3.8”×3.52”) |
| Net Weight | 0.7kg (1.54lb) |
| Gross Weight | 0.8kg (1.76lb) |
| Certifications | CE-LVD: EN60950-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B |
§ 04Why choose this
Built for the way you actually use the DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120
Built for off-grid sites
12V DC power suits running from a solar kit and battery, making it practical for remote farms, blocks and construction sites.
Colour low-light detail
A Starlight sensor holds colour in dim conditions, with 40m Smart IR for full darkness at remote yards and approaches.
Weatherproof and self-contained
An IP67 housing and edge microSD recording keep it working at exposed sites with no on-site recorder needed.
§ 05Where it fits
Right at home in these scenarios
Construction and work sites
Temporary monitoring of plant, materials and access on sites with no fixed power or internet, powered by solar and 4G.
Farms and rural blocks
Watches gates, sheds, water points and laneways across acreage where running cable is impractical.
Off-grid and remote assets
Covers pump stations, tanks, depots and remote infrastructure that have no mains power or wired network.
Gates and entry points
A wide 3.6mm view and 40m IR cover an entrance or driveway at a property without existing cabling.
§ 06Setup
Installation & setup
Fit a SIM and check coverage
Install a SIM card with an active data plan and confirm the carrier has solid 4G coverage at the exact site before committing to the position, as signal strength affects streaming reliability.
Provide 12V DC or solar power
This camera does not use PoE. Provide a 12V DC supply, or for an off-grid install pair it with a solar power kit and battery sized for the camera and the local sunlight.
Mount and fit a microSD card
Fix the bullet to a wall, post or bracket with a clear view of the area, and fit a microSD card up to 256GB for edge recording, as the card is not included.
Set IVS rules and remote viewing
Configure tripwire and intrusion zones and set up the Dahua app for remote viewing and alerts over the mobile network.
§ 07Questions
Frequently asked about the DH-IPC-HFW4230MP-4G-AS-I2-0360B-HW120
Q.01
Do I need a SIM card and data plan to use it?
Yes. This is a 4G camera, so it needs a SIM card and an active mobile data plan to stream video and send alerts over the cellular network. Choose a carrier with good coverage at the site, and pick a data plan that suits how much live viewing and recording you expect, as continuous streaming uses significant data.
Q.02
How is it powered, and can it run on solar?
It runs on 12V DC and does not use PoE. Because of this it is commonly paired with a solar power kit and battery for a fully off-grid install, which is why it is popular for remote sites with no mains power. You can also run it from a standard 12V DC supply where power is available.
Q.03
Does it connect to an NVR?
It is designed to work over the mobile network to the Dahua app and platform rather than to a local PoE NVR. It records to its own microSD card at the edge, and you view and manage it remotely. This is different to a wired PoE camera that records to an on-site NVR.
Q.04
How far does the night vision reach?
Smart IR reaches up to 40m, suiting yards, driveways and approaches at remote sites. The Starlight sensor holds colour detail in low light before the scene switches to monochrome infrared in full darkness.
Q.05
Does it detect people and vehicles specifically?
It has IVS tripwire and intrusion detection that alert when movement crosses a line or enters a zone. It uses rule-based detection rather than the SMD human and vehicle classification found on Dahua WizSense cameras, so it does not filter alerts by target type in the same way.
Q.06
Does it record audio?
No. This model does not have a built-in microphone, so it does not capture on-site audio. It has audio input and output terminals for connecting external audio devices if needed, but no microphone or speaker is built in.
Q.07
Is it rated against impact and weather?
The housing is IP67-rated against dust and water for exposed outdoor sites across a -30C to +60C range. The manufacturer datasheet does not list a vandal-resistance rating for this model, so we do not claim an IK impact rating; mount it out of easy reach where tampering is a concern.
Q.08
What lens does it have and what does it cover?
It is supplied with a fixed 3.6mm lens for a wide general view, with a 6mm option available for a narrower, longer reach. The lens is fixed and cannot be zoomed after install, so plan the mounting position and height for the area you want to cover.
§ 09Bundles
Recommended packages
Power for off-grid sites
As a 12V DC 4G camera, it suits a solar power kit with a battery for sites with no mains supply, or a standard 12V DC supply where power is available. It does not use PoE, so no network switch or PoE NVR is needed.
Storage
Fit a microSD card up to 256GB for on-board edge recording; the card is not included. Recording and viewing are handled over the mobile network through the Dahua app rather than a local NVR.
SIM and data plan
Add a SIM card with a mobile data plan from a carrier with good coverage at the site. Allow enough data for the amount of live viewing and recording you expect, as continuous streaming uses significant data.
