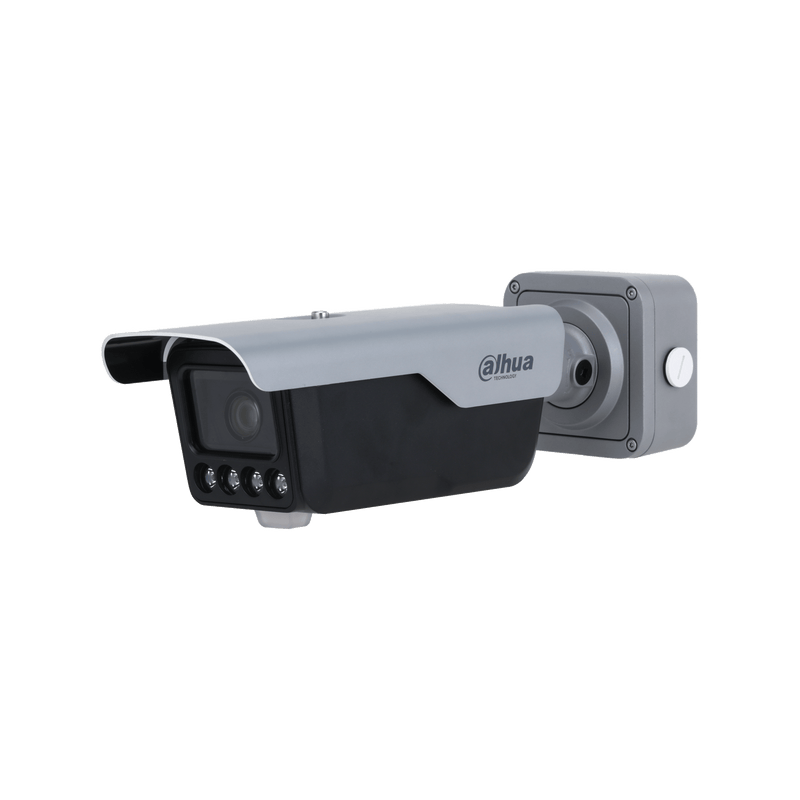

Dahua ITC413-PW4D-IZ1 ANPR Camera – 4MP Motorized Vari-focal, IR License Plate Recognition 2.7-12mm
SKU: ITC413-PW4D-IZ1
Description
The Dahua ITC413-PW4D-IZ1 is a 4MP ANPR camera built specifically to read number plates and act on them at a single-lane entry or exit. A deep-learning engine recognises the plate, vehicle type, brand and colour, and onboard relay outputs can trigger a boom gate or barrier directly, with no separate access controller required.
At a glance
- 4MP (2688 x 1520) ANPR camera, motorised 2.7-12mm varifocal lens
- 140 dB WDR with Scene Self-Adaptation for plate capture in harsh light
- Reads plates up to 80 km/h; allowlist and blocklist up to 110,000 entries each
- 2 relay outputs, Wiegand and RS-485; IP67, IK10, PoE+ or 12 VDC
Regular price
$1,087.80 AUD
Sale price
$1,087.80 AUD
Regular price
$1,111.00 AUD
Sale
2.09%
$23.20 AUD
(2.09%)
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Dahua ITC413-PW4D-IZ1 ANPR Camera – 4MP Motorized Vari-focal, IR License Plate Recognition 2.7-12mm
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the ITC413-PW4D-IZ1 is
The Dahua ITC413-PW4D-IZ1 is a dedicated 4MP Automatic Number Plate Recognition (ANPR) camera for controlled vehicle entry and exit points, not a general camera adapted to read plates. Its 1/1.8" sensor, 140 dB WDR and motorised 2.7-12mm lens are tuned for capturing reflective plates at a 3 m to 8 m distance and a 3 m to 4 m lane width, for vehicles up to 80 km/h, with capture accuracy of 99% or greater.
The deep-learning engine reads the plate and also classifies vehicle type, brand and colour. Two relay outputs let the camera trigger a barrier, boom gate, lights or a siren directly when a plate on the allowlist is recognised, and a Wiegand output plus 2 RS-485 channels integrate with existing access control panels. Allowlists and blocklists hold up to 110,000 entries each, stored on the camera, so access decisions can be made locally without a constant server connection.
Built-in IR is tuned for plate capture to about 10 m, with general video coverage to 30 m. The aluminium housing carries IP67 and IK10 ratings for unsupervised outdoor mounting, a built-in microphone and 2 W speaker support two-way audio, and a microSD slot holds up to 256 GB for local plate images. Power is PoE+ (802.3at) or 12 VDC.
See it in action
What the ITC413-PW4D-IZ1 features actually look like
Representative illustrations of how each key feature performs in a real scene.
4MP Ultra HD
4MP captures roughly twice the detail of standard 1080p.
30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
Two-Way Audio
Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.
Blue/Red Strobe
When activity is detected after dark, the camera can flash a bright red-and-blue strobe to warn intruders they've been seen — active deterrence, not just a recording for later.
02Engineering
ITC413-PW4D-IZ1 specifications
- ANPR engine: Deep-learning recognition reads plates and identifies vehicle type, brand and colour, with capture accuracy of 99% or greater.
- Motorised lens: A 2.7-12mm varifocal lens with remote zoom and focus frames the plate precisely for each lane without remounting.
- 140 dB WDR: Scene Self-Adaptation prevents plate washout when vehicles move from bright sun into a shaded entry lane.
- Direct gate control: Two relay outputs trigger barriers, boom gates, lights or sirens; Wiegand and RS-485 integrate with access panels.
- Large local lists: Allowlist and blocklist support up to 110,000 entries each, stored on the camera for offline access decisions.
- Two-way audio: A built-in microphone and 2 W speaker allow spoken communication with drivers at the lane.
- Built tough: Aluminium IP67 and IK10 housing, microSD to 256 GB, and PoE+ or 12 VDC power for outdoor entry points.
- Motorised lens: A 2.7-12mm varifocal lens with remote zoom and focus frames the plate precisely for each lane without remounting.
- 140 dB WDR: Scene Self-Adaptation prevents plate washout when vehicles move from bright sun into a shaded entry lane.
- Direct gate control: Two relay outputs trigger barriers, boom gates, lights or sirens; Wiegand and RS-485 integrate with access panels.
- Large local lists: Allowlist and blocklist support up to 110,000 entries each, stored on the camera for offline access decisions.
- Two-way audio: A built-in microphone and 2 W speaker allow spoken communication with drivers at the lane.
- Built tough: Aluminium IP67 and IK10 housing, microSD to 256 GB, and PoE+ or 12 VDC power for outdoor entry points.
03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Image Resolution | 2688 x 1520 |
| Electronic Shutter Speed | Auto/Manual 1/25 s-1/100,000 s |
| Max. Detection Speed | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:80 km/h | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:120 km/h |
| Min. Illumination | DHI-ITC413-PW4D-Z1,DHI-ITC413-PW4D-IZ1 0.0004 Lux@F1.4 (Color, 30 IRE); 0.0001 Lux@F1.4 (B/W, 30 IRE); 0 Lux (Illuminator on) | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: 0.001 Lux@F1.6 (Color, 30 IRE); 0.0002 Lux@F1.6 (B/W, 30 IRE), Lux (Illuminator on) |
| ROM | 4 GB |
| RAM | 1 GB |
| S/N Ratio | >56 dB |
| Scanning System | progressive scanning |
| Gain Control | Manual; Auto |
| Noise Reduction | 3D NR |
| Region of Interest (Rol) | Yes, 3 |
| Image Tampering Prevention | Yes. Watermarks can be added to videos and images. The watermark can also be verified. |
| Scene Selfadaptation- (SSA) | Yes |
| Image | JPEG |
| Image Encoding Format | JPEG |
| Image Setting | Brightness; contrast, saturation; gamma; sharpness, gain; white balance |
| Day/Night | IR filter, support three modes: color/BW//auto |
| WDR | 140 dB |
| HLC | Yes |
| BLC | Yes |
| White Balance | Auto: Regional Custom; Manual; Outdoor, Natural; Street Lamp |
| Digital Detail Enhancement (DDE) | Yes |
| OSD Overlay | Supports overlay of time, address (position of channel), lane (number/direction), plate (number and color), vehicle (calor, type) |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length | DHIITC413--PW4D-Z1, DHI-ITC413-PW4D-IZ1: 2.7 mm-12 mm | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: 8 mm-32 mm |
| Field of View | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: H: 92 (W)-46.1 (T) V: 49° (W)-26.0 (T) D: 109 (W)-52.8" (T) | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: H: 39.9 (W)-15.1" (T) V: 21.8 (W)-8.5 (T) D: 46.6 (W)-17.4" (T) |
| Focus Control | Auto, area focus, manual |
| Number of Lens | 1 |
| Lens Type | Motorized Vari-focal |
| Max. Aperture | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:1.4 | DHI-ITC413-PW4D-23, DHI-ITC413-PW4D-IZ3:1.6 |
| Iris Control | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:DC-Iris | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:P-Iris |
| DORI Distance | W (DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1): Observe: 24.2 m (79.40 ft), Detect: 60.4 m (198.16 ft), Identify: 6.0 m (19.68 ft), Recognize: 12.1 m (39.70 ft) | T (DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1): Observe: 51.5 m (168.96 ft), Detect: 128.7 m (422.24 ft), Identify: 12.9 m (42.32 ft), Recognize: 25.7 m (84.32 ft) | W (DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3): Observe: 64.0 m (209.97 ft), Detect: 160.0 m (524.93 ft), Identify: 16.0 m (52.49 ft), Recognize: 32.0 m (104.99 ft) | T (DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3): Observe: 162.8 m (534.12 ft), Detect: 406.9 m (1334.97 ft), Identify: 40.7 m (133.53 ft), Recognize: 81.4 m (267.06 ft) |
| Capture Distance | DHI-ITC413-PW4D-21, DHI-ITC413-PW4D-IZ1: 3 m-8 m (9.84 ft-26.25 ft) | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: 8 m-30 m (26.25 ft-98 43 ft) |
| Detected Width | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1 3 m-4 m (9.84 ft-13.12 ft) | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: 6 m-8 m (19.69 ft-26.25 ft) |
Night Vision
| Feature | Detail |
|---|---|
| Illuminator Number | 4 |
| Illuminator On/Off Control | Auto, manual |
| Illuminator Type | DHIHTC413-PW4D-IZ1, DHI-ITC413-PW4D-IZ3:IR (850 nm) | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-Z3 Dual Illuminators (730 nm IR/warm light) |
| Illumination Distance | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: ANPR: 10 m (32.81 ft) Video monitoring: 30 m (98.43 ft) | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: ANPR: 30 m (98.43 ft) Video monitoring: 60 m (196.85 ft) |
| Smart Illumination | According to the brightness of the environment, the camera automatically adjusts the intensity of its light to reveal the details of moving targets. Devices with warm light can automatically adjust the light intensity according to the time. |
| Infrared Wavelength | DHI-ITC413-PW4D-IZ1, DHI-ITC413-PW4D-IZ3:850 nm | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-23:730 nm |
Video
| Feature | Detail |
|---|---|
| Video Resolution | Main stream: 4M (2688 x 1520)/1080p (1920 x 1080)/720p (1280 x 720) | Sub stream: 720p (1280 x 720)/960H ( 960 x 576, 960 x 480)/01 ( 704 x 576, 704 x 480)/CIF (352 x 288, 352 x 240) |
| Stream | PAL: Main stream (2688 x 1520@25 fps, 1920 x 1080@25 fps, 1280 x 720@25 fps), sub stream (1280 x 720@25 fps, 960 x 576@25 fps, 704 x 576@25 fps, 352 x 288@25 fps); NTSC: Main stream (2688 x 1520@30 fps, 1920 x 1080@30 fps, 1280 x 720@30 fps), sub stream (1280 x 720@30 fps, 960 x 480@30 fps, 704 x 40803t fps, 352 x 240@30 fps) |
| Video Compression | H.264H; H.264B; H.264M by default; H.265; MJPEG; H.264M |
| Video Bit Rate | H.264B: 2,179 kbps-13,074 kbps | H.264M: 2,179 kbps-13,074 kbps | H.264H: 2,179 kbps-13,074 kbps | H.265: 2,179 kbps-13,074 kbps | MJPEG: 6,537 kbps-39,223 kbps |
| Bit Rate Control | CBR; VBR |
Audio
| Feature | Detail |
|---|---|
| Audio Port | Yes |
| Built-in MIC | Yes; Pick-up distance: 3 m (9.84 ft), Sampling Rate: 48 k. |
| Built-in Speaker | Yes, Power: 2 W |
| Audio Output | 1 charinel (RCA port) |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Al Recognition | Recognizes vehicle types, vehicle signs, vehicle color, vehicle plate, plate, vehicle without plate. |
| Video Metadata | Displays the intelligent frame, plate and vehicle paths. |
| Vehicle Brand | Recognizes 147 vehicle logos. |
| Vehicle Color | Recognizes 12 colors: Grey, black, white, silver, blue, green, purple, red, orange, pink, brown, and yellow. |
| Vehicle Type Recognition | Recognizes 10 vehicle types: Large Bus, Heavy Truck, Medium Truck, Sedan, Van, Light Truck, Medium Bus, SUV, MPV, Pickup |
| Country and Region | Baseline support: 10 options (87 countries) General: Supports universal characters GCC (U.A.E., Saudi Arabia, Morocco, Oman, Iraq, Egypt, Jordan, Qatar, Kuwait, Bahrain, Lebanon) South Africa: South Africa, Tanzania, Mozambique, Zambia, Uganda, Equatorial Guinea, Mauritius, Kenya South Asia Region (India Region): India, Maldives Europe (Netherlands, France, Germany, Britain, Italy, Poland, Belgium, Bulgaria, Serbia, Slovakia, Spain, Denmark, Turkey, Israel, Czech Republic, Bosnia and Herzegovina, Switzerland, Austria, Hungary, Romania, Lithuania, Latvia, Sweden, Estonia, Portugal, Greece, Slovenia, Luxembourg, Palestine, Lebanon, Ireland, Finland, Norway, Croatia, North Macedonia South American Economies Collection (Uruguay, Paraguay, Brazil, Argentina, Chile, Colombia, Peru, Ecuador, Guyana, Bolivia) Mexico and other countries: Mexico, Costa Rica, Curacao, Guatemala Eurasian Collection (Russia, Ukraine, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Moldova, Lithuania, Latvia, Georgia, Azerbaijan, Turkmenistan) North America (United States, Canada) North Africa Region Collection: Tunisia, Morocco, Algeria, Libya |
| Supported by ANPR | The baseline algorithm is supported for the following 19 countries: Republic of Korea, Indonesia, Singapore, Cambodia, Australia, Thailand, Bassett, Nigeria, Pakistan, Viet Nam, Mongolia, Bangladesh, Myanmar, Philippines, Laos, Iraq, Japan, Maldives, Nepal. |
| Capture Rate | In the recommended installation and lighting condition, the vehicle capture rate ≥ 99% |
| Recognition Rate | In the recommended installation and lighting condition, the recognition rate for positive and departing vehiclesz 96%, the recognition rate for European vehicle plates ≥98% |
| Maximum Number of Passed Vehicles | 10,000 |
Network & Storage
| Feature | Detail |
|---|---|
| Storage | Bult-in TF card port. Supports Kingston 16 6, 32 G, 128 G, 256 6; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 G |
| Restricted List/Trusted List | Allowlist: 110,000 | Blocklist: 110,000 |
| Automatic Network Replenishment (ANR) | Yes, platform/FTP |
| Network Protocol | HTTP; Https; 802.1x) TCP; ARP RTSP, RTP, UDP, RTCP SMTP FTP, DHCP DNS; IPv4/v6; NTP SFTP DDNS; SNMP; PPPOE |
| API | Yes |
| SDK | Yes |
| Interoperability | ONVIF (Profile 5/Profile T/Profile M); CGI; ITSAPI; P2P |
| Management Software | DSS Pro: DSS Express; Cybercity, Smart PSS DMSS |
| Security | Username and password; MAC address HTTPS, IEEE 802.1x; network access control |
| Browser | Plug in: IE 9, 10, 11. Chrome 52 and earlier versions Firefox 42 and earlier versions No plug in. Chrome 92 and later versions |
| Max. Number of Connections | 10 |
| Sub 1G | Modulation Type: FSK | Frequency Range: 433.82-434.02 MHz, 868.2-868.4 MHz | Power Transmission: 433.82-434.02 MHz@ 10 dBm; 868.2-868.4 MHz@10 dBm |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | IVS: Intrusion detection, loitering detection, up to 4 areas can be set | Basic Event: Alarms for events of defocus, no storage card, storage card no space, storage card error, network disconnection, IP conflict, and illegal access. | Sound and Light Alarm: Yes, blue & red indicator, and supports broadcasting custom audio. | Alarm Linkage: Upload to FTP/Memory card, notify monitoring center, send e-mail, trigger alert output, snapshot and active deterrence |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Mbps Ethernet port) |
| Alarm Input | 2, optocoupler input (wet node on-off value: 5 V) |
| Alarm Output | 2, relay output (2A 30 VDC/0.5A 125 VAC), which can connect to devices such as barriers |
| RS-485 | 2 (half duplex, Transparent, DHRS, Push Data through Serial Port) |
| Reset Button | Yes |
| Wiegand | 1 channel, SHA-1 26 bit |
General & Environment
| Feature | Detail |
|---|---|
| Remote control | Yes |
| Communication Band | 433 MHz; 868 MHz |
| Remote Control Distance | 15 m (49.21 ft) (In an open, undisturbed environment) |
| Power Supply | 12 VDC, 2 A and POE 802.3at, Type 2, Class 4,(44V to 57V), 0.455A to 0.351A,max.20W |
| Power Consumption | Power consumption in different conditions: No lighting <6 W | Lighting <12 W | Speaker and Red/Blue Light Warning on <17 W |
| Protection | IK10; IP67 |
| Material | Aluminum alloy body+Plastic |
| Product Dimensions | 395.0 mm x 120.8 mm x 127.8 mm (15.55" x 4.76" x 5.03") (L x W x H) |
| Packaging Dimensions | 447.0 mm x 240.0 mm x 233.0 mm (17.60" x 9.45" x 9.17") |
| Net Weight | 2.3 kg (5.07 lb) |
| Gross Weight | 3.2 kg (7.05 lb) |
| Storage Humidity | ≤95% (non-condensing) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| Operating Humidity | 10%-90% (non-condensing) |
| Certifications | CE-EMC; CE-LVD; CE-RED; FCC |
| Camera & Image — Image Sensor | 1/1.8" CMOS |
|---|---|
| Camera & Image — Image Resolution | 2688 x 1520 |
| Camera & Image — Electronic Shutter Speed | Auto/Manual 1/25 s-1/100,000 s |
| Camera & Image — Max. Detection Speed | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:80 km/h | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:120 km/h |
| Camera & Image — Min. Illumination | DHI-ITC413-PW4D-Z1,DHI-ITC413-PW4D-IZ1 0.0004 Lux@F1.4 (Color, 30 IRE); 0.0001 Lux@F1.4 (B/W, 30 IRE); 0 Lux (Illuminator on) | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: 0.001 Lux@F1.6 (Color, 30 IRE); 0.0002 Lux@F1.6 (B/W, 30 IRE), Lux (Illuminator on) |
| Camera & Image — ROM | 4 GB |
| Camera & Image — RAM | 1 GB |
| Camera & Image — S/N Ratio | >56 dB |
| Camera & Image — Scanning System | progressive scanning |
| Camera & Image — Gain Control | Manual; Auto |
| Camera & Image — Noise Reduction | 3D NR |
| Camera & Image — Region of Interest (Rol) | Yes, 3 |
| Camera & Image — Image Tampering Prevention | Yes. Watermarks can be added to videos and images. The watermark can also be verified. |
| Camera & Image — Scene Selfadaptation- (SSA) | Yes |
| Camera & Image — Image | JPEG |
| Camera & Image — Image Encoding Format | JPEG |
| Camera & Image — Image Setting | Brightness; contrast, saturation; gamma; sharpness, gain; white balance |
| Camera & Image — Day/Night | IR filter, support three modes: color/BW//auto |
| Camera & Image — WDR | 140 dB |
| Camera & Image — HLC | Yes |
| Camera & Image — BLC | Yes |
| Camera & Image — White Balance | Auto: Regional Custom; Manual; Outdoor, Natural; Street Lamp |
| Camera & Image — Digital Detail Enhancement (DDE) | Yes |
| Camera & Image — OSD Overlay | Supports overlay of time, address (position of channel), lane (number/direction), plate (number and color), vehicle (calor, type) |
| Lens & Distance — Focal Length | DHIITC413--PW4D-Z1, DHI-ITC413-PW4D-IZ1: 2.7 mm-12 mm | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: 8 mm-32 mm |
| Lens & Distance — Field of View | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: H: 92 (W)-46.1 (T) V: 49° (W)-26.0 (T) D: 109 (W)-52.8" (T) | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: H: 39.9 (W)-15.1" (T) V: 21.8 (W)-8.5 (T) D: 46.6 (W)-17.4" (T) |
| Lens & Distance — Focus Control | Auto, area focus, manual |
| Lens & Distance — Number of Lens | 1 |
| Lens & Distance — Lens Type | Motorized Vari-focal |
| Lens & Distance — Max. Aperture | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:1.4 | DHI-ITC413-PW4D-23, DHI-ITC413-PW4D-IZ3:1.6 |
| Lens & Distance — Iris Control | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:DC-Iris | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:P-Iris |
| Lens & Distance — DORI Distance | W (DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1): Observe: 24.2 m (79.40 ft), Detect: 60.4 m (198.16 ft), Identify: 6.0 m (19.68 ft), Recognize: 12.1 m (39.70 ft) | T (DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1): Observe: 51.5 m (168.96 ft), Detect: 128.7 m (422.24 ft), Identify: 12.9 m (42.32 ft), Recognize: 25.7 m (84.32 ft) | W (DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3): Observe: 64.0 m (209.97 ft), Detect: 160.0 m (524.93 ft), Identify: 16.0 m (52.49 ft), Recognize: 32.0 m (104.99 ft) | T (DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3): Observe: 162.8 m (534.12 ft), Detect: 406.9 m (1334.97 ft), Identify: 40.7 m (133.53 ft), Recognize: 81.4 m (267.06 ft) |
| Lens & Distance — Capture Distance | DHI-ITC413-PW4D-21, DHI-ITC413-PW4D-IZ1: 3 m-8 m (9.84 ft-26.25 ft) | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: 8 m-30 m (26.25 ft-98 43 ft) |
| Lens & Distance — Detected Width | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1 3 m-4 m (9.84 ft-13.12 ft) | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: 6 m-8 m (19.69 ft-26.25 ft) |
| Night Vision — Illuminator Number | 4 |
| Night Vision — Illuminator On/Off Control | Auto, manual |
| Night Vision — Illuminator Type | DHIHTC413-PW4D-IZ1, DHI-ITC413-PW4D-IZ3:IR (850 nm) | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-Z3 Dual Illuminators (730 nm IR/warm light) |
| Night Vision — Illumination Distance | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1: ANPR: 10 m (32.81 ft) Video monitoring: 30 m (98.43 ft) | DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3: ANPR: 30 m (98.43 ft) Video monitoring: 60 m (196.85 ft) |
| Night Vision — Smart Illumination | According to the brightness of the environment, the camera automatically adjusts the intensity of its light to reveal the details of moving targets. Devices with warm light can automatically adjust the light intensity according to the time. |
| Night Vision — Infrared Wavelength | DHI-ITC413-PW4D-IZ1, DHI-ITC413-PW4D-IZ3:850 nm | DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-23:730 nm |
| Video — Video Resolution | Main stream: 4M (2688 x 1520)/1080p (1920 x 1080)/720p (1280 x 720) | Sub stream: 720p (1280 x 720)/960H ( 960 x 576, 960 x 480)/01 ( 704 x 576, 704 x 480)/CIF (352 x 288, 352 x 240) |
| Video — Stream | PAL: Main stream (2688 x 1520@25 fps, 1920 x 1080@25 fps, 1280 x 720@25 fps), sub stream (1280 x 720@25 fps, 960 x 576@25 fps, 704 x 576@25 fps, 352 x 288@25 fps); NTSC: Main stream (2688 x 1520@30 fps, 1920 x 1080@30 fps, 1280 x 720@30 fps), sub stream (1280 x 720@30 fps, 960 x 480@30 fps, 704 x 40803t fps, 352 x 240@30 fps) |
| Video — Video Compression | H.264H; H.264B; H.264M by default; H.265; MJPEG; H.264M |
| Video — Video Bit Rate | H.264B: 2,179 kbps-13,074 kbps | H.264M: 2,179 kbps-13,074 kbps | H.264H: 2,179 kbps-13,074 kbps | H.265: 2,179 kbps-13,074 kbps | MJPEG: 6,537 kbps-39,223 kbps |
| Video — Bit Rate Control | CBR; VBR |
| Audio — Audio Port | Yes |
| Audio — Built-in MIC | Yes; Pick-up distance: 3 m (9.84 ft), Sampling Rate: 48 k. |
| Audio — Built-in Speaker | Yes, Power: 2 W |
| Audio — Audio Output | 1 charinel (RCA port) |
| AI & Deep Learning — Al Recognition | Recognizes vehicle types, vehicle signs, vehicle color, vehicle plate, plate, vehicle without plate. |
| AI & Deep Learning — Video Metadata | Displays the intelligent frame, plate and vehicle paths. |
| AI & Deep Learning — Vehicle Brand | Recognizes 147 vehicle logos. |
| AI & Deep Learning — Vehicle Color | Recognizes 12 colors: Grey, black, white, silver, blue, green, purple, red, orange, pink, brown, and yellow. |
| AI & Deep Learning — Vehicle Type Recognition | Recognizes 10 vehicle types: Large Bus, Heavy Truck, Medium Truck, Sedan, Van, Light Truck, Medium Bus, SUV, MPV, Pickup |
| AI & Deep Learning — Country and Region | Baseline support: 10 options (87 countries) General: Supports universal characters GCC (U.A.E., Saudi Arabia, Morocco, Oman, Iraq, Egypt, Jordan, Qatar, Kuwait, Bahrain, Lebanon) South Africa: South Africa, Tanzania, Mozambique, Zambia, Uganda, Equatorial Guinea, Mauritius, Kenya South Asia Region (India Region): India, Maldives Europe (Netherlands, France, Germany, Britain, Italy, Poland, Belgium, Bulgaria, Serbia, Slovakia, Spain, Denmark, Turkey, Israel, Czech Republic, Bosnia and Herzegovina, Switzerland, Austria, Hungary, Romania, Lithuania, Latvia, Sweden, Estonia, Portugal, Greece, Slovenia, Luxembourg, Palestine, Lebanon, Ireland, Finland, Norway, Croatia, North Macedonia South American Economies Collection (Uruguay, Paraguay, Brazil, Argentina, Chile, Colombia, Peru, Ecuador, Guyana, Bolivia) Mexico and other countries: Mexico, Costa Rica, Curacao, Guatemala Eurasian Collection (Russia, Ukraine, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Moldova, Lithuania, Latvia, Georgia, Azerbaijan, Turkmenistan) North America (United States, Canada) North Africa Region Collection: Tunisia, Morocco, Algeria, Libya |
| AI & Deep Learning — Supported by ANPR | The baseline algorithm is supported for the following 19 countries: Republic of Korea, Indonesia, Singapore, Cambodia, Australia, Thailand, Bassett, Nigeria, Pakistan, Viet Nam, Mongolia, Bangladesh, Myanmar, Philippines, Laos, Iraq, Japan, Maldives, Nepal. |
| AI & Deep Learning — Capture Rate | In the recommended installation and lighting condition, the vehicle capture rate ≥ 99% |
| AI & Deep Learning — Recognition Rate | In the recommended installation and lighting condition, the recognition rate for positive and departing vehiclesz 96%, the recognition rate for European vehicle plates ≥98% |
| AI & Deep Learning — Maximum Number of Passed Vehicles | 10,000 |
| Network & Storage — Storage | Bult-in TF card port. Supports Kingston 16 6, 32 G, 128 G, 256 6; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 G |
| Network & Storage — Restricted List/Trusted List | Allowlist: 110,000 | Blocklist: 110,000 |
| Network & Storage — Automatic Network Replenishment (ANR) | Yes, platform/FTP |
| Network & Storage — Network Protocol | HTTP; Https; 802.1x) TCP; ARP RTSP, RTP, UDP, RTCP SMTP FTP, DHCP DNS; IPv4/v6; NTP SFTP DDNS; SNMP; PPPOE |
| Network & Storage — API | Yes |
| Network & Storage — SDK | Yes |
| Network & Storage — Interoperability | ONVIF (Profile 5/Profile T/Profile M); CGI; ITSAPI; P2P |
| Network & Storage — Management Software | DSS Pro: DSS Express; Cybercity, Smart PSS DMSS |
| Network & Storage — Security | Username and password; MAC address HTTPS, IEEE 802.1x; network access control |
| Network & Storage — Browser | Plug in: IE 9, 10, 11. Chrome 52 and earlier versions Firefox 42 and earlier versions No plug in. Chrome 92 and later versions |
| Network & Storage — Max. Number of Connections | 10 |
| Network & Storage — Sub 1G | Modulation Type: FSK | Frequency Range: 433.82-434.02 MHz, 868.2-868.4 MHz | Power Transmission: 433.82-434.02 MHz@ 10 dBm; 868.2-868.4 MHz@10 dBm |
| Event & Alarm — Alarm Event | IVS: Intrusion detection, loitering detection, up to 4 areas can be set | Basic Event: Alarms for events of defocus, no storage card, storage card no space, storage card error, network disconnection, IP conflict, and illegal access. | Sound and Light Alarm: Yes, blue & red indicator, and supports broadcasting custom audio. | Alarm Linkage: Upload to FTP/Memory card, notify monitoring center, send e-mail, trigger alert output, snapshot and active deterrence |
| Interface — Network Port | RJ-45 (10/100 Mbps Ethernet port) |
| Interface — Alarm Input | 2, optocoupler input (wet node on-off value: 5 V) |
| Interface — Alarm Output | 2, relay output (2A 30 VDC/0.5A 125 VAC), which can connect to devices such as barriers |
| Interface — RS-485 | 2 (half duplex, Transparent, DHRS, Push Data through Serial Port) |
| Interface — Reset Button | Yes |
| Interface — Wiegand | 1 channel, SHA-1 26 bit |
| General & Environment — Remote control | Yes |
| General & Environment — Communication Band | 433 MHz; 868 MHz |
| General & Environment — Remote Control Distance | 15 m (49.21 ft) (In an open, undisturbed environment) |
| General & Environment — Power Supply | 12 VDC, 2 A and POE 802.3at, Type 2, Class 4,(44V to 57V), 0.455A to 0.351A,max.20W |
| General & Environment — Power Consumption | Power consumption in different conditions: No lighting <6 W | Lighting <12 W | Speaker and Red/Blue Light Warning on <17 W |
| General & Environment — Protection | IK10; IP67 |
| General & Environment — Material | Aluminum alloy body+Plastic |
| General & Environment — Product Dimensions | 395.0 mm x 120.8 mm x 127.8 mm (15.55" x 4.76" x 5.03") (L x W x H) |
| General & Environment — Packaging Dimensions | 447.0 mm x 240.0 mm x 233.0 mm (17.60" x 9.45" x 9.17") |
| General & Environment — Net Weight | 2.3 kg (5.07 lb) |
| General & Environment — Gross Weight | 3.2 kg (7.05 lb) |
| General & Environment — Storage Humidity | ≤95% (non-condensing) |
| General & Environment — Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| General & Environment — Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| General & Environment — Operating Humidity | 10%-90% (non-condensing) |
| General & Environment — Certifications | CE-EMC; CE-LVD; CE-RED; FCC |
04Why choose this
Built for the way you actually use the ITC413-PW4D-IZ1
Opens the gate on its own
Onboard relay outputs trigger a barrier directly from the allowlist, so single-lane entry and exit can run without a separate access controller.
Handles harsh entry lighting
140 dB WDR with Scene Self-Adaptation keeps plates readable as vehicles move from bright sun into shaded ramps, the usual failure point for ANPR.
Works offline
Allowlists and blocklists of up to 110,000 entries live on the camera, so access keeps working even if the network or server drops.
05Where it fits
Right at home in these scenarios
Parking entry and exit
Relay outputs and the onboard allowlist automate boom-gate access for registered vehicles, with plate images stored locally for disputes.
Gated residential estates
Resident plates pass automatically while unknown plates trigger the blocklist response or an alert at the gate.
Logistics and fleet yards
Vehicle type, brand and colour data alongside the plate supports audit logs of truck and delivery movements at site entries.
Campus and institutional access
High-capacity lists and a Wiegand output feed plate credentials into an existing access control panel at hospitals, universities and business parks.
06Setup
Installation & setup
-
01
Mounting geometry
Designed for a single lane with a 3-8 m capture distance and a 3-4 m lane width. Position the camera to face oncoming traffic at the right angle; a poor location cannot be fixed by zoom alone.
-
02
Gate wiring
Relay outputs can drive many barrier and gate controllers, but confirm the trigger voltage and current of your specific hardware before wiring. Use the Wiegand output for panels that accept Wiegand input.
-
03
Power
Supply PoE+ (802.3at) or 12 VDC. Confirm the switch or injector port supplies 802.3at, as standard PoE is not sufficient for the illuminator and speaker load.
-
04
Software
Integrates with Dahua DSS Pro, DSS Express and Smart PSS over ITSAPI for structured plate events, and supports ONVIF Profile S/T for third-party platforms.
08Questions
Frequently asked about the ITC413-PW4D-IZ1
Q.01
Can this ANPR camera open a boom gate on its own?
Yes. Its 2 relay outputs can trigger a barrier or boom gate directly when a plate on the allowlist is recognised, so basic single-lane access works without a separate controller, provided the gate accepts a dry-contact trigger.
Q.02
What vehicle speed can it read accurately?
It captures plates for vehicles travelling up to 80 km/h within its designed 3-8 m capture zone and 3-4 m lane width, with capture accuracy of 99 percent or greater.
Q.03
Does it read plates at night without extra lighting?
Yes. Built-in 850 nm infrared is tuned for plate capture to about 10 m, and the F1.4 aperture and WDR handle headlights, so no external lighting is needed for standard overnight operation.
Q.04
How many plates can the camera store for access decisions?
The allowlist and blocklist each hold up to 110,000 entries on the camera, so access decisions are made locally and keep working even if the network or server is offline.
Q.05
Does it have audio?
Yes. It has a built-in microphone with about a 3 m pickup and a built-in 2 W speaker, supporting two-way audio for spoken communication with drivers at the lane.
Q.06
How is it powered?
It runs on PoE+ (IEEE 802.3at) or 12 VDC. Confirm the switch or injector port supplies 802.3at, as standard PoE may not cover the illuminator and speaker load.
Q.07
What software does it work with?
It integrates with Dahua DSS Pro, DSS Express and Smart PSS over ITSAPI for structured plate events, and supports ONVIF Profile S and T for third-party platforms.
Q.08
Is it suitable for a multi-lane open car park?
It is designed for a single controlled lane with a defined capture geometry. A wide-area open car park or roadway is better served by a different camera class with server-side ANPR.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Record on a Dahua NVR
Add the camera to a Dahua AI NVR such as the 4CH NVR4104HS-P, 8CH NVR4108HS-8P or 16CH NVR4216-16P to store plate events and video alongside your other cameras.
Plan the gate hardware
The camera triggers a barrier via its relay outputs, but the boom gate or barrier motor itself is supplied separately. Confirm it accepts a dry-contact or relay trigger before ordering.
Cabling
Run quality Dahua Cat6 cable for a reliable PoE+ link from the lane back to the switch or recorder.
