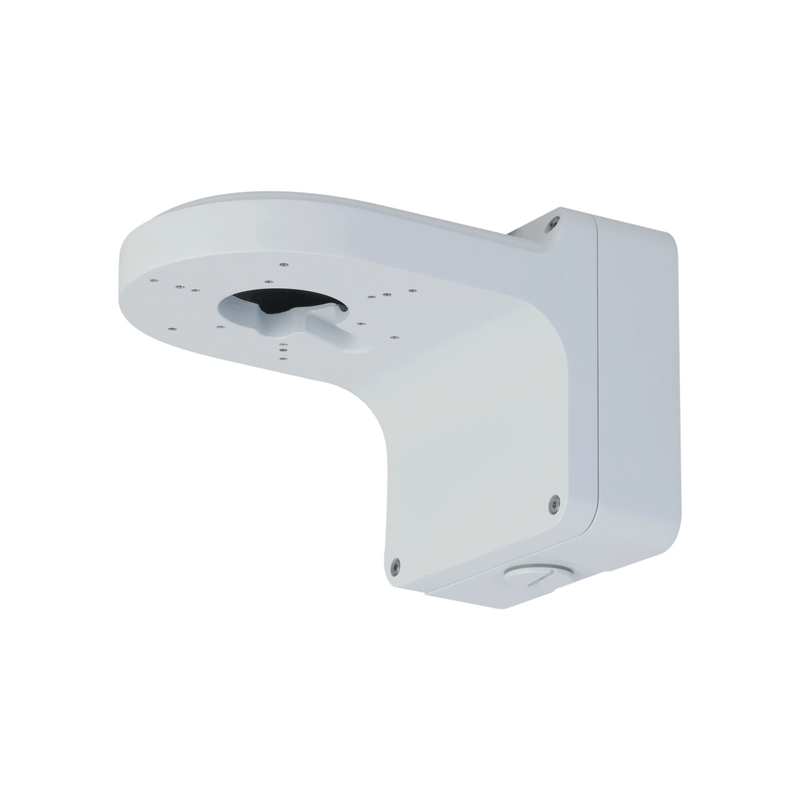

Dahua DH-AC-PFB206W Wall Mount Bracket
1 1
Dahua

Dahua DH-AC-PFB206W Wall Mount Bracket

SKU: PFB206W
Description

The Dahua DH-AC-PFB206W is a larger water-proof wall mount bracket with an integrated junction box, for arming bigger dome and bullet cameras out from a wall. The cabling and the join sit hidden inside the built-in box, so you get the reach of a wall arm and the sealed cable entry of a junction box in one part.

At a glance
- Water-proof wall mount bracket with an integrated junction box
- For larger dome and bullet cameras, up to 3.0 kg load bearing
- Aluminium alloy, 222 x 160.7 x 144.4 mm, G3/4" thread
- Cabling and join hidden inside the built-in box
- White finish with basic anti-corrosion protection
$38.00 AUD $38.00 AUD $38.00 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
3-Year WarrantyOn all cameras
Free ShippingOn orders over $300
30-Day ReturnsUnopened items
Fast Delivery1–5 days Australia-wide
Build your setup Build a complete CCTV system

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $38.00

§ 01Overview

What the PFB206W is

The Dahua DH-AC-PFB206W is a larger water-proof wall mount bracket with an integrated junction box, designed to arm bigger dome and bullet cameras out from a wall. It combines two jobs in one part: the wall arm throws the camera's view away from the wall to clear an eave or set the angle, while the built-in box gives a sealed cable entry and hides the join, so there is no separate junction box to add.

It is made from aluminium alloy with a white finish, measures 222.0 x 160.7 x 144.4 mm, uses a G3/4" thread and is rated to carry up to 3.0 kg, suiting larger camera bodies. The datasheet lists a basic anti-corrosion level but does not state a numeric IP code, so we describe it as weatherproof for outdoor wall mounting rather than quoting a specific rating. Keep the camera's weight within the 3.0 kg load rating and make sure the wall can take several times that.

The PFB206W suits a range of larger Dahua dome and bullet cameras where the extra size, reach and integrated cable box are useful. Because the exact fit depends on the camera's base and screw pattern, always check your camera's compatible-mount list before ordering. It operates from -40 to +60 degrees C and is supplied with the mounting hardware, a water joint and a mounting sticker for a standard wall install.

§ 02Engineering

PFB206W specifications

- Water-proof wall mount bracket with an integrated junction box in one part.

- Arms larger Dahua dome and bullet cameras out from a wall to set the view.

- Aluminium alloy, 222.0 x 160.7 x 144.4 mm, with a G3/4" thread.

- 3.0 kg load bearing to suit larger and heavier camera bodies.

- Built-in box gives a sealed cable entry and hides the join - no separate box needed.

- White finish with basic anti-corrosion protection; operates from -40 to +60 degrees C.

- Supplied with mounting hardware, a water joint and a mounting sticker.

§ 03Full datasheet

Detailed specifications

General & Environment

General & Environment — Dahua DH-AC-PFB206W Wall Mount Bracket
FeatureDetail
Model DH-PFB206W
Material Aluminum alloy
Product Dimensions 222.0 mm × 160.7 mm × 144.4 mm (8.66" × 6.33" × 5.68") (L × W × H)
Appearance Color White
Net Weight 1.1 kg (2.42 lb)
Gross Weight 1.5 kg (3.31 lb)
Load Bearing 3.0 kg (6.61 lb)
Installation Wall mount
Screw Thread Type G 3/4
Applicable Camera Please see "Accessory Selection"
Packaging Dimensions 219.0 mm × 218.0 mm × 275.0 mm (8.62" × 8.56" × 10.83") (L × W × H)
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity <90% (RH)
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity 10%–90% (RH)
Anti-corrosion Level Basic protection
Package Information Wall Mount Bracket × 1; M4×10 screws × 3; ST4×25 screws × 4; Plastic expansion bolt × 4; S3.0 wrench × 1; Water Joint × 1; Mounting Sticker × 1

§ 04Why choose this

Built for the way you actually use the PFB206W

Two parts in one

A wall arm and a junction box combined, so there is no separate box to add for a sealed cable entry.

Sized for bigger cameras

A large bracket rated to 3.0 kg suits larger dome and bullet bodies.

Arms the camera out

Throws the view away from the wall to clear an eave or set the angle.

Built for outdoors

Aluminium alloy with basic anti-corrosion protection and a sealed cable entry.

§ 05Where it fits

Right at home in these scenarios

Larger camera wall mounts

Arm a bigger dome or bullet out from a wall where a small bracket would not suit.

Clearing eaves and angles

Bring the camera clear of an overhang and set the view down a driveway or yard.

Sealed cable entry

Use the integrated box for a hidden, sealed cable join without a separate junction box.

Exposed outdoor positions

Mount a larger camera on an exposed wall with the cabling protected inside the bracket.

§ 06Setup

Installation & setup

01

Check camera fit

Confirm your dome or bullet model lists the PFB206W in its compatible-mount selection before fitting.

02

Mark and drill

Hold the bracket where the camera should sit, mark the holes, then drill and insert suitable wall fixings.

03

Route the cable

Feed the network lead through the integrated box and fit the water joint for a sealed entry.

04

Mount and aim

Fix the bracket to the wall, attach the camera, set the angle and confirm the bracket is secure.

§ 07Questions

Frequently asked about the PFB206W

Q.01

What is the DH-AC-PFB206W used for?
It is a larger water-proof wall mount bracket with an integrated junction box. It arms a bigger dome or bullet camera out from a wall while hiding and sealing the cabling inside the built-in box.
Q.02

Does it include a junction box?
Yes. The junction box is integrated into the bracket, so the cable entry is sealed and the join is hidden without needing a separate junction box.
Q.03

Which cameras does the PFB206W fit?
It suits larger Dahua dome and bullet cameras where the extra size and reach are useful. Fit depends on the camera base, so check your camera's compatible-mount list before ordering.
Q.04

Is it weatherproof?
Its datasheet lists a basic anti-corrosion level but does not state a numeric IP code, so we describe it as weatherproof for outdoor wall mounting with the cabling sealed inside.
Q.05

How much weight can it hold?
It has a load bearing rating of 3.0 kg, which suits larger camera bodies. Keep the camera within that figure and ensure the wall can take several times the load.
Q.06

How is it different from the smaller PFB205W-E?
The PFB206W is larger at 222 mm with a 3.0 kg rating, a G3/4" thread and an integrated junction box for bigger cameras. The PFB205W-E is a more compact 2.0 kg bracket for eyeball and turret cameras.
Q.07

What is in the box?
It is supplied with the bracket, mounting hardware, a water joint and a mounting sticker, giving you the fixings for a standard wall install.
Q.08

Can it mount a bullet camera?
Yes. The PFB206W is designed for larger dome and bullet cameras, so it suits arming a sizeable bullet or dome out from a wall, within the 3.0 kg load rating.

§ 09Bundles

Recommended packages

01

Pair with a larger camera

The PFB206W mounts larger Dahua dome and bullet cameras such as the 8MP dome or 8MP bullet; check the camera's mount list for fit.

02

Other wall mounts

For smaller cameras use the PFB205W-E or PFB204W brackets instead.
