Bosch 3000 Series Alarm PCB Kit with Icon Keypad
1 1
Bosch

Bosch 3000 Series Alarm PCB Kit with Icon Keypad

SKU: Bosch3000-PCB
Description

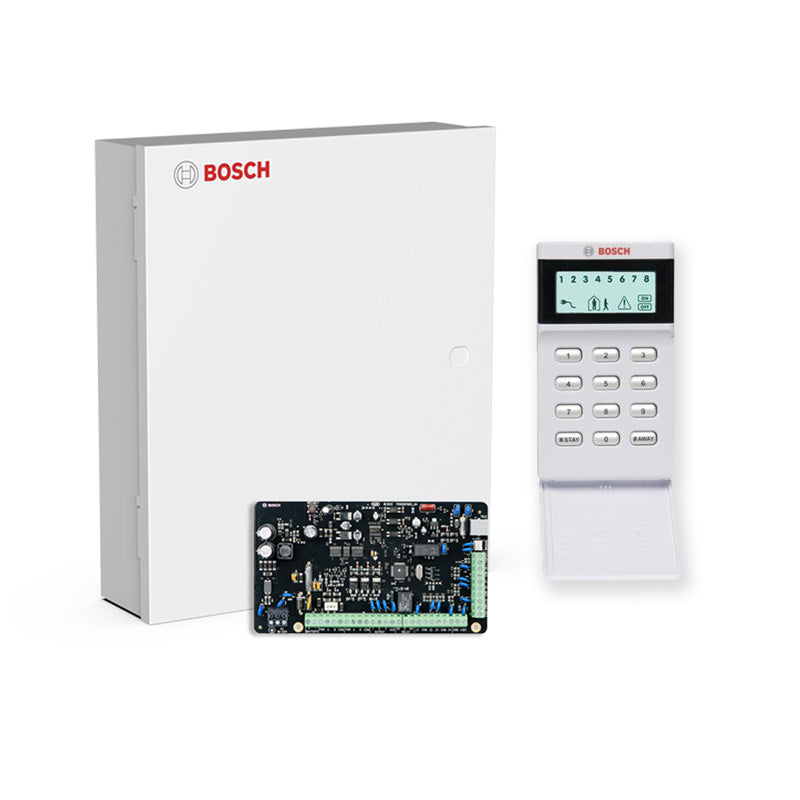

The Bosch Solution 3000 PCB kit with an Icon keypad is a board-level kit for installers upgrading, replacing or custom-building a Solution 3000 alarm. It includes the Solution 3000 control panel board, a blue-backlit Icon keypad and the metal enclosure. It does not include detectors, battery, transformer or sirens, so you reuse or supply those separately.

What's in the box
- Bosch Solution 3000 control panel board (up to 16 zones, wired or wireless)
- LCD 8-zone Icon keypad with blue backlighting (IUI-SOL-ICON)
- Metal enclosure with tamper switch
- User manual / quick reference guide
- No detectors, no battery, no transformer and no sirens (supply separately)
$335.60 AUD $335.60 AUD $339.00 AUD
Sale 1.0% $3.40 AUD (1.0%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
3-Year WarrantyOn all cameras
Free ShippingOn orders over $300
30-Day ReturnsUnopened items
Fast Delivery1–5 days Australia-wide
Build your setup Build a complete CCTV system

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
0
0
0
Bundle total: $335.60

§ 01Overview

What the Bosch3000-PCB is

The Bosch Solution 3000 PCB kit with an Icon keypad is a board-level kit for licensed installers who are upgrading an older panel, replacing a board, or building a custom Solution 3000 system in Australian homes and businesses. It is not a ready-to-run kit.

It includes the Solution 3000 control panel board, a blue-backlit Icon keypad (IUI-SOL-ICON), the metal enclosure with tamper and a manual. It does not include detectors, a battery, the transformer or sirens. The Solution 3000 panel supports up to 16 fully programmable zones and takes both wired and wireless detectors through the Bosch B810 RADION receiver.

Because the power supply, battery, sirens and detectors are not in the box, this kit is best chosen by an installer who already has those parts or will supply them. Add Blue Line Gen2 PIRs for detection and the B426-M for the free Bosch RSC+ app.

§ 02Engineering

Bosch3000-PCB specifications

- Solution 3000 control panel board: up to 16 fully programmable zones, supporting both wired and wireless detectors.

- Blue-backlit LCD Icon keypad (IUI-SOL-ICON) for arming, disarming and clear zone status.

- Metal enclosure with tamper switch to house the board.

- Designed for upgrades, board replacements and custom installs where power, battery and sirens are reused or supplied separately.

- No detectors, battery, transformer or sirens included; add a power supply, battery, sirens and Blue Line Gen2 PIRs to complete the system.

- Add the B426-M IP module for the free Bosch RSC+ app.

§ 04Why choose this

Built for the way you actually use the Bosch3000-PCB

Built for upgrades

The board-and-keypad kit suits installers replacing an older panel or board while reusing existing power, battery and sirens.

Full Solution 3000 capability

You still get the 16-zone Solution 3000 panel with wired and wireless support, ready to program.

Flexible custom builds

Pair the board with the power supply, sirens and detectors that fit the site instead of a fixed bundle.

Backed locally

Supplied by an authorised Bosch dealer with a 3-year warranty and Australia-wide support.

§ 05Where it fits

Right at home in these scenarios

Panel upgrades and swaps

Replace an older or faulty Solution panel board while keeping the existing power, battery, sirens and wiring.

Custom installs

Installers building a system who want to specify their own power, sirens and detectors around the panel.

Workshop and spares

A board-level option to keep on hand for service and replacement work.

§ 06Setup

Installation & setup

01

In the box

Solution 3000 control panel board, Icon keypad (IUI-SOL-ICON), metal enclosure with tamper and a manual. No detectors, battery, transformer or sirens are included.

02

Supply the rest

Add an 18V transformer, a 12V 7Ah battery, internal and external sirens and Blue Line Gen2 detectors, or reuse the existing parts from the system you are upgrading.

03

Professional install

In Australia a licensed security installer fits and programs the board, wires the keypad and zones with 3k3 and 6k8 resistors, and commissions the system.

04

App control

This kit has no IP module; add the B426-M to arm, disarm and get push notifications through the free Bosch RSC+ app.

§ 07Questions

Frequently asked about the Bosch3000-PCB

Q.01

What's included in this Bosch Solution 3000 PCB kit?
The Solution 3000 control panel board, a blue-backlit Icon keypad (IUI-SOL-ICON), the metal enclosure with tamper and a manual.
Q.02

What is not included?
There are no detectors, no battery, no transformer and no sirens. You supply those separately or reuse them from the system you are upgrading.
Q.03

Who is this kit for?
It is aimed at licensed installers upgrading an older panel, replacing a board, or building a custom Solution 3000 system.
Q.04

What do I need to add to complete it?
Add an 18V transformer, a 12V 7Ah battery, internal and external sirens and Blue Line Gen2 detectors to make a working system.
Q.05

How many zones does the Solution 3000 support?
Up to 16 fully programmable zones, wired or wireless through the B810 RADION receiver.
Q.06

Can I control it from my phone?
Yes, once you add the B426-M IP module. With the module the free Bosch RSC+ app arms, disarms and sends push notifications.
Q.07

Would a complete kit suit me better?
If you want power, battery and sirens included, the Solution 3000 Icon or 7-inch TouchOne base kits are ready to add detectors to.
Q.08

Who installs it?
In Australia a licensed security installer fits and programs the board, wires the keypad and zones, and commissions the system.

§ 09Bundles

Recommended packages

03

Add app control

Add the Bosch B426-M IP module for free arm, disarm and push notifications through the Bosch RSC+ app.
