Bosch DS936 360° Ceiling PIR Detector, 7.5 m Low Profile
Skip to product information
1
/
of
1
Vendor:
Bosch

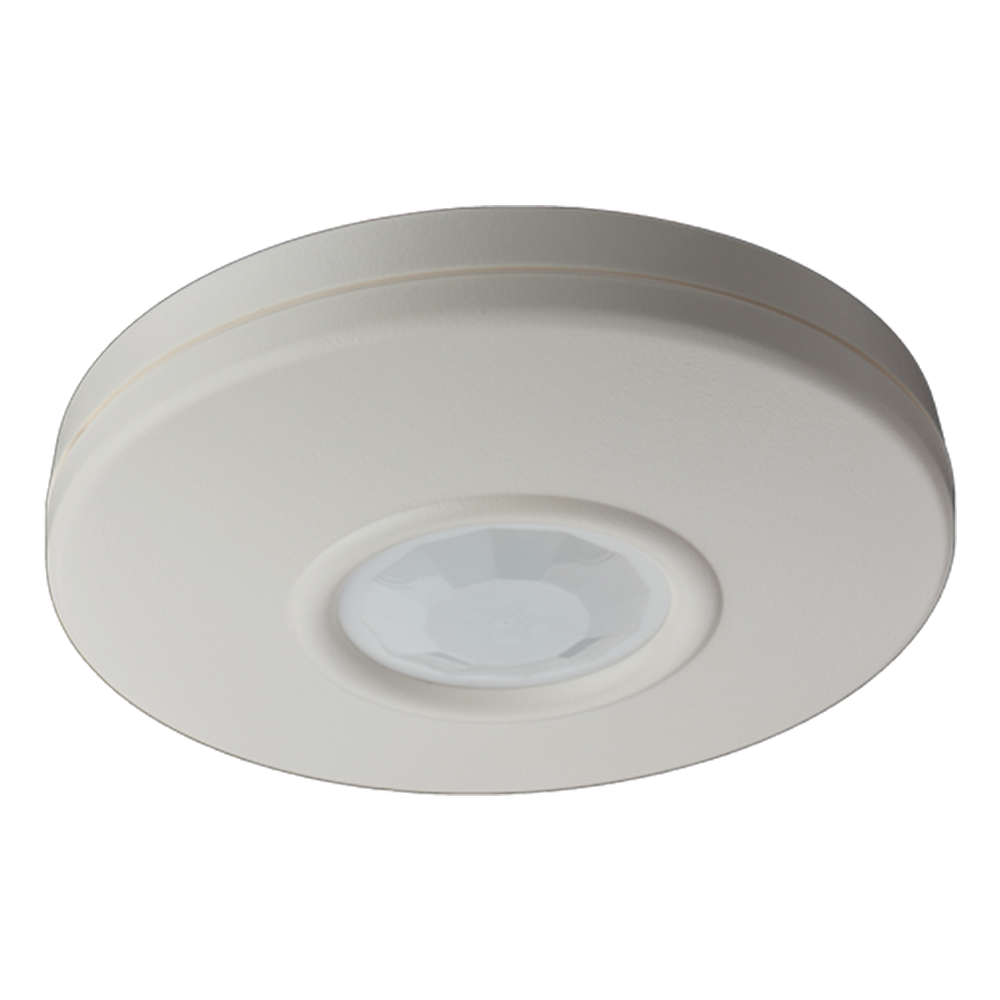

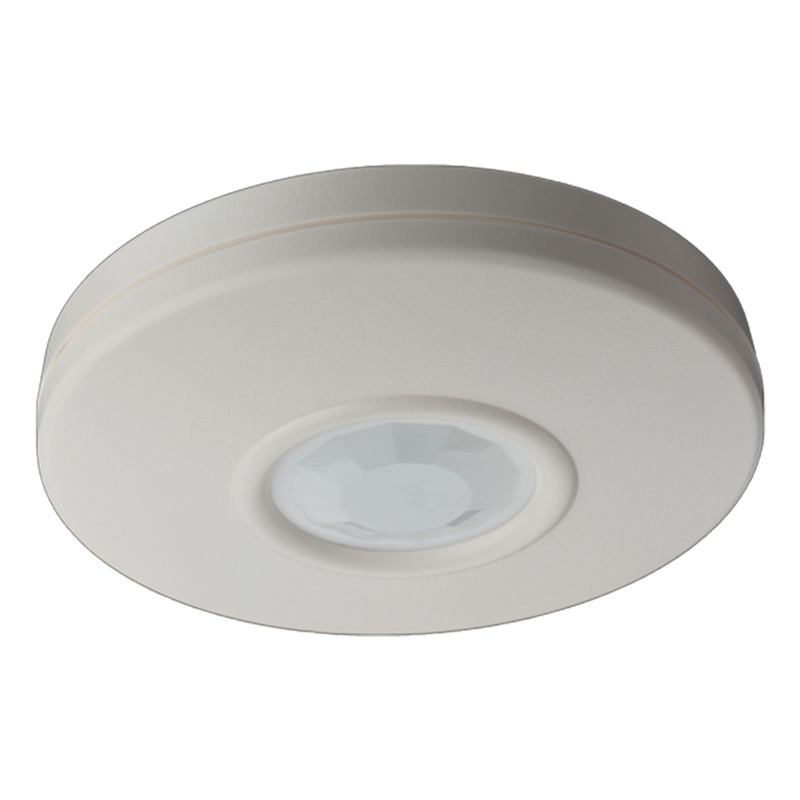

Bosch DS936 360° Ceiling PIR Detector, 7.5 m Low Profile
SKU: DS936
Description
The Bosch DS936 is a low-profile ceiling PIR detector for an office, reception or living room that wants a discreet sensor in the middle of the ceiling rather than a box in the corner: a 360° x 7.5 m pattern, a pointable Fresnel lens and normally-closed alarm and tamper outputs for a hardwired panel.
What you get
- 1 × DS936 panoramic PIR detector in a high impact ABS plastic enclosure
You'll also need
- A hardwired alarm panel whose zone input accepts a normally-closed relay and tamper loop, with a 10 VDC to 15 VDC detector supply
- A cable run from the panel to the ceiling position, with the end-of-line resistors the panel requires
- A ceiling position between 2 m and 3.6 m high, or a standard 10 cm (4 in.) octagonal electrical box
Regular price
$109.85 AUD
Sale price
$109.85 AUD
Regular price
$193.00 AUD
Sale
43.08%
$83.15 AUD
(43.08%)
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Bosch DS936 360° Ceiling PIR Detector, 7.5 m Low Profile
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DS936 is
The Bosch DS936 is the discreet way to watch a room from above. At 3.05 cm deep and 11.7 cm across it sits almost flush on the ceiling, and from there its pointable Fresnel lens covers a 360° x 7.5 m pattern, with the coverage diameter roughly twice the mounting height, so a 2 m to 3.6 m ceiling gives a circle sized to a typical office, reception or living room.
It is a passive infrared detector with alternate polarity pulse count and enhanced signal processing that the installer sets to standard, intermediate or high, and the lens can be rotated ±15° inside the sealed chamber to aim the pattern without moving the housing. An external alarm LED shows detection, and internal noise voltage test pins let a technician check the pattern and background disturbance with a standard analogue meter or the TC6000 test cord.
Wiring is conventional. The alarm output is a normally-closed reed relay rated 3.0 W, 125 mA at 28 VDC for resistive loads and protected by a 4.7 Ω resistor in the common leg, with a separate normally-closed cover tamper on its own terminals. It runs from 10 VDC to 15 VDC and draws 20 mA at 12 VDC.
It is a single-technology PIR with no microwave section, no pet immunity and no outdoor rating, and it mounts only on a ceiling, surface or semi-flush, or on a standard 10 cm octagonal electrical box. It is not the detector for a room where animals roam while the system is armed, nor for a space larger than its 7.5 m pattern.
The enclosure is high impact ABS plastic, the operating range is -29°C to +49°C, RFI immunity holds from 26 MHz to 950 MHz at 50 V/m, and the detector complies with EN50131-1 Grade 2 and UL 639.
02Engineering
DS936 specifications
Bosch DS936 coverage — 360° x 7.5 m pattern from the ceiling, diameter roughly twice the mounting height — one central sensor for an office, reception or living room
Mounting — 2 m to 3.6 m, surface or semi-flush on the ceiling or on a standard 10 cm octagonal electrical box — low profile at 3.05 cm deep
Pointable lens — Fresnel lens rotates ±15° inside a sealed chamber — aim the pattern after the housing is fixed
Signal processing — alternate polarity pulse count, enhanced signal processing selectable standard, intermediate or high — sensitivity matched to the room on site
Test features — external alarm LED and internal noise voltage test pins for an analogue meter or the TC6000 test cord — measured commissioning, not guesswork
Alarm output — normally-closed reed relay, 3.0 W, 125 mA at 28 VDC, 4.7 Ω resistor in the common leg — a conventional zone connection
Tamper — normally-closed cover tamper on separate terminals, 125 mA at 28 VDC — the panel knows if the cover comes off
Power — 10 VDC to 15 VDC, 20 mA at 12 VDC — a light load on the panel's detector supply
Housing — high impact ABS plastic, 3.05 cm x 11.7 cm, -29°C to +49°C, EN50131-1 Grade 2 and UL 639 — graded indoor detection in a slim enclosure
Mounting — 2 m to 3.6 m, surface or semi-flush on the ceiling or on a standard 10 cm octagonal electrical box — low profile at 3.05 cm deep
Pointable lens — Fresnel lens rotates ±15° inside a sealed chamber — aim the pattern after the housing is fixed
Signal processing — alternate polarity pulse count, enhanced signal processing selectable standard, intermediate or high — sensitivity matched to the room on site
Test features — external alarm LED and internal noise voltage test pins for an analogue meter or the TC6000 test cord — measured commissioning, not guesswork
Alarm output — normally-closed reed relay, 3.0 W, 125 mA at 28 VDC, 4.7 Ω resistor in the common leg — a conventional zone connection
Tamper — normally-closed cover tamper on separate terminals, 125 mA at 28 VDC — the panel knows if the cover comes off
Power — 10 VDC to 15 VDC, 20 mA at 12 VDC — a light load on the panel's detector supply
Housing — high impact ABS plastic, 3.05 cm x 11.7 cm, -29°C to +49°C, EN50131-1 Grade 2 and UL 639 — graded indoor detection in a slim enclosure
03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | DS936 Low Profile Panoramic PIR Detector |
| Description | The ceiling mount, low profile panoramic DS936 PIR Detector uses alternate polarity pulse count. It also uses a pointable Fresnel lens to provide up to 7.5 m (24 ft) of coverage and can be mounted on the surface, or semi-flush directly to a ceiling or a standard octagonal electrical box. |
| Accessories | TC6000 Test Cord — Test cord for connecting a compatible detector’s test pins to a voltmeter. It is 4.6 m (15 ft.) long. |
Detection & Coverage
| Feature | Detail |
|---|---|
| Coverage | 360° x 7.5 m (24 ft.) pattern — Coverage diameter is approximately two times the mounting height. |
| Enhanced Signal Processing | Field-selectable for standard, intermediate or high. |
| Test Features | External visible alarm LED. Internal noise voltage test pins provide precise pattern location and background disturbance evaluation using a standard analog meter. |
| Mounting height range | 2 m to 3.6 m (7 ft to 12 ft) |
| Mounting location | Surface or semi-flush on ceiling or on standard 10 cm (4 in.) octagonal electrical box |
| Pattern pointability | ±15° rotational |
| Sealed chamber | Internal pointability, sealed detector chamber |
Zones, Outputs & Capacity
| Feature | Detail |
|---|---|
| Alarm | Normally-closed reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads and protected by a 4.7 Ω resistor in the common C leg. |
| Tamper | Normally-closed cover activated tamper switch with separate terminals. Tamper contacts rated 125 mA at 28 VDC maximum. |
Power & Electrical
| Feature | Detail |
|---|---|
| Current | 20 mA at 12 VDC |
| Voltage | 10 VDC to 15 VDC |
Physical & Environment
| Feature | Detail |
|---|---|
| Material | High impact ABS plastic enclosure |
| Dimensions | 3.05 cm x 11.7 cm (1.2 in. x 4.6 in.) |
| Temperature (operating) | -29°C to +49°C (-20°F to +120°F); For UL Certificated installations, 0°C to +49°C (+32°F to +120°F) |
| Radio Frequency Interference (RFI) Immunity | No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m. |
Compliance & Warranty
| Feature | Detail |
|---|---|
| Europe | DS936 complies with EN50131‑1, Grade 2; CE EMC, LVD, RoHS [DS936] |
| USA | UL 639 - Standard for Intrusion Detection Units |
| Overview & Compatibility — Product | DS936 Low Profile Panoramic PIR Detector |
|---|---|
| Overview & Compatibility — Description | The ceiling mount, low profile panoramic DS936 PIR Detector uses alternate polarity pulse count. It also uses a pointable Fresnel lens to provide up to 7.5 m (24 ft) of coverage and can be mounted on the surface, or semi-flush directly to a ceiling or a standard octagonal electrical box. |
| Overview & Compatibility — Accessories | TC6000 Test Cord — Test cord for connecting a compatible detector’s test pins to a voltmeter. It is 4.6 m (15 ft.) long. |
| Detection & Coverage — Coverage | 360° x 7.5 m (24 ft.) pattern — Coverage diameter is approximately two times the mounting height. |
| Detection & Coverage — Enhanced Signal Processing | Field-selectable for standard, intermediate or high. |
| Detection & Coverage — Test Features | External visible alarm LED. Internal noise voltage test pins provide precise pattern location and background disturbance evaluation using a standard analog meter. |
| Detection & Coverage — Mounting height range | 2 m to 3.6 m (7 ft to 12 ft) |
| Detection & Coverage — Mounting location | Surface or semi-flush on ceiling or on standard 10 cm (4 in.) octagonal electrical box |
| Detection & Coverage — Pattern pointability | ±15° rotational |
| Detection & Coverage — Sealed chamber | Internal pointability, sealed detector chamber |
| Zones, Outputs & Capacity — Alarm | Normally-closed reed relay rated at 3.0 W, 125 mA at 28 VDC for resistive loads and protected by a 4.7 Ω resistor in the common C leg. |
| Zones, Outputs & Capacity — Tamper | Normally-closed cover activated tamper switch with separate terminals. Tamper contacts rated 125 mA at 28 VDC maximum. |
| Power & Electrical — Current | 20 mA at 12 VDC |
| Power & Electrical — Voltage | 10 VDC to 15 VDC |
| Physical & Environment — Material | High impact ABS plastic enclosure |
| Physical & Environment — Dimensions | 3.05 cm x 11.7 cm (1.2 in. x 4.6 in.) |
| Physical & Environment — Temperature (operating) | -29°C to +49°C (-20°F to +120°F); For UL Certificated installations, 0°C to +49°C (+32°F to +120°F) |
| Physical & Environment — Radio Frequency Interference (RFI) Immunity | No alarm or setup on critical frequencies in the range from 26 MHz to 950 MHz at 50 V/m. |
| Compliance & Warranty — Europe | DS936 complies with EN50131‑1, Grade 2; CE EMC, LVD, RoHS [DS936] |
| Compliance & Warranty — USA | UL 639 - Standard for Intrusion Detection Units |
04Why choose this
Built for the way you actually use the DS936
Almost invisible once fitted
At 3.05 cm deep and 11.7 cm across it sits low on the ceiling, surface or semi-flush. A reception or living room keeps its look without a detector in the corner.
Aim it after it is up
The Fresnel lens rotates ±15° inside the sealed chamber, so the pattern can be turned towards the doorway or away from a heater without moving the housing. The sealed chamber also keeps dust out of the optics.
Sensitivity set for the room
Enhanced signal processing is selectable between standard, intermediate and high, and alternate polarity pulse count filters out short disturbances. A quiet office and a busy reception get different settings.
Commissioned with a meter, not a guess
The external alarm LED shows detection and the internal noise voltage test pins show pattern edges and background disturbance on a standard analogue meter. The TC6000 test cord connects the pins to a voltmeter.
A conventional zone connection
The normally-closed reed relay, separate cover tamper and 10 VDC to 15 VDC supply suit a hardwired panel zone. It draws 20 mA at 12 VDC.
05Where it fits
Right at home in these scenarios
Reception or meeting room in an Australian office
The Bosch DS936 sits in the middle of a 2 m to 3.6 m ceiling and covers its 360° x 7.5 m pattern from above, so the area behind a reception desk falls inside the circle rather than behind a corner detector. Choose the standard, intermediate or high processing level on site to suit the room.
Living room in a home without pets
A central ceiling position covers the lounge and its openings from above with nothing on the walls. It has no pet immunity, so it suits a house where animals are not left inside while the system is armed.
Storeroom or small workshop
A room up to the 7.5 m pattern gets one detector on the ceiling or on an octagonal box, out of the way of shelving. A bigger space needs a detector with a larger pattern.
06Setup
Installation & setup
-
01
What's in the box
The Bosch DS936 arrives as the detector itself in its ABS enclosure. The panel, the field cable, the end-of-line resistors and the optional TC6000 test cord are separate; Solution 2000 and 3000 panels supply end-of-line resistors in their hardware pack.
-
02
Where to mount it
Mount it on the ceiling between 2 m and 3.6 m, surface or semi-flush, or on a standard 10 cm (4 in.) octagonal electrical box, at the centre of the area to be watched. Remember the coverage diameter is roughly twice the mounting height, so a higher ceiling gives a wider circle, up to the 7.5 m pattern.
-
03
Cable and end-of-line
Run one cable from the panel to the ceiling point carrying the 10 VDC to 15 VDC supply, the normally-closed alarm relay and the normally-closed tamper loop, and keep the run within the length the chosen panel allows for a detector zone. On a Solution 6000 a shorted zone loop is treated as a tamper under every end-of-line configuration.
-
04
Power
The detector draws 20 mA at 12 VDC from a 10 VDC to 15 VDC supply, a light load on a panel's detector supply.
-
05
Aim and test
Rotate the lens up to ±15° to aim the pattern, choose standard, intermediate or high processing for the room, then walk test with the alarm LED and check the pattern edges on the noise voltage test pins with an analogue meter or the TC6000 test cord.
-
06
When to call an electrician
The detector runs on 10 VDC to 15 VDC from the alarm panel and needs no mains work. Use a licensed electrician whenever the job involves new or altered fixed mains wiring, and a licensed security installer for the panel programming.
08Questions
Frequently asked about the DS936
Q.01
How much area does the Bosch DS936 cover?
The Bosch DS936 has a 360° x 7.5 m pattern from the ceiling, and the coverage diameter is roughly twice the mounting height. Mount it between 2 m and 3.6 m high.
Q.02
Can I put it on a wall?
No. It is a ceiling detector, mounted surface or semi-flush on the ceiling or on a standard 10 cm (4 in.) octagonal electrical box, and its panoramic pattern is designed for that position.
Q.03
Is the DS936 pet immune?
No. It has no pet immunity, so it suits rooms where animals will not move about while the system is armed.
Q.04
Can I adjust where the pattern points?
Yes. The Fresnel lens rotates ±15° inside the sealed chamber, so the pattern can be aimed after the housing is fixed.
Q.05
What sensitivity settings does it have?
Enhanced signal processing is selectable between standard, intermediate and high. The detector also uses alternate polarity pulse count to ignore short disturbances.
Q.06
Which alarm panels can it connect to?
A hardwired panel whose zone input accepts a normally-closed relay and tamper loop with a 10 VDC to 15 VDC detector supply. The relay is rated 3.0 W, 125 mA at 28 VDC, with a 4.7 Ω resistor in the common leg.
Q.07
How much power does it draw?
It runs from 10 VDC to 15 VDC and draws 20 mA at 12 VDC.
Q.08
How do I test it after installation?
The external alarm LED shows detection during a walk test. The internal noise voltage test pins show the pattern location and background disturbance on a standard analogue meter, or through the 4.6 m TC6000 test cord.
Q.09
Can it be used in a garage or unheated room?
Indoors, yes: the operating range is -29°C to +49°C, with 0°C to +49°C for UL certificated installations. It has no outdoor or weather rating.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Pair it with a hardwired Solution panel
The Bosch DS936 needs a panel zone that accepts its normally-closed relay, tamper loop and 10 VDC to 15 VDC supply. Check the zone input and end-of-line arrangement of the panel you choose, such as the Solution 3000 or Solution 4000 sold here, before pairing.
Add the cable for the ceiling run
Allow one cable from the panel to the ceiling point for power, alarm and tamper, sized to the length the panel permits for a detector zone. A ceiling run is usually longer than a wall run, so measure the route first.
Add the DS9370 for the big room
Where a space is larger than the 7.5 m pattern, the Bosch DS9370 TriTech ceiling detector is the one to look at; check its own page for its pattern and mounting height. Use the DS936 for the offices and the larger detector for the open floor.
