Hikvision DS-9632NI-M8 32ch M-Series NVR, 320Mbps, 8K, VGA/HDMI, 8 Bay, 3RU, No HDD
1 1
Hikvision

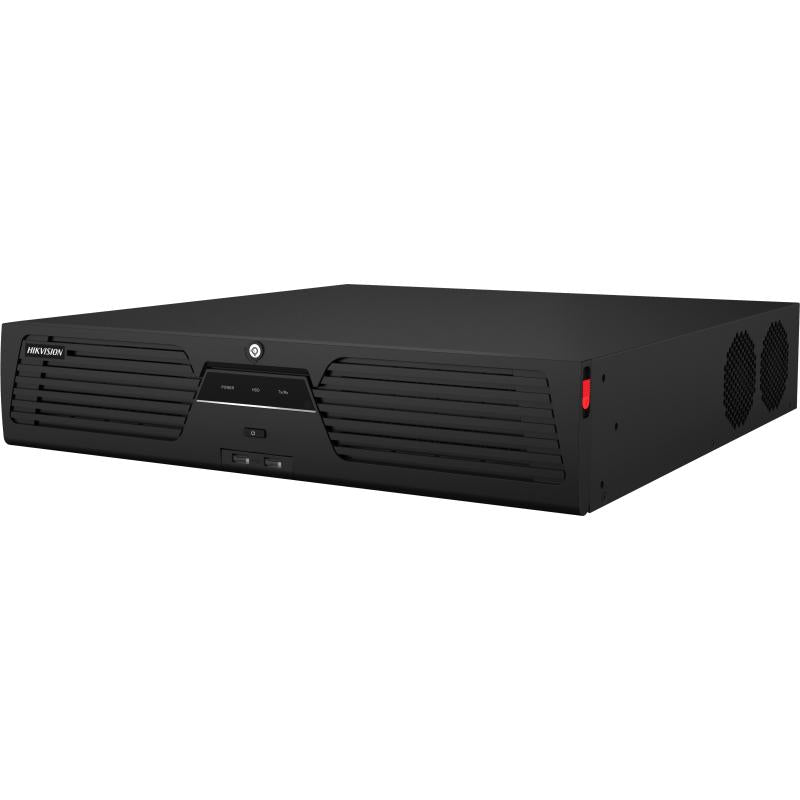

Hikvision DS-9632NI-M8 32ch M-Series NVR, 320Mbps, 8K, VGA/HDMI, 8 Bay, 3RU, No HDD

SKU: DS-9632NI-M8
Description

The Hikvision DS-9632NI-M8 is a 32-channel M-Series network video recorder for larger commercial systems where cameras run from managed network switches. It records up to 32 IP cameras at resolutions up to 32MP with 320 Mbps of incoming bandwidth, stores footage across eight SATA bays with RAID, and outputs 8K over HDMI. It has no built-in PoE and is supplied without hard drives.

Key points
- 32 IP channels; 320 Mbps incoming, 400 Mbps outgoing bandwidth
- Records cameras up to 32MP; H.265+ compression
- Eight SATA bays (up to 16TB each) plus eSATA; RAID 0, 1, 5, 6, 10 and N+M hot spare
- No built-in PoE — cameras connect via external network switches
- Dual HDMI (8K) and dual VGA outputs for multi-screen monitoring
- Works with special cameras: people counting, ANPR and fisheye
- 2U rack chassis; hard drives not included; remote view via Hik-Connect
$2,234.85 AUD $2,234.85 AUD $2,660.00 AUD
Sale 15.98% $425.15 AUD (15.98%)
Bulk Price$2,100.76 AUD
Save $134.09 AUD — 6% off orders over $1,500, applied automatically at checkout.
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Optional extras Accessories & upgrades Complete setup from $2,604.85

Choose optional additions for this product. Check each item for compatibility with your setup.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Select the items you need and choose a quantity.
0
0
0
0
Bundle total: $2,234.85
Bulk Price$2,100.76 6% off orders over $1,500 — applied automatically at checkout.

01Overview

What the DS-9632NI-M8 is

The Hikvision DS-9632NI-M8 is a 32-channel M-Series recorder for larger commercial sites where cameras are already powered by managed network switches rather than the recorder. It records up to 32 IP cameras at resolutions as high as 32MP, with 320 Mbps of incoming bandwidth and 400 Mbps outgoing, so it handles a substantial estate of high-megapixel cameras.

Like its 64-channel sibling it is built around resilient storage: eight SATA bays each take a surveillance drive up to 16TB, with RAID 0, 1, 5, 6, 10 and N+M hot spare so the system can keep recording through a drive failure, plus an eSATA port for expansion. It works with Hikvision's special cameras including people counting, ANPR and fisheye, and drives dual HDMI (up to 8K) and dual VGA outputs for a multi-screen monitoring layout.

Two things to plan for. It has no built-in PoE, so every camera connects through your own network switches — the usual arrangement where cameras are spread across a site, communications rooms or fibre links. And it is supplied without drives, so add surveillance storage to suit your retention. The chassis is a 2U rack unit. It is genuine Australian Hikvision stock with local warranty and support, viewed remotely on the free Hik-Connect app.

02Engineering

DS-9632NI-M8 specifications

- 32-channel M-Series NVR; 320 Mbps incoming, 400 Mbps outgoing bandwidth
- Records IP cameras up to 32MP with efficient H.265+ compression
- Eight SATA bays (up to 16TB each) plus eSATA — hard drives supplied separately
- RAID 0, 1, 5, 6, 10 and N+M hot spare for resilient storage
- No built-in PoE — cameras connect through your own network switches
- Dual HDMI (up to 8K) and dual VGA outputs for multi-screen layouts
- Works with special cameras: people counting, ANPR and fisheye
- 2U rack chassis; remote view via Hik-Connect; genuine Australian stock, 3-year warranty

03Full datasheet

Detailed specifications

Video

Video — Hikvision DS-9632NI-M8 32ch M-Series NVR, 320Mbps, 8K, VGA/HDMI, 8 Bay, 3RU, No HDD
FeatureDetail
IP Video Input 32-ch
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 400 Mbps
HDMI 1 Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 16-ch
Decoding Capability 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)

04Why choose this

Built for the way you actually use the DS-9632NI-M8

Built for switch-fed systems

With no built-in PoE, it suits larger sites where cameras already run from managed network switches across the property.

Resilient RAID storage

Eight bays with RAID 0/1/5/6/10 and hot spare keep recording through a drive failure on a commercial-grade system.

High channel count and resolution

Thirty-two channels and support for cameras up to 32MP cover a large, detailed camera estate.

Multi-screen control

Dual HDMI up to 8K and dual VGA outputs suit a staffed monitoring room.

05Where it fits

Right at home in these scenarios

Switch-based commercial sites

Aggregate up to 32 cameras already powered by network switches into one recorder with RAID storage.

Multi-building and campus

Bring cameras from several switches, comms rooms or fibre links back to a single 32-channel unit.

High-resolution estates

Run high-megapixel cameras up to 32MP with the bandwidth and storage a smaller NVR does not offer.

Long-retention installations

Fill eight bays with high-capacity drives and RAID for weeks of recording across many channels.

06Setup

Installation & setup

  1. What's in the box

    One DS-9632NI-M8 2U recorder, power lead and mouse. Hard drives, network switches, cameras and monitors are not included.

  2. Installation requirements

    Fit surveillance-grade SATA drives across the eight bays to suit your retention and RAID plan, connect cameras through managed PoE switches on the network (the recorder has no built-in PoE), then connect monitors over HDMI/VGA and the network for remote access and add it to Hik-Connect. A UPS is recommended on a system this size, and professional installation is advised.

08Questions

Frequently asked about the DS-9632NI-M8

Q.01

Does the DS-9632NI-M8 come with hard drives?
No. It is supplied without drives so you can plan capacity to suit the site. It has eight SATA bays, each taking a surveillance-grade drive up to 16TB, plus an eSATA port, so fit drives before you expect it to record.
Q.02

Does this NVR have built-in PoE ports?
No. The DS-9632NI-M8 has no built-in PoE, so cameras connect through your own managed network switches. That is normal on a larger 32-channel system where cameras are spread across the site and powered by separate PoE switches. If you want some cameras powered directly from the recorder, choose a model with built-in PoE such as the DS-7616NI-M2/16P.
Q.03

How many cameras and what resolution can it handle?
It records up to 32 IP channels at resolutions up to 32MP, with 320 Mbps of incoming bandwidth and 400 Mbps outgoing, which suits an estate of high-megapixel cameras.
Q.04

What RAID levels does it support?
It supports RAID 0, 1, 5, 6, 10 and N+M hot spare across its eight bays. RAID 5 or 6 lets the system keep recording through a drive failure, which matters on a commercial system where lost footage is costly.
Q.05

How is this different from the 64-channel DS-9664NI-M8?
Both share the same eight-bay RAID storage, 8K output and no built-in PoE. This DS-9632NI-M8 records up to 32 channels at 320 Mbps incoming, while the DS-9664NI-M8 records up to 64 channels at 400 Mbps. Choose this model for a system up to 32 cameras, or the 64-channel version for a larger estate.
Q.06

How many screens can it drive?
It has dual HDMI and dual VGA outputs, with HDMI supporting up to 8K or dual 4K, so you can spread cameras across several monitors at a staffed monitoring position.
Q.07

Can I view it on my phone?
Yes. Connect the NVR to your network and add it to the free Hik-Connect app to watch live and play back recordings from a phone or tablet, at home or away.
Q.08

Will it work with non-Hikvision cameras?
It is built for Hikvision and ONVIF IP cameras. Hikvision cameras give full feature support including special models such as ANPR, people counting and fisheye, while many third-party ONVIF cameras connect for recording, though some smart features may not be available.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

10Bundles

Recommended packages

01

Add hard drives (required)

The recorder ships without storage — fit the bays with surveillance drives such as 8TB, 10TB or 6TB units, sized to your retention and RAID plan.

03

Need more channels?

For up to 64 channels with the same eight-bay RAID storage, step up to the DS-9664NI-M8.
