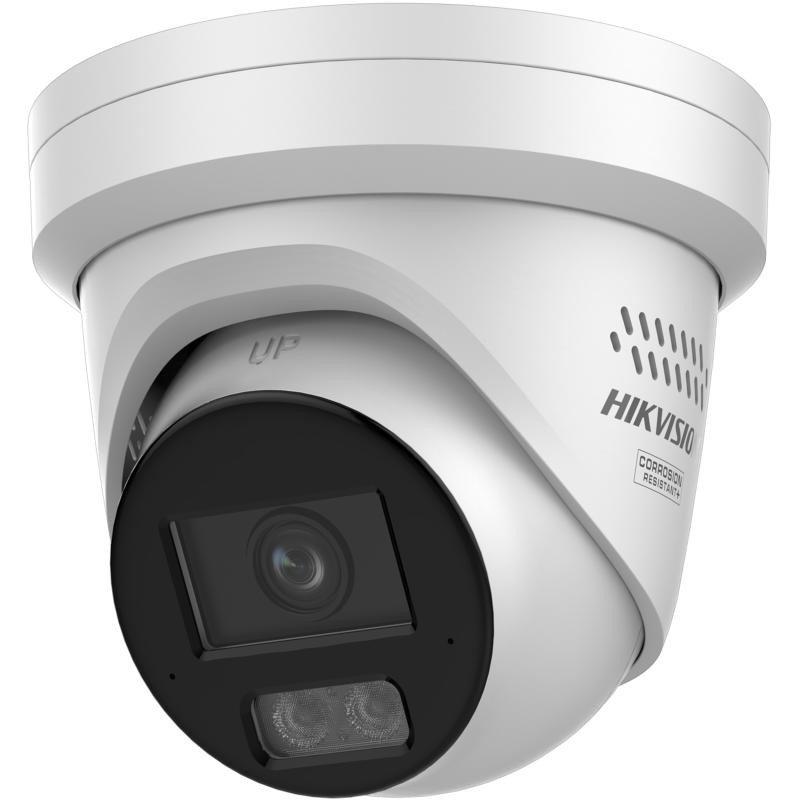

Hikvision DS-2CD2387G3-LIS2UY/SL 8MP 4K Smart Hybrid Light ColorVu 3.0 Turret Camera With Strobe / Speaker
- 8MP resolution: high-resolution imaging for crystal-clear clarity.
- Active deterrence: strobe light and audio alarm for proactive security.
- Built-in hybrid LED: intelligent lighting with IR and white light.
- Dual microphones: enabling clear audio and two-way talk.
- IP67 waterproof: anti-corrosion rating for all-weather durability.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
Overview
Color options: White or Black.
Note: Please indicate your choice in your order message.
The Hikvision ColorVu 3.0 turret camera provides 8MP high-resolution surveillance for Australian properties with vivid 24/7 colour imaging
AI-powered night vision and WDR technology ensure clear low-light footage for enhanced security monitoring
Technical Specifications
- HikAI-ISP and 24/7 ColorVu, ensuring crystal-clear footage day and night
- Scene-adaptive WDR, balancing exposure in extreme lighting conditions
- AI person and vehicle detection, reducing false alarms with intelligent alerts
- Dual microphones with two-way audio, enabling clear communication through CCTV systems
- IP67 waterproof and anti-corrosion, built for harsh Australian outdoor environments
- Hybrid IR/white light technology, providing superior night vision and intelligent illumination
- Strobe light and audio alarm, offering proactive security deterrents
- 4mm fixed lens, optimized for wide-area surveillance coverage
Ask About This Product
Got a question about specs, features or compatibility? Our AI assistant can help — powered by the product datasheet.
AI answers are based on the product datasheet. For purchase advice or anything not covered, contact sales@smarket.com.au.
Detailed Specifications
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 130 dB |
| Image Stabilization | EIS |
| Privacy Mask | 4 programmable polygon privacy masks |
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° | 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 3.3 m to ∞ | 4 mm: 3.8 m to ∞ |
| DORI | 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m | 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m |
| Feature | Detail |
|---|---|
| Supplement Light Type | White Light, IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Feature | Detail |
|---|---|
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Built-in Speaker | Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB. |
| Built-in Microphone | Built-in Microphone: -2U: Arrayed dual-microphone, 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle) |
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+ |
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, strobe light flashing |
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Audio | Built-in Microphone: -2U: Arrayed dual-microphone, 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 1.29 A, max. 15.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 17 W |
| Material | Cover: metal, main body: metal |
| Dimension | Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") |
| Package Dimension | 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") |
| Weight | Approx. 820 g (1.8 lb.) |
| With Package Weight | Approx. 1200 g (2.6 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU |
| Protection | IP67: IEC 60529-2013 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
| Available Model | DS-2CD2387G3-LIS2UY/SL(2.8mm) | DS-2CD2387G3-LIS2UY/SL(4mm) | DS-2CD2387G3-LIS2UY/SL(2.8mm)(Black) |
Why Choose This Camera
ColorVu 3.0 with HikAI-ISP Technology
Advanced AI-driven image processing delivers sharp colour footage in near darkness, capturing critical details like clothing colours and vehicle registration plates that traditional infrared cameras miss.
Smart Hybrid Light System
Intelligently switches between discreet infrared and bright white illumination only when humans or vehicles are detected, eliminating constant light pollution whilst maintaining full-colour forensic evidence capability.
NEMA 4X Coastal Protection
Enhanced anti-corrosion coating engineered for Australian coastal environments within 2 kilometres of shoreline, delivering years of reliable operation in salt-laden air that degrades standard IP67 cameras.
Integrated Active Deterrence
Built-in 110dB speaker, customisable audio warnings, and white LED strobe light create multi-sensory deterrent that interrupts incidents before escalation, replacing separate security lighting and alarm systems.
Where It Fits Best
Front Verandah and Driveway
Monitor visitors, delivery drivers, and vehicles approaching your property with full-colour night vision that captures clothing details, vehicle colours, and registration plates for evidential-quality footage.
Retail Checkout and Entrance
Single-camera coverage of customer areas with AcuSense human detection reducing false alarms, whilst active deterrence audio warnings discourage theft and aggressive behaviour in Australian shopfronts.
Warehouse Loading Docks
Secure after-hours perimeter areas with 30-metre Smart Hybrid Light range, distinguishing legitimate staff from trespassers whilst two-way audio enables remote security challenges before dispatching guards.
Coastal Holiday Properties
NEMA 4X corrosion resistance protects cameras in salt air environments at Gold Coast and coastal suburbs, maintaining reliable operation whilst privacy masking respects guest accommodation requirements.
Installation & Setup
What's in the Box
1. Hikvision DS-2CD2387G3-LIS2UY/SL Camera × 1 2. Power Connector × 1 3. Quick Start Guide × 1
Installation Requirements
1. Power Source: IEEE 802.3at PoE+ network switch or injector providing maximum 17 watts per camera with quality CAT6 pure copper cabling 2. Network Connection: Compatible with all Australian NBN connection types requiring 2.4GHz or 5GHz network with stable signal strength at mounting location 3. Mounting Surface: Solid brick, masonry, or timber eave capable of supporting camera weight with appropriate fixings for Australian building materials 4. Environmental Considerations: Position under eaves or with partial shade in extreme summer heat, maintain 2.5-3 metre height to minimise wildlife false triggers
App Setup and Configuration
1. Download Hik-Connect app from Google Play or Apple App Store and create account selecting Australia as region 2. Activate camera using SADP tool for Windows or Mac, creating secure admin password following complexity requirements 3. Add camera to Hik-Connect by scanning QR code on camera body or manual serial number entry with verification code 4. Configure Smart Hybrid Light mode, AcuSense detection zones, and active deterrence settings through app interface or web browser access
