Hikvision 6 x 8MP DS-2CD2387G3-LIS2UY/SL ColorVu 3.0 CCTV Kit + DS-7608NI-M2/8P 8CH NVR + 4TB HDD, Strobe & Audio Warning
SKU: DS-2CD2387G3-LIS2UY/SL
Description
1 x DS-7608NI-M2/8P 8CH PoE NVR with 4TB HDD installed,
6 x DS-2CD2387G3-LIS2UY/SL 8MP 4K ColorVu 3.0 turret cameras.
Regular price
$2,881.55 AUD
Sale price
$2,881.55 AUD
Regular price
$3,858.00 AUD
Sale
25.31%
$976.45 AUD
(25.31%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Hikvision 6 x 8MP DS-2CD2387G3-LIS2UY/SL ColorVu 3.0 CCTV Kit + DS-7608NI-M2/8P 8CH NVR + 4TB HDD, Strobe & Audio Warning
1
/
of
1
Customize this kit Kit price $2,881.55

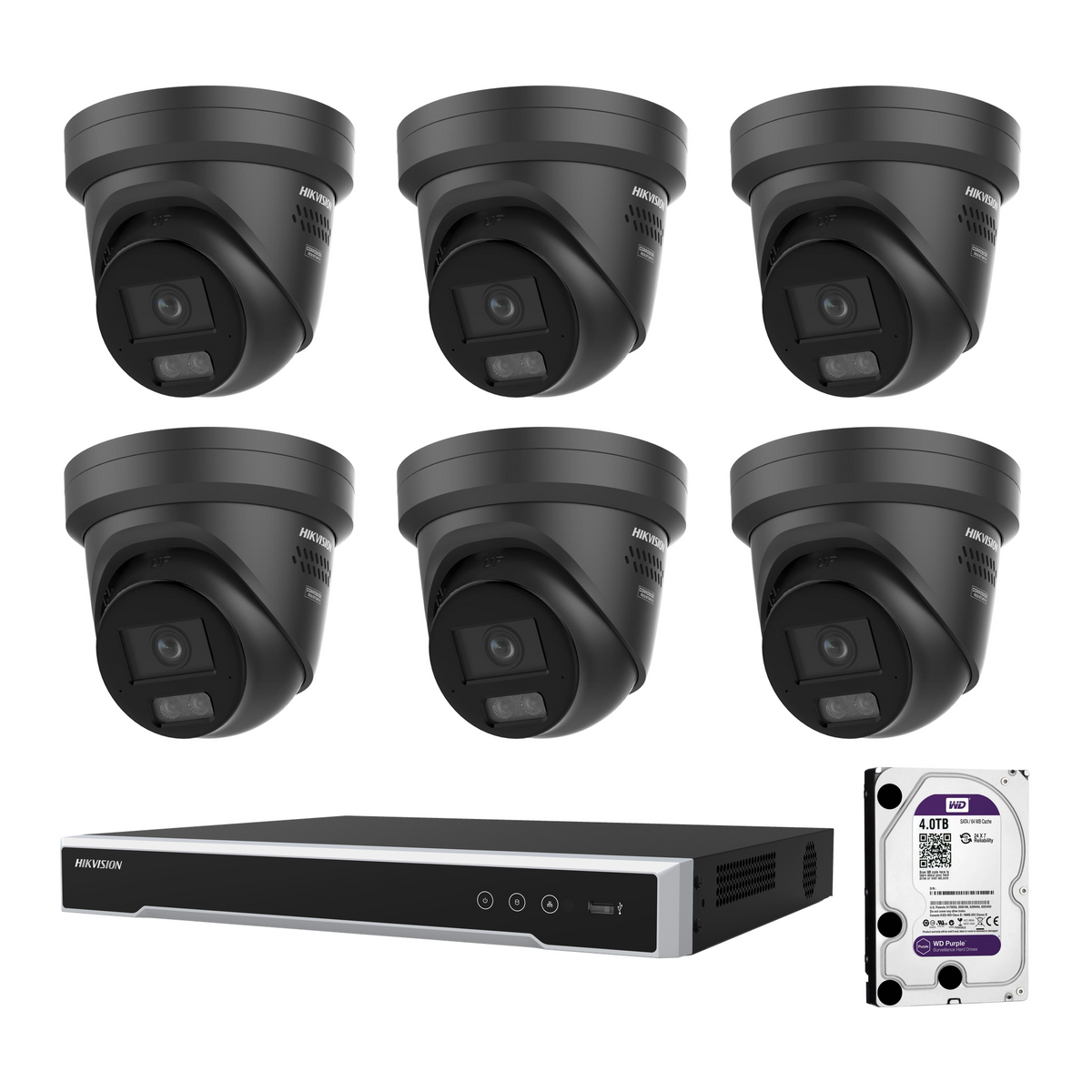

This kit includes:
- 6 × Hikvision DS-2CD2387G3-LIS2UY/SL 8MP 4K ColorVu 3.0 Turret Camera, Smart Hybrid Light, Strobe & Audio Warning, Two-Way Talk
- 1 × Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR, 128Mbps, 4K, 2 Bay, 1RU, 4TB (8ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Lens options: 2.8mm or 4mm focal length.
Note: Please indicate your choice in your order message.
This 6-camera 4K ColorVu 3.0 kit pairs six DS-2CD2387G3-LIS2UY/SL turrets, the flagship of our Hikvision 8MP range, with the 8-channel DS-7608NI-M2/8P recorder and a pre-installed 4TB surveillance drive.
Six cameras suits a two-storey home or a corner block: the four approaches plus the porch close-up and the blind side a four-camera layout leaves open. Every position records 4K colour at night (0.0005 lux F1.0 with Smart Hybrid Light) and fights back, a strobe and a spoken warning the moment a line is crossed, with two-way talk through dual mics from Hik-Connect. NEMA 4X housings suit coastal sites.
The 8CH NVR keeps two spare PoE channels, and six 8MP streams fill the 4TB drive in roughly 12 days of continuous recording, much longer on motion-only, and you can size the drive up with the kit customiser on this page.
§ 02Engineering
Technical specifications
- 6 x 8MP 4K ColorVu 3.0 Turrets: 0.0005 lux F1.0 sensors with Smart Hybrid Light, white, infrared or smart-switching, 30m range.
- Strobe + Audible Warning on every camera: fires when a person or vehicle crosses its zones, with two-way talk via dual mics and speaker.
- 8CH M-Series NVR: DS-7608NI-M2/8P with 802.3af and at PoE on every channel, two channels spare for future cameras.
- 4TB Surveillance HDD pre-installed: roughly 12 days of continuous 4K footage from six cameras, much longer on motion-only recording.
- NEMA 4X Housings: anti-corrosion rated, the kit for coastal positions where standard housings pit and stain.
- Human/Vehicle Classification: zones trigger on the targets that matter, not possums and headlights.
- Strobe + Audible Warning on every camera: fires when a person or vehicle crosses its zones, with two-way talk via dual mics and speaker.
- 8CH M-Series NVR: DS-7608NI-M2/8P with 802.3af and at PoE on every channel, two channels spare for future cameras.
- 4TB Surveillance HDD pre-installed: roughly 12 days of continuous 4K footage from six cameras, much longer on motion-only recording.
- NEMA 4X Housings: anti-corrosion rated, the kit for coastal positions where standard housings pit and stain.
- Human/Vehicle Classification: zones trigger on the targets that matter, not possums and headlights.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 130 dB |
| Image Stabilization | EIS |
| Privacy Mask | 4 programmable polygon privacy masks |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° | 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2° |
| Lens Mount | M16 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 3.3 m to ∞ | 4 mm: 3.8 m to ∞ |
| DORI | 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m | 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | White Light, IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Built-in Microphone | -2U: Arrayed dual-microphone |
| Built-in Speaker | Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB. |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle) |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, strobe light flashing |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Audio Input | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium |
| Audio Output | 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm Input | 1 input |
| Alarm Output | 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 1.29 A, max. 15.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 17 W |
| Material | Cover: metal, main body: metal |
| Dimension | Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5") |
| Package Dimension | 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") |
| Weight | Approx. 820 g (1.8 lb.) |
| With Package Weight | Approx. 1200 g (2.6 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU |
| Protection | IP67: IEC 60529-2013 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
§ 04Why choose this
Built for the way you actually use it
Deterrence at every approach
Each camera answers its own zone: a strobe and an audible warning the moment a person or vehicle crosses it, with the event captured in full colour under the white light.
Covers what four cameras miss
Six cameras closes the gaps a four-corner layout leaves: the porch close-up and the blind side path are usually the first two added, here they are included from day one, each with its own deterrence.
4K colour evidence around the clock
0.0005 lux F1.0 sensors with Smart Hybrid Light keep clothing and vehicle colours readable at night in 4K, the details witnesses and police can act on.
§ 05Where it fits
Right at home in these scenarios
Two-storey family home
Four corners plus the front porch and balcony side, six positions in 4K night colour, each answering intruders with a strobe and a voice.
Corner block
Street frontage on two sides means more approaches to watch. Six cameras covers both frontages, the driveway and the rear, with zones drawn to your boundary.
Coastal homes
NEMA 4X anti-corrosion housings at every position, the spec that matters within sight of salt water.
Small business premises
Entry, counter, storeroom, rear door and both external walls on one recorder, with spoken warnings at the doors after close.
§ 06Setup
Installation & setup
What's in the Box
1. Hikvision DS-2CD2387G3-LIS2UY/SL Camera × 6 2. DS-7608NI-M2/8P NVR with 4TB HDD installed × 1 3. NVR Power Adapter × 1 4. Quick Start Guide × 1
Installation Requirements
1. Each camera needs one Ethernet run back to the NVR, the PoE ports carry power and video together, up to 100m per run. 2. Mount on a solid wall or eave; under-eave positions keep lenses clear of direct rain and afternoon sun. 3. Connect the NVR to your router with a short Ethernet patch lead for remote viewing, works on all NBN connection types.
App Setup
1. Activate the NVR with a strong password on first boot, then add it to the Hik-Connect app by scanning the QR code on the NVR screen. 2. Enable push notifications, pick each camera's lighting mode (white, infrared or smart), and set strobe and audio schedules so deterrence sleeps when you do. 3. Draw each camera's line crossing and intrusion zones tight to your own property, with target type set to human and vehicle, zones are what fire the strobe and warnings.
§ 07Questions
Frequently asked
Q.01
Is this kit ready to use out of the box?
Yes, the surveillance drive comes installed and formatted, and the PoE ports power all six cameras including their lights and speakers. Mount the cameras, run one Ethernet line from each to the NVR, and recording starts automatically at default settings.
Q.02
How long will the drive keep footage?
Roughly 12 days of continuous recording from six 8MP cameras (an estimate around 50GB per camera per day at 4K), and much longer on motion-only recording. The NVR overwrites the oldest footage automatically, and for longer retention you can upgrade the drive with the kit customiser before checkout.
Q.03
Can I add more cameras later?
Yes, the 8CH NVR has two spare PoE channels, and any current Hikvision PoE camera plugs straight in. The same G3 turret keeps deterrence consistent, or add the G2P panoramic for a wide frontage.
Q.04
How does the deterrence actually work across the kit?
Each camera runs its own line crossing and intrusion zones, the one that detects fires its strobe and plays an audible warning through its speaker, and in smart lighting mode the white light switches on so the event records in full colour. Schedules per camera let deterrence sleep overnight or only arm after close.
Q.05
Will the strobes and warnings annoy the neighbours?
They can if zones are drawn carelessly, so draw each camera's zones tight to your own property, schedule audio off overnight, or set individual cameras to alert-only. The white supplement light is also part of night colour: aim cameras into your own property, or run infrared mode where visible light is unwelcome.
Q.06
Can I choose infrared instead of the white light?
Yes, every camera offers three modes: white light for 24/7 colour, infrared for discretion, or smart mode that holds infrared until a person or vehicle is detected and captures that event in colour. Set it per camera from the app.
Q.07
How far can the cameras see at night?
In colour, down to 0.0005 lux through F1.0 lenses with white light to 30 metres; in infrared mode the same 30 metres in black and white. Identification runs to about 8 metres with the 2.8mm lens or 10 metres with the 4mm, number plates still need daylight or good lighting.
Q.08
Is the NVR's PoE budget enough for these cameras?
Yes for normal operation, the M-series ports supply 802.3af and at, and each G3 camera only approaches its 17W peak in the moment its strobe, white light and speaker all fire together. The recorder shares its PoE budget across ports, so a layout where every camera triggers everything simultaneously is the theoretical corner. If you plan one giant shared zone, power the cameras from an 802.3at switch instead.
Q.09
Can I talk through the cameras from my phone?
Yes, every camera carries arrayed dual microphones and a speaker, giving two-way talk through the Hik-Connect app on whichever camera you open.
Q.10
What does the NVR actually do beyond recording?
It powers every camera over its PoE ports, keeps all channels on one timeline with classified events flagged for fast review, and handles remote viewing through Hik-Connect, one app for live view, playback, alerts and two-way talk.
Q.11
Do I need to pay any subscription?
No. Recording, detection, deterrence and remote viewing through the Hik-Connect app all run on your own hardware, no monthly fees and no cloud account requirement beyond the free app login.
Q.12
Will it work without internet?
Yes. Cameras record to the NVR on a closed local network, and the strobes and warnings still fire on local detection. Internet is only needed for remote viewing and push notifications.
Q.13
Is a Hikvision system safe to use in Australia?
Hikvision equipment was removed from federal government sites in 2023 as a precaution, and there is no restriction on private or business use. This kit records locally to its own NVR, needs no cloud account, and supports HTTPS and TLS encryption. On an isolated network it still records normally.
Q.14
What does the 3-year warranty cover?
Defects in the cameras and NVR for 3 years. The hard drive carries its own manufacturer warranty terms, and installation labour is not covered.
Q.15
Is the 8MP version worth it over the 6MP kits?
The 8MP G3 records 4K (3840 by 2160) for more detail across a wide scene, which helps where one camera covers a broad frontage. The 6MP 2367 G3 is the value step down with the same deterrence and lighting where 4K storage is not wanted.
§ 08In motion
Meet the Hikvision's Smart Hybrid Light Camera with ColorVu
§ 09Bundles
Recommended packages
Bigger property?
The 8 camera version of this kit fills the recorder, the right call if every external wall needs its own camera.
Recording continuously?
Six 8MP streams fill 4TB in roughly 12 days. Upgrade to a larger surveillance drive with the kit customiser before checkout if you need longer history.
One wall needs a wide view?
Add the G2P panoramic on a spare channel to sweep a verandah or forecourt from one mount.
Need more or fewer cameras?
This kit covers 6 positions; step down to the 4 camera kit or step up to the 8 camera kit on the same 8MP ColorVu range.
Prefer 6MP value?
The 6MP version of this kit is the value pick where 4K storage is not needed.
Just want one camera?
The G3 turret on its own is the camera every position in this kit uses.
