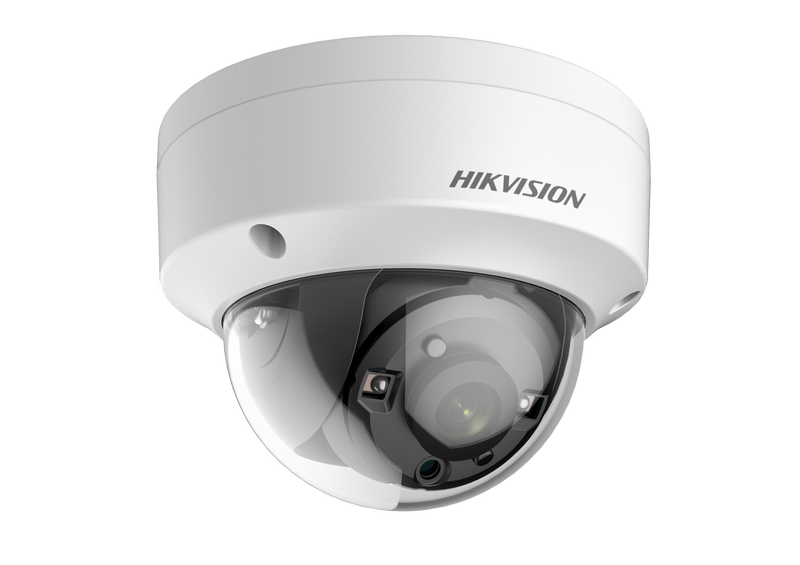

Hikvision DS-2CE57U7T-VPITF TVI4.0 8MP Outdoor Dome Camera, WDR, 30m IR, 4 in 1, IP67, 12VDC, 2.8mm
Hikvision DS-2CE57U7T-VPITF 8MP Outdoor Dome Camera WDR 30m IR 2.8mm
1 1
Hikvision

Hikvision DS-2CE57U7T-VPITF TVI4.0 8MP Outdoor Dome Camera, WDR, 30m IR, 4 in 1, IP67, 12VDC, 2.8mm

SKU: DS-2CE57U7T-VPITF
Description

The Hikvision DS-2CE57U7T-VPITF is an 8 MP (4K) Turbo HD outdoor vandal dome that upgrades an analogue CCTV system to ultra-high definition over the coaxial cable you already have. It pairs a 2.8 mm fixed lens with 30 m Smart IR, 130 dB true WDR and ultra-low-light performance, and switches between TVI, AHD, CVI and CVBS to suit almost any DVR. The metal housing is IP67 and IK10.

Key points
- 8 MP 4K (3840 x 2160) Turbo HD outdoor dome
- 4 in 1: switchable TVI / AHD / CVI / CVBS signal
- 2.8 mm fixed lens; 30 m Smart IR night vision
- 130 dB true WDR for high-contrast scenes
- Ultra-low-light performance from 0.003 Lux
- IP67 weatherproof and IK10 vandal-resistant metal housing
- Sends 4K over existing coax; 12 VDC power (no PoE)
8MP Ultra HD 30m IR Night Vision
$170.70 AUD $170.70 AUD $176.00 AUD
Sale 3.01% $5.30 AUD (3.01%)
Member Price$165.58 AUD
to save $5.12 AUD · Free to join
Business or bulk buyer? Apply for trade pricing →

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $1,114.30

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
Bundle total: $170.70
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DS-2CE57U7T-VPITF is

The Hikvision DS-2CE57U7T-VPITF is an 8 MP Turbo HD vandal dome that brings 4K detail to an analogue CCTV system without new network cabling.

It sends its picture down the coaxial cable you already have, so you can upgrade older outdoor cameras to ultra-high definition while keeping your existing DVR and wiring.

A 2.8 mm fixed lens gives a wide field of view, and at night EXIR Smart IR lights the scene evenly out to 30 m and dials back the intensity on close objects to avoid wash-out.

130 dB true WDR and 3D DNR keep the image clear against bright backlight and in low light down to 0.003 Lux, so faces and detail stay readable.

Being 4-in-1, it outputs TVI, AHD, CVI or CVBS, so you can switch it to match almost any modern Turbo HD or analogue DVR.

Two honest notes so you order the right parts.

This is an analogue Turbo HD camera, not an IP camera, so it connects to a DVR over coax rather than to an NVR over the network, and it does not use PoE - it runs on a 12 VDC supply run to the camera.

Its rugged IP67, IK10 metal housing is built for exposed outdoor walls and eaves, and like any infrared camera its night images are black-and-white.

See it in action

What the DS-2CE57U7T-VPITF features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2)
8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2)

8MP Ultra HD

8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2)
30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2)

30m IR Night Vision

Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.

Illustrative — simulated for demonstration

§ 02Engineering

DS-2CE57U7T-VPITF specifications

- 8 MP 4K (3840 x 2160) Turbo HD outdoor vandal dome
- 4 in 1: switchable TVI / AHD / CVI / CVBS for almost any DVR
- 2.8 mm fixed lens for a wide field of view
- 30 m EXIR Smart IR night vision (black-and-white at night)
- 130 dB true WDR and 3D DNR for clear, clean images
- Ultra-low-light performance from 0.003 Lux
- Sends 4K video over existing coaxial cable - no rewiring
- IP67 weatherproof, IK10 vandal resistant; 12 VDC (no PoE)

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision DS-2CE57U7T-VPITF TVI4.0 8MP Outdoor Dome Camera, WDR, 30m IR, 4 in 1, IP67, 12VDC, 2.8mm
FeatureDetail
Image Sensor 8.29 MP CMOS
Max. Resolution 3840 (H) × 2160 (V)
Min. Illumination 0.003 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/12.5 s to 1/50,000 s | NTSC: 1/15 s to 1/50,000 s
Day ＆ Night ICR
Signal System PAL/NTSC
Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness, Sharpness, DNR , Mirror
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) ≥130 dB
White Balance Auto/Manual
AGC Support

§ 04Why choose this

Built for the way you actually use the DS-2CE57U7T-VPITF

4K without rewiring

8 MP detail over your existing coax means an ultra-high-definition upgrade while keeping the DVR and cabling.

Works with almost any DVR

4-in-1 TVI/AHD/CVI/CVBS output matches modern Turbo HD and analogue recorders.

Built tough for outside

An IP67, IK10 metal housing stands up to dust, rain, impact and the Australian climate.

Clear in tricky light

130 dB true WDR, 3D DNR and 0.003 Lux low-light keep faces visible against glare and in the dark.

§ 05Where it fits

Right at home in these scenarios

Outdoor analogue upgrades

Replace ageing outdoor analogue cameras with 4K detail while keeping the existing DVR and coax.

Shopfronts and entrances

Cover a forecourt or entry with a discreet, vandal-resistant 4K dome.

Building faces

Monitor the front of a home or business with a weatherproof, impact-resistant dome.

Car parks and forecourts

Watch open vehicle areas in 4K where running new network cable is not practical.

§ 06Setup

Installation & setup

01

What's in the box

One DS-2CE57U7T-VPITF 8MP Turbo HD outdoor vandal dome with mounting template and fixings. The DVR, coaxial cable and 12 VDC power supply are supplied separately.

02

Installation requirements

Mount it on an outdoor wall or ceiling aimed at the area to cover. Run coax back to your DVR and switch the camera to the matching signal (TVI, AHD, CVI or CVBS). Provide a 12 VDC supply at the camera, then confirm the night-time IR on the DVR. It is an analogue camera, so it does not use the network or PoE; your DVR must support 8 MP Turbo HD to record full 4K.

§ 07Questions

Frequently asked about the DS-2CE57U7T-VPITF

Q.01

Can I use the DS-2CE57U7T-VPITF on my existing coax cabling?
Yes. It is a Turbo HD analogue camera that sends 8 MP 4K video down standard coaxial cable, so you can upgrade older analogue cameras to ultra-high definition without running new network wiring.
Q.02

What does 4 in 1 mean?
The camera can output four signal types - TVI, AHD, CVI or CVBS - and you switch it to match your recorder. That makes it compatible with almost any modern Turbo HD or analogue DVR.
Q.03

Does it connect to an NVR or a DVR?
To a DVR. This is an analogue camera, so it connects over coax to a Turbo HD or analogue DVR, not over the network to an IP NVR. Your DVR needs to support 8 MP (4K) Turbo HD input to record its full resolution.
Q.04

How is it powered - does it use PoE?
No, it does not use PoE. It is powered by a separate 12 VDC supply run to the camera, while the coax carries the video. Plan a power supply at or near the camera.
Q.05

How far does the night vision reach?
It has EXIR Smart IR that lights the scene evenly out to 30 m and reduces the intensity on close objects to avoid over-exposure. As with any infrared camera the night image is black-and-white.
Q.06

Is it suitable for outdoors and is it vandal resistant?
Yes. It has an IP67-rated metal housing against dust and heavy rain and an IK10 vandal-resistant rating, so it stands up to the weather and to tampering on exposed outdoor positions.
Q.07

Will it handle bright backlight, like an entrance facing the sun?
Yes. It has 130 dB true WDR plus 3D DNR, which balances bright and dark areas in the same scene, so faces stay visible against strong backlight or a bright doorway.
Q.08

What lens does it have?
This model has a 2.8 mm fixed lens, which gives a wide field of view suited to covering a broad area such as a forecourt, entrance or driveway.

§ 09Bundles

Recommended packages

02

Add storage

Fit a surveillance-grade hard drive in your DVR to record continuously; choose the capacity to suit your retention needs.

03

Going IP instead?

If you would rather run network cabling, the 6MP DS-2CD2167G3-LIS2UY ColorVu IP dome adds AcuSense and PoE.
