Hikvision 8MP 8CH CCTV Camera Kit: 4 x Outdoor Acusense Motorised VF Turret + 8CH NVR/4TB
Hikvision 8MP 4CH Kit 4 Outdoor AcuSense Motorised VF Turret 8CH NVR 4TB
1 1
Hikvision

Hikvision 8MP 8CH CCTV Camera Kit: 4 x Outdoor Acusense Motorised VF Turret + 8CH NVR/4TB

SKU: DS-2CD2H86G2-IZS
Description

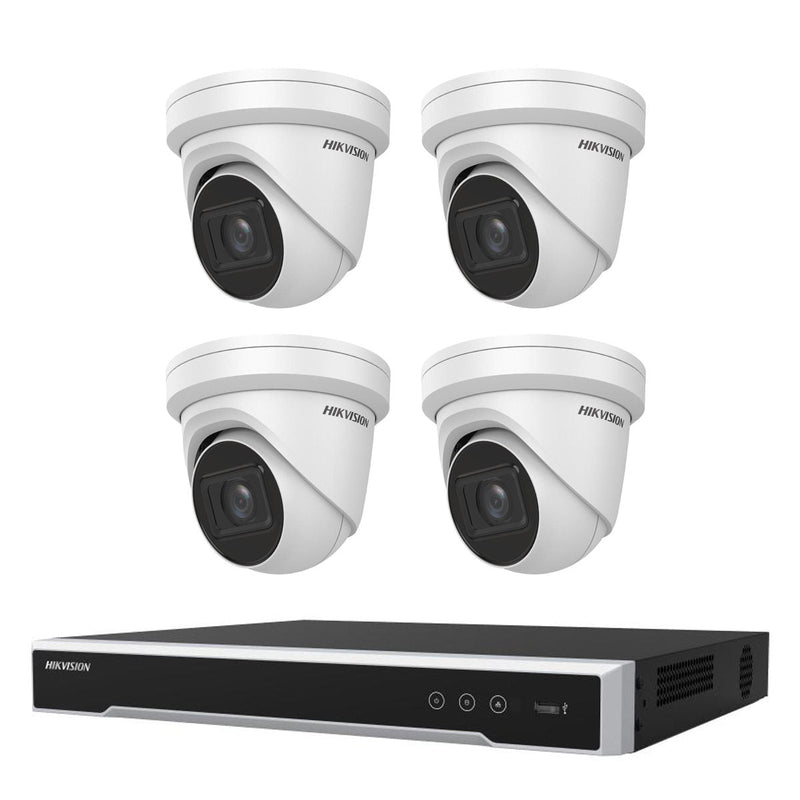

This Hikvision 8 MP 8-channel kit pairs four DS-2CD2H86G2-IZS AcuSense motorised varifocal turret cameras with an 8-channel DS-7608NI-M2/8P PoE NVR and a 4 TB surveillance hard drive, supplied ready to record with four spare channels for later.

What's in the kit
- 4 x DS-2CD2H86G2-IZS 8 MP (4K) AcuSense motorised varifocal turret cameras
- 2.8–12 mm motorised zoom; DarkFighter low-light imaging
- Human and vehicle classification; 40 m EXIR; 120 dB WDR
- IP66 weatherproof and IK10 vandal-resistant
- 1 x DS-7608NI-M2/8P 8-channel PoE NVR (dual HDD bays)
- 4 TB surveillance hard drive fitted and ready
- 4K output, H.265+ compression and four spare channels
4 cameras 8MP Ultra HD
$2,844.20 AUD $2,844.20 AUD $3,808.00 AUD
Sale 25.31% $963.80 AUD (25.31%)
Member Sign in to save $56.88 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
1
1
Bundle total: $2,844.20
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DS-2CD2H86G2-IZS is

This Hikvision 8 MP 8-channel kit is a four-camera turret system built around motorised zoom lenses, supplied ready to record.

It pairs four DS-2CD2H86G2-IZS AcuSense turret cameras with an eight-channel DS-7608NI-M2/8P PoE NVR and a 4 TB surveillance hard drive already fitted, so each camera connects on a single network cable and the recorder captures all four channels.

Because the recorder has eight channels and the kit uses four, there are four spare channels to add cameras as the property grows.

The motorised lenses set this kit apart.

Each camera has a 2.8–12 mm motorised varifocal lens, so you adjust the zoom and focus remotely in software rather than on a ladder, dialling each camera between a wide room view and a tight shot on a gate, doorway or driveway.

They are 8 MP (4K) for fine detail, use DarkFighter low-light imaging for cleaner pictures in dim light, and AcuSense deep learning classifies human and vehicle targets so alerts and searches ignore rain, shadows and animals, with a 120 dB wide dynamic range against bright backlight.

The metal housing is IP66 weatherproof and IK10 vandal-resistant for exposed, accessible positions.

A couple of honest notes so it is set up correctly.

At night these are infrared cameras with EXIR illumination reaching about 40 metres, so the picture is black and white, not full colour; DarkFighter improves low-light quality but this is not a white-light ColorVu kit.

The cameras provide audio and alarm input and output for connecting an external microphone or alarm devices; they are not supplied as a two-way intercom.

The 4 TB drive is included as standard, the recorder has dual hard-drive bays, and a second or larger drive can be fitted for longer retention.

See it in action

What the DS-2CD2H86G2-IZS features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2)
8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2)

8MP Ultra HD

8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

Illustrative — simulated for demonstration

§ 02Engineering

DS-2CD2H86G2-IZS specifications

- 4 x DS-2CD2H86G2-IZS 8 MP (4K) AcuSense motorised varifocal turret cameras
- 2.8-12 mm motorised zoom and focus, adjusted remotely in software
- DarkFighter low-light imaging for clean detail in dim scenes
- AcuSense human and vehicle classification to reduce false alarms
- 40 m EXIR infrared at night (infrared black-and-white image)
- IP66 weatherproof and IK10 vandal-resistant metal turrets
- Audio and alarm input/output for external microphone or alarm devices
- DS-7608NI-M2/8P 8-channel PoE NVR; 4 TB drive fitted; four spare channels

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision 8MP 8CH CCTV Camera Kit: 4 x Outdoor Acusense Motorised VF Turret + 8CH NVR/4TB
FeatureDetail

§ 04Why choose this

Built for the way you actually use the DS-2CD2H86G2-IZS

Frame each shot remotely

The 2.8-12 mm motorised lenses let you set zoom and focus in software, so you frame each gate, driveway or entry precisely without going back up to the camera.

4K detail, ready to record

Four 8 MP turrets, an eight-channel PoE NVR and a fitted 4 TB drive arrive set up, so a single cable per camera gets the system running.

Lots of room to grow

Four spare channels and dual drive bays leave plenty of space to add cameras and storage as the property grows.

Built for exposed spots

IP66 weatherproof and IK10 vandal-resistant metal turrets handle outdoor walls, eaves and accessible positions.

§ 05Where it fits

Right at home in these scenarios

Driveways and gates

Use the motorised zoom to frame a long driveway or a specific gate tightly for clear detail at the point that matters.

Larger properties

Start with four adjustable turrets and use the four spare channels to add cameras across a bigger home or site.

Business premises

Frame entries, car parks and loading areas precisely, with human and vehicle alerts and 4K evidence.

Tricky fields of view

Where the right lens angle is hard to judge before install, set it remotely after mounting and fine-tune over time.

§ 06Setup

Installation & setup

01

In the box

Four DS-2CD2H86G2-IZS turret cameras, the DS-7608NI-M2/8P NVR with a 4 TB drive fitted, power supply and mounting accessories. Connect a monitor for local viewing.

02

Cabling

Run one network cable from each camera to a PoE port on the NVR. Standard Ethernet runs apply, and a PoE switch can extend reach or add ports for the spare channels.

03

Mounting

Fix each turret to a wall, eave or ceiling aimed over the area you want covered, within the roughly 40 metre infrared range, then set the rough angle by hand.

04

Setup

Connect the NVR to a screen and the network, add the cameras on the plug-and-play PoE ports, use the software to set each camera's zoom and focus, then set the AcuSense rules, recording schedule and remote viewing in the Hik-Connect app.

§ 07Questions

Frequently asked about the DS-2CD2H86G2-IZS

Q.01

What does the motorised varifocal lens do for me?
Each camera has a 2.8-12 mm motorised lens, so you set the zoom and focus remotely in software instead of adjusting the lens by hand on a ladder. That lets you dial each camera between a wide view of a yard or room and a tighter shot on a gate, doorway or driveway, and fine-tune it later without going back up to the camera.
Q.02

Is the kit ready to record out of the box?
Yes. It includes the four 8 MP motorised turret cameras, the eight-channel DS-7608NI-M2/8P PoE NVR and a 4 TB surveillance hard drive already fitted, so each camera connects on one network cable and the recorder captures all four channels. Add a screen or use the Hik-Connect app to view live and recorded footage.
Q.03

Does this kit include a hard drive?
Yes. A 4 TB surveillance-grade hard drive is included and fitted, so the system records on arrival. The recorder has a second drive bay, so you can add another drive later for longer retention as you fill the spare channels with more cameras.
Q.04

Can I add more cameras later?
Yes. The recorder is an eight-channel NVR and the kit uses four channels, so there are four spare PoE ports and channels for more cameras. That gives plenty of room to grow before you would need to step up to a sixteen-channel recorder.
Q.05

Do these cameras film in colour at night?
Not in the dark. They use DarkFighter low-light imaging for cleaner pictures in dim light, but at night they switch to EXIR infrared reaching about 40 metres, so the image is black and white. For full-colour footage all night you would choose a ColorVu kit with white-light cameras.
Q.06

Do the cameras have audio?
These turrets provide audio and alarm input and output, so you can connect an external microphone or alarm devices to a camera, but they are not supplied as a built-in two-way intercom. If recording sound matters, add a line-in microphone, and confirm that recording audio is permitted for your site.
Q.07

What does AcuSense do for me?
AcuSense uses on-camera deep learning to classify human and vehicle targets and ignore other movement such as rain, leaves or animals. The system alerts you to what matters, cuts false alarms, and lets you search recordings by human or vehicle events instead of scrubbing through hours of footage.
Q.08

Where do these cameras suit best?
The motorised zoom makes them a good fit where you want to frame a specific area precisely, such as a driveway, gate, entry or car park, or where the right field of view is hard to judge before install. The IP66 and IK10 ratings suit exposed, accessible mounting, and the four spare channels leave room to add fixed-lens cameras elsewhere.
