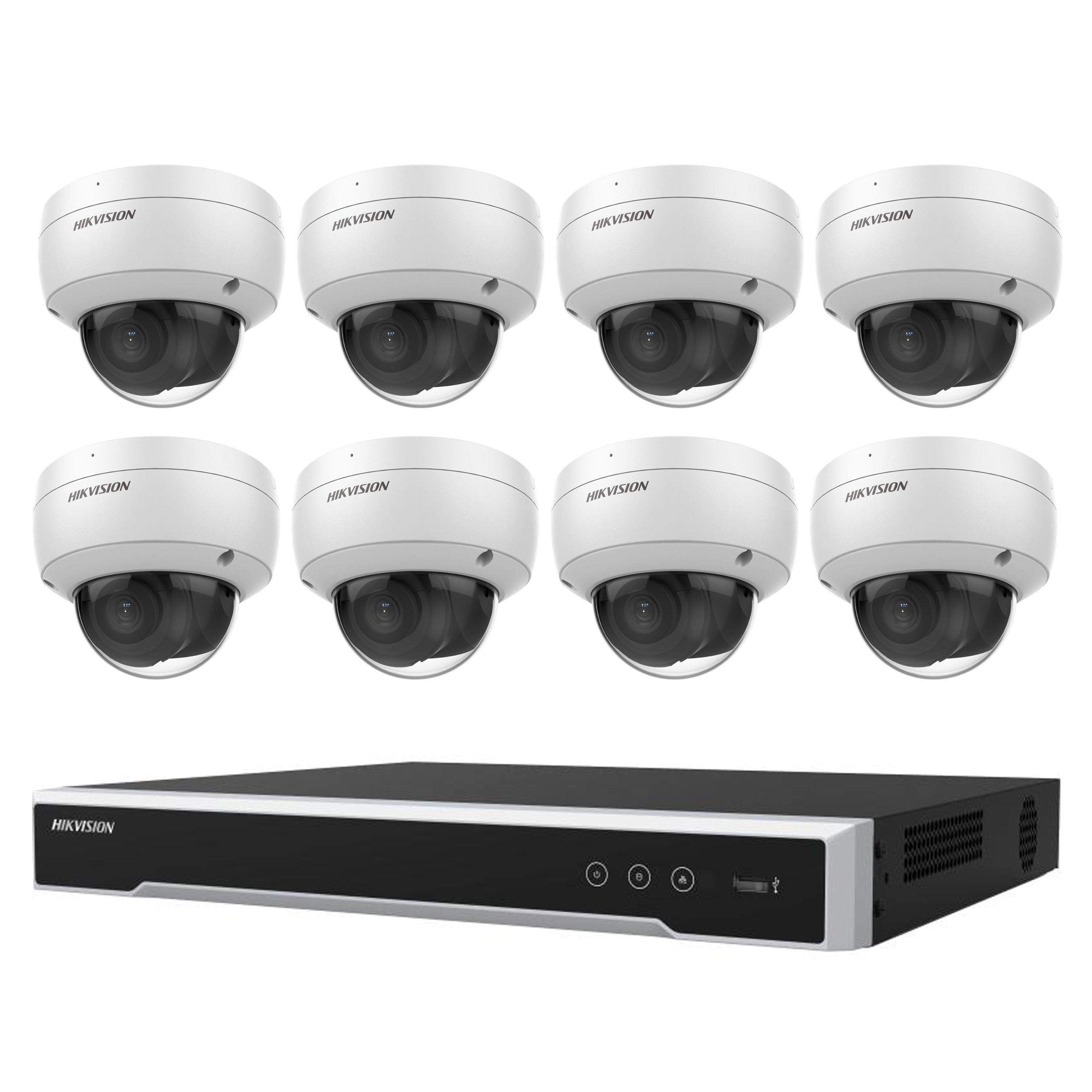

Hikvision 6MP 8CH CCTV Kit: 8x Dome Cameras with AcuSense + 8CH PoE NVR/4TB

Hikvision

Hikvision 6MP 8CH CCTV Kit: 8x Dome Cameras with AcuSense + 8CH PoE NVR/4TB

Name: Hikvision 6MP 8CH CCTV Kit: 8x Dome Cameras with AcuSense + 8CH PoE NVR/4TB
Brand: Hikvision
Price: 2630.65 AUD
Availability: InStock

SKU: DS-2CD2166G2H-ISU

Description

8 x 6MP Hikvision AcuSense Dome Cameras
Model: DS-2CD2166G2H-ISU
Specs: 6MP Ultra HD resolution, AcuSense human & vehicle classification, 30m EXIR night vision, IK10 vandal & IP67 weatherproof rating
1 x 8CH Hikvision M-Series PoE NVR (4TB HDD)
Model: DS-7608NI-M2-8P
Specs: 8-Port plug & play PoE, 8K resolution support, H.265+ video compression, 4TB surveillance HDD

$2,630.65 AUD ~~$3,428.00 AUD~~

Sale 23.26% $797.35 AUD (23.26%)

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock

Make it yours Customize this kit Add cameras, upgrade NVR or HDD 8 × Hikvision DS-2CD2166G2H-ISU 6 MP Acusense DarkFighter Fixed Dome 2.8mm / 4mm Options, IP67/IK10 · 8ch NVR · 4TB HDD Kit price $2,630.65

This kit includes:

8 × Hikvision DS-2CD2166G2H-ISU 6 MP Acusense DarkFighter Fixed Dome 2.8mm / 4mm Options, IP67/IK10
1 × Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR, 128Mbps, 8K, 2 Bay, 1RU, 4TB (8ch)
1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)

Add extra cameras Hikvision DS-2CD2166G2H-ISU 6 MP Acusense DarkFighter Fixed Dome 2.8mm / 4mm Options, IP67/IK10 · max 16

+$0.00

NVR Base: 8ch · Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR, 128Mbps, 8K, 2 Bay, 1RU, 4TB

8ch Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR,... Base (included)

Hikvision DS-7616NI-M2/16P 16ch M-Series PoE NVR, 256Mbps, H.265, 16 PnP Ports, 2 HDD Bay, 4TB

16ch Hikvision DS-7616NI-M2/16P 16ch M-Series PoE NV... +$296.80

Hard Drive Base: 4TB · 4TB HDD – WD Purple / Seagate Surveil...

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB 4TB HDD – WD Purple / Seagate Surveillance HDD ... Base (included)

6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB 6TB HDD – WD Purple / Seagate Surveillance HDD ... +$176.00

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB 8TB HDD – Purple / Skyhawk Surveillance Hard Dr... +$275.70

10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB 10TB HDD – Purple Surveillance Hard Drive for D... +$454.85

Notes for warehouse (optional)

3-Year Warranty

Warranty on all cameras

Free Shipping

On orders over $300

30-Day Returns

Easy returns for unopened items

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What this product is

Hikvision 2CD2166 6MP Dome Camera Kit provides a professional-grade surveillance solution for Australian homes and organisations. This package includes eight units of the model designed for high-definition monitoring and intelligent perimeter protection. The kit is engineered for reliability, offering a robust security deterrent for businesses and residences requiring comprehensive site coverage.

§ 02Engineering

Technical specifications

- 8 x 6MP Cameras: Dome-style outdoor AI cameras with 3200 x 1800 resolution, featuring a 2.8mm fixed lens and IK10 vandal-proof housing for maximum durability.

- AcuSense AI Technology: Employs advanced deep learning algorithms to accurately classify human and vehicle targets while filtering out false alarms from animals or weather.

- 30m EXIR Night Vision: Integrated infrared technology ensures consistent visibility in total darkness, providing clear black-and-white imaging up to 30 metres.

- Vandal and Weather Resistance: Rated IP67 for dust and water protection and IK10 for impact resistance, ideal for exposed outdoor installations.

- Intelligent Video Compression: Supports H.265+ encoding to reduce bandwidth and storage requirements by up to 80% without losing critical image detail.

- On-Board Storage Capacity: Each camera includes a built-in microSD slot supporting up to 256GB for local recording and data redundancy.

- 8CH NVR System: Base setup includes a powerful 8-channel network video recorder with built-in PoE ports to manage and power all eight high-resolution cameras.

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision 6MP 8CH CCTV Kit: 8x Dome Cameras with AcuSense + 8CH PoE NVR/4TB
Feature	Detail
Image Sensor	1/2.4" Progressive Scan CMOS
Max. Resolution	3200 × 1800
Min. Illumination	Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Shutter Time	1/3 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Image Parameters Switch	Yes
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule
Image Enhancement	BLC, HLC, 3D DNR
SNR	≥ 52 dB
Wide Dynamic Range (WDR)	120 dB
Privacy Mask	4 programmable polygon privacy masks

Lens & Distance

Lens & Distance — Hikvision 6MP 8CH CCTV Kit: 8x Dome Cameras with AcuSense + 8CH PoE NVR/4TB
Feature	Detail
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV	2.8 mm, horizontal FOV 114.8°, vertical FOV 60°, diagonal FOV 143.5° \| 4 mm, horizontal FOV 94°, vertical FOV 50.2°, diagonal FOV 112°
Lens Mount	M12
Iris Type	Fixed
Aperture	F1.0
Depth of Field	2.8 mm: 1.7 m to ∞ \| 4 mm: 2.2 m to ∞
DORI	2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m \| 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m

Night Vision

Night Vision — Hikvision 6MP 8CH CCTV Kit: 8x Dome Cameras with AcuSense + 8CH PoE NVR/4TB
Feature	Detail
Supplement Light Type	IR
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes
IR Wavelength	850 nm

Video

Video — Hikvision 6MP 8CH CCTV Kit: 8x Dome Cameras with AcuSense + 8CH PoE NVR/4TB
Feature	Detail
Main Stream	50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) \| 60 Hz: 24 fps (3200 × 1800), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) \| 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream	50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) \| 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings.
Video Compression	Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; *Third stream is supported under certain settings.
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline Profile, Main Profile, High Profile
H.265 Type	Main Profile
Bit Rate Control	CBR, VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region for main stream and sub-stream

Audio

Audio — Hikvision 6MP 8CH CCTV Kit: 8x Dome Cameras with AcuSense + 8CH PoE NVR/4TB
Feature	Detail
Audio Type	-U: Mono sound
Audio Compression	-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate	-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate	-U: 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering	-U: Yes

AI & Deep Learning

AI & Deep Learning — Hikvision 6MP 8CH CCTV Kit: 8x Dome Cameras with AcuSense + 8CH PoE NVR/4TB
Feature	Detail
Face Capture	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting; Support alarm triggered by specified target types (human and vehicle)

Network & Storage

Network & Storage — Hikvision 6MP 8CH CCTV Kit: 8x Dome Cameras with AcuSense + 8CH PoE NVR/4TB
Feature	Detail
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View	Up to 6 channels
API	ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host	Up to 32 users; 3 user levels: administrator, operator, and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage	NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Event & Alarm

Event & Alarm — Hikvision 6MP 8CH CCTV Kit: 8x Dome Cameras with AcuSense + 8CH PoE NVR/4TB
Feature	Detail
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage	Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
Smart Event	Scene change detection

Interface

Interface — Hikvision 6MP 8CH CCTV Kit: 8x Dome Cameras with AcuSense + 8CH PoE NVR/4TB
Feature	Detail
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone	-U: Yes
Audio	-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm	-S: 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key	Yes

General & Environment

General & Environment — Hikvision 6MP 8CH CCTV Kit: 8x Dome Cameras with AcuSense + 8CH PoE NVR/4TB
Feature	Detail
Power	12 VDC ± 25%, 0.65 A, max. 7.8 W, Ø 5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 9.5 W
Material	Base: aluminum alloy, cover: aluminum alloy
Dimension	Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Package Dimension	150 mm × 150 mm × 142 mm (9.2" × 4.7" × 4.6")
Weight	Approx. 525 g (1.2 lb.)
With Package Weight	Approx. 750 g (1.7 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat, mirror, password reset via email, pixel counter, anti-banding
Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
EMC	CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015; RCM: AS/NZS CISPR 32: 2015
Safety	CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; LOA: IEC/EN 60950-1
Environment	CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Protection	IP67: IEC 60529-2013, IK10: IEC 62262:2002
